6bqt

Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360

Method: X-RAY DIFFRACTION D_max: 173.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein theta

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–245 Chain B； UniProt 1–245	Not recorded	Insulin receptor substrate protein of 53 kDa, peptide (IRSp53) × 1 （Q9UQB8） PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 1PE PENTAETHYLENE GLYCOL × 3 EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 1–245 Chain E； UniProt 1–245	Not recorded	Insulin receptor substrate protein of 53 kDa, peptide (IRSp53) × 1 （Q9UQB8） EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 2 PGE TRIETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
3	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain G； UniProt 1–245 Chain H； UniProt 1–245	Not recorded	Insulin receptor substrate protein of 53 kDa, peptide (IRSp53) × 1 （Q9UQB8） 1PE PENTAETHYLENE GLYCOL × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
4	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain J； UniProt 1–245 Chain K； UniProt 1–245	Not recorded	Insulin receptor substrate protein of 53 kDa, peptide (IRSp53) × 1 （Q9UQB8） 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6BQT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BTP 14-3-3 Protein Theta (Human) Complexed to Peptide Deposited 2005-06-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–234（234 aa） Chain B 1–234（234 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.2M SODIUM ACETATE TRIHYDRATE, 0.1M TRISHCL PH8.5,30% PEG4000, pH 8.50	Resolution 2.80 Å R-free 0.259
5IQP 14-3-3 PROTEIN TAU ISOFORM Deposited 2016-03-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；24% PEG4K, 140 mM LI2SO4, 4 % of SATURATED NACL IN 80 mM MES AT pH 6.4; PROTEIN 7 mg/ml	Resolution 2.60 Å R-free 0.239
6BCR Complex of 14-3-3 theta with an IRSp53 peptide phosphorylated at T340 Deposited 2017-10-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	MG MAGNESIUM ION × 3 PEG DI(HYDROXYETHYL)ETHER × 2 1PE PENTAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.15 M Magnesium Formate, 18% PEG3350, 4% TFE	Resolution 1.99 Å R-free 0.229
6BCR Complex of 14-3-3 theta with an IRSp53 peptide phosphorylated at T340 Deposited 2017-10-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–245（245 aa） Chain F 1–245（245 aa）	Not recorded	MG MAGNESIUM ION × 2 PEG DI(HYDROXYETHYL)ETHER × 3 1PE PENTAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1 ETF TRIFLUOROETHANOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.15 M Magnesium Formate, 18% PEG3350, 4% TFE	Resolution 1.99 Å R-free 0.229
6BD2 Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and S366 Deposited 2017-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 1PE PENTAETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.90 Å R-free 0.254
6KZG 14-3-3 protein in Complex with CIC S301 phosphorylated peptide Deposited 2019-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–234（233 aa） Chain B 2–234（233 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；8% v/v TacsimateTM pH 6.0, 20% w/v Polyethylene glycol 3350	Resolution 2.00 Å R-free 0.231
6KZH 14-3-3 protein in Complex with CIC S173 phosphorylated peptide Deposited 2019-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–234（233 aa） Chain B 2–234（233 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Sodium chloride, 0.1 M HEPES pH 7.5, 25% w/v Polyethylene glycol 3,350	Resolution 2.65 Å R-free 0.274
7QI1 Crystal structure of human 14-3-3 protein beta in complex with CFTR peptide pS753pS768 and PPI stabilizer CY007424 Deposited 2021-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: octameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa） Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	ARG ARGININE × 2 Q95 [2-(2-methylphenyl)sulfanylphenyl]methanamine × 2 TYR TYROSINE × 2 GLN GLUTAMINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Qiagen Cryos Suite #44 (0.09 M HEPES sodium salt pH7.5, 1.26M tri-sodium citrate, 10% (v/v) glycerol) with an extra 2% (v/v) of glycerol.	Resolution 1.76 Å R-free 0.241

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	1433T_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–245； UniProt 1–245 Author chain B； PDBConstruct 1–245； UniProt 1–245 Author chain D； PDBConstruct 1–245； UniProt 1–245 Author chain E； PDBConstruct 1–245； UniProt 1–245 Author chain G； PDBConstruct 1–245； UniProt 1–245 Author chain H； PDBConstruct 1–245； UniProt 1–245 Author chain J； PDBConstruct 1–245； UniProt 1–245 Author chain K； PDBConstruct 1–245； UniProt 1–245

Insulin receptor substrate protein of 53 kDa, peptide (IRSp53)

OrganismNot specified

UniProt Q9UQB8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 335–366	Non-standard monomer：Yes (specific site not provided by mmCIF)	14-3-3 protein theta × 2 （P27348） PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 1PE PENTAETHYLENE GLYCOL × 3 EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain F； UniProt 335–366	Non-standard monomer：Yes (specific site not provided by mmCIF)	14-3-3 protein theta × 2 （P27348） EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 2 PGE TRIETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
3	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain I； UniProt 335–366	Non-standard monomer：Yes (specific site not provided by mmCIF)	14-3-3 protein theta × 2 （P27348） 1PE PENTAETHYLENE GLYCOL × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
4	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain L； UniProt 335–366	Non-standard monomer：Yes (specific site not provided by mmCIF)	14-3-3 protein theta × 2 （P27348） 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6BQT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WDZ Crystal structure of RCB domain of IRSp53 Deposited 2004-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–228（228 aa） Fragment：N-terminal domain Chain B 1–228（228 aa） Fragment：N-terminal domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；27% PEG4000, 0.09M Tris pH8.5, 0.19M Sodium acetate, 3.5% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.63 Å R-free 0.297
1Y2O Structure of N-terminal domain IRSp53/BAIAP2 Deposited 2004-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–250（250 aa） Fragment：N-terminal domain Chain B 1–250（250 aa） Fragment：N-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.267
2YKT Crystal structure of the I-BAR domain of IRSp53 (BAIAP2) in complex with an EHEC derived Tir peptide Deposited 2011-05-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–250（250 aa） Fragment：I-BAR DOMAIN, RESIDUES 1-250	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 16% (W/V) PEG 3350, 0.3M AMMONIUM SULPHATE	Resolution 2.11 Å R-free 0.276
3RNJ Crystal structure of the SH3 domain from IRSp53 (BAIAP2) Deposited 2011-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 375–436（62 aa） Fragment：SH3 domain, UNP residues 375-436	Not recorded	EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 EDO 1,2-ETHANEDIOL × 3 IPA ISOPROPYL ALCOHOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M ammonium acetate, 0.1M Tris-HCl pH 8.5, 30% isopropanol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.219
4JS0 Complex of Cdc42 with the CRIB-PR domain of IRSp53 Deposited 2013-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 260–291（32 aa） Fragment：CRIB-PR domain	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；18-20% PEG 4000, 0.2M magnesium chloride, 0.004M betain hydrochloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.90 Å R-free 0.199
6BD2 Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and S366 Deposited 2017-10-20	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 335–372（38 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PEG DI(HYDROXYETHYL)ETHER × 1 1PE PENTAETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.90 Å R-free 0.254
6ZEG Structure of PP1-IRSp53 chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M KSCN and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.09 Å R-free 0.140
6ZEG Structure of PP1-IRSp53 chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2 16P 3,6,9,12,15,18-HEXAOXAICOSANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M KSCN and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.09 Å R-free 0.140
6ZEI Structure of PP1-IRSp53 S455E chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；20% (w/v) polyethylene glycol 3350 and 0.2 M NaBr	Resolution 1.39 Å R-free 0.158
6ZEI Structure of PP1-IRSp53 S455E chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；20% (w/v) polyethylene glycol 3350 and 0.2 M NaBr	Resolution 1.39 Å R-free 0.158

8 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BAIP2_HUMAN
Isoform	Q9UQB8-2
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–32； UniProt 335–366 Author chain F； PDBConstruct 1–32； UniProt 335–366 Author chain I； PDBConstruct 1–32； UniProt 335–366 Author chain L； PDBConstruct 1–32； UniProt 335–366

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

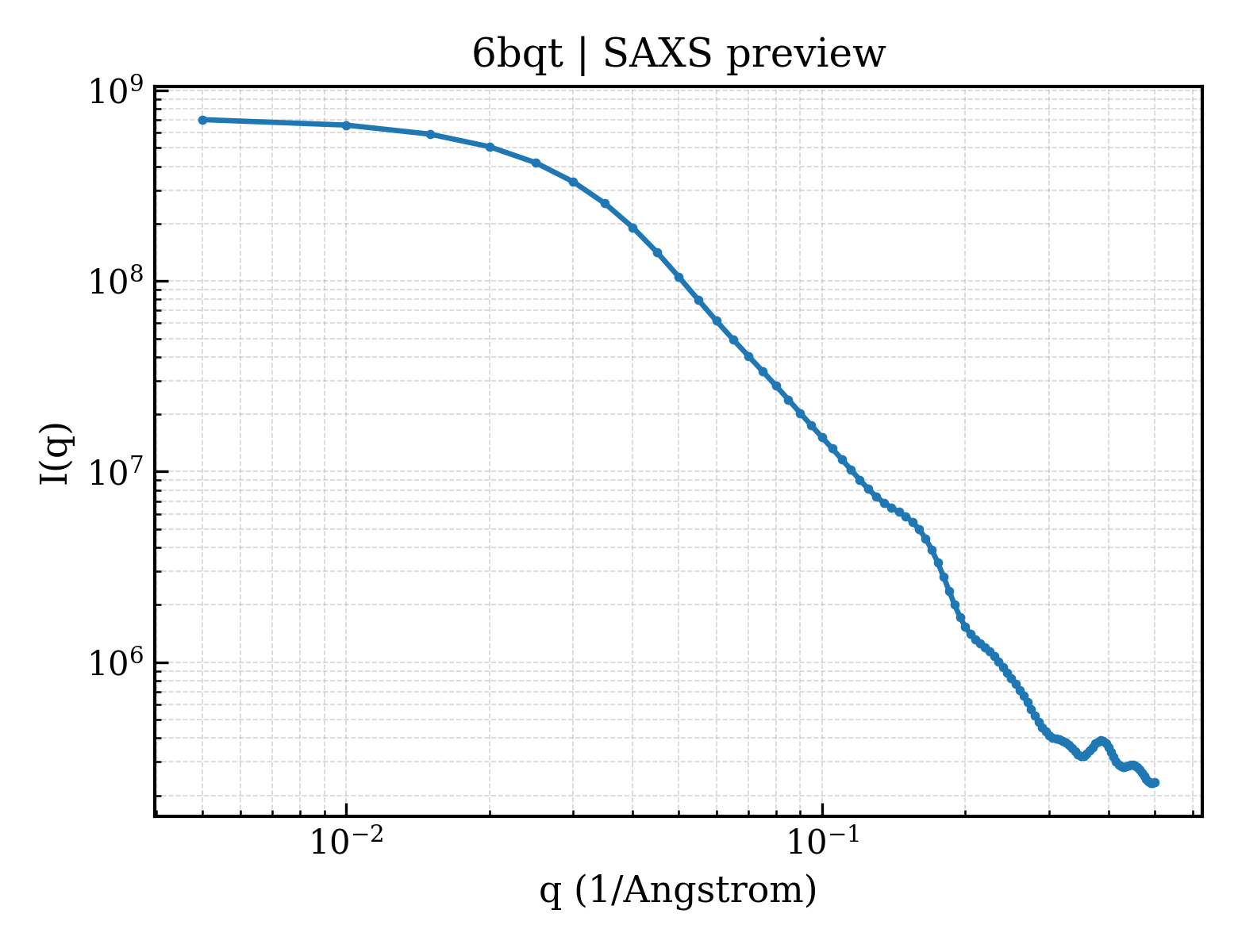

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6bqt
Deposition date deposition_date	2017-11-28
Structure title title	Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360
Keywords keywords	phosphate binding protein, protein complex, cytoskeleton regulation, cell motility, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	51.22 Å
Radius of gyration Rg (electron density) rg_electron	51.26 Å
Forward intensity I(0) i0	717886000.00
Molecular weight molecular_weight	221120.0 kDa
Excluded volume excluded_volume	276630 Å³
Envelope volume envelope_volume	417950 Å³
Hydration-shell volume shell_volume	70880 Å³
Envelope diameter envelope_diameter	179.5 Å
Shell Rg shell_rg	52.31 Å
Envelope Rg envelope_rg	49.23 Å
Shape Rg shape_rg	51.28 Å
Total Rg total_rg	51.23 Å
Total atoms total_atoms	31020
Residues n_residues	1891
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	173.6 Å
Rg (real space) rg_real	51.32 Å
Rg uncertainty (real space) rg_real_error	1.92 Å
I(0) (real space) i0_real	7.1790e+08
I(0) uncertainty (real space) i0_real_error	1.4340e+07
Rg (reciprocal space) rg_reciprocal	51.12 Å
I(0) (reciprocal space) i0_reciprocal	717700000.0000
Solution quality estimate total_estimate	0.8738
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	56.0 Å
Skewness Skewness skewness	0.343
Kurtosis Kurtosis kurtosis	-0.446
Angular range angular_range	— – 0.1550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	32640000.0000
Real-space data points n_real_points	32
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.696

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	14-3-3 protein theta
Molecular weight formula_weight	27795.2 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E,G,H,J,K
Atom count atom_count	31276

MEKTELIQKAKLAEQAERYDDMATCMKAVTEQGAELSNEERNLLSVAYKNVVGGRRSAWRVISSIEQKTDTSDKKLQLIKDYREKVESELRSICTTVLELLDKYLIANATNPESKVFYLKMKGDYFRYLAEVACGDDRKQTIDNSQGAYQEAFDISKKEMQPTHPIRLGLALNFSVFYYEILNNPELACTLAKTAFDEAIAELDTLNEDSYKDSTLIMQLLRDNLTLWTSDSAGEECDAAEGAEN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Insulin receptor substrate protein of 53 kDa, peptide (IRSp53)
Molecular weight formula_weight	3694.8 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I,L

DSYSNTLPVRKSVTPKNSYATTENKTLPRSSS

Entity 3 Entity 3 non-polymer

Description description	2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL
Molecular weight formula_weight	354.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	93

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	6bqtA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtJ00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	6bqtK00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.103 Å
Unit-cell length b length_b	69.572 Å
Unit-cell length c length_c	150.473 Å
Unit-cell angle α angle_alpha	99.16 °
Unit-cell angle β angle_beta	92.98 °
Unit-cell angle γ angle_gamma	115.98 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	42.983 Å
R factor r_factor	0.2360
R_work r_work	0.2340
R_free r_free	0.2867

fit	/app/data/saxs_computation/bq/6bqt/6bqt.fit
pddf	/app/data/pr_computation/bq/6bqt/6bqt.pr.out
profile	/app/data/saxs_computation/bq/6bqt/6bqt.dat

Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein theta

State in the Current Structure

Other States of the Same Protein in the Database

Insulin receptor substrate protein of 53 kDa, peptide (IRSp53)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 water

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
