SAXSdb — 1wdz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

insulin receptor substrate p53

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAIP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–231； UniProt 1–228 Author chain B； PDBConstruct 4–231； UniProt 1–228

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wdz
Deposition date deposition_date	2004-05-21
Structure title title	Crystal structure of RCB domain of IRSp53
Keywords keywords	cellular signaling protein, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wdz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wdz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

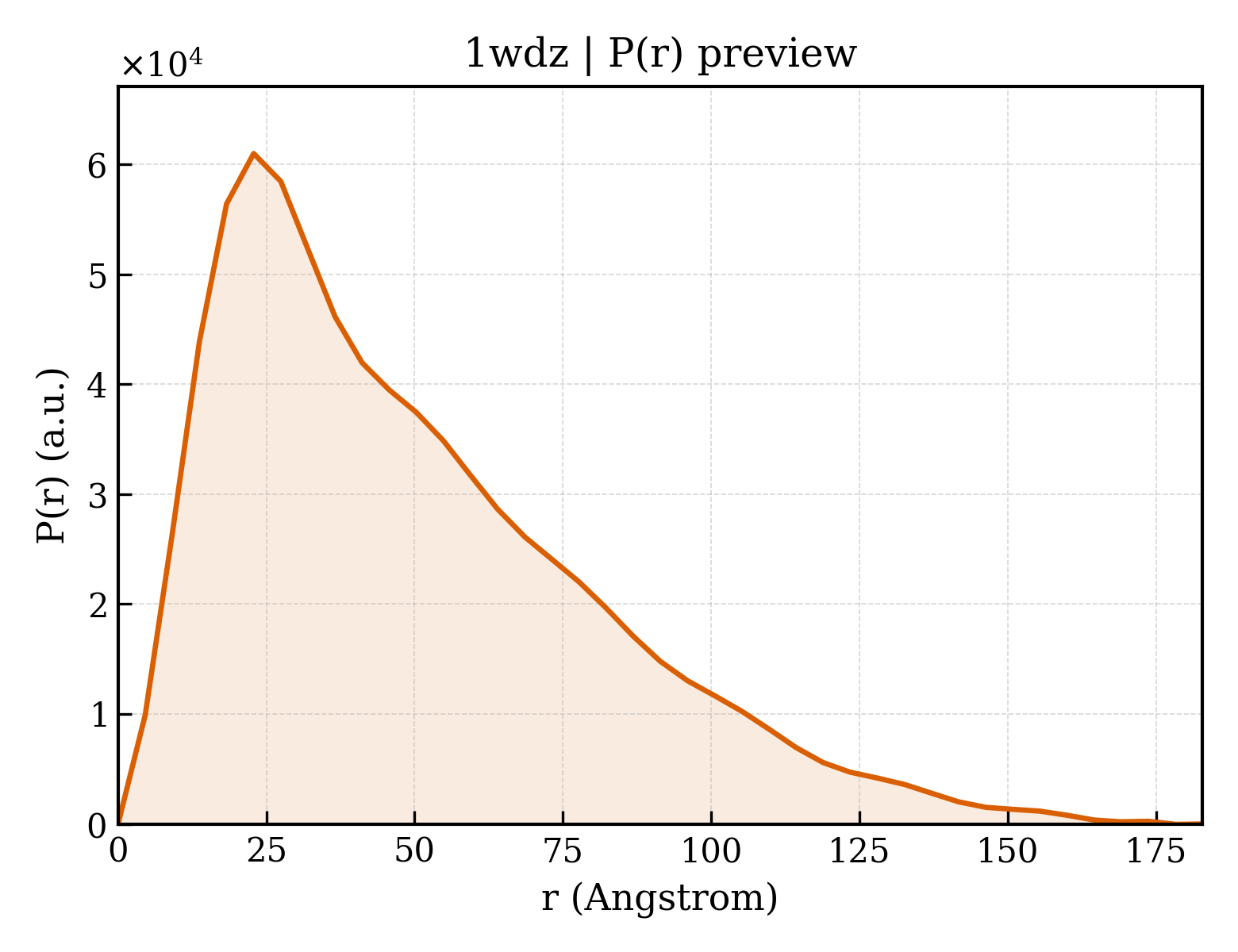

1wdz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.41 Å
Rg (electron density)	41.56 Å
Total Rg	41.18 Å
Atom count	3642
Residues	453
Excluded volume	64716 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wdz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1wdza1
Class class	a — All alpha proteins
Fold Fold fold	a.238 — BAR/IMD domain-like
Superfamily Superfamily superfamily	a.238.1 — BAR/IMD domain-like
Family Family family	a.238.1.3 — IMD domain

Domain ID domain_id	d1wdza2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1wdzb2
Class class	a — All alpha proteins
Fold Fold fold	a.238 — BAR/IMD domain-like
Superfamily Superfamily superfamily	a.238.1 — BAR/IMD domain-like
Family Family family	a.238.1.3 — IMD domain

Domain ID domain_id	d1wdzb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1wdzA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

Domain ID domain_id	1wdzB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

▶

Unit-cell length a length_a	60.833 Å
Unit-cell length b length_b	69.258 Å
Unit-cell length c length_c	68.715 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.12 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.630 Å
Low-resolution limit resolution_low	41.940 Å
R factor r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2970

Description description	insulin receptor substrate p53
Molecular weight formula_weight	27597.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3712

Crystal structure of RCB domain of IRSp53

1. Protein Identity and Related Structures Protein Identity & Related Structures

insulin receptor substrate p53

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1wdz__assembly_1__model_1

1wdz__assembly_1__model_1 | I(q)

1wdz__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70
