SAXSdb — 3rx6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polarity suppression protein

Enterobacteria phage P4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–190	Not recorded	HG MERCURY (II) ION × 2 IOD IODIDE ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；7.5% PEG 6000, 5% glycerol, 0.5mM DTT, 300mM NaCl, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.04 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3RX6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4DVD Crystal structure of the disulphide linked knotted homodimer of Psu Deposited 2012-02-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–190（190 aa）	Mutation：C13S,C117S,T123C	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；7.5%(w/v) PEG 6000, 5%(v/v) glycerol, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.00 Å R-free 0.273
8PEU Rho-ATPgS-Psu complex III Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain a 1–190（190 aa） Chain b 1–190（190 aa） Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa） Chain k 1–190（190 aa） Chain l 1–190（190 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.70 Å
8PEW Rho-ATPgS-Psu complex III expanded Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 34 PDB declaration: 34-meric	Chain a 1–190（190 aa） Chain b 1–190（190 aa） Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa） Chain k 1–190（190 aa） Chain l 1–190（190 aa） Chain m 1–190（190 aa） Chain n 1–190（190 aa） Chain o 1–190（190 aa） Chain p 1–190（190 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 16 MG MAGNESIUM ION × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 4.30 Å
8PEX Rho P167L-ATPgS-Psu complex II Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain a 1–190（190 aa） Chain b 1–190（190 aa） Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.10 Å
8PEY Rho P167L-ATPgS-Psu complex II locked Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain a 1–190（190 aa） Chain b 1–190（190 aa） Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.00 Å
9GCS Rho-ATP-Psu complex II Deposited 2024-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa） Chain k 1–190（190 aa） Chain l 1–190（190 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9GCT Rho-ATP-Psu complex II expanded Deposited 2024-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain a 1–190（190 aa） Chain b 1–190（190 aa） Chain c 1–190（190 aa） Chain d 1–190（190 aa） Chain e 1–190（190 aa） Chain f 1–190（190 aa） Chain g 1–190（190 aa） Chain h 1–190（190 aa） Chain i 1–190（190 aa） Chain j 1–190（190 aa） Chain k 1–190（190 aa） Chain l 1–190（190 aa） Chain o 1–190（190 aa） Chain p 1–190（190 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 15 MG MAGNESIUM ION × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VPSU_BPP4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–190； UniProt 1–190

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3rx6
Deposition date deposition_date	2011-05-10
Structure title title	Crystal structure of Polarity Suppression protein from Enterobacteria phage P4
Keywords keywords	;All alpha protein, transcription termination inhibitor, Rho binding, capsid decoration protein of bacteriophage P4, Transcription termination inhibition, Transcription terminator Rho helicase, Enterobacteria phage P4 capsid, Transcription Regulator ;; Transcription Regulator
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.68 Å
Radius of gyration Rg (electron density) rg_electron	24.89 Å
Forward intensity I(0) i0	9531620.00
Molecular weight molecular_weight	21470.0 kDa
Excluded volume excluded_volume	26185 Å³
Envelope volume envelope_volume	38676 Å³
Hydration-shell volume shell_volume	14883 Å³
Envelope diameter envelope_diameter	93.8 Å
Shell Rg shell_rg	28.63 Å
Envelope Rg envelope_rg	24.98 Å
Shape Rg shape_rg	24.94 Å
Total Rg total_rg	25.28 Å
Total atoms total_atoms	1488
Residues n_residues	187
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

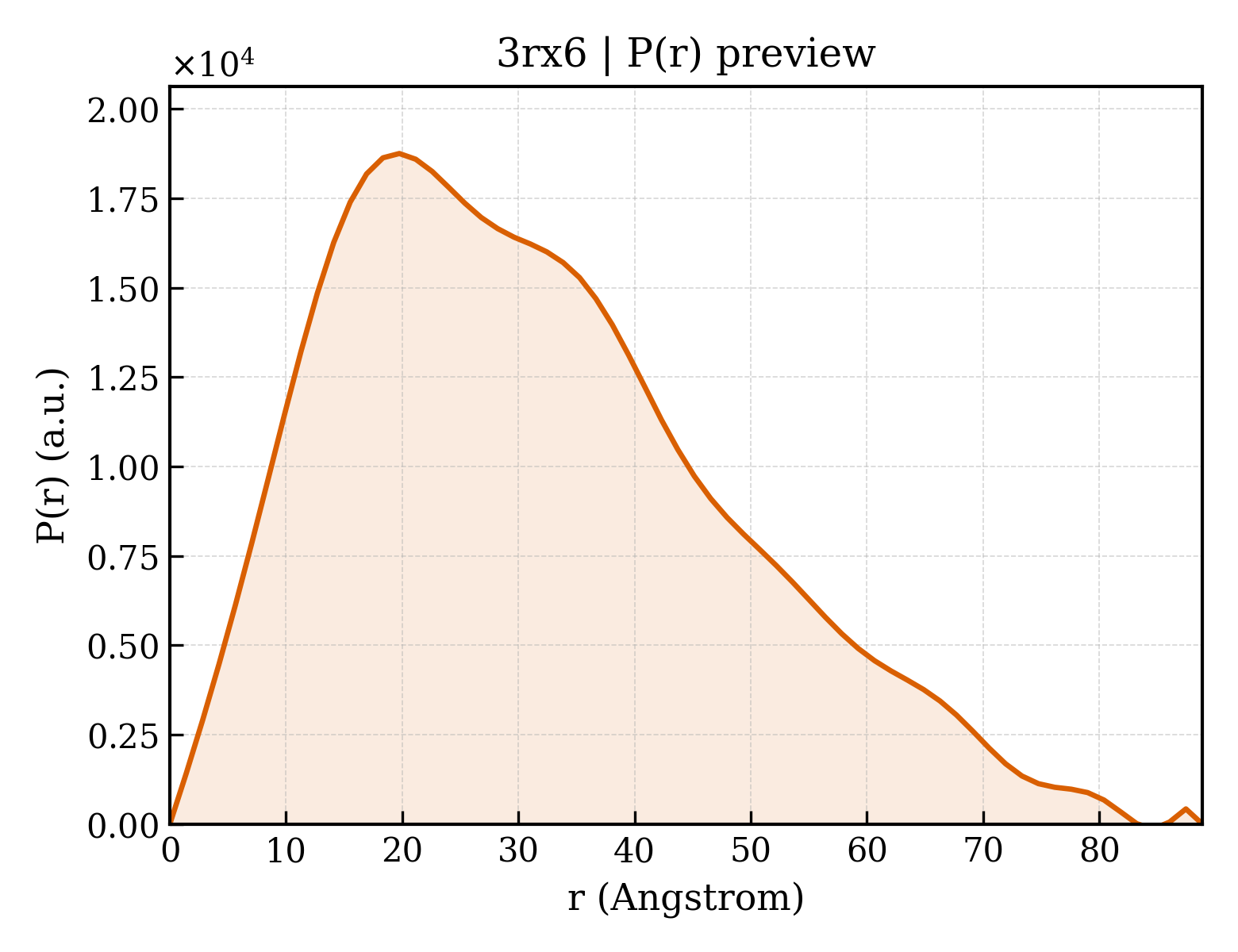

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.9 Å
Rg (real space) rg_real	25.12 Å
Rg uncertainty (real space) rg_real_error	1.07 Å
I(0) (real space) i0_real	9.5320e+06
I(0) uncertainty (real space) i0_real_error	1.6050e+05
Rg (reciprocal space) rg_reciprocal	25.02 Å
I(0) (reciprocal space) i0_reciprocal	9531000.0000
Solution quality estimate total_estimate	0.7168
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.8 Å
Skewness Skewness skewness	0.583
Kurtosis Kurtosis kurtosis	-0.229
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	558200.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.673; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.295; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Polarity suppression protein
Molecular weight formula_weight	21393.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1704

MESTALQQAFDTCQNNKAAWLQRKNELAAAEQEYLRLLSGEGRNVSRLDELRNIIEVRKWQVNQAAGRYIRSHEAVQHISIRDRLNDFMQQHGTALAAALAPELMGYSELTAIARNCAIQRATDALREALLSWLAKGEKINYSAQDSDILTTIGFRPDVASVDDSREKFTPAQNMIFSRKSAQLASRQSV

来源 Source

来源生物 organism	Enterobacteria phage P4
NCBI Class编号 ncbi_taxonomy_id	10680
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MERCURY (II) ION
Molecular weight formula_weight	200.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	IODIDE ION
Molecular weight formula_weight	126.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	216

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3rx6A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	1090 — Phage polarity suppression protein monomer

▶

8. Citations (1)

▶

Unit-cell length a length_a	148.750 Å
Unit-cell length b length_b	148.750 Å
Unit-cell length c length_c	63.370 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	2.039 Å
Low-resolution limit resolution_low	47.039 Å
R factor r_factor	0.1945
R_work r_work	0.1921
R_free r_free	0.2187

fit	/app/data/saxs_computation/rx/3rx6/3rx6.fit
pddf	/app/data/pr_computation/rx/3rx6/3rx6.pr.out
profile	/app/data/saxs_computation/rx/3rx6/3rx6.dat
