8pew

Rho-ATPgS-Psu complex III expanded

Method: ELECTRON MICROSCOPY Dmax: 217.0 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription termination factor Rho

Escherichia coli

UniProt A0A0A0GPI6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 34 PDB declaration: 34-meric（34） Consistent with protein copy count Chain A； UniProt 25–443 Chain B； UniProt 25–443 Chain C； UniProt 25–443 Chain D； UniProt 25–443 Chain E； UniProt 25–443 Chain F； UniProt 25–443 Chain G； UniProt 25–443 Chain H； UniProt 25–443 Chain I； UniProt 25–443 Chain J； UniProt 25–443 Chain K； UniProt 25–443 Chain L； UniProt 25–443 Chain M； UniProt 25–443 Chain N； UniProt 25–443 Chain O； UniProt 25–443 Chain P； UniProt 25–443 Chain X； UniProt 25–443 Chain Y； UniProt 25–443 Not recorded Polarity suppression protein × 16 （P05460） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 16 MG MAGNESIUM ION × 16 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen NITROGEN Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PEW Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6Z9Q Transcription termination intermediate complex 2 Deposited 2020-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
6Z9S Transcription termination intermediate complex 4 Deposited 2020-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
7ADB Transcription termination intermediate complex 1 delta NusG Deposited 2020-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
7ADC Transcription termination intermediate complex 3 delta NusG Deposited 2020-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7ADD Transcription termination intermediate complex IIIa Deposited 2020-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
7ADE Transcription termination complex IVa Deposited 2020-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8E3H Escherichia coli Rho-dependent transcription pre-termination complex containing 18 nt long RNA spacer, Mg-ADP-BeF3, and NusG; Rho hexamer part Deposited 2022-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
8E5L Escherichia coli Rho-dependent transcription pre-termination complex containing 21 nt long RNA spacer, Mg-ADP-BeF3, and NusG; Rho hexamer part Deposited 2022-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8E5P Escherichia coli Rho-dependent transcription pre-termination complex containing 24 nt long RNA spacer, Mg-ADP-BeF3, and NusG; Rho hexamer part Deposited 2022-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8E6W Escherichia coli Rho-dependent transcription pre-termination complex containing 18 nt long RNA spacer, lambda-tR1 rut RNA, Mg-ADP-BeF3, and NusG; Rho part Deposited 2022-08-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.27 Å
8E70 Escherichia coli Rho-dependent transcription pre-termination complex containing 18 nt long RNA spacer, dC75 rut mimic RNA, Mg-ADP-BeF3, and NusG; Rho hexamer part Deposited 2022-08-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric
Chain a 25–443（419 aa）
Chain b 25–443（419 aa）
Chain c 25–443（419 aa）
Chain d 25–443（419 aa）
Chain e 25–443（419 aa）
Chain f 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PEU Rho-ATPgS-Psu complex III Deposited 2023-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 25–443（419 aa）
Chain B 25–443（419 aa）
Chain C 25–443（419 aa）
Chain D 25–443（419 aa）
Chain E 25–443（419 aa）
Chain F 25–443（419 aa）
Chain I 25–443（419 aa）
Chain J 25–443（419 aa）
Chain K 25–443（419 aa）
Chain L 25–443（419 aa）
Chain M 25–443（419 aa）
Chain N 25–443（419 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
8Q3N Bacterial transcription termination factor Rho + ADP Deposited 2023-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 25–443（419 aa）
Chain B 25–443（419 aa）
Chain C 25–443（419 aa）
Chain D 25–443（419 aa）
Chain E 25–443（419 aa）
Chain F 25–443（419 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.63 Å
8Q3O Bacterial transcription termination factor Rho + pppGpp Deposited 2023-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 25–443（419 aa）
Chain B 25–443（419 aa）
Chain C 25–443（419 aa）
Chain D 25–443（419 aa）
Chain E 25–443（419 aa）
Chain F 25–443（419 aa）
Not recorded 0O2 guanosine 5'-(tetrahydrogen triphosphate) 3'-(trihydrogen diphosphate) × 4 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A0A0A0GPI6_ECOLX
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–419； UniProt 25–443 Author chain B； PDBConstruct 1–419； UniProt 25–443 Author chain C； PDBConstruct 1–419； UniProt 25–443 Author chain D； PDBConstruct 1–419； UniProt 25–443 Author chain E； PDBConstruct 1–419； UniProt 25–443 Author chain F； PDBConstruct 1–419； UniProt 25–443 Author chain G； PDBConstruct 1–419； UniProt 25–443 Author chain H； PDBConstruct 1–419； UniProt 25–443 Author chain I； PDBConstruct 1–419； UniProt 25–443 Author chain J； PDBConstruct 1–419； UniProt 25–443 Author chain K； PDBConstruct 1–419； UniProt 25–443 Author chain L； PDBConstruct 1–419； UniProt 25–443 Author chain M； PDBConstruct 1–419； UniProt 25–443 Author chain N； PDBConstruct 1–419； UniProt 25–443 Author chain O； PDBConstruct 1–419； UniProt 25–443 Author chain P； PDBConstruct 1–419； UniProt 25–443 Author chain X； PDBConstruct 1–419； UniProt 25–443 Author chain Y； PDBConstruct 1–419； UniProt 25–443

Polarity suppression protein

Enterobacteria phage P4

UniProt P05460

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 34 PDB declaration: 34-meric（34） Consistent with protein copy count Chain a； UniProt 1–190 Chain b； UniProt 1–190 Chain c； UniProt 1–190 Chain d； UniProt 1–190 Chain e； UniProt 1–190 Chain f； UniProt 1–190 Chain g； UniProt 1–190 Chain h； UniProt 1–190 Chain i； UniProt 1–190 Chain j； UniProt 1–190 Chain k； UniProt 1–190 Chain l； UniProt 1–190 Chain m； UniProt 1–190 Chain n； UniProt 1–190 Chain o； UniProt 1–190 Chain p； UniProt 1–190 Not recorded Transcription termination factor Rho × 18 （A0A0A0GPI6） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 16 MG MAGNESIUM ION × 16 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen NITROGEN Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PEW Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3RX6 Crystal structure of Polarity Suppression protein from Enterobacteria phage P4 Deposited 2011-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–190（190 aa）
Not recorded HG MERCURY (II) ION × 2 IOD IODIDE ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；7.5% PEG 6000, 5% glycerol, 0.5mM DTT, 300mM NaCl, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.04 Å R-free 0.219
4DVD Crystal structure of the disulphide linked knotted homodimer of Psu Deposited 2012-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–190（190 aa）
Mutation：C13S,C117S,T123C No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；7.5%(w/v) PEG 6000, 5%(v/v) glycerol, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.273
8PEU Rho-ATPgS-Psu complex III Deposited 2023-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain a 1–190（190 aa）
Chain b 1–190（190 aa）
Chain c 1–190（190 aa）
Chain d 1–190（190 aa）
Chain e 1–190（190 aa）
Chain f 1–190（190 aa）
Chain g 1–190（190 aa）
Chain h 1–190（190 aa）
Chain i 1–190（190 aa）
Chain j 1–190（190 aa）
Chain k 1–190（190 aa）
Chain l 1–190（190 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 10 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
8PEX Rho P167L-ATPgS-Psu complex II Deposited 2023-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain a 1–190（190 aa）
Chain b 1–190（190 aa）
Chain c 1–190（190 aa）
Chain d 1–190（190 aa）
Chain e 1–190（190 aa）
Chain f 1–190（190 aa）
Chain g 1–190（190 aa）
Chain h 1–190（190 aa）
Chain i 1–190（190 aa）
Chain j 1–190（190 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
8PEY Rho P167L-ATPgS-Psu complex II locked Deposited 2023-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain a 1–190（190 aa）
Chain b 1–190（190 aa）
Chain c 1–190（190 aa）
Chain d 1–190（190 aa）
Chain e 1–190（190 aa）
Chain f 1–190（190 aa）
Chain g 1–190（190 aa）
Chain h 1–190（190 aa）
Chain i 1–190（190 aa）
Chain j 1–190（190 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
9GCS Rho-ATP-Psu complex II Deposited 2024-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain c 1–190（190 aa）
Chain d 1–190（190 aa）
Chain e 1–190（190 aa）
Chain f 1–190（190 aa）
Chain g 1–190（190 aa）
Chain h 1–190（190 aa）
Chain i 1–190（190 aa）
Chain j 1–190（190 aa）
Chain k 1–190（190 aa）
Chain l 1–190（190 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 12 MG MAGNESIUM ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9GCT Rho-ATP-Psu complex II expanded Deposited 2024-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain a 1–190（190 aa）
Chain b 1–190（190 aa）
Chain c 1–190（190 aa）
Chain d 1–190（190 aa）
Chain e 1–190（190 aa）
Chain f 1–190（190 aa）
Chain g 1–190（190 aa）
Chain h 1–190（190 aa）
Chain i 1–190（190 aa）
Chain j 1–190（190 aa）
Chain k 1–190（190 aa）
Chain l 1–190（190 aa）
Chain o 1–190（190 aa）
Chain p 1–190（190 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 15 MG MAGNESIUM ION × 15 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name VPSU_BPP4
Isoform —
PDB entities 2
Chains and sequence ranges Author chain a； PDBConstruct 1–190； UniProt 1–190 Author chain b； PDBConstruct 1–190； UniProt 1–190 Author chain c； PDBConstruct 1–190； UniProt 1–190 Author chain d； PDBConstruct 1–190； UniProt 1–190 Author chain e； PDBConstruct 1–190； UniProt 1–190 Author chain f； PDBConstruct 1–190； UniProt 1–190 Author chain g； PDBConstruct 1–190； UniProt 1–190 Author chain h； PDBConstruct 1–190； UniProt 1–190 Author chain i； PDBConstruct 1–190； UniProt 1–190 Author chain j； PDBConstruct 1–190； UniProt 1–190 Author chain k； PDBConstruct 1–190； UniProt 1–190 Author chain l； PDBConstruct 1–190； UniProt 1–190 Author chain m； PDBConstruct 1–190； UniProt 1–190 Author chain n； PDBConstruct 1–190； UniProt 1–190 Author chain o； PDBConstruct 1–190； UniProt 1–190 Author chain p； PDBConstruct 1–190； UniProt 1–190

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8pew

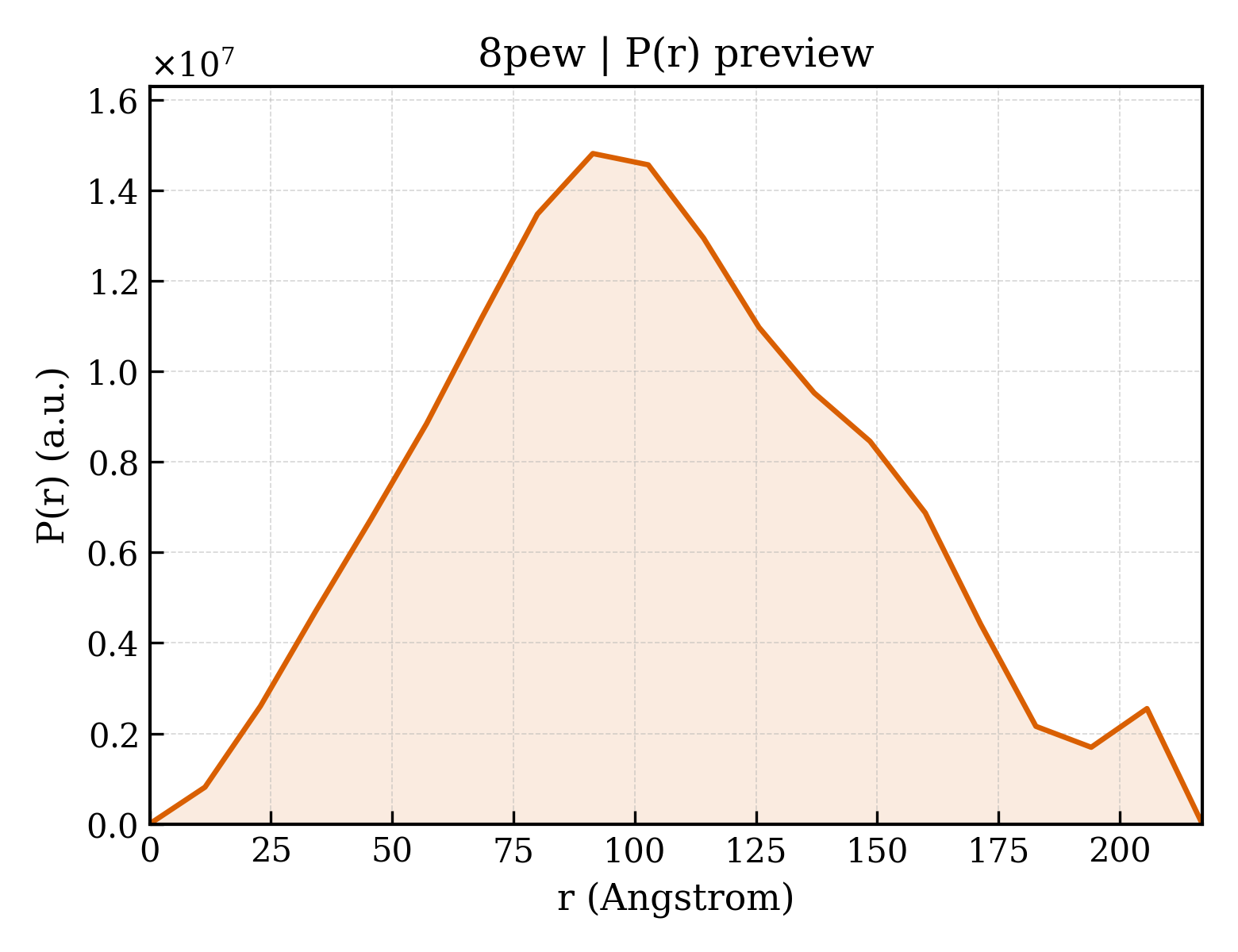

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8pew
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8pew
Deposition date deposition_date2023-06-15
Structure title titleRho-ATPgS-Psu complex III expanded
Keywords keywordsTranscription termination, Phage inhibitor, GENE REGULATION; GENE REGULATION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier82.59 Å
Radius of gyration Rg (electron density) rg_electron82.66 Å
Forward intensity I(0) i020402100000.00
Molecular weight molecular_weight1191200.0 kDa
Excluded volume excluded_volume1483800 ų
Envelope volume envelope_volume2569200 ų
Hydration-shell volume shell_volume260110 ų
Envelope diameter envelope_diameter311.5 Å
Shell Rg shell_rg85.90 Å
Envelope Rg envelope_rg78.18 Å
Shape Rg shape_rg82.70 Å
Total Rg total_rg82.55 Å
Total atoms total_atoms83524
Residues n_residues10534
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax217.0 Å
Rg (real space) rg_real79.18 Å
Rg uncertainty (real space) rg_real_error0.53 Å
I(0) (real space) i0_real1.9720e+10
I(0) uncertainty (real space) i0_real_error3.5120e+08
Rg (reciprocal space) rg_reciprocal82.60 Å
I(0) (reciprocal space) i0_reciprocal20400000000.0000
Solution quality estimate total_estimate0.6600
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary91.4 Å
Skewness Skewness skewness0.223
Kurtosis Kurtosis kurtosis-0.424
Angular range angular_range— – 0.0950 Å−1
Current regularization parameter α current_alpha0.1250
Highest regularization parameter α highest_alpha1335000000.0000
Real-space data points n_real_points20
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.943; Stabil: 0.978; Sysdev: 0.008; Positv: 1.000; Valcen: 0.949; Smooth: 0.003
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▶

8. Citations (1)

▶

9. Files and Curves (10)
