SAXSdb — 3s98

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon alpha/beta receptor 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 30–332	Fragment：UNP Residues 30-332 Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：298 K；20% (w/v) PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3S98	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3SE3 human IFNa2-IFNAR ternary complex Deposited 2011-06-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–436（409 aa） Fragment：IFNa2(YNS) (UNP Residues 28-436)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；15% (w/v) PEG 3350, 100 mM Na malonate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 4.00 Å R-free 0.311
3SE4 human IFNw-IFNAR ternary complex Deposited 2011-06-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–436（409 aa） Fragment：IFNw (UNP Residues 28-436)	Mutation：N101Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；19% (w/v) PEG 3350, 100 mM Ammonium sulfate, 100 mM Bis-Tris pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.288
4PO6 Crystal structure of the human TYK2 FERM and SH2 domains with an IFNAR1 intracellular peptide Deposited 2014-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 478–507（30 aa） Fragment：unp residues 475-507	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；0.1 M Tris HCl pH 7.0, 0.2 M MgCl2, and 8-12% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.99 Å R-free 0.234
8Y31 The crystal structure of the QX006N-Fab/IFNAR1-SD123 complex Deposited 2024-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–333（333 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION, RECRYSTALLIZATION；289 K；8%(w/v) PEG3350 50 mM Na-Citrate pH 5.5, 100 mM (NH4)2Citrate, 250 mM NaCl, 5 mM Hexadecyltrimethylammonium Bromide	Resolution 2.68 Å R-free 0.239
8Y31 The crystal structure of the QX006N-Fab/IFNAR1-SD123 complex Deposited 2024-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–333（333 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION, RECRYSTALLIZATION；289 K；8%(w/v) PEG3350 50 mM Na-Citrate pH 5.5, 100 mM (NH4)2Citrate, 250 mM NaCl, 5 mM Hexadecyltrimethylammonium Bromide	Resolution 2.68 Å R-free 0.239

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IFNAR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–306； UniProt 30–332

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3s98
Deposition date deposition_date	2011-06-01
Structure title title	human IFNAR1
Keywords keywords	;human, type I interferons, receptor chain, IFNAR1, fibronectin type III, type I interferon receptor chain, extracellular space, SIGNALING PROTEIN RECEPTOR ;; SIGNALING PROTEIN RECEPTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.30 Å
Radius of gyration Rg (electron density) rg_electron	26.85 Å
Forward intensity I(0) i0	15833800.00
Molecular weight molecular_weight	30780.0 kDa
Excluded volume excluded_volume	38635 Å³
Envelope volume envelope_volume	49257 Å³
Hydration-shell volume shell_volume	17679 Å³
Envelope diameter envelope_diameter	94.0 Å
Shell Rg shell_rg	30.31 Å
Envelope Rg envelope_rg	26.67 Å
Shape Rg shape_rg	26.82 Å
Total Rg total_rg	27.41 Å
Total atoms total_atoms	2166
Residues n_residues	267
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.6 Å
Rg (real space) rg_real	28.32 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	1.5740e+07
I(0) uncertainty (real space) i0_real_error	1.9770e+05
Rg (reciprocal space) rg_reciprocal	27.57 Å
I(0) (reciprocal space) i0_reciprocal	15830000.0000
Solution quality estimate total_estimate	0.6008
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	19.9 Å
Skewness Skewness skewness	0.495
Kurtosis Kurtosis kurtosis	-0.599
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	6.5660
Highest regularization parameter α highest_alpha	2625000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 0.934; Sysdev: 0.000; Positv: 1.000; Valcen: 0.521; Smooth: 0.072

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Interferon alpha/beta receptor 1
Molecular weight formula_weight	35641.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2349

ADPLKSPQKVEVDIIDDNFILRWNRSDESVGNVTFSFDYQKTGMDNWIKLSGCQNITSTKCNFSSLKLNVYEEIKLRIRAEKENTSSWYEVDSFTPFRKAQIGPPEVHLEAEDKAIVIHISPGTKDSVMWALDGLSFTYSLVIWKNSSGVEERIENIYSRHKIYKLSPETTYCLKVKAALLTSWKIGVYSPVHCIKTTVENELPPPENIEVSVQNQNYVLKWDYTYANMTFQVQWLHAFLKRNPGNHLYKWKQIPDCENVKTTQCVFPQNVFQKGIYLLRVQASDGNNTSFWSEEIKFDTEIQAFL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	3s98A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3s98A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3s98A03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.090 Å
Unit-cell length b length_b	86.180 Å
Unit-cell length c length_c	91.340 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	19.486 Å
R factor r_factor	—
R_work r_work	0.2100
R_free r_free	0.2340

fit	/app/data/saxs_computation/s9/3s98/3s98.fit
pddf	/app/data/pr_computation/s9/3s98/3s98.pr.out
profile	/app/data/saxs_computation/s9/3s98/3s98.dat

human IFNAR1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon alpha/beta receptor 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

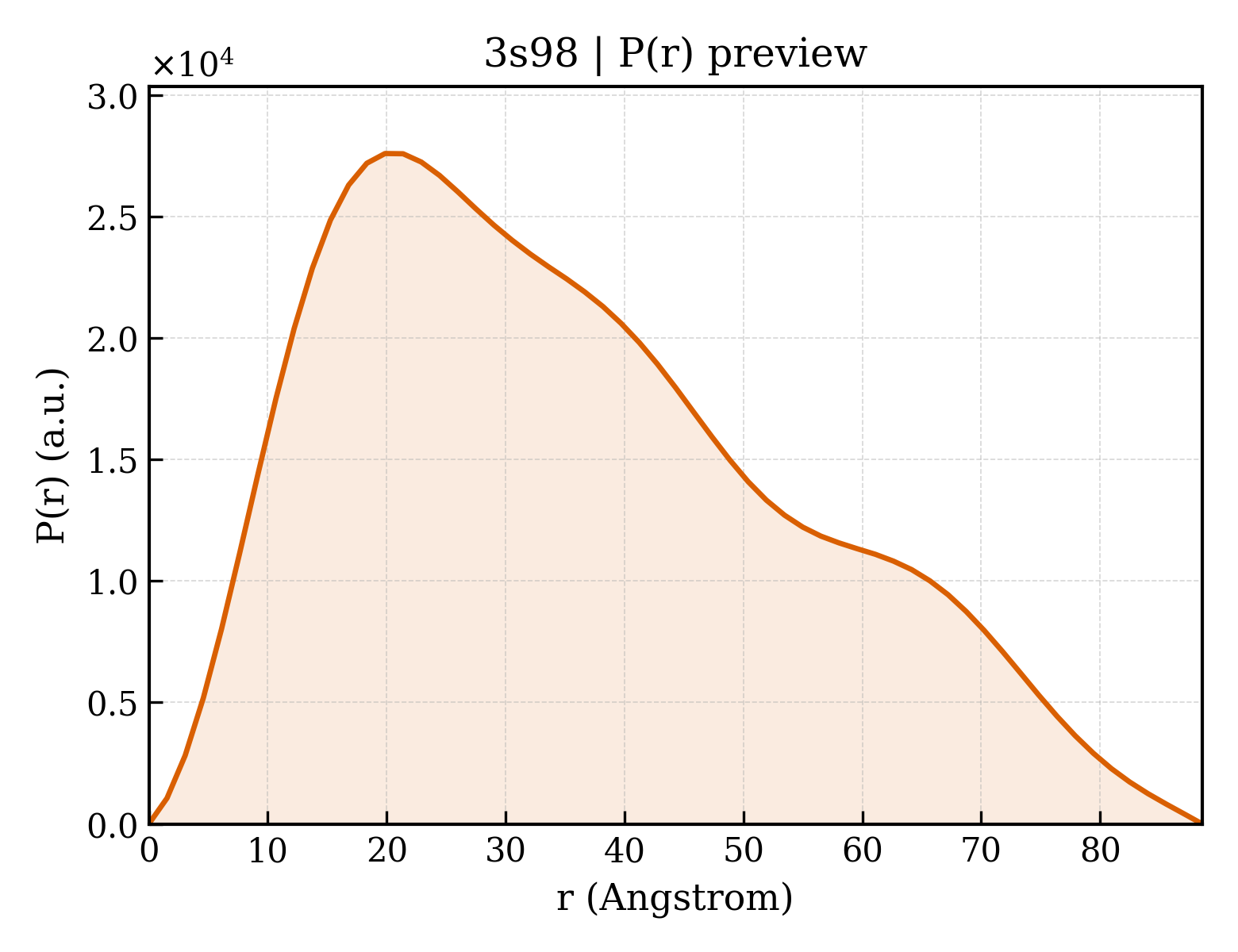

P(r) Distance Distribution P(r) Distribution
