SAXSdb — 3u1m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pre-mRNA-splicing factor CWC2

Saccharomyces cerevisiae

UniProt Q12046

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–240	Fragment：UNP residues 1-240	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；pH 6.5, 21% PEG 3350, 200mM (NH4)2HCitrate, 100mM Na3Citrate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.95 Å R-free 0.191

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3U1M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3TP2 Crystal Structure of the Splicing Factor Cwc2 from yeast Deposited 2011-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–227（227 aa） Fragment：UNP residues 1-227	Not recorded	NA SODIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG5000 MME, ammonium sulfate, MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.40 Å R-free 0.256
3TP2 Crystal Structure of the Splicing Factor Cwc2 from yeast Deposited 2011-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–227（227 aa） Fragment：UNP residues 1-227	Not recorded	NA SODIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG5000 MME, ammonium sulfate, MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.40 Å R-free 0.256
3U1L Structure of the mRNA splicing complex component Cwc2 Deposited 2011-09-30	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–240（240 aa） Fragment：UNP residues 1-240	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；pH 6.5, 21% PEG 3350, 200mM (NH4)2HCitrate, 100mM Na3Citrate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.64 Å R-free 0.189
5GM6 Cryo-EM structure of the activated spliceosome (Bact complex) at 3.5 angstrom resolution Deposited 2016-07-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 46-meric	Chain R 1–339（339 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 13 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；CEB buffer (10 mM Tris-HCl, pH 8.0, 75 mM NaCl, 1 mM Mg(OAc)2, 1 mM imidazole, 0.01% NP40, 1 mM TCEP, 0.5 mM EGTA) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
5GMK Cryo-EM structure of the Catalytic Step I spliceosome (C complex) at 3.4 angstrom resolution Deposited 2016-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 45-meric	Chain R 1–339（339 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8；The CEB buffer (10 mM Tris-HCl, pH 8.0, 75 mM NaCl, 1 mM Mg(OAc)2, 1 mM imidazole, 0.01% NP40, 1 mM TCEP, 0.5 mM EGTA) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
5LJ5 Overall structure of the yeast spliceosome immediately after branching. Deposited 2016-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 45-meric	Chain M 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 2 ZN ZINC ION × 7 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；3 microlitres sample were applied to the grid, left for 30 seconds and then blotted for 2.5-3.0 seconds before plunging.	Resolution 10.00 Å
5LQW yeast activated spliceosome Deposited 2016-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 27 PDB declaration: 31-meric	Chain F 1–339（339 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.80 Å
5MPS Structure of a spliceosome remodeled for exon ligation Deposited 2016-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 25 PDB declaration: 30-meric	Chain M 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 3 K POTASSIUM ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；NP-40 is also called IGEPAL CA-630 cryo-EM vitrification conditions Cryogen ETHANE；3.5 microlitres sample were applied to the grid, left for 25 seconds and then blotted for 3.0-3.5 seconds before plunging.	Resolution 3.85 Å
5MQ0 Structure of a spliceosome remodeled for exon ligation Deposited 2016-12-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 46-meric	Chain M 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 3 K POTASSIUM ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；NP-40 is also called IGEPAL CA-630 cryo-EM vitrification conditions Cryogen ETHANE；3.5 microlitres sample were applied to the grid, left for 25 seconds and then blotted for 3.0-3.5 seconds before plunging.	Resolution 4.17 Å
5WSG Cryo-EM structure of the Catalytic Step II spliceosome (C* complex) at 4.0 angstrom resolution Deposited 2016-12-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 45-meric	Chain R 1–339（339 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8；10mM Tris-HCl, pH 8.0, 75mM NaCl, 1mM Mg(OAc)2, 1mM imidazole, 0.01% NP40, 1mM TCEP, 0.5mM EGTA cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
5Y88 Cryo-EM structure of the intron-lariat spliceosome ready for disassembly from S.cerevisiae at 3.5 angstrom Deposited 2017-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 44-meric	Chain N 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å
5YLZ Cryo-EM Structure of the Post-catalytic Spliceosome from Saccharomyces cerevisiae at 3.6 angstrom Deposited 2017-10-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 43-meric	Chain N 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6BK8 S. cerevisiae spliceosomal post-catalytic P complex Deposited 2017-11-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 46-meric	Chain G 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 5 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
6EXN Post-catalytic P complex spliceosome with 3' splice site docked Deposited 2017-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 40-meric	Chain M 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；3 uL sample was applied to the grid, left for 30s, then blotted for 3s and immediately plunged into liquid ethane.	Resolution 3.70 Å
6J6G Cryo-EM structure of the yeast B*-a2 complex at an average resolution of 3.2 angstrom Deposited 2019-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 37 PDB declaration: 41-meric	Chain R 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6J6H Cryo-EM structure of the yeast B*-a1 complex at an average resolution of 3.6 angstrom Deposited 2019-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 37 PDB declaration: 41-meric	Chain R 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6J6N Cryo-EM structure of the yeast B*-b1 complex at an average resolution of 3.86 angstrom Deposited 2019-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 37 PDB declaration: 41-meric	Chain R 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
6J6Q Cryo-EM structure of the yeast B*-b2 complex at an average resolution of 3.7 angstrom Deposited 2019-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 42-meric	Chain R 1–339（339 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9DTR Structure of the yeast post-catalytic P complex spliceosome at 2.3 Angstrom resolution Deposited 2024-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 42 PDB declaration: 47-meric	Chain M 1–339（339 aa）	Not recorded	MG MAGNESIUM ION × 2 K POTASSIUM ION × 4 IHP INOSITOL HEXAKISPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.31 Å

18 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CWC2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–240； UniProt 1–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3u1m
Deposition date deposition_date	2011-09-30
Structure title title	Structure of the mRNA splicing complex component Cwc2
Keywords keywords	CSMP, Zinc Finger, mRNA splicing, SPLICING; SPLICING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.45 Å
Radius of gyration Rg (electron density) rg_electron	17.22 Å
Forward intensity I(0) i0	11711400.00
Molecular weight molecular_weight	25216.0 kDa
Excluded volume excluded_volume	31470 Å³
Envelope volume envelope_volume	37150 Å³
Hydration-shell volume shell_volume	17794 Å³
Envelope diameter envelope_diameter	56.3 Å
Shell Rg shell_rg	23.57 Å
Envelope Rg envelope_rg	17.53 Å
Shape Rg shape_rg	17.19 Å
Total Rg total_rg	18.32 Å
Total atoms total_atoms	1774
Residues n_residues	221
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

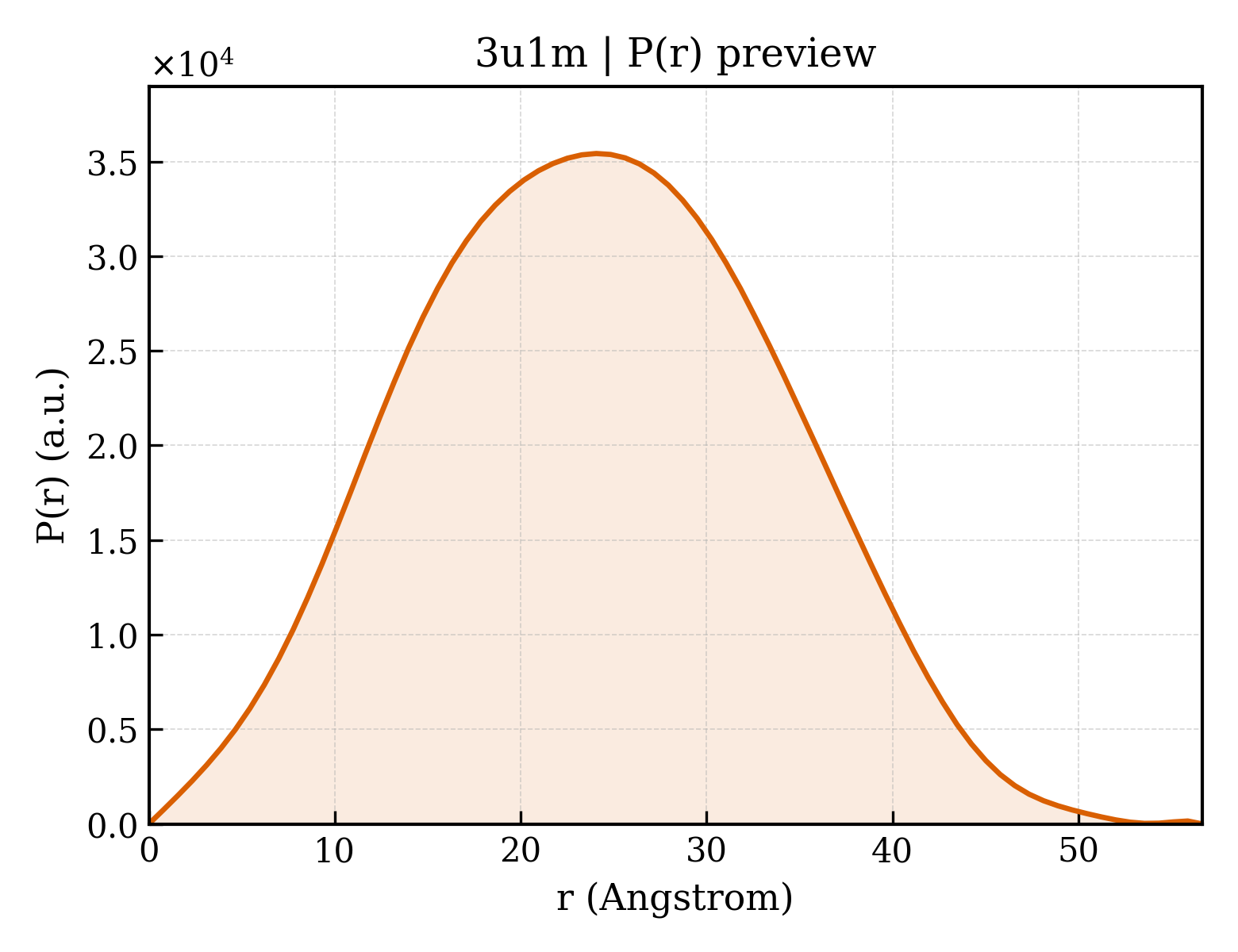

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.7 Å
Rg (real space) rg_real	18.32 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	1.1710e+07
I(0) uncertainty (real space) i0_real_error	1.2830e+05
Rg (reciprocal space) rg_reciprocal	18.35 Å
I(0) (reciprocal space) i0_reciprocal	11710000.0000
Solution quality estimate total_estimate	0.9018
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.1 Å
Skewness Skewness skewness	0.080
Kurtosis Kurtosis kurtosis	-0.509
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2540000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.962

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Pre-mRNA-splicing factor CWC2
Molecular weight formula_weight	27373.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2111

MTSWRDKSAKVQVKESELPSSIPAQTGLTFNIWYNKWSQGFAGNTRFVSPFALQPQLHSGKTRGDNDGQLFFCLFFAKGMCCLGPKCEYLHHIPDEEDIGKLALRTEVLDCFGREKFADYREDMGGIGSFRKKNKTLYVGGIDGALNSKHLKPAQIESRIRFVFSRLGDIDRIRYVESKNCGFVKFKYQANAEFAKEAMSNQTLLLPSDKEWDDRREGTGLLVKWANEDPDPAAQKRLQE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	326

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3u1ma1
Class class	g — Small proteins
Fold Fold fold	g.66 — CCCH zinc finger
Superfamily Superfamily superfamily	g.66.1 — CCCH zinc finger
Family Family family	g.66.1.2 — Pre-mRNA splicing factor Cwc2 / Cwf2 / Prp3, zinc finger domain

Domain ID domain_id	d3u1ma2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

CATH v4.4 (1 domains)

Domain ID domain_id	3u1mA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	44.719 Å
Unit-cell length b length_b	54.340 Å
Unit-cell length c length_c	111.381 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	29.347 Å
R factor r_factor	0.1606
R_work r_work	0.1590
R_free r_free	0.1910

fit	/app/data/saxs_computation/u1/3u1m/3u1m.fit
pddf	/app/data/pr_computation/u1/3u1m/3u1m.pr.out
profile	/app/data/saxs_computation/u1/3u1m/3u1m.dat
