SAXSdb — 3u3z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microcephalin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 640–835	Fragment：Tandem BRCT domains (BRCT2-BRCT3, UNP residues 640-835)	Histone H2A.X peptide × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；295 K；22% PEG3350, 0.03 M citric acid, 0.07 M Bis-Tris-propane, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.50 Å R-free 0.171

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3U3Z	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2WT8 Structure of the N-terminal BRCT domain of human microcephalin (Mcph1) Deposited 2009-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–95（95 aa） Fragment：N-TERMINAL BRCT DOMAIN, RESIDUES 1-95	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM MES, PH 6.0, 18% PEG 6000, 200 MM NH4CL	Resolution 1.60 Å R-free 0.222
2WT8 Structure of the N-terminal BRCT domain of human microcephalin (Mcph1) Deposited 2009-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–95（95 aa） Fragment：N-TERMINAL BRCT DOMAIN, RESIDUES 1-95	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM MES, PH 6.0, 18% PEG 6000, 200 MM NH4CL	Resolution 1.60 Å R-free 0.222
2WT8 Structure of the N-terminal BRCT domain of human microcephalin (Mcph1) Deposited 2009-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–95（95 aa） Fragment：N-TERMINAL BRCT DOMAIN, RESIDUES 1-95	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM MES, PH 6.0, 18% PEG 6000, 200 MM NH4CL	Resolution 1.60 Å R-free 0.222
2WT8 Structure of the N-terminal BRCT domain of human microcephalin (Mcph1) Deposited 2009-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–95（95 aa） Fragment：N-TERMINAL BRCT DOMAIN, RESIDUES 1-95	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM MES, PH 6.0, 18% PEG 6000, 200 MM NH4CL	Resolution 1.60 Å R-free 0.222
3KTF Structure of the N-terminal BRCT domain of human microcephalin (MCPH1). Deposited 2009-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–101（101 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.195
3KTF Structure of the N-terminal BRCT domain of human microcephalin (MCPH1). Deposited 2009-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–101（101 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.195
3KTF Structure of the N-terminal BRCT domain of human microcephalin (MCPH1). Deposited 2009-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–101（101 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.195
3PA6 Structure of the N-terminal BRCT domain of human microcephalin (MCPH1) Deposited 2010-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–105（105 aa） Fragment：BRCT DOMAIN, UNP residues 1-105	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.50 Å R-free 0.190
3PA6 Structure of the N-terminal BRCT domain of human microcephalin (MCPH1) Deposited 2010-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–105（105 aa） Fragment：BRCT DOMAIN, UNP residues 1-105	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.50 Å R-free 0.190
3PA6 Structure of the N-terminal BRCT domain of human microcephalin (MCPH1) Deposited 2010-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–105（105 aa） Fragment：BRCT DOMAIN, UNP residues 1-105	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；0.2M sodium succinate, 15% PEG 3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.50 Å R-free 0.190
3SHT Crystal structure of human MCPH1 tandem BRCT domains Deposited 2011-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 639–835（197 aa） Fragment：residues 639-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；281 K；100mM HEPES, 10% PEG6000, 5% MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 281K	Resolution 1.95 Å R-free 0.242
3SHT Crystal structure of human MCPH1 tandem BRCT domains Deposited 2011-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 639–835（197 aa） Fragment：residues 639-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；281 K；100mM HEPES, 10% PEG6000, 5% MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 281K	Resolution 1.95 Å R-free 0.242
3SHT Crystal structure of human MCPH1 tandem BRCT domains Deposited 2011-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 639–835（197 aa） Fragment：residues 639-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；281 K；100mM HEPES, 10% PEG6000, 5% MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 281K	Resolution 1.95 Å R-free 0.242
3SHV Crystal structure of human MCPH1 tandem BRCT domains-gamma H2AX complex Deposited 2011-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 639–835（197 aa） Fragment：residues 639-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M Sodium acetate trihydrate, 100mM TRIS hydrochloride(pH 8.5), 30%(w/v) PEG4000 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.242
3SHV Crystal structure of human MCPH1 tandem BRCT domains-gamma H2AX complex Deposited 2011-06-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 639–835（197 aa） Fragment：residues 639-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M Sodium acetate trihydrate, 100mM TRIS hydrochloride(pH 8.5), 30%(w/v) PEG4000 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.242
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3SZM STRUCTURE OF HUMAN MICROCEPHALIN (MCPH1) TANDEM BRCT DOMAINS IN COMPLEX WITH A GAMMA-H2AX PHOSPHOPEPTIDE Deposited 2011-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；20% PEG 4000, 0.1M (NH4)H2PO4, 0.1M BIS-TRIS-PROPANE , PH 4.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295K	Resolution 2.63 Å R-free 0.252
3T1N Structure of human MICROCEPHALIN (MCPH1) TANDEM BRCT domains in complex with a CDC27 phosphopeptide Deposited 2011-07-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, UNP RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；30% PEG 3350, 0.3 M NACL, 0.1 M BIS-TRIS, PH 7.1, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.60 Å R-free 0.262
3T1N Structure of human MICROCEPHALIN (MCPH1) TANDEM BRCT domains in complex with a CDC27 phosphopeptide Deposited 2011-07-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 640–835（196 aa） Fragment：C-TERMINAL TANDEM BRCT DOMAINS, UNP RESIDUES 640-835	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；30% PEG 3350, 0.3 M NACL, 0.1 M BIS-TRIS, PH 7.1, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.60 Å R-free 0.262
7C5D Crystal structure of TRF2 TRFH domain in complex with a MCPH1 peptide Deposited 2020-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 322–342（21 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30% PEG400, 100 mM CHES-NaOH, pH 9.5	Resolution 2.15 Å R-free 0.235
7C5D Crystal structure of TRF2 TRFH domain in complex with a MCPH1 peptide Deposited 2020-05-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 322–342（21 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30% PEG400, 100 mM CHES-NaOH, pH 9.5	Resolution 2.15 Å R-free 0.235

8 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MCPH1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–199； UniProt 640–835

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3u3z
Deposition date deposition_date	2011-10-06
Structure title title	Structure of human microcephalin (MCPH1) tandem BRCT domains in complex with an H2A.X peptide phosphorylated at Ser139 and Tyr142
Keywords keywords	DNA repair, cell cycle regulation, CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.69 Å
Radius of gyration Rg (electron density) rg_electron	18.25 Å
Forward intensity I(0) i0	8437270.00
Molecular weight molecular_weight	21709.0 kDa
Excluded volume excluded_volume	27352 Å³
Envelope volume envelope_volume	31481 Å³
Hydration-shell volume shell_volume	15288 Å³
Envelope diameter envelope_diameter	69.8 Å
Shell Rg shell_rg	23.38 Å
Envelope Rg envelope_rg	18.76 Å
Shape Rg shape_rg	18.26 Å
Total Rg total_rg	19.08 Å
Total atoms total_atoms	3017
Residues n_residues	191
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

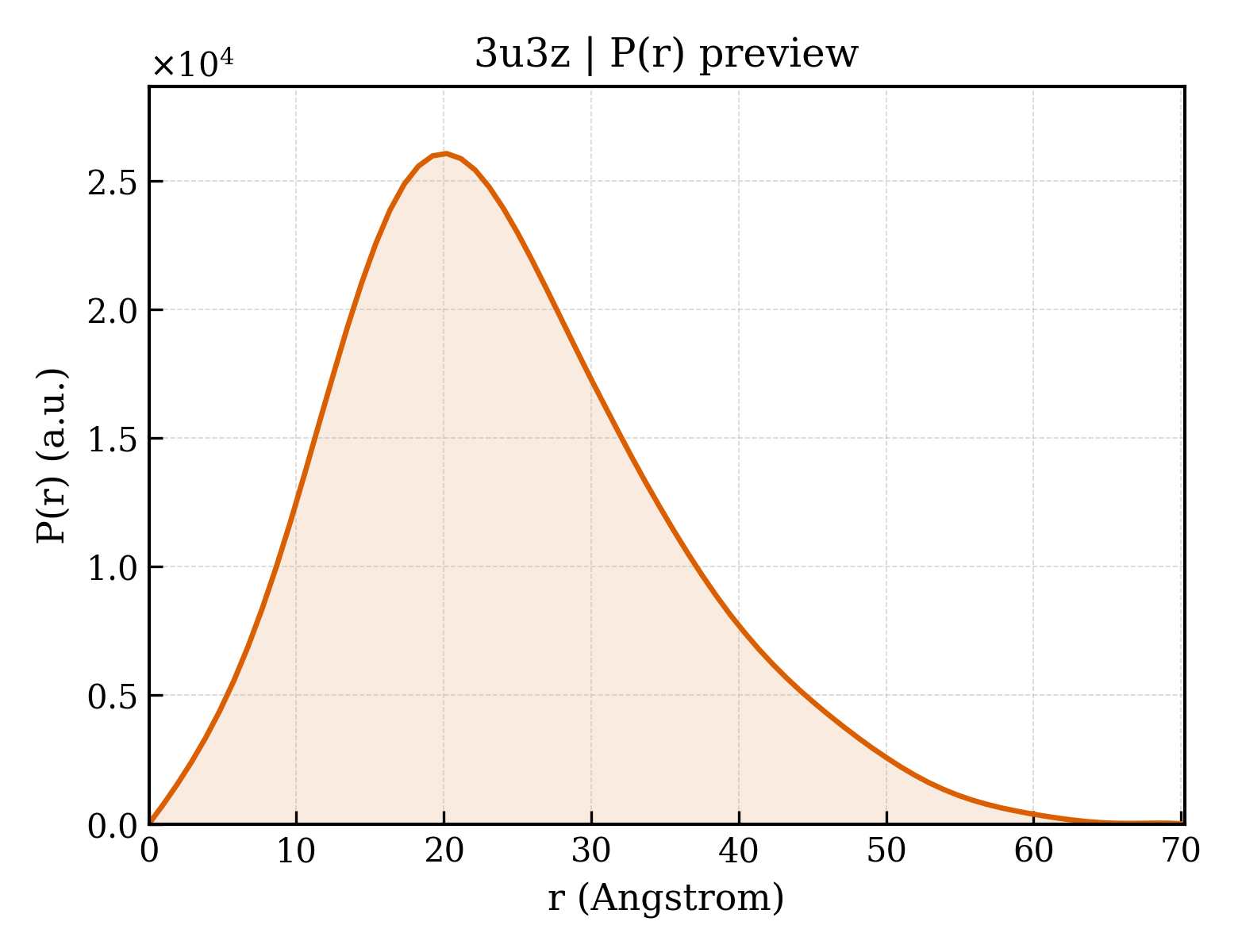

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.2 Å
Rg (real space) rg_real	18.77 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	8.4370e+06
I(0) uncertainty (real space) i0_real_error	8.8560e+04
Rg (reciprocal space) rg_reciprocal	18.76 Å
I(0) (reciprocal space) i0_reciprocal	8437000.0000
Solution quality estimate total_estimate	0.7956
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.2 Å
Skewness Skewness skewness	0.557
Kurtosis Kurtosis kurtosis	0.070
Angular range angular_range	— – 0.4250 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	3005000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.511; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.806; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Microcephalin
Molecular weight formula_weight	21949.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3430

GHMSGRGKKPTRTLVMTSMPSEKQNVVIQVVDKLKGFSIAPDVCETTTHVLSGKPLRTLNVLLGIARGCWVLSYDWVLWSLELGHWISEEPFELSHHFPAAPLCRSECHLSAGPYRGTLFADQPVMFVSPASSPPVAKLCELVHLCGGRVSQVPRQASIVIGPYSGKKKATVKYLSEKWVLDSITQHKVCAPENYLLSQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H2A.X peptide
Molecular weight formula_weight	685.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SQEY

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	279

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3u3zA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3u3zA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.689 Å
Unit-cell length b length_b	46.537 Å
Unit-cell length c length_c	55.778 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.07 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	23.790 Å
R factor r_factor	0.1290
R_work r_work	0.1290
R_free r_free	0.1710

fit	/app/data/saxs_computation/u3/3u3z/3u3z.fit
pddf	/app/data/pr_computation/u3/3u3z/3u3z.pr.out
profile	/app/data/saxs_computation/u3/3u3z/3u3z.dat

Structure of human microcephalin (MCPH1) tandem BRCT domains in complex with an H2A.X peptide phosphorylated at Ser139 and Tyr142
