3uku

Structure of Arp2/3 complex with bound inhibitor CK-869

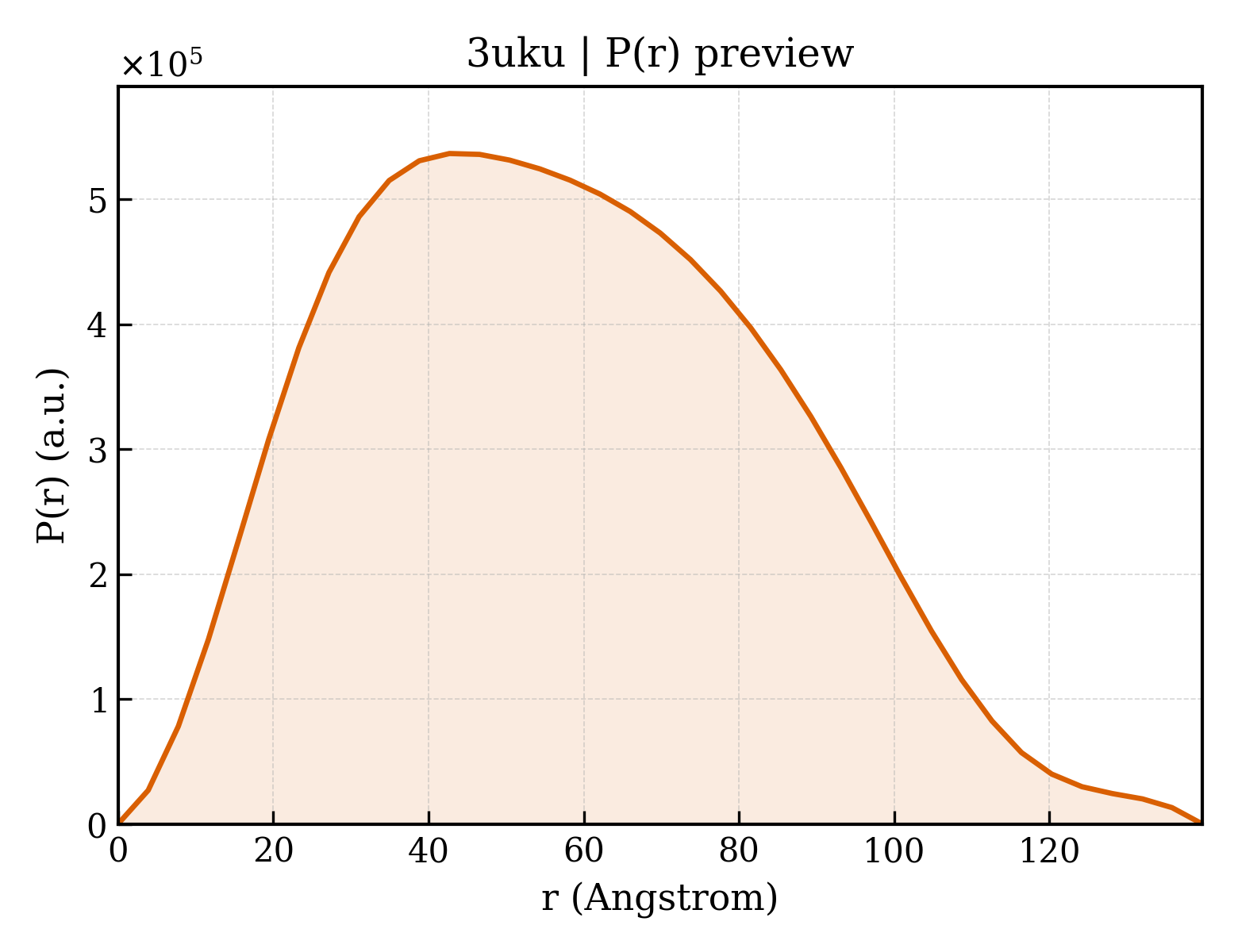

Method: X-RAY DIFFRACTION Dmax: 139.7 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACTIN-LIKE PROTEIN 3

OrganismNot specified

UniProt P61157

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain A； UniProt 1–418 Not recorded ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
1TYQ Crystal structure of Arp2/3 complex with bound ATP and calcium Deposited 2004-07-08 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 8000, potassium thiocyanate, Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.55 Å R-free 0.272
1U2V Crystal structure of Arp2/3 complex with bound ADP and calcium Deposited 2004-07-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Hepes, potassium thiocyanate, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.55 Å R-free 0.258
1U2V Crystal structure of Arp2/3 complex with bound ADP and calcium Deposited 2004-07-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Hepes, potassium thiocyanate, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.55 Å R-free 0.258
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain T 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 1–418（418 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 3–415（413 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–418（418 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain A 1–418（418 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8TAH Cryo-EM structure of Cortactin-bound to Arp2/3 complex Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–418（418 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10 mM imidazole pH 7.0, 50 mM KCl, 2 mM MgCl2, 1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 3–414（412 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 3–413（411 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–418（418 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–418（418 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 1–418（418 aa）
Chain a 1–418（418 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

28 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARP3_BOVIN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–418； UniProt 1–418

ACTIN-LIKE PROTEIN 2

OrganismNot specified

UniProt A7MB62

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain B； UniProt 1–394 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain U 1–394（394 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain I 1–394（394 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 4–380（377 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–394（394 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain B 1–394（394 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8TAH Cryo-EM structure of Cortactin-bound to Arp2/3 complex Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–394（394 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10 mM imidazole pH 7.0, 50 mM KCl, 2 mM MgCl2, 1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–390（390 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–390（390 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–394（394 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain B 1–394（394 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain B 1–394（394 aa）
Chain b 1–394（394 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

26 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARP2_BOVIN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–394； UniProt 1–394

Actin-related protein 2/3 complex subunit 1B

OrganismNot specified

UniProt Q58CQ2

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain C； UniProt 1–372 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain V 1–372（372 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain J 1–372（372 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–372（372 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain C 1–372（372 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain C 1–372（372 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain C 1–372（372 aa）
Chain c 1–372（372 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

21 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARC1B_BOVIN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–372； UniProt 1–372

Actin-related protein 2/3 complex subunit 2

OrganismNot specified

UniProt Q3MHR7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain D； UniProt 1–300 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain W 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain K 1–300（300 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8TAH Cryo-EM structure of Cortactin-bound to Arp2/3 complex Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10 mM imidazole pH 7.0, 50 mM KCl, 2 mM MgCl2, 1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–285（285 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–285（285 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–300（300 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain D 1–300（300 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain D 1–300（300 aa）
Chain d 1–300（300 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

26 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARPC2_BOVIN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–300； UniProt 1–300

Actin-related protein 2/3 complex subunit 3

OrganismNot specified

UniProt Q3T035

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain E； UniProt 1–178 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain X 1–178（178 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain L 1–178（178 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8TAH Cryo-EM structure of Cortactin-bound to Arp2/3 complex Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10 mM imidazole pH 7.0, 50 mM KCl, 2 mM MgCl2, 1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain E 2–176（175 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain E 2–176（175 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–178（178 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 1–178（178 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain E 1–178（178 aa）
Chain e 1–178（178 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

26 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARPC3_BOVIN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–178； UniProt 1–178

Actin-related protein 2/3 complex subunit 4

OrganismNot specified

UniProt Q148J6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain F； UniProt 1–168 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 5 × 1 （Q3SYX9） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain Y 1–168（168 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain N 1–168（168 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7JPN Cryo-EM structure of Arpin-bound Arp2/3 complex Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.24 Å
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8TAH Cryo-EM structure of Cortactin-bound to Arp2/3 complex Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10 mM imidazole pH 7.0, 50 mM KCl, 2 mM MgCl2, 1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain F 2–168（167 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain F 2–168（167 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–168（168 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain F 1–168（168 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain F 1–168（168 aa）
Chain f 1–168（168 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

26 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARPC4_BOVIN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain F； PDBConstruct 1–168； UniProt 1–168

Actin-related protein 2/3 complex subunit 5

OrganismNot specified

UniProt Q3SYX9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain G； UniProt 1–151 Not recorded ACTIN-LIKE PROTEIN 3 × 1 （P61157） ACTIN-LIKE PROTEIN 2 × 1 （A7MB62） Actin-related protein 2/3 complex subunit 1B × 1 （Q58CQ2） Actin-related protein 2/3 complex subunit 2 × 1 （Q3MHR7） Actin-related protein 2/3 complex subunit 3 × 1 （Q3T035） Actin-related protein 2/3 complex subunit 4 × 1 （Q148J6） C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 278K Resolution 2.75 Å R-free 0.301

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3UKU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1K8K Crystal Structure of Arp2/3 Complex Deposited 2001-10-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 8000, KSCN, Hepes at pH 7.5, VAPOR DIFFUSION, HANGING DROP at 298K
Resolution 2.00 Å R-free 0.251
2P9I Crystal Structure of bovine Arp2/3 Complex co-crystallized with ADP and crosslinked with gluteraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.46 Å R-free 0.261
2P9K Crystal structure of bovine Arp2/3 complex co-crystallized with ATP and crosslinked with glutaraldehyde Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；7.5% PEG 3350, 50mM HEPES, 100mM KSCN, 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.59 Å R-free 0.260
2P9L Crystal Structure of bovine Arp2/3 complex Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.65 Å R-free 0.266
2P9N Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；6% PEG 8000 100mM HEPES 100mM KSCN, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.85 Å R-free 0.272
2P9P Crystal Structure of bovine Arp2/3 complex co-crystallized with ADP Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG 3350 50mM HEPES 100mM KSCN 10% Sucrose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.288
2P9S Structure of bovine Arp2/3 complex co-crystallized with ATP/Mg2+ Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.68 Å R-free 0.261
2P9U Crystal structure of bovine Arp2/3 complex co-crystallized with AMP-PNP and calcium Deposited 2007-03-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；7.5% PEG3350 50mM HEPES 100mM KSCN 10% Sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.75 Å R-free 0.265
3DXK Structure of Bos Taurus Arp2/3 Complex with Bound Inhibitor CK0944636 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded N23 N-[2-(2-methyl-1H-indol-3-yl)ethyl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5, 100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.262
3DXM Structure of Bos taurus Arp2/3 Complex with Bound Inhibitor CK0993548 Deposited 2008-07-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded N24 (2S)-2-(3-bromophenyl)-3-(5-chloro-2-hydroxyphenyl)-1,3-thiazolidin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.258
3RSE Structural and biochemical characterization of two binding sites for nucleation promoting factor WASp-VCA on Arp2/3 complex Deposited 2011-05-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES 7.5, 8% PEG 8000, 200 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.259
3UKR Crystal structure of Bos taurus Arp2/3 complex with bound inhibitor CK-666 Deposited 2011-11-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded CKH 2-fluoro-N-[2-(2-methyl-1H-indol-3-yl)ethyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes (pH 7.5), 0.2M KSCN, 16% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.261
3ULE Structure of Bos taurus Arp2/3 complex with bound inhibitor CK-869 and ATP Deposited 2011-11-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 C69 (2S)-2-(3-bromophenyl)-3-(2,4-dimethoxyphenyl)-1,3-thiazolidin-4-one × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；277 K；8% PEG 8000, 50 mM HEPES, pH 7.5,100 mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.274
4JD2 Crystal structure of Bos taurus Arp2/3 complex binding with Mus musculus GMF Deposited 2013-02-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.08 Å R-free 0.248
4XEI Orthorhombic isomorph of bovine Arp2/3 complex Deposited 2014-12-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；Ethanol 10%, 1,4-butanediol 15%, 100 mM Tris 7.4
Resolution 3.87 Å R-free 0.329
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
4XF2 Tetragonal structure of Arp2/3 complex Deposited 2014-12-25 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain Z 1–151（151 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM Tris 7.0, 15% ethanol
Resolution 5.00 Å R-free 0.303
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
6DEC Crystal structure of Bos taurus Arp2/3 complex binding with C-terminus of Homo sapiens SPIN90 Deposited 2018-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain O 1–151（151 aa）
Not recorded CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM HEPES, pH 7.5, 5% PEG3350, 50 mM L-Proline, 0.5 mM ATP, 0.5 mM calcium chloride, 1 mM DTT
Resolution 4.60 Å R-free 0.314
7T5Q Cryo-EM Structure of a Transition State of Arp2/3 Complex Activation Deposited 2021-12-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain G 1–151（151 aa）
Not recorded MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Grids were manually blotted for 3 seconds with Whatman 41 filter paper and manually plunged using a Leica EM CPC manual plunger.
Resolution 3.40 Å
7TPT Single-particle Cryo-EM structure of Arp2/3 complex at branched-actin junction. Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain G 1–151（151 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9DLX Bovine Arp2/3 complex with N-WASP CA bound to Arp3 and Arp2-ArpC1 Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–151（151 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9DLZ Bovine Arp2/3 complex with N-WASP CA bound to Arp3 Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 7–151（145 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9EAM Coronin-7 CA bound to Arp2/3 complex Deposited 2024-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–151（151 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9M5E Structure of SPIN90 dimer-Arp2/3 complex-nucleated actin filament (singlet complex) Deposited 2025-03-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain G 1–151（151 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9M64 Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex) Deposited 2025-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain G 1–151（151 aa）
Chain g 1–151（151 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

24 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ARPC5_BOVIN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain G； PDBConstruct 1–151； UniProt 1–151

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 3uku

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 3uku
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3uku
Deposition date deposition_date2011-11-09
Structure title titleStructure of Arp2/3 complex with bound inhibitor CK-869
Keywords keywordsbeta-propeller, STRUCTURAL PROTEIN, ACTIN NUCLEATION FACTOR; STRUCTURAL PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier43.79 Å
Radius of gyration Rg (electron density) rg_electron43.34 Å
Forward intensity I(0) i0515951000.00
Molecular weight molecular_weight189320.0 kDa
Excluded volume excluded_volume237710 ų
Envelope volume envelope_volume314690 ų
Hydration-shell volume shell_volume60636 ų
Envelope diameter envelope_diameter144.6 Å
Shell Rg shell_rg48.11 Å
Envelope Rg envelope_rg42.84 Å
Shape Rg shape_rg43.35 Å
Total Rg total_rg43.51 Å
Total atoms total_atoms13336
Residues n_residues1689
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax139.7 Å
Rg (real space) rg_real44.97 Å
Rg uncertainty (real space) rg_real_error0.50 Å
I(0) (real space) i0_real5.1120e+08
I(0) uncertainty (real space) i0_real_error8.0520e+06
Rg (reciprocal space) rg_reciprocal43.79 Å
I(0) (reciprocal space) i0_reciprocal516000000.0000
Solution quality estimate total_estimate0.6982
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary42.7 Å
Skewness Skewness skewness0.288
Kurtosis Kurtosis kurtosis-0.574
Angular range angular_range— – 0.1800 Å−1
Current regularization parameter α current_alpha2.0650
Highest regularization parameter α highest_alpha74660000.0000
Real-space data points n_real_points37
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.965; Stabil: 0.905; Sysdev: 0.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.545
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

▼

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (9 domains)

Domain ID domain_idd3ukua1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.1 — Actin/HSP70
Domain ID domain_idd3ukua2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.1 — Actin/HSP70
Domain ID domain_idd3ukub_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.1 — Actin/HSP70
Domain ID domain_idd3ukuc_
Class classb — All beta proteins
Fold Fold foldb.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamilyb.69.4 — WD40 repeat-like
Family Family familyb.69.4.1 — WD40-repeat
Domain ID domain_idd3ukud1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.198 — Secretion chaperone-like
Superfamily Superfamily superfamilyd.198.2 — Arp2/3 complex subunits
Family Family familyd.198.2.1 — Arp2/3 complex subunits
Domain ID domain_idd3ukud2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.198 — Secretion chaperone-like
Superfamily Superfamily superfamilyd.198.2 — Arp2/3 complex subunits
Family Family familyd.198.2.1 — Arp2/3 complex subunits
Domain ID domain_idd3ukue_
Class classa — All alpha proteins
Fold Fold folda.148 — Arp2/3 complex 21 kDa subunit ARPC3
Superfamily Superfamily superfamilya.148.1 — Arp2/3 complex 21 kDa subunit ARPC3
Family Family familya.148.1.1 — Arp2/3 complex 21 kDa subunit ARPC3
Domain ID domain_idd3ukuf_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.198 — Secretion chaperone-like
Superfamily Superfamily superfamilyd.198.2 — Arp2/3 complex subunits
Family Family familyd.198.2.1 — Arp2/3 complex subunits
Domain ID domain_idd3ukug_
Class classa — All alpha proteins
Fold Fold folda.118 — alpha-alpha superhelix
Superfamily Superfamily superfamilya.118.13 — Arp2/3 complex 16 kDa subunit ARPC5
Family Family familya.118.13.1 — Arp2/3 complex 16 kDa subunit ARPC5

CATH v4.4 (11 domains)

Domain ID domain_id3ukuA01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id3ukuA02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id3ukuA03
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id3ukuB01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id3ukuB02
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id3ukuC00
Class class2 — Mainly Beta
Architecture architecture130 — 7 Propeller
Topology topology10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily10 — YVTN repeat-like/Quinoprotein amine dehydrogenase
Domain ID domain_id3ukuD01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology1460 — Yope Regulator; Chain: A,
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3ukuD02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology1460 — Yope Regulator; Chain: A,
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3ukuE00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1760 — Arp2/3 complex 21 kDa subunit ARPC3
Homologous superfamily homologous superfamily10 — Actin-related protein 2/3 complex subunit 3
Domain ID domain_id3ukuF00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology1460 — Yope Regulator; Chain: A,
Homologous superfamily homologous superfamily20 —
Domain ID domain_id3ukuG00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily190 — Actin-related protein 2/3 complex subunit 5
▶

8. Citations (1)

▶

9. Files and Curves (10)
