SAXSdb — 3ur1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chemotaxis protein CheA

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Chemotaxis protein CheW × 1 （Q56311） Methyl-accepting chemotaxis protein × 2 （Q7DFA3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHEA_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–320； UniProt 355–671

Chemotaxis protein CheW

Thermotoga maritima

UniProt Q56311

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Chemotaxis protein CheA × 1 （Q56310） Methyl-accepting chemotaxis protein × 2 （Q7DFA3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHEW_THEMA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–139； UniProt 9–147

Methyl-accepting chemotaxis protein

Thermotoga maritima

UniProt Q7DFA3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Chemotaxis protein CheA × 1 （Q56310） Chemotaxis protein CheW × 1 （Q56311）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7DFA3_THEMA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–85； UniProt 107–191 Author chain D； PDBConstruct 1–85； UniProt 107–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ur1
Deposition date deposition_date	2011-11-21
Structure title title	The structure of a ternary complex between CheA domains P4 and P5 with CheW and with a truncated fragment of TM14, a chemoreceptor analog from Thermotoga maritima.
Keywords keywords	chemoreceptor arrays, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3ur1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

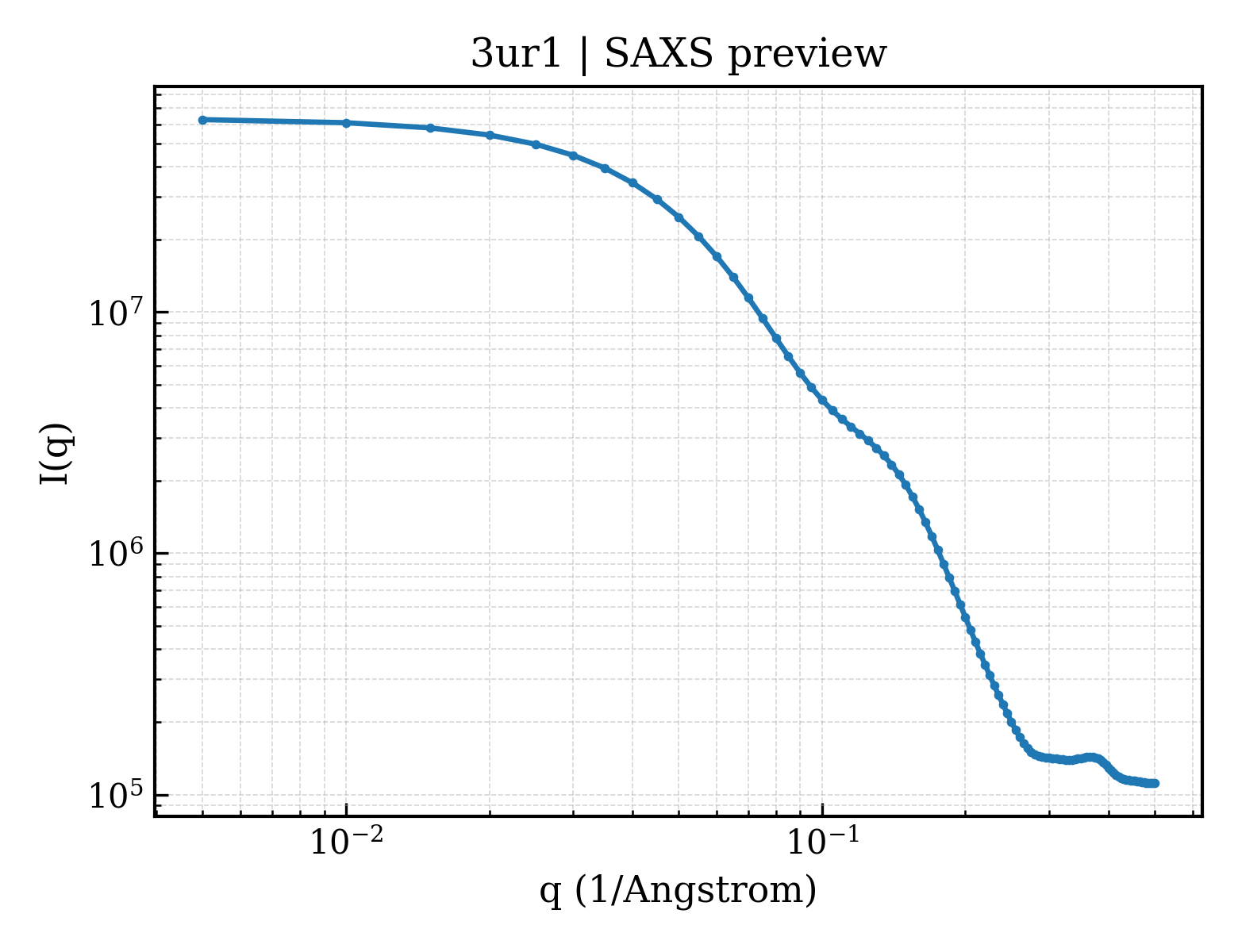

3ur1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

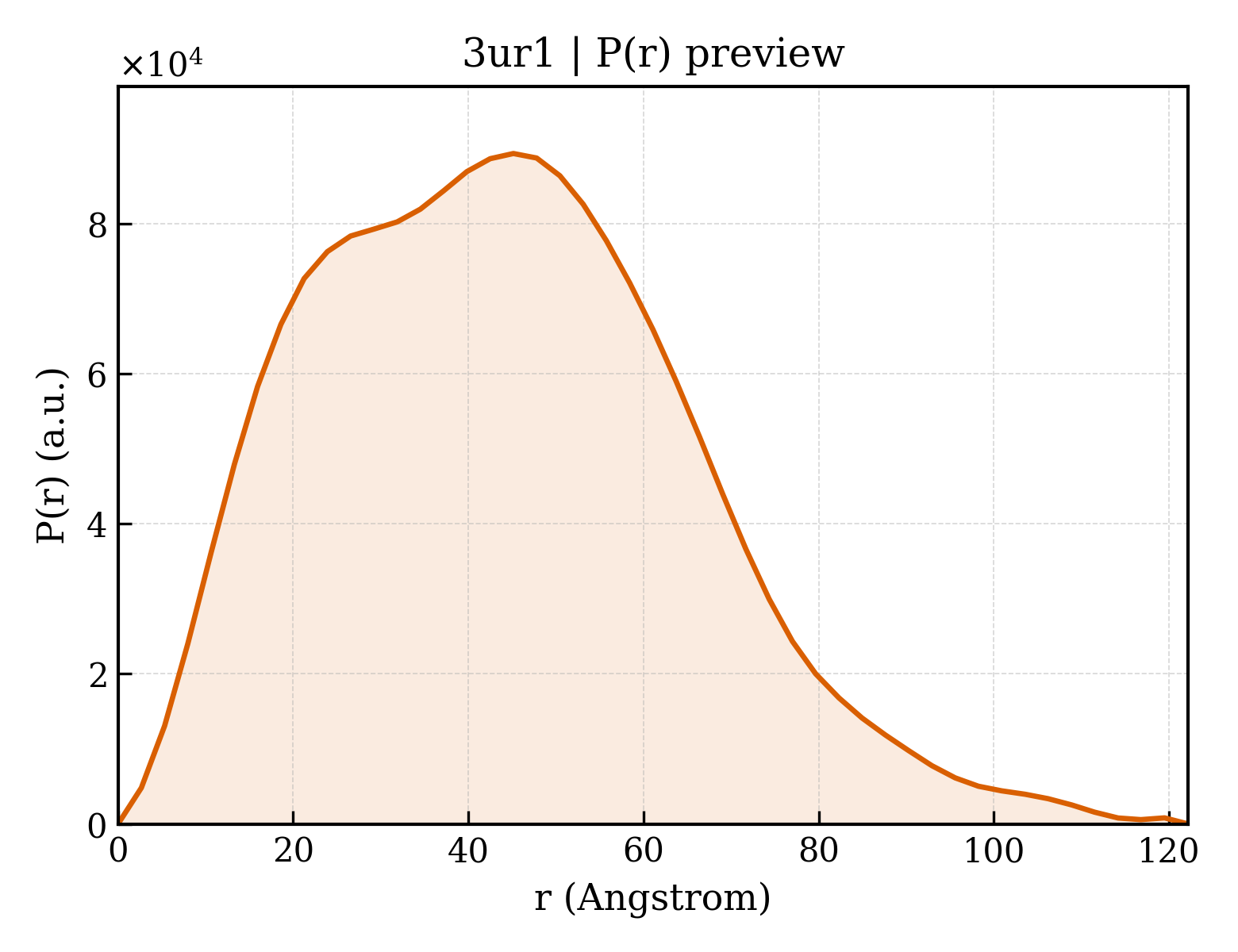

3ur1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.20 Å
Rg (electron density)	33.57 Å
Total Rg	33.86 Å
Atom count	4488
Residues	572
Excluded volume	80768 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3ur1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Chemotaxis protein CheA
Molecular weight formula_weight	35551.1 kDa
EC 编号 ec_number	2.7.13.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4488

GSHMVPISFVFNRFPRMVRDLAKKMNKEVNFIMRGEDTELDRTFVEEIGEPLLHLLRNAIDHGIEPKEERIAKGKPPIGTLILSARHEGNNVVIEVEDDGRGIDKEKIIRKAIEKGLIDESKAATLSDQEILNFLFVPGFSTKEKVSEVSGRGVGMDVVKNVVESLNGSISIESEKDKGTKVTIRLPLTLAIIQALLVKVNNLVYAIPIANIDTILSISKEDIQRVQDRDVIVIRGEVIPVYRLWEVLQIEHKEELEEMEAVIVRVGNRKYGIVVDDLLGQDDIVIKSLGKVFSEVKEFSGAAILGDGSIALIINVSGIV

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Chemotaxis protein CheW
Molecular weight formula_weight	15718.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KEFEVLSFEIDEQALAFDVDNIEMVIEKSDITPVPKSRHFVEGVINLRGRIIPVVNLAKILGISFDEQKMKSIIVARTKDVEVGFLVDRVLGVLRITENQLDLTNVSDKFGKKSKGLVKTDGRLIIYLDIDKIIEEITV

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Methyl-accepting chemotaxis protein
Molecular weight formula_weight	9448.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

SQIGETLENIRSIEKLIQNIMRIARETNILALNATIEAARAGEAGKGFMIVANEVQNLSNETNEVTKQIVEKAREILESSQRSLE

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	213.991 Å
Unit-cell length b length_b	213.991 Å
Unit-cell length c length_c	208.192 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	4.500 Å
Low-resolution limit resolution_low	29.750 Å
R factor r_factor	0.2660
R_work r_work	0.2660
R_free r_free	0.2910

The structure of a ternary complex between CheA domains P4 and P5 with CheW and with a truncated fragment of TM14, a chemoreceptor analog from Thermotoga maritima.
