3v03

Crystal structure of Bovine Serum Albumin

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serum albumin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 3 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	CALCIUM ION × 3 ACETATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALBU_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–583； UniProt 25–607 Author chain B； PDBConstruct 1–583； UniProt 25–607

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3v03
Deposition date deposition_date	2011-12-07
Structure title title	Crystal structure of Bovine Serum Albumin
Keywords keywords	;allergen, Structural Genomics, PSI-Biology, New York Structural Genomics Research Consortium, NYSGRC, carrier protein, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3v03__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3v03__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

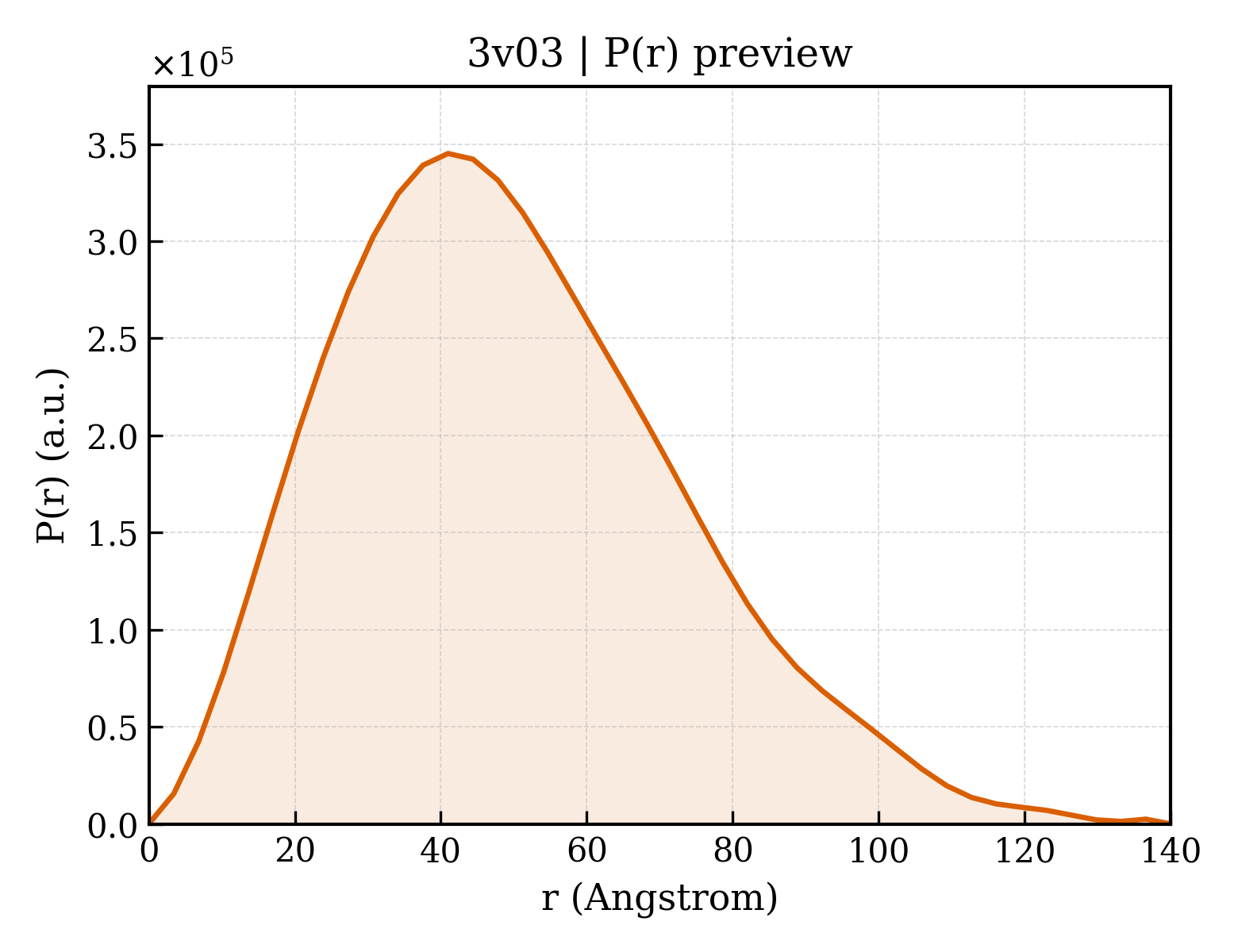

3v03__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.22 Å
Rg (electron density)	26.14 Å
Total Rg	26.84 Å
Atom count	4379
Residues	581
Excluded volume	77686 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3v03__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3v03__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Serum albumin
Molecular weight formula_weight	66562.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8828

DTHKSEIAHRFKDLGEEHFKGLVLIAFSQYLQQCPFDEHVKLVNELTEFAKTCVADESHAGCEKSLHTLFGDELCKVASLRETYGDMADCCEKQEPERNECFLSHKDDSPDLPKLKPDPNTLCDEFKADEKKFWGKYLYEIARRHPYFYAPELLYYANKYNGVFQECCQAEDKGACLLPKIETMREKVLTSSARQRLRCASIQKFGERALKAWSVARLSQKFPKAEFVEVTKLVTDLTKVHKECCHGDLLECADDRADLAKYICDNQDTISSKLKECCDKPLLEKSHCIAEVEKDAIPENLPPLTADFAEDKDVCKNYQEAKDAFLGSFLYEYSRRHPEYAVSVLLRLAKEYEATLEECCAKDDPHACYSTVFDKLKHLVDEPQNLIKQNCDQFEKLGEYGFQNALIVRYTRKVPQVSTPTLVEVSRSLGKVGTRCCTKPESERMPCTEDYLSLILNRLCVLHEKTPVSEKVTKCCTESLVNRRPCFSALTPDETYVPKAFDEKLFTFHADICTLPDTEKQIKKQTALVELLKHKPKATEEQLKTVMENFVAFVDKCCAADDKEACFAVEGPKLVVSTQTALA

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	44

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d3v03a1
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

Domain ID domain_id	d3v03a2
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

Domain ID domain_id	d3v03a3
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

Domain ID domain_id	d3v03b1
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

Domain ID domain_id	d3v03b2
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

Domain ID domain_id	d3v03b3
Class class	a — All alpha proteins
Fold Fold fold	a.126 — Serum albumin-like
Superfamily Superfamily superfamily	a.126.1 — Serum albumin-like
Family Family family	a.126.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	3v03A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03A04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03A05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03A06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3v03B06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	215.661 Å
Unit-cell length b length_b	45.096 Å
Unit-cell length c length_c	142.408 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.01 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2052
R_work r_work	0.2024
R_free r_free	0.2559
