1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium-binding and coiled-coil domain-containing protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 21–141	Fragment：UNP residues 21-141	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8.5；293 K；24% PEG4000, 0.1M Tris , pH 8.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.35 Å R-free 0.189
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 21–141	Fragment：UNP residues 21-141	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8.5；293 K；24% PEG4000, 0.1M Tris , pH 8.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.35 Å R-free 0.189

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3VVV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2MXP Solution structure of NDP52 ubiquitin-binding zinc finger Deposited 2015-01-12	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 414–446（33 aa） Fragment：C-terminal, UNP residues 414-446	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] entity_1-1, 1 mM [U-100% 15N] entity_1-2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] entity_1-3, 100% D2O \| 100% D2O NMR sample composition 1.2 mM entity_1-4, 100% D2O \| 100% D2O	Resolution not provided
3VVW NDP52 in complex with LC3C Deposited 2012-07-28	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–141（121 aa） Fragment：UNP residues 21-141	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；16% PEG6000, 0.01M sodium citrate , pH 7.0, Vapor Diffusion, temperature 293K	Resolution 2.50 Å R-free 0.252
4GXL The crystal structure of Galectin-8 C-CRD in complex with NDP52 Deposited 2012-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 368–381（14 aa） Fragment：UNP residues 368-381	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；283 K；2% PEG 400, 0.1M HEPES sodium pH 7.5, 2.0M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.02 Å R-free 0.216
4HAN Crystal structure of Galectin 8 with NDP52 peptide Deposited 2012-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 372–385（14 aa） Fragment：UNP residues 372-385 Chain D 372–385（14 aa） Fragment：UNP residues 372-385	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.1M Tris-Hcl pH8.5, 30~34% (v/w) PEG400, 200mM LiSO4, and 10mM Nicotinamide adenine dinucleotide, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.55 Å R-free 0.214
4XKL Crystal structure of NDP52 ZF2 in complex with mono-ubiquitin Deposited 2015-01-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 414–446（33 aa） Fragment：Zinc finger, UNP residues 414-446	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M magnesium acetate tetrahydrate, 20% w/v Polyethylene glycol 3350	Resolution 2.10 Å R-free 0.243
4XKL Crystal structure of NDP52 ZF2 in complex with mono-ubiquitin Deposited 2015-01-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 414–446（33 aa） Fragment：Zinc finger, UNP residues 414-446	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M magnesium acetate tetrahydrate, 20% w/v Polyethylene glycol 3350	Resolution 2.10 Å R-free 0.243
5AAQ TBK1 recruitment to cytosol-invading Salmonella induces anti- bacterial autophagy Deposited 2015-07-28	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 388–446（59 aa） Fragment：UNP RESIDUES 388-446	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1.0 NMR sample composition 95% WATER/5% D2O	Resolution not provided
5Z7A Crystal structure of NDP52 SKICH region Deposited 2018-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–126（126 aa） Fragment：UNP residues 1-126	Not recorded	SO4 SULFATE ION × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；289 K；PEG 3350, 0.2 M potassium sulfate	Resolution 2.38 Å R-free 0.263
5Z7A Crystal structure of NDP52 SKICH region Deposited 2018-01-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–126（126 aa） Fragment：UNP residues 1-126	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；289 K；PEG 3350, 0.2 M potassium sulfate	Resolution 2.38 Å R-free 0.263
5Z7L Crystal structure of NDP52 SKICH region in complex with NAP1 Deposited 2018-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 10–126（117 aa） Fragment：UNP residues 10-126 Chain B 10–126（117 aa） Fragment：UNP residues 10-126	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG3350,sodium malonate	Resolution 2.02 Å R-free 0.222
7EAA crystal structure of NDP52 SKICH domain in complex with RB1CC1 coiled-coil domain Deposited 2021-03-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 10–141（132 aa） Chain B 10–141（132 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M MgCl2, 0.1 M MES pH 6.0, 8% PEG6000	Resolution 2.60 Å R-free 0.253

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CACO2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–123； UniProt 21–141

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3vvv
Deposition date deposition_date	2012-07-28
Structure title title	Skich domain of NDP52
Keywords keywords	autophagy adaptor protein, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.27 Å
Radius of gyration Rg (electron density) rg_electron	13.87 Å
Forward intensity I(0) i0	3080830.00
Molecular weight molecular_weight	12716.0 kDa
Excluded volume excluded_volume	16049 Å³
Envelope volume envelope_volume	18457 Å³
Hydration-shell volume shell_volume	11441 Å³
Envelope diameter envelope_diameter	50.8 Å
Shell Rg shell_rg	19.43 Å
Envelope Rg envelope_rg	14.46 Å
Shape Rg shape_rg	13.84 Å
Total Rg total_rg	15.21 Å
Total atoms total_atoms	905
Residues n_residues	108
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.7 Å
Rg (real space) rg_real	15.22 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	3.0810e+06
I(0) uncertainty (real space) i0_real_error	3.4210e+04
Rg (reciprocal space) rg_reciprocal	15.23 Å
I(0) (reciprocal space) i0_reciprocal	3081000.0000
Solution quality estimate total_estimate	0.8762
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.0 Å
Skewness Skewness skewness	0.304
Kurtosis Kurtosis kurtosis	-0.224
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	821100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.803; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3vvvA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	2840 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.610 Å
Unit-cell length b length_b	37.460 Å
Unit-cell length c length_c	90.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.350 Å
Low-resolution limit resolution_low	23.266 Å
R factor r_factor	0.1562
R_work r_work	0.1546
R_free r_free	0.1891

Description description	Calcium-binding and coiled-coil domain-containing protein 2
Molecular weight formula_weight	14598.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1119

Skich domain of NDP52

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium-binding and coiled-coil domain-containing protein 2

State in the Current Structure

Other States of the Same Protein in the Database

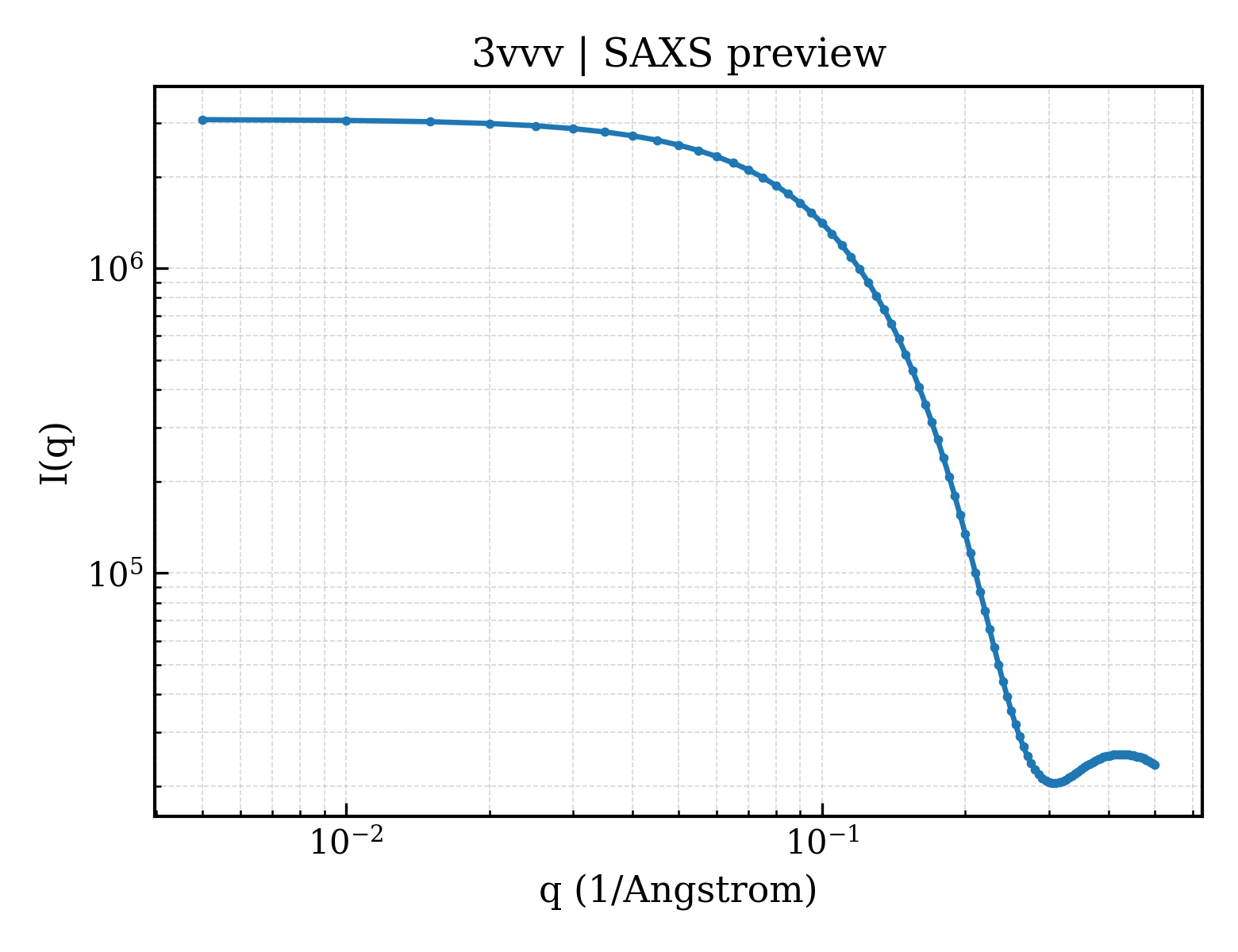

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

fit	/app/data/saxs_computation/vv/3vvv/3vvv.fit
pddf	/app/data/pr_computation/vv/3vvv/3vvv.pr.out
profile	/app/data/saxs_computation/vv/3vvv/3vvv.dat
