4gxl

The crystal structure of Galectin-8 C-CRD in complex with NDP52

Method: X-RAY DIFFRACTION D_max: 47.0 Å Quality: GOOD

▼

1. 蛋白身份与相关结构 Protein Identity & Related Structures

Galectin-8

Homo sapiens

当前结构中的状态

Assembly	聚集状态	构建体	突变与修饰	配体、离子与共同组分	实验方法与环境	结构质量
1	蛋白异源复合物异源复合物蛋白 × 2 PDB 声明：dimeric（2）与蛋白拷贝数一致	链 A； UniProt 186–317	片段：UNP residues 186-317	Peptide from Calcium-binding and coiled-coil domain-containing protein 2 × 1 （Q13137） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray结晶条件：VAPOR DIFFUSION, SITTING DROP；pH 7.5；283 K；2% PEG 400, 0.1M HEPES sodium pH 7.5, 2.0M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 283K	分辨率 2.02 Å R-free 0.216

数据库中的同蛋白其他状态

以下每一行都是同一 UniProt 蛋白在另一个 PDB 条目中的 biological assembly， “相对当前条目”直接指出证据层面的不同；没有差异标签表示当前已读取字段一致。

其他 PDB	相对当前条目 4GXL	Assembly / 聚集状态	构建体	突变与修饰	配体、离子与非聚合物	实验方法与环境	结构质量
2YRO Solution structure of the C-terminal Gal-bind lectin protein from Human Galectin-8 提交 2007-04-02	构建体不同聚集状态不同配体/离子不同实验方法不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 175–316（142 aa）片段：Gal-bind_lectin domain	未记录	未记录非水小分子	SOLUTION NMR NMR测量条件 pH 7；296 K；离子强度（mmCIF原始值）120mM；压力 ambient NMR样品组成 1.28mM Gal-binding lectin U-15N, 13C; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	分辨率未提供
3AP4 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 提交 2010-10-11	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 12% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 2.33 Å R-free 0.251
3AP4 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 提交 2010-10-11	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 12% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 2.33 Å R-free 0.251
3AP4 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 提交 2010-10-11	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 3 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 C 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 12% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 2.33 Å R-free 0.251
3AP4 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 提交 2010-10-11	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 4 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 D 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 12% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 2.33 Å R-free 0.251
3AP5 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain 提交 2010-10-11	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 50mM sodium chloride, 0.5mM DTT, 125mM ammonium fluoride, 8% PEG 3350 , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.92 Å R-free 0.237
3AP6 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 3'-sulfate 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose 3'-sulfate, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 9% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.58 Å R-free 0.242
3AP6 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 3'-sulfate 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose 3'-sulfate, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 9% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.58 Å R-free 0.242
3AP6 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 3'-sulfate 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 3 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 C 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose 3'-sulfate, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 9% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.58 Å R-free 0.242
3AP6 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose 3'-sulfate 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 4 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 D 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose 3'-sulfate, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 9% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.58 Å R-free 0.242
3AP7 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with lactose sialic acid 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM lactose sialic acid, 50mM sodium chloride, 0.5mM DTT, 80mM ammonium fluoride, 7.5% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.53 Å R-free 0.188
3AP9 Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with Lacto-N-fucopentaose III 提交 2010-10-12	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.275mM protein, 10mM Hepes-NaOH, 2.75mM Lacto-N-fucopentaose III, 50mM sodium chloride, 0.5mM DTT, 50mM ammonium fluoride, 12% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.33 Å R-free 0.178
3APB Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with iodide 提交 2010-10-14	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	IOD IODIDE ION × 13	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.55mM protein, 10mM Hepes-NaOH, 50mM sodium chloride, 0.5mM DTT, 125mM ammonium fluoride, 8% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.95 Å R-free 0.242
3APB Crystal structure of the galectin-8 N-terminal carbohydrate recognition domain in complex with iodide 提交 2010-10-14	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–154（154 aa）片段：N-terminal carbohydrate recognition domain	未记录	IOD IODIDE ION × 16	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.55mM protein, 10mM Hepes-NaOH, 50mM sodium chloride, 0.5mM DTT, 125mM ammonium fluoride, 8% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	分辨率 1.95 Å R-free 0.242
3OJB Crystal structure of C-terminal domain of human galectin-8 提交 2010-08-21	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 186–315（130 aa）片段：C-terminal domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；27.5% PEG 8000, 0.2M ammonium phosphate, 6.5% Ethylene Glycol, 0.1M Na Cacodylate, VAPOR DIFFUSION, HANGING DROP, temperature 281K	分辨率 3.01 Å R-free 0.292
3OJB Crystal structure of C-terminal domain of human galectin-8 提交 2010-08-21	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 186–315（130 aa）片段：C-terminal domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；27.5% PEG 8000, 0.2M ammonium phosphate, 6.5% Ethylene Glycol, 0.1M Na Cacodylate, VAPOR DIFFUSION, HANGING DROP, temperature 281K	分辨率 3.01 Å R-free 0.292
3OJB Crystal structure of C-terminal domain of human galectin-8 提交 2010-08-21	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 3 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 C 186–315（130 aa）片段：C-terminal domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；27.5% PEG 8000, 0.2M ammonium phosphate, 6.5% Ethylene Glycol, 0.1M Na Cacodylate, VAPOR DIFFUSION, HANGING DROP, temperature 281K	分辨率 3.01 Å R-free 0.292
3OJB Crystal structure of C-terminal domain of human galectin-8 提交 2010-08-21	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 4 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 D 186–315（130 aa）片段：C-terminal domain	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；27.5% PEG 8000, 0.2M ammonium phosphate, 6.5% Ethylene Glycol, 0.1M Na Cacodylate, VAPOR DIFFUSION, HANGING DROP, temperature 281K	分辨率 3.01 Å R-free 0.292
3VKL Protease-resistant mutant form of human Galectin-8 in complex with two lactose molecules 提交 2011-11-18	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain 链 A 184–317（134 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain	未记录	EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；2-3%(v/v) 1,4-dioxane, 9-10%(w/v) PEG20000, 0.1M bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	分辨率 2.55 Å R-free 0.264
3VKL Protease-resistant mutant form of human Galectin-8 in complex with two lactose molecules 提交 2011-11-18	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–155（155 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain 链 B 184–317（134 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain	未记录	EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；2-3%(v/v) 1,4-dioxane, 9-10%(w/v) PEG20000, 0.1M bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	分辨率 2.55 Å R-free 0.264
3VKM Protease-resistant mutant form of Human Galectin-8 in complex with sialyllactose and lactose 提交 2011-11-18	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain 链 A 184–317（134 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain	未记录	EDO 1,2-ETHANEDIOL × 11	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；2-3%(v/v) 1,4-dioxane, 9-10%(w/v) PEG20000, 0.1M bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	分辨率 2.98 Å R-free 0.261
3VKM Protease-resistant mutant form of Human Galectin-8 in complex with sialyllactose and lactose 提交 2011-11-18	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–155（155 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain 链 B 184–317（134 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain	未记录	EDO 1,2-ETHANEDIOL × 13	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；2-3%(v/v) 1,4-dioxane, 9-10%(w/v) PEG20000, 0.1M bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	分辨率 2.98 Å R-free 0.261
3VKN Galectin-8 N-terminal domain in free form 提交 2011-11-18	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–153（153 aa）片段：N-TERMINAL CARBOHYDRATE RECOGNITION DOMAIN	未记录	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30%(v/v) PEG 400, 0.1M CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	分辨率 1.98 Å R-free 0.251
3VKN Galectin-8 N-terminal domain in free form 提交 2011-11-18	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–153（153 aa）片段：N-TERMINAL CARBOHYDRATE RECOGNITION DOMAIN	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30%(v/v) PEG 400, 0.1M CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	分辨率 1.98 Å R-free 0.251
3VKO Galectin-8 N-terminal domain in complex with sialyllactosamine 提交 2011-11-18	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–153（153 aa）片段：N-TERMINAL CARBOHYDRATE RECOGNITION DOMAIN	未记录	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30%(v/v) PEG400, 0.1M CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	分辨率 2.08 Å R-free 0.249
3VKO Galectin-8 N-terminal domain in complex with sialyllactosamine 提交 2011-11-18	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–153（153 aa）片段：N-TERMINAL CARBOHYDRATE RECOGNITION DOMAIN	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；30%(v/v) PEG400, 0.1M CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	分辨率 2.08 Å R-free 0.249
4BMB Crystal structure of the N terminal domain of human Galectin 8 提交 2013-05-07	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 4–153（150 aa）片段：N TERMINAL DOMAIN, RESIDUES 4-153	未记录	ZN ZINC ION × 1 NA SODIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray结晶条件 20% W/V PEG 4000, 100 MM HEPES SODIUM SALT (PH 7.2) AND 10 MM ZINC CHLORIDE	分辨率 1.35 Å R-free 0.177
4BME Crystal structure of the N terminal domain of human Galectin 8, F19Y mutant 提交 2013-05-07	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 4–155（152 aa）片段：N TERMINAL DOMAIN, RESIDUES 4-155	突变：YES	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 30% W/V PEG 4000, 100 MM MES SODIUM SALT (PH 6.5)	分辨率 2.00 Å R-free 0.241
4BME Crystal structure of the N terminal domain of human Galectin 8, F19Y mutant 提交 2013-05-07	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 B 4–155（152 aa）片段：N TERMINAL DOMAIN, RESIDUES 4-155	突变：YES	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 30% W/V PEG 4000, 100 MM MES SODIUM SALT (PH 6.5)	分辨率 2.00 Å R-free 0.241
4FQZ Crystal structure of a protease-resistant mutant form of human galectin-8 提交 2012-06-26	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain 链 A 184–317（134 aa）片段：N-terminal carbohydrate recognition domain, C-terminal carbohydrate recognition domain	未记录	EDO 1,2-ETHANEDIOL × 10	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；10% PEG 20000, 0.1M Bicine, 2% Dioxane, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	分辨率 2.80 Å R-free 0.253
4HAN Crystal structure of Galectin 8 with NDP52 peptide 提交 2012-09-27	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 4 PDB 声明：tetrameric	链 A 1–155（155 aa）片段：UNP residues 1-155. 184-317 链 A 184–317（134 aa）片段：UNP residues 1-155. 184-317 链 B 1–155（155 aa）片段：UNP residues 1-155. 184-317 链 B 184–317（134 aa）片段：UNP residues 1-155. 184-317	未记录	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.1M Tris-Hcl pH8.5, 30~34% (v/w) PEG400, 200mM LiSO4, and 10mM Nicotinamide adenine dinucleotide, VAPOR DIFFUSION, HANGING DROP, temperature 295K	分辨率 2.55 Å R-free 0.214
5GZC Crystal structure of Galectin-8 N-CRD with part of linker 提交 2016-09-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 7–158（152 aa）片段：carbohydrate recognition domain (UNP RESIDUES 7-158)	未记录	GOL GLYCEROL × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；298 K；PEG 2000MME	分辨率 1.08 Å R-free 0.163
5GZD Galectin-8 N-terminal domain carbohydrate recognition domain 提交 2016-09-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 7–154（148 aa）片段：carbohydrate recognition domain (UNP RESIDUES 7-154)	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；298 K；PEG 2000MME	分辨率 1.19 Å R-free 0.212
5GZE Galectin-8 N-terminal domain carbohydrate recognition domain 提交 2016-09-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 7–154（148 aa）片段：carbohydrate recognition domain (UNP RESIDUES 7-154)	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；298 K；PEG 2000MME	分辨率 1.32 Å R-free 0.278
5GZF Galectin-8 N-terminal domain carbohydrate recognition domain 提交 2016-09-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–186（186 aa）片段：carbohydrate recognition domain (UNP RESIDUES 1-186)	未记录	NA SODIUM ION × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.1M Tris pH 8.5, 0.01M NiCl2, 20% (W/V) PEG 2000 MME	分辨率 2.00 Å R-free 0.218
5GZG Galectin-8 N-terminal domain carbohydrate recognition domain 提交 2016-09-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–186（186 aa）片段：carbohydrate recognition domain (UNP RESIDUES 1-186)	未记录	NA SODIUM ION × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；298 K；0.1M Tris pH 8.5, 0.01M NiCl2,20% (W/V) PEG2000 MME	分辨率 2.00 Å R-free 0.258
5T7I Crystal structure of galectin-8N in complex with LNnT 提交 2016-09-05	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal Domaine (UNP residues 1-155)	非标准单体：是（mmCIF未提供具体位点）	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；293 K；10 mM sodium phosphate, 137 mM sodium chloride, 2.7 mM potassium chloride, 1.8 mM potassium phosphate	分辨率 2.00 Å R-free 0.217
5T7S Crystal structure of galectin-8N in complex with Lactose 提交 2016-09-05	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal Domaine (UNP residues 1-155)	突变：M56V 非标准单体：是（mmCIF未提供具体位点）	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；293 K；10 mM sodium phosphate, 137 mM sodium chloride, 2.7 mM potassium chloride, 1.8 mM potassium phosphate	分辨率 1.90 Å R-free 0.180
5T7T Galectin-8 N terminal domain in complex with LNT 提交 2016-09-05	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal Domaine (UNP residues 1-155)	突变：M56V 非标准单体：是（mmCIF未提供具体位点）	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；293 K；10 mM sodium phosphate, 137 mM sodium chloride, 2.7 mM potassium chloride, 1.8 mM potassium phosphate	分辨率 1.96 Å R-free 0.215
5T7U Crystal structure of galectin-8N in complex with Glycerol 提交 2016-09-05	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal Domaine (UNP residues 1-155)	非标准单体：是（mmCIF未提供具体位点）	GOL GLYCEROL × 2 NA SODIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；293 K；10 mM sodium phosphate, 137 mM sodium chloride, 2.7 mM potassium chloride, 1.8 mM potassium phosphate	分辨率 1.58 Å R-free 0.147
5VWG Galectin-8 N terminal domain in complex with Methyl 3-O-[1-carboxyethyl]-beta-D-galactopyranoside 提交 2017-05-21	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–155（155 aa）片段：N-terminal domain (UNP residues 1-155)	突变：M56V 非标准单体：是（mmCIF未提供具体位点）	9QG methyl 3-O-[(1R)-1-carboxyethyl]-beta-D-galactopyranoside × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION；277 K；10 mM sodium phosphate, 137 mM sodium chloride, 2.7 mM potassium chloride, 1.8 mM potassium phosphate	分辨率 2.10 Å R-free 0.251
6W4Z Galectin-8N terminal domain in complex with Methyl 3-O-[3-O-benzyloxy]-malonyl-beta-D-galactopyranoside 提交 2020-03-12	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 2–154（153 aa）	突变：M54V	SZS methyl 3-O-[3-(benzyloxy)-3-oxopropanoyl]-beta-D-galactopyranoside × 1 CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1M sodium citrate dihydrate pH 5.6, 20% PEG 4000, 10% IPA	分辨率 1.59 Å R-free 0.226
6W4Z Galectin-8N terminal domain in complex with Methyl 3-O-[3-O-benzyloxy]-malonyl-beta-D-galactopyranoside 提交 2020-03-12	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 2–154（153 aa）	突变：M54V	SZS methyl 3-O-[3-(benzyloxy)-3-oxopropanoyl]-beta-D-galactopyranoside × 1 EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；298.15 K；0.1M sodium citrate dihydrate pH 5.6, 20% PEG 4000, 10% IPA	分辨率 1.59 Å R-free 0.226
6Z6Y Galectin-8 N-terminal domain in complex with a sulfatide mimicking a sphingolipid 提交 2020-05-29	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 5–160（156 aa）	未记录	L4L [(2~{R},3~{R},4~{S},5~{S},6~{R})-2-[(2~{S})-2-acetamido-3-oxidanylidene-pent-4-enoxy]-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-4-yl] hydrogen sulfate × 1 ACT ACETATE ION × 6 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 7.6；298 K；0.1 M Na-HEPES, pH 7.6, 10% PEG 4000 and 20% Isopropanol	分辨率 1.34 Å R-free 0.194
7AEN Galectin-8 N-terminal carbohydrate recognition domain in complex with methyl 3-O-((7-carboxy)quinolin-2-yl)-methoxy)-beta-D-galactopyranoside 提交 2020-09-17	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 7–156（150 aa）	未记录	R8B methyl 3-O-((7-carboxy) quinolin-2-yl)-methyl)-beta-D-galactopyranoside × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 LIQUID DIFFUSION；pH 8；293.5 K；buffer (10mM Tris/HCl pH 8.0, 150 mM NaCl, 10 mm lactose and 1 mM TCEP) mixed with reservoir 25% (w/v) PEG 2000 monomethylethyer (MME), a cryo solution (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 10 mM lactose, 25% (w/v) PEG 2000 MME, 20% ethylene glycol (EG) and 1 mM TCEP) and flash-frozen in liquid nitrogen. A co-crystal with lactose, grown from a seeded drop with 24% (w/v) PEG 2000 MME in the reservoir, was used to soak in compound 1 by transferring crystals in three steps to different soaking drops. First to a 2 ul drop with glycerol ( 20% (v/v) glycerol, 25% (w/v PEG 2000 MME, 10 mM Tris/HCl pH 8.0, 50 mM NaCl and 1 mM TCEP) and secondly to a 2 ul drop with 10 mM compound 1 (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 5 mM compound 1, 25% (w/v) PEG 2000 MME and 1 mM TCEP) and thirdly to a second drop with 5 mM compound 1 (same composition as before).	分辨率 1.60 Å R-free 0.212
7AEN Galectin-8 N-terminal carbohydrate recognition domain in complex with methyl 3-O-((7-carboxy)quinolin-2-yl)-methoxy)-beta-D-galactopyranoside 提交 2020-09-17	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 7–156（150 aa）	未记录	R8B methyl 3-O-((7-carboxy) quinolin-2-yl)-methyl)-beta-D-galactopyranoside × 1	X-RAY DIFFRACTION X-ray结晶条件 LIQUID DIFFUSION；pH 8；293.5 K；buffer (10mM Tris/HCl pH 8.0, 150 mM NaCl, 10 mm lactose and 1 mM TCEP) mixed with reservoir 25% (w/v) PEG 2000 monomethylethyer (MME), a cryo solution (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 10 mM lactose, 25% (w/v) PEG 2000 MME, 20% ethylene glycol (EG) and 1 mM TCEP) and flash-frozen in liquid nitrogen. A co-crystal with lactose, grown from a seeded drop with 24% (w/v) PEG 2000 MME in the reservoir, was used to soak in compound 1 by transferring crystals in three steps to different soaking drops. First to a 2 ul drop with glycerol ( 20% (v/v) glycerol, 25% (w/v PEG 2000 MME, 10 mM Tris/HCl pH 8.0, 50 mM NaCl and 1 mM TCEP) and secondly to a 2 ul drop with 10 mM compound 1 (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 5 mM compound 1, 25% (w/v) PEG 2000 MME and 1 mM TCEP) and thirdly to a second drop with 5 mM compound 1 (same composition as before).	分辨率 1.60 Å R-free 0.212
7ALS Alpha and beta Lactose isomer structure of Galectin 8, N-terminal domain 提交 2020-10-07	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 其他组合同源多聚体；蛋白 × 2 PDB 声明：dimeric	链 A 4–158（155 aa）链 B 4–158（155 aa）	未记录	CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 8；293.5 K；24% (w/v) PEG 2000 MME	分辨率 1.35 Å R-free 0.199
7P11 Galectin-8 N-terminal carbohydrate recognition domain in complex with quinoline D-galactal ligand 提交 2021-07-01	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 7–156（150 aa）	未记录	5KM 2-[[(2~{R},3~{R},4~{R})-2-(hydroxymethyl)-3-oxidanyl-3,4-dihydro-2~{H}-pyran-4-yl]oxymethyl]quinoline-7-carboxylic acid × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 LIQUID DIFFUSION；pH 8；293.5 K；Buffer (10mM Tris/HCl pH 8.0, 150 mM NaCl, 10 mm lactose and 1 mM TCEP) mixed with reservoir 25% (w/v) PEG 2000 monomethylethyer (MME), a cryo solution (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 10 mM lactose, 25% (w/v) PEG 2000 MME, 20% ethylene glycol (EG) and 1 mM TCEP) and flash-frozen in liquid nitrogen. A co-crystal with lactose, grown from a seeded drop with 24% (w/v) PEG 2000 MME in the reservoir, was used to soak in compound 1 by transferring crystals in three steps to different soaking drops. First to a 2 ul drop with glycerol ( 20% (v/v) glycerol, 25% (w/v PEG 2000 MME, 10 mM Tris/HCl pH 8.0, 50 mM NaCl and 1 mM TCEP) and secondly to a 2 ul drop with 10 mM compound 1 (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 5 mM compound 1, 25% (w/v) PEG 2000 MME and 1 mM TCEP) and thirdly to a second drop with 5 mM compound 1 (same composition as before).	分辨率 2.10 Å R-free 0.263
7P11 Galectin-8 N-terminal carbohydrate recognition domain in complex with quinoline D-galactal ligand 提交 2021-07-01	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 6–156（151 aa）	未记录	5KM 2-[[(2~{R},3~{R},4~{R})-2-(hydroxymethyl)-3-oxidanyl-3,4-dihydro-2~{H}-pyran-4-yl]oxymethyl]quinoline-7-carboxylic acid × 1	X-RAY DIFFRACTION X-ray结晶条件 LIQUID DIFFUSION；pH 8；293.5 K；Buffer (10mM Tris/HCl pH 8.0, 150 mM NaCl, 10 mm lactose and 1 mM TCEP) mixed with reservoir 25% (w/v) PEG 2000 monomethylethyer (MME), a cryo solution (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 10 mM lactose, 25% (w/v) PEG 2000 MME, 20% ethylene glycol (EG) and 1 mM TCEP) and flash-frozen in liquid nitrogen. A co-crystal with lactose, grown from a seeded drop with 24% (w/v) PEG 2000 MME in the reservoir, was used to soak in compound 1 by transferring crystals in three steps to different soaking drops. First to a 2 ul drop with glycerol ( 20% (v/v) glycerol, 25% (w/v PEG 2000 MME, 10 mM Tris/HCl pH 8.0, 50 mM NaCl and 1 mM TCEP) and secondly to a 2 ul drop with 10 mM compound 1 (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 5 mM compound 1, 25% (w/v) PEG 2000 MME and 1 mM TCEP) and thirdly to a second drop with 5 mM compound 1 (same composition as before).	分辨率 2.10 Å R-free 0.263
7P1M Galectin-8 N-terminal carbohydrate recognition domain in complex with benzimidazole D-galactal ligand 提交 2021-07-02	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白同源多聚体同源多聚体；蛋白 × 2 PDB 声明：dimeric	链 A 6–156（151 aa）链 B 6–156（151 aa）	未记录	4IU 2-[[(2R,3R,4R)-2-(hydroxymethyl)-3-oxidanyl-3,4-dihydro-2H-pyran-4-yl]oxymethyl]-3-methyl-benzimidazole-5-carboxylic acid × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 LIQUID DIFFUSION；pH 8；293.5 K；Buffer (10mM Tris/HCl pH 8.0, 150 mM NaCl, 10 mm lactose and 1 mM TCEP) mixed with reservoir 25% (w/v) PEG 2000 monomethylethyer (MME), a cryo solution (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 10 mM lactose, 25% (w/v) PEG 2000 MME, 20% ethylene glycol (EG) and 1 mM TCEP) and flash-frozen in liquid nitrogen. A co-crystal with lactose, grown from a seeded drop with 24% (w/v) PEG 2000 MME in the reservoir, was used to soak in compound 1 by transferring crystals in three steps to different soaking drops. First to a 2 ul drop with glycerol ( 20% (v/v) glycerol, 25% (w/v PEG 2000 MME, 10 mM Tris/HCl pH 8.0, 50 mM NaCl and 1 mM TCEP) and secondly to a 2 ul drop with 10 mM compound 1 (10 mM Tris/HCl pH 8.0, 50 mM NaCl, 5 mM compound 1, 25% (w/v) PEG 2000 MME and 1 mM TCEP) and thirdly to a second drop with 5 mM compound 1 (same composition as before).	分辨率 1.52 Å R-free 0.207
8HL9 Crystal structure of Galectin-8 C-CRD with part of linker 提交 2022-11-29	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 171–317（147 aa）	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Hepes pH 7.0, 0.2M MgCl2, 30% (W/V) PEG 3350	分辨率 1.60 Å R-free 0.251
9FXZ Galectin-8 N-terminal carbohydrate recognition domain in complex with 4-(bromophenyl)phthalazinone D-galactal ligand 提交 2024-07-02	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–317（317 aa）	未记录	V19 4-(4-bromophenyl)-2-[[(2~{R},3~{R},4~{R})-2-(hydroxymethyl)-3-oxidanyl-3,4-dihydro-2~{H}-pyran-4-yl]oxymethyl]phthalazin-1-one × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 8；293.5 K；A co-crystal with lactose, grown from 12 mg/ml galectin-8N in 10 mM lactose, 10 mM Tris/HCl pH 8.0, 1 mM TCEP and 150 mM sodium chloride mixed with 25% (w/v) PEG 2000 MME) in a hanging drop, was used to soak the compound by transferring crystals in three steps to soaking drops. These were 2 uL drops with a soaking solution of 20% ethylene glycol, 25% PEG 2000 MME, 10 mM Tris pH 8, 1 mM TCEP, 50 mM NaCl, and 2 mM compound 10. The incubation times in the first two drops were about 10 min and in the third drop about 24 h. Then the crystals were transferred to a cryo solution with the same constituents and flash-frozen in liquid nitrogen.	分辨率 1.30 Å R-free 0.200
9FXZ Galectin-8 N-terminal carbohydrate recognition domain in complex with 4-(bromophenyl)phthalazinone D-galactal ligand 提交 2024-07-02	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–317（317 aa）	未记录	V19 4-(4-bromophenyl)-2-[[(2~{R},3~{R},4~{R})-2-(hydroxymethyl)-3-oxidanyl-3,4-dihydro-2~{H}-pyran-4-yl]oxymethyl]phthalazin-1-one × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 8；293.5 K；A co-crystal with lactose, grown from 12 mg/ml galectin-8N in 10 mM lactose, 10 mM Tris/HCl pH 8.0, 1 mM TCEP and 150 mM sodium chloride mixed with 25% (w/v) PEG 2000 MME) in a hanging drop, was used to soak the compound by transferring crystals in three steps to soaking drops. These were 2 uL drops with a soaking solution of 20% ethylene glycol, 25% PEG 2000 MME, 10 mM Tris pH 8, 1 mM TCEP, 50 mM NaCl, and 2 mM compound 10. The incubation times in the first two drops were about 10 min and in the third drop about 24 h. Then the crystals were transferred to a cryo solution with the same constituents and flash-frozen in liquid nitrogen.	分辨率 1.30 Å R-free 0.200
9FYJ N-terminal domain of human galectin-8 in complex with an alpha-galactoside ligand 提交 2024-07-03	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白同源多聚体同源多聚体；蛋白 × 2 PDB 声明：dimeric	链 A 4–156（153 aa）链 B 4–156（153 aa）	未记录	A1IHE 2-[[(2~{R},3~{R},4~{S},5~{S},6~{R})-2-(3,4-dichlorophenyl)sulfanyl-6-(hydroxymethyl)-5-oxidanyl-3-prop-2-ynoxy-oxan-4-yl]oxymethyl]-3-methyl-benzimidazole-5-carboxylic acid × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Drops consisted of 2 ul galectin-8N at 13.1 mg/ml in PBS buffer, 1 mM ligand, 5% DMSO mixed with 2 ul of reservoir solution consisting of 35% (w/v) Morpheus precipitant mix 4, 0.16 M Morpheus alcohol mix, 61 mM MES, 39 mM imidazole, pH 7.5. Morpheus precipitant mix 4 is made up of 25% (w/v) each of methane pentane diol (MPD), polyethylene glycol (PEG) 1000 and PEG 3350. Morpheus alcohol mix contains 0.2 M each of 1,6-hexanediol, 1-butanol, 1,2-propanediol, 2-propanol, 1,4-butanediol and 1,3-propanediol (1.2 M total).	分辨率 1.08 Å R-free 0.150
9KH4 Crystal structure of Galectin-8 N-CRD with N-acetyllactosamine 提交 2024-11-09	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 4–153（150 aa）	未记录	NA SODIUM ION × 1 RNQ ~{N}-[(2~{R},3~{R},4~{R},5~{S},6~{R})-6-(hydroxymethyl)-5-[(2~{S},3~{R},4~{S},5~{R},6~{R})-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-2,4-bis(oxidanyl)oxan-3-yl]ethanamide × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；298 K；PEG	分辨率 1.75 Å R-free 0.212

共 36 个其他 PDB 条目、55 个 assembly。打开独立比较页并筛选聚集状态

查看构建体与数据证据

UniProt名称	LEG8_HUMAN
Isoform	—
PDB实体	1
链与序列区间	作者链 A； PDB构建体 22–153； UniProt 186–317

Peptide from Calcium-binding and coiled-coil domain-containing protein 2

物种未注明

UniProt Q13137

当前结构中的状态

Assembly	聚集状态	构建体	突变与修饰	配体、离子与共同组分	实验方法与环境	结构质量
1	蛋白异源复合物异源复合物蛋白 × 2 PDB 声明：dimeric（2）与蛋白拷贝数一致	链 B； UniProt 368–381	片段：UNP residues 368-381	Galectin-8 × 1 （O00214） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray结晶条件：VAPOR DIFFUSION, SITTING DROP；pH 7.5；283 K；2% PEG 400, 0.1M HEPES sodium pH 7.5, 2.0M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 283K	分辨率 2.02 Å R-free 0.216

数据库中的同蛋白其他状态

其他 PDB	相对当前条目 4GXL	Assembly / 聚集状态	构建体	突变与修饰	配体、离子与非聚合物	实验方法与环境	结构质量
2MXP Solution structure of NDP52 ubiquitin-binding zinc finger 提交 2015-01-12	构建体不同聚集状态不同配体/离子不同实验方法不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 414–446（33 aa）片段：C-terminal, UNP residues 414-446	未记录	ZN ZINC ION × 1	SOLUTION NMR NMR测量条件 pH 6.5；298 K；离子强度（mmCIF原始值）0.1；压力 ambient NMR测量条件 pH 6.5；298 K；离子强度（mmCIF原始值）0.1；压力 ambient NMR样品组成 1 mM [U-100% 13C; U-100% 15N] entity_1-1, 1 mM [U-100% 15N] entity_1-2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR样品组成 1 mM [U-100% 13C; U-100% 15N] entity_1-3, 100% D2O \| 100% D2O NMR样品组成 1.2 mM entity_1-4, 100% D2O \| 100% D2O	分辨率未提供
3VVV Skich domain of NDP52 提交 2012-07-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白同源多聚体同源多聚体；蛋白 × 2 PDB 声明：dimeric	链 A 21–141（121 aa）片段：UNP residues 21-141	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION；pH 8.5；293 K；24% PEG4000, 0.1M Tris , pH 8.5, VAPOR DIFFUSION, temperature 293K	分辨率 1.35 Å R-free 0.189
3VVV Skich domain of NDP52 提交 2012-07-28	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 21–141（121 aa）片段：UNP residues 21-141	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION；pH 8.5；293 K；24% PEG4000, 0.1M Tris , pH 8.5, VAPOR DIFFUSION, temperature 293K	分辨率 1.35 Å R-free 0.189
3VVW NDP52 in complex with LC3C 提交 2012-07-28	构建体不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 2 PDB 声明：dimeric	链 A 21–141（121 aa）片段：UNP residues 21-141	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION；pH 7；293 K；16% PEG6000, 0.01M sodium citrate , pH 7.0, Vapor Diffusion, temperature 293K	分辨率 2.50 Å R-free 0.252
4HAN Crystal structure of Galectin 8 with NDP52 peptide 提交 2012-09-27	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 4 PDB 声明：tetrameric	链 C 372–385（14 aa）片段：UNP residues 372-385 链 D 372–385（14 aa）片段：UNP residues 372-385	未记录	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.1M Tris-Hcl pH8.5, 30~34% (v/w) PEG400, 200mM LiSO4, and 10mM Nicotinamide adenine dinucleotide, VAPOR DIFFUSION, HANGING DROP, temperature 295K	分辨率 2.55 Å R-free 0.214
4XKL Crystal structure of NDP52 ZF2 in complex with mono-ubiquitin 提交 2015-01-12	构建体不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 2 PDB 声明：dimeric	链 B 414–446（33 aa）片段：Zinc finger, UNP residues 414-446	未记录	GOL GLYCEROL × 1 ACT ACETATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M magnesium acetate tetrahydrate, 20% w/v Polyethylene glycol 3350	分辨率 2.10 Å R-free 0.243
4XKL Crystal structure of NDP52 ZF2 in complex with mono-ubiquitin 提交 2015-01-12	构建体不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白异源复合物异源复合物；蛋白 × 2 PDB 声明：dimeric	链 D 414–446（33 aa）片段：Zinc finger, UNP residues 414-446	未记录	GOL GLYCEROL × 1 ACT ACETATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M magnesium acetate tetrahydrate, 20% w/v Polyethylene glycol 3350	分辨率 2.10 Å R-free 0.243
5AAQ TBK1 recruitment to cytosol-invading Salmonella induces anti- bacterial autophagy 提交 2015-07-28	构建体不同聚集状态不同配体/离子不同实验方法不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 388–446（59 aa）片段：UNP RESIDUES 388-446	未记录	ZN ZINC ION × 1	SOLUTION NMR NMR测量条件 pH 6.5；298 K；离子强度（mmCIF原始值）100；压力 1.0 NMR样品组成 95% WATER/5% D2O	分辨率未提供
5Z7A Crystal structure of NDP52 SKICH region 提交 2018-01-27	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 A 1–126（126 aa）片段：UNP residues 1-126	未记录	SO4 SULFATE ION × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 6.7；289 K；PEG 3350, 0.2 M potassium sulfate	分辨率 2.38 Å R-free 0.263
5Z7A Crystal structure of NDP52 SKICH region 提交 2018-01-27	构建体不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 2 蛋白单体单体；蛋白 × 1 PDB 声明：monomeric	链 B 1–126（126 aa）片段：UNP residues 1-126	未记录	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；pH 6.7；289 K；PEG 3350, 0.2 M potassium sulfate	分辨率 2.38 Å R-free 0.263
5Z7L Crystal structure of NDP52 SKICH region in complex with NAP1 提交 2018-01-29	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 4 PDB 声明：tetrameric	链 A 10–126（117 aa）片段：UNP residues 10-126 链 B 10–126（117 aa）片段：UNP residues 10-126	未记录	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；289 K；PEG3350,sodium malonate	分辨率 2.02 Å R-free 0.222
7EAA crystal structure of NDP52 SKICH domain in complex with RB1CC1 coiled-coil domain 提交 2021-03-06	构建体不同突变/修饰不同聚集状态不同配体/离子不同实验环境不同结构质量不同	Assembly 1 蛋白异源复合物异源复合物；蛋白 × 4 PDB 声明：tetrameric	链 A 10–141（132 aa）链 B 10–141（132 aa）	未记录	未记录非水小分子	X-RAY DIFFRACTION X-ray结晶条件 VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M MgCl2, 0.1 M MES pH 6.0, 8% PEG6000	分辨率 2.60 Å R-free 0.253

共 9 个其他 PDB 条目、12 个 assembly。打开独立比较页并筛选聚集状态

查看构建体与数据证据

UniProt名称	CACO2_HUMAN
Isoform	—
PDB实体	2
链与序列区间	作者链 B； PDB构建体 1–14； UniProt 368–381

页面优先展示蛋白身份、当前 assembly、共同组分、聚集状态和跨 PDB 结构链接。链映射与序列区间收在“数据证据”中；数据库内部编号、导入时间和 assembly 操作表达式仅用于维护，因此不在读者页面展示。

SAXS 散射曲线 SAXS Profile

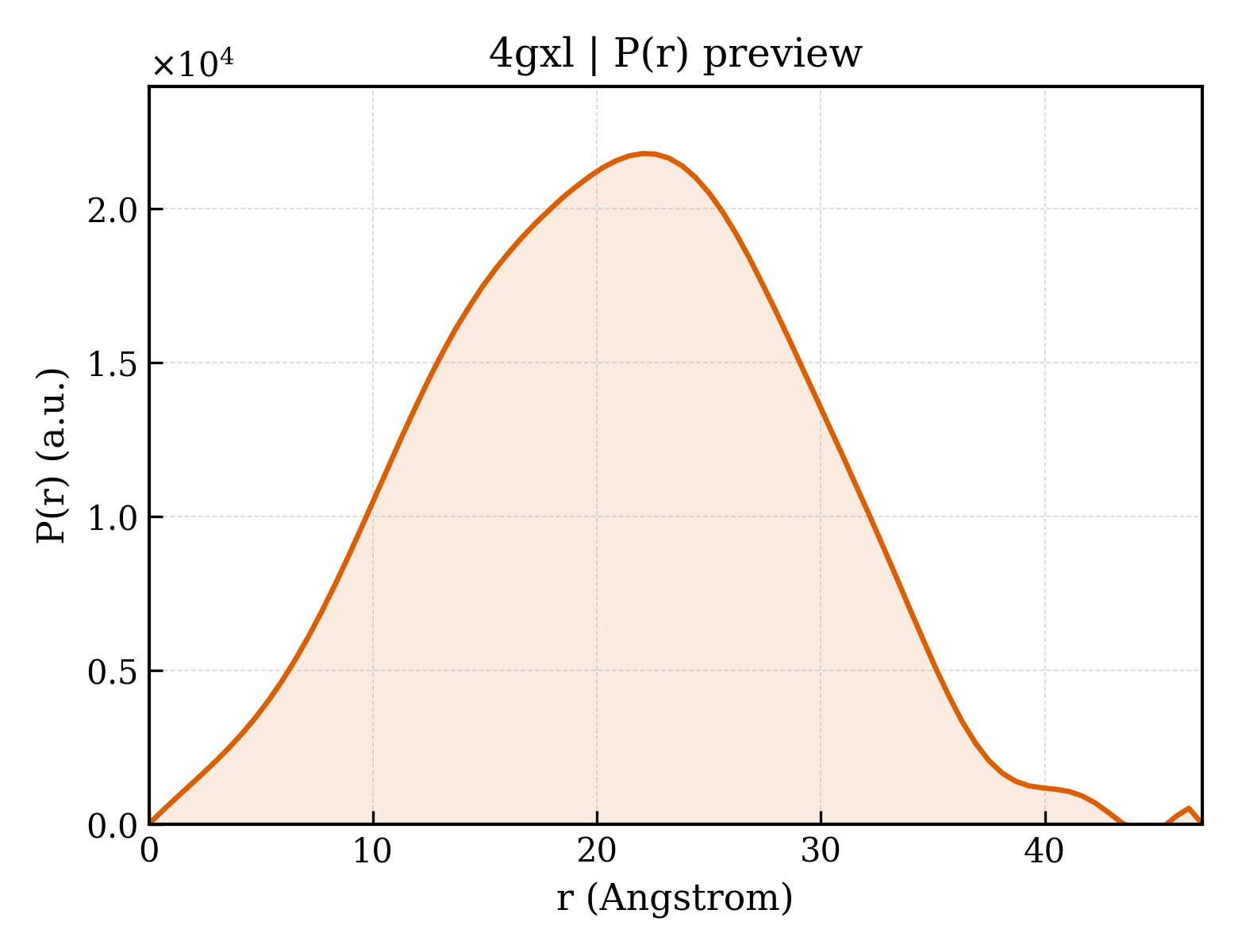

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. 结构基本信息 2. Structure Basics

条目编号 entry_id	4gxl
沉积日期 deposition_date	2012-09-04
结构标题 title	The crystal structure of Galectin-8 C-CRD in complex with NDP52
关键词 keywords	protein-protein interaction, carbohydrate recognition, NDP52, PROTEIN BINDING; PROTEIN BINDING
实验方法 method	X-RAY DIFFRACTION

▼

3. SAXS 参数 (CRYSOL 理论计算) 3. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	15.96 Å
回转半径 Rg (电子) rg_electron	14.49 Å
零角强度 I(0) i0	5885260.00
分子量 molecular_weight	17639.0 kDa
排除体积 excluded_volume	22113 Å³
包络体积 envelope_volume	24644 Å³
水化壳体积 shell_volume	14110 Å³
包络直径 envelope_diameter	48.5 Å
壳层 Rg shell_rg	20.74 Å
包络 Rg envelope_rg	14.74 Å
形状 Rg shape_rg	14.49 Å
总 Rg total_rg	15.68 Å
总原子数 total_atoms	1245
残基数 n_residues	154
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

4. P(r) 距离分布 (GNOM 反演) 4. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	47.0 Å
Rg (实空间) rg_real	15.81 Å
Rg 误差 (实空间) rg_real_error	0.17 Å
I(0) (实空间) i0_real	5.8850e+06
I(0) 误差 (实空间) i0_real_error	5.6350e+04
Rg (倒空间) rg_reciprocal	15.83 Å
I(0) (倒空间) i0_reciprocal	5885000.0000
解质量估计 total_estimate	0.8228
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	22.0 Å
偏度 Skewness skewness	-0.000
峰度 Kurtosis kurtosis	-0.458
角度范围 angular_range	— – 0.5000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1480000.0000
实空间数据点数 n_real_points	80
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.000

▶

5. 晶体学与实验 5. Crystallography & Experiment

▶

6. 实体与聚合物信息 Entities & Polymers (4)

实体 1 Entity 1 polymer

描述 description	Galectin-8
分子量 formula_weight	17532.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合物 Polymer

聚合物类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	1374

MGSSHHHHHHSSGENLYFQHMPFAARLNTPMGPGRTVVVKGEVNANAKSFNVDLLAGKSKDIALHLNPRLNIKAFVRNSFLQESWGEEERNITSFPFSPGMYFEMIIYCDVREFKVAVNGVHSLEYKHRFKELSSIDTLEINGDIHLLEVRSW

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

实体 2 Entity 2 polymer

描述 description	Peptide from Calcium-binding and coiled-coil domain-containing protein 2
分子量 formula_weight	1508.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合物 Polymer

聚合物类型 type	polypeptide(L)
链编号 strand_id	B

ARQNPGLAYGNPYS

实体 3 Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

实体 4 Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	119

▼

7. 折叠分类 (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

结构域编号 domain_id	4gxlA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	200 —

▶

8. 引用文献 (1)

▶

晶胞边长 a length_a	76.087 Å
晶胞边长 b length_b	124.826 Å
晶胞边长 c length_c	43.737 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 2
空间群编号 int_tables_number	21
晶系 crystal_system	—

分辨率 resolution	2.023 Å
最低分辨率 resolution_low	35.818 Å
R 因子 r_factor	0.1786
R_work r_work	0.1767
R_free r_free	0.2161

fit	/app/data/saxs_computation/gx/4gxl/4gxl.fit
pddf	/app/data/pr_computation/gx/4gxl/4gxl.pr.out
profile	/app/data/saxs_computation/gx/4gxl/4gxl.dat
