SAXSdb — 4c31

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NUCLEAR MRNA EXPORT PROTEIN SAC3

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 757–787 Chain D； UniProt 757–787	Fragment：RESIDUES 757-787	PROTEIN SUS1 × 2 （Q6WNK7） NUCLEOPORIN NUP1 × 4 （P20676）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；DESCRIBED IN DETAIL IN PUBLICATION, pH 6.0	Resolution 3.00 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4C31	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FWB Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 752–805（54 aa） Fragment：residues 752-805	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；0.1M MES pH6.5, 16% PEG4K, 20% glycerol - see publication for complete details, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.50 Å R-free 0.235
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 723–805（83 aa） Fragment：residues 723-805	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 723–805（83 aa） Fragment：residues 723-805	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain J 723–805（83 aa） Fragment：residues 723-805	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain N 723–805（83 aa） Fragment：residues 723-805	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3T5V Sac3:Thp1:Sem1 complex Deposited 2011-07-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 250–563（314 aa） Fragment：M region, UNP 250-563	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；292 K；see publication, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.90 Å R-free 0.231
3T5V Sac3:Thp1:Sem1 complex Deposited 2011-07-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 250–563（314 aa） Fragment：M region, UNP 250-563	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；292 K；see publication, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.90 Å R-free 0.231
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 753–805（53 aa） Fragment：CDC31 interacting region, residues 753-805	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 753–805（53 aa） Fragment：CDC31 interacting region, residues 753-805	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
4TRQ Crystal structure of Sac3/Thp1/Sem1 Deposited 2014-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: Hexameric	Chain A 253–551（299 aa） Chain D 253–551（299 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.5M Li2SO4, 10% PEG-8.000	Resolution 3.10 Å R-free 0.238
5G5P Structure of the Saccharomyces cerevisiae TREX-2 complex Deposited 2016-05-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–805（805 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM HEPES, 300 MM NACL, 5 MM DTT；pH 8；20 mM HEPES, 300 mM NaCl, 5 mM DTT cryo-EM vitrification conditions 85 K；Cryogen ETHANE；LIQUID ETHANE	Resolution 5.30 Å
5L3T Structure of the Saccharomyces cerevisiae TREX-2 complex Deposited 2016-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1301（1301 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Precipitant: 20% PEG 3350, 0.2 M Mg formate; protein 16.5 mg/ml in 0.3 M NaCl, 50 mM HEPES, pH 8, 5 mM DTT.	Resolution 4.93 Å R-free 0.370
8U8C Crystal structure of the TREX-2 complex in complex with the N-terminal motif of Sub2 Deposited 2023-09-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 60–551（492 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MES, pH 6.5, and 20% PEG3350	Resolution 2.40 Å R-free 0.231

8 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SAC3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–33； UniProt 757–787 Author chain D； PDBConstruct 3–33； UniProt 757–787

PROTEIN SUS1

SACCHAROMYCES CEREVISIAE

UniProt Q6WNK7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain B； UniProt 1–96 Chain E； UniProt 1–96	Not recorded	NUCLEAR MRNA EXPORT PROTEIN SAC3 × 2 （P46674） NUCLEOPORIN NUP1 × 4 （P20676）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；DESCRIBED IN DETAIL IN PUBLICATION, pH 6.0	Resolution 3.00 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4C31	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FWB Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；0.1M MES pH6.5, 16% PEG4K, 20% glycerol - see publication for complete details, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.50 Å R-free 0.235
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–96（96 aa） Chain D 1–96（96 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–96（96 aa） Chain H 1–96（96 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 1–96（96 aa） Chain L 1–96（96 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3FWC Sac3:Sus1:Cdc31 complex Deposited 2009-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain O 1–96（96 aa） Chain P 1–96（96 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；unbuffered 16% PEG4K, 20% glycerol, 0.2 M Am sulph. See publication for complete details, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.265
3KIK Sgf11:Sus1 complex Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；3.2 M Na formate. See publication for details, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.231
3KIK Sgf11:Sus1 complex Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；3.2 M Na formate. See publication for details, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.231
3KIK Sgf11:Sus1 complex Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；3.2 M Na formate. See publication for details, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.231
3KIK Sgf11:Sus1 complex Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；3.2 M Na formate. See publication for details, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.231
3KJL Sgf11:Sus1 complex Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；see publication, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.70 Å R-free 0.253
3KJL Sgf11:Sus1 complex Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；see publication, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.70 Å R-free 0.253
3KJL Sgf11:Sus1 complex Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；see publication, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.70 Å R-free 0.253
3KJL Sgf11:Sus1 complex Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；see publication, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.70 Å R-free 0.253
3M99 Structure of the Ubp8-Sgf11-Sgf73-Sus1 SAGA DUB module Deposited 2010-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–96（96 aa）	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；0.2M ammonium citrate, 18% PEG 3,350, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.300
3MHH Structure of the SAGA Ubp8/Sgf11/Sus1/Sgf73 DUB module Deposited 2010-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–96（96 aa）	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1 M Na Citrate (5.2), 16% (w/v) PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.45 Å R-free 0.273
3MHS Structure of the SAGA Ubp8/Sgf11/Sus1/Sgf73 DUB module bound to ubiquitin aldehyde Deposited 2010-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–96（96 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M Hepes pH 6.5, 10% (w/v) PEG 8000, 20% (v/v) Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.89 Å R-free 0.208
4FIP Structure of the SAGA Ubp8(S144N)/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module Deposited 2012-06-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–96（96 aa） Chain F 1–96（96 aa）	Not recorded	ZN ZINC ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；14% PEG3350, 0.18-0.22 M Tri-ammonium citrate, 8-14% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.69 Å R-free 0.264
4FJC Structure of the SAGA Ubp8/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module Deposited 2012-06-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–96（96 aa） Chain F 1–96（96 aa）	Not recorded	ZN ZINC ION × 14 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；14% PEG3350, 0.18-0.22 M tri-ammonium citrate, 8-14% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.83 Å R-free 0.276
4FK5 Structure of the SAGA Ubp8(S144N)/Sgf11/Sus1/Sgf73 DUB module Deposited 2012-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–96（96 aa）	Not recorded	ZN ZINC ION × 8 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；sodium citrate pH 5.2, 16% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.03 Å R-free 0.212
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–96（96 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 1–96（96 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–96（96 aa）	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–96（96 aa）	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–96（96 aa） Chain F 1–96（96 aa）	Not recorded	ZN ZINC ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain V 1–96（96 aa） Chain a 1–96（96 aa）	Not recorded	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol	Resolution 3.82 Å R-free 0.256
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain f 1–96（96 aa） Chain k 1–96（96 aa）	Not recorded	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol	Resolution 3.82 Å R-free 0.256
6AQR SAGA DUB module Ubp8(C146A)/Sgf11/Sus1/Sgf73 bound to monoubiquitin Deposited 2017-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–96（96 aa）	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M HEPES pH 7.0 17% PEG3350 0.1 M ammonium sulfate	Resolution 2.10 Å R-free 0.249
6T9L SAGA DUB module bound to a ubiqitinated nucleosome Deposited 2019-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain L 1–96（96 aa）	Not recorded	ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solution were made from stock solution cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging	Resolution 3.60 Å

15 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SUS1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–96； UniProt 1–96 Author chain E； PDBConstruct 1–96； UniProt 1–96

NUCLEOPORIN NUP1

SACCHAROMYCES CEREVISIAE

UniProt P20676

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain C； UniProt 322–355 Chain F； UniProt 322–355 Chain X； UniProt 322–355 Chain Y； UniProt 322–355	Fragment：RESIDUES 322-355	NUCLEAR MRNA EXPORT PROTEIN SAC3 × 2 （P46674） PROTEIN SUS1 × 2 （Q6WNK7）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；DESCRIBED IN DETAIL IN PUBLICATION, pH 6.0	Resolution 3.00 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4C31	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 316–340（25 aa） Fragment：FXF 1 repeat containing region, residues 316-340 Chain X 316–340（25 aa） Fragment：FXF 1 repeat containing region, residues 316-340	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
4MBE Sac3:Sus1:Cdc31:Nup1 complex Deposited 2013-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain H 316–340（25 aa） Fragment：FXF 1 repeat containing region, residues 316-340 Chain Y 316–340（25 aa） Fragment：FXF 1 repeat containing region, residues 316-340	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.61 Å R-free 0.236
5OWU Kap95:Nup1 complex Deposited 2017-09-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–1076（1076 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；5 mg/ml protein in 5 mM Tris-HCl, pH 7.4 equilibrated against 90 mM (NH4)2SO4, 50 mM Na Cacodylate, pH 6.5, 13% PEG 8000	Resolution 2.00 Å R-free 0.219

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NUP1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 3–36； UniProt 322–355 Author chain F； PDBConstruct 3–36； UniProt 322–355 Author chain X； PDBConstruct 3–36； UniProt 322–355 Author chain Y； PDBConstruct 3–36； UniProt 322–355

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4c31
Deposition date deposition_date	2013-08-21
Structure title title	Nup1:Sac3:Sus1 complex
Keywords keywords	TRANSPORT PROTEIN, NUCLEAR TRANSPORT, MRNA EXPORT, GENE EXPRESSION PATHWAY INTEGRATION, NUCLEAR PORE; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.49 Å
Radius of gyration Rg (electron density) rg_electron	20.10 Å
Forward intensity I(0) i0	18457400.00
Molecular weight molecular_weight	33278.0 kDa
Excluded volume excluded_volume	41996 Å³
Envelope volume envelope_volume	50500 Å³
Hydration-shell volume shell_volume	20953 Å³
Envelope diameter envelope_diameter	64.3 Å
Shell Rg shell_rg	26.53 Å
Envelope Rg envelope_rg	20.14 Å
Shape Rg shape_rg	20.06 Å
Total Rg total_rg	21.12 Å
Total atoms total_atoms	2340
Residues n_residues	286
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

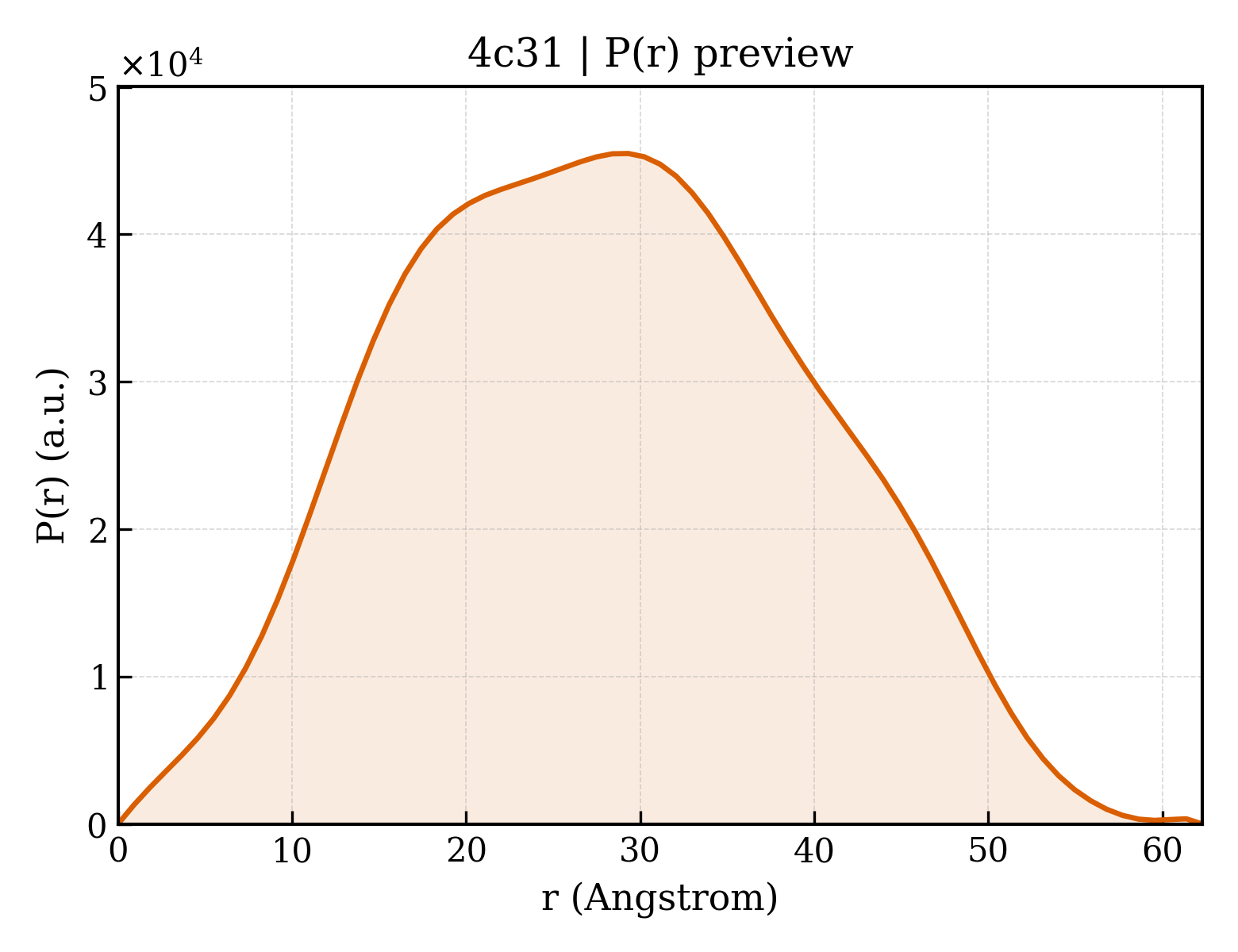

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	62.3 Å
Rg (real space) rg_real	21.36 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	1.8460e+07
I(0) uncertainty (real space) i0_real_error	2.0440e+05
Rg (reciprocal space) rg_reciprocal	21.38 Å
I(0) (reciprocal space) i0_reciprocal	18460000.0000
Solution quality estimate total_estimate	0.9172
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.3 Å
Skewness Skewness skewness	0.101
Kurtosis Kurtosis kurtosis	-0.642
Angular range angular_range	— – 0.3700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5963000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NUCLEAR MRNA EXPORT PROTEIN SAC3
Molecular weight formula_weight	4062.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	2340

GSRKDFIDTMTRELYDAFLHERLYLIYMDSRAE

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	PROTEIN SUS1
Molecular weight formula_weight	11094.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MTMDTAQLKSQIQQYLVESGNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLEEIVDTQ

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 polymer

Description description	NUCLEOPORIN NUP1
Molecular weight formula_weight	3885.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,X,Y

GSPKKDKESIVLPTVGFDFIKDNETPSKKTSPKATS

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4c31b_
Class class	a — All alpha proteins
Fold Fold fold	a.301 — Sus1-like
Superfamily Superfamily superfamily	a.301.1 — Sus1-like
Family Family family	a.301.1.1 — Sus1-like

Domain ID domain_id	d4c31e_
Class class	a — All alpha proteins
Fold Fold fold	a.301 — Sus1-like
Superfamily Superfamily superfamily	a.301.1 — Sus1-like
Family Family family	a.301.1.1 — Sus1-like

CATH v4.4 (2 domains)

Domain ID domain_id	4c31B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	140 — ENY2/SUS1

Domain ID domain_id	4c31E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	140 — ENY2/SUS1

▶

8. Citations (1)

▶

Unit-cell length a length_a	95.550 Å
Unit-cell length b length_b	95.550 Å
Unit-cell length c length_c	105.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	47.775 Å
R factor r_factor	0.2086
R_work r_work	0.2068
R_free r_free	0.2435

fit	/app/data/saxs_computation/c3/4c31/4c31.fit
pddf	/app/data/pr_computation/c3/4c31/4c31.pr.out
profile	/app/data/saxs_computation/c3/4c31/4c31.dat

Nup1:Sac3:Sus1 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

NUCLEAR MRNA EXPORT PROTEIN SAC3

State in the Current Structure

Other States of the Same Protein in the Database

PROTEIN SUS1

State in the Current Structure

Other States of the Same Protein in the Database

NUCLEOPORIN NUP1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
