SAXSdb — 3t5v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear mRNA export protein SAC3

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein THP1 × 1 （Q08231） 26S proteasome complex subunit SEM1 × 1 （O94742）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein THP1 × 1 （Q08231） 26S proteasome complex subunit SEM1 × 1 （O94742）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SAC3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–316； UniProt 250–563 Author chain D； PDBConstruct 3–316； UniProt 250–563

Nuclear mRNA export protein THP1

Saccharomyces cerevisiae

UniProt Q08231

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein SAC3 × 1 （P46674） 26S proteasome complex subunit SEM1 × 1 （O94742）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein SAC3 × 1 （P46674） 26S proteasome complex subunit SEM1 × 1 （O94742）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THP1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–455； UniProt 1–455 Author chain E； PDBConstruct 1–455； UniProt 1–455

26S proteasome complex subunit SEM1

Saccharomyces cerevisiae

UniProt O94742

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein SAC3 × 1 （P46674） Nuclear mRNA export protein THP1 × 1 （Q08231）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Nuclear mRNA export protein SAC3 × 1 （P46674） Nuclear mRNA export protein THP1 × 1 （Q08231）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SEM1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–89； UniProt 1–89 Author chain F； PDBConstruct 1–89； UniProt 1–89

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3t5v
Deposition date deposition_date	2011-07-28
Structure title title	Sac3:Thp1:Sem1 complex
Keywords keywords	PCI, mRNA nuclear export, mRNA, nuclear, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3t5v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3t5v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

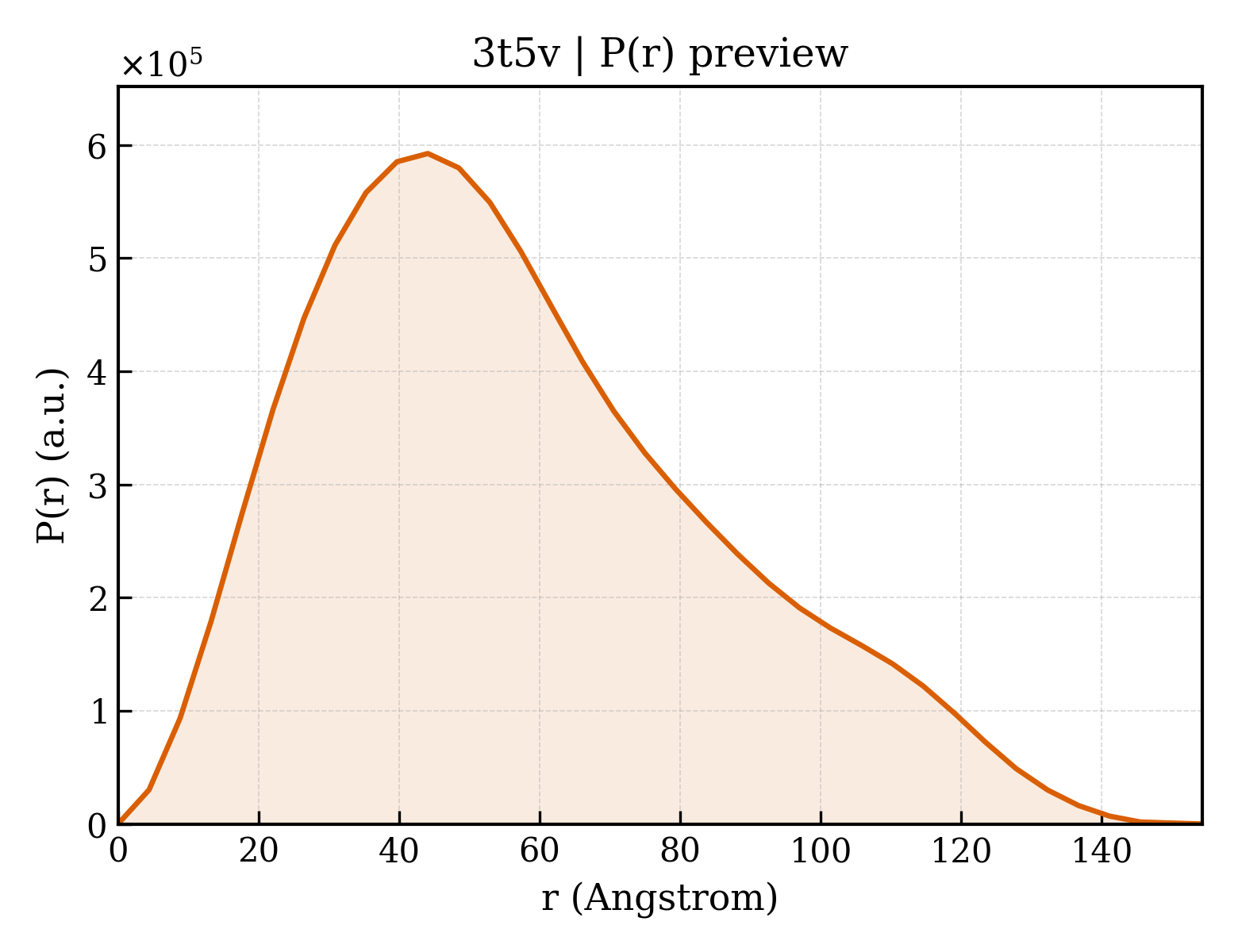

3t5v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.88 Å
Rg (electron density)	31.12 Å
Total Rg	31.76 Å
Atom count	13269
Residues	805
Excluded volume	118550 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3t5v__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3t5v__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nuclear mRNA export protein SAC3
Molecular weight formula_weight	36944.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	26347

GSPLPSDVRPPHILVKTLDYIVDNLLTTLPESEGFLWDRMRSIRQDFTYQNYSGPEAVDCNERIVRIHLLILHIMVKSNVEFSLQQELEQLHKSLITLSEIYDDVRSSGGTCPNEAEFRAYALLSKIRDPQYDENIQRLPKHIFQDKLVQMALCFRRVISNSAYTERGFVKTENCLNFYARFFQLMQSPSLPLLMGFFLQMHLTDIRFYALRALSHTLNKKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYSHKLSETQPLKKTYLTCLERRLQKTTYKGLINGGEDNLASSVYVKDPKK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	yeast
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nuclear mRNA export protein THP1
Molecular weight formula_weight	52734.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MDMANQLLDELAHGNFSHLTLNLSQNGREIAILQKQLTGFDDKQLETFVEQHPAMPNDTRFKIMCTSFLNYARDVDPWSAWSSSDLIFEFYQCLINCLINDNAPHIEMLIPVATRETEFIINLAGKLDSFHLQLHTRSHQFLSHISSILSRLFNSIKPPRGNASSTNIPGKQRILLYLVNKLNNIYFRIESPQLCSNIFKNFQPKSMLAHFNEYQLDQQIEYRYLLGRYYLLNSQVHNAFVQFNEAFQSLLNLPLTNQAITRNGTRILNYMIPTGLILGKMVKWGPLRPFLSQETIDNWSVLYKHVRYGNIQGVSLWLRQNERHLCARQLLIVLLEKLPMVTYRNLIKTVIKSWTTEWGQNKLPYSLIERVLQLSIGPTFEDPGAQEITIYNGIHSPKNVENVLVTLINLGLLRANCFPQLQLCVVKKTTMIQEIVPPVNERITKMFPAHSHVLW

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	yeast
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	26S proteasome complex subunit SEM1
Molecular weight formula_weight	10397.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MSTDVAAAQAQSKIDLTKKKNEEINKKSLEEDDEFEDFPIDTWANGETIKSNAVTQTNIWEENWDDVEVDDDFTNELKAELDRYKRENQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	yeast
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	3t5vA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	990 —

Domain ID domain_id	3t5vD00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	990 —

Domain ID domain_id	3t5vF01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1210 —

▶

Unit-cell length a length_a	164.770 Å
Unit-cell length b length_b	164.770 Å
Unit-cell length c length_c	276.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2095
R_work r_work	0.2084
R_free r_free	0.2309
