SAXSdb — 4f2l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-AMP-activated protein kinase catalytic subunit alpha-1 ;

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 295–347	Fragment：regulatory domain, UNP RESIDUES 295-347 Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M HEPES, 0.3M Magnesium sulfate, 36% isopropanol (v/v), pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 1.50 Å R-free 0.212
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 295–347	Fragment：regulatory domain, UNP RESIDUES 295-347 Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M HEPES, 0.3M Magnesium sulfate, 36% isopropanol (v/v), pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 1.50 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4F2L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V8Q Crystal structure of the regulatory fragment of mammalian AMPK in complexes with AMP Deposited 2007-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 396–548（153 aa） Fragment：RESIDUES 396-548	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.237
2V92 Crystal structure of the regulatory fragment of mammalian AMPK in complexes with ATP-AMP Deposited 2007-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 396–548（153 aa） Fragment：RESIDUES 396-548	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.259
2V9J Crystal structure of the regulatory fragment of mammalian AMPK in complexes with Mg.ATP-AMP Deposited 2007-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 396–548（153 aa） Fragment：RESIDUES 396-548	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.53 Å R-free 0.266
2Y8L Structure of the regulatory fragment of mammalian aMPK in complex with two ADP Deposited 2011-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 407–555（149 aa） Fragment：RESIDUES 407-555	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.253
2Y8Q Structure of the regulatory fragment of mammalian AMPK in complex with one ADP Deposited 2011-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 407–555（149 aa） Fragment：RESIDUES 406-555	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.275
2YA3 STRUCTURE OF THE REGULATORY FRAGMENT OF MAMMALIAN AMPK IN COMPLEX WITH COUMARIN ADP Deposited 2011-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 407–555（149 aa） Fragment：RESIDUES 407-555	Not recorded	J7V 3'-(7-diethylaminocoumarin-3-carbonylamino)-3'-deoxy-ADP × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.51 Å R-free 0.263
4CFH Structure of an active form of mammalian AMPK Deposited 2013-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 13–481（469 aa） Fragment：RESIDUES 13-481 Chain C 535–559（25 aa） Fragment：RESIDUES 535-559	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 8% ISOPROPANOL AND 5% MPD AS PRECIPITANT IN 0.1M TRIS AT PH 7.5 AT 18 DEGREES.	Resolution 3.24 Å R-free 0.268
4EAI Co-crystal structure of an AMPK core with AMP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 405–479（75 aa） Chain A 540–559（20 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.26；298 K；MES, 16% IPP, 1% 1,4-butanediol, pH 6.26, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 2.29 Å R-free 0.252
4EAJ Co-crystal of AMPK core with AMP soaked with ATP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 405–479（75 aa） Chain A 540–559（20 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.26；298 K；MES pH 6.26, 16% IPP, 1% 1,4-butanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 2.61 Å R-free 0.258
4EAK Co-crystal structure of an AMPK core with ATP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 405–479（75 aa） Chain A 540–559（20 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；0.1M MES pH 5.9, 18% IPP, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 2.50 Å R-free 0.254
4EAL Co-crystal of AMPK core with ATP soaked with AMP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 405–479（75 aa） Chain A 540–559（20 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；0.1M MES pH5.9, 18% IPP, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.51 Å R-free 0.277
4QFG Structure of AMPK in complex with STAUROSPORINE inhibitor and in the absence of a synthetic activator Deposited 2014-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa） Fragment：AMPK alpha1 Chain A 536–559（24 aa） Fragment：AMPK alpha1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CL CHLORIDE ION × 3 SO4 SULFATE ION × 3 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene Glycol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.46 Å R-free 0.267
4QFG Structure of AMPK in complex with STAUROSPORINE inhibitor and in the absence of a synthetic activator Deposited 2014-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Fragment：AMPK alpha1 Chain A 536–559（24 aa） Fragment：AMPK alpha1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 CL CHLORIDE ION × 6 SO4 SULFATE ION × 6 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene Glycol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.46 Å R-free 0.267
4QFR Structure of AMPK in complex with Cl-A769662 activator and STAUROSPORINE inhibitor Deposited 2014-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa） Fragment：AMPK alpha 1 Chain A 536–559（24 aa） Fragment：AMPK alpha 1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CL CHLORIDE ION × 5 32J 2-chloro-4-hydroxy-3-(2'-hydroxybiphenyl-4-yl)-6-oxo-6,7-dihydrothieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.34 Å R-free 0.249
4QFR Structure of AMPK in complex with Cl-A769662 activator and STAUROSPORINE inhibitor Deposited 2014-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Fragment：AMPK alpha 1 Chain A 536–559（24 aa） Fragment：AMPK alpha 1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 CL CHLORIDE ION × 10 32J 2-chloro-4-hydroxy-3-(2'-hydroxybiphenyl-4-yl)-6-oxo-6,7-dihydrothieno[2,3-b]pyridine-5-carbonitrile × 2 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.34 Å R-free 0.249
4QFR Structure of AMPK in complex with Cl-A769662 activator and STAUROSPORINE inhibitor Deposited 2014-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Fragment：AMPK alpha 1 Chain A 536–559（24 aa） Fragment：AMPK alpha 1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 CL CHLORIDE ION × 10 32J 2-chloro-4-hydroxy-3-(2'-hydroxybiphenyl-4-yl)-6-oxo-6,7-dihydrothieno[2,3-b]pyridine-5-carbonitrile × 2 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.34 Å R-free 0.249
4QFS Structure of AMPK in complex with Br2-A769662core activator and STAUROSPORINE inhibitor Deposited 2014-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–479（469 aa） Fragment：AMPK alpha 1 Chain A 536–559（24 aa） Fragment：AMPK alpha 1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 32H 2-bromo-3-(4-bromophenyl)-4-hydroxy-6-oxo-6,7-dihydrothieno[2,3-b]pyridine-5-carbonitrile × 1 CL CHLORIDE ION × 5 AMP ADENOSINE MONOPHOSPHATE × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene glycol, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.55 Å R-free 0.269
4QFS Structure of AMPK in complex with Br2-A769662core activator and STAUROSPORINE inhibitor Deposited 2014-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–479（469 aa） Fragment：AMPK alpha 1 Chain A 536–559（24 aa） Fragment：AMPK alpha 1	Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Deletion 470-524; replaced by ASGGPGGS Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 32H 2-bromo-3-(4-bromophenyl)-4-hydroxy-6-oxo-6,7-dihydrothieno[2,3-b]pyridine-5-carbonitrile × 2 CL CHLORIDE ION × 10 AMP ADENOSINE MONOPHOSPHATE × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；750 mM Ammonium Sulfate, 500 mM Lithium Sulfate, 100 mM tri-Sodium Citrate, 1% Ethylene glycol, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.55 Å R-free 0.269
5KQ5 AMPK bound to allosteric activator Deposited 2016-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–559（549 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 6VT 6-chloranyl-5-[4-(1-oxidanylcyclobutyl)phenyl]-1~{H}-indole-3-carboxylic acid × 1 CL CHLORIDE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；~750 mM Ammonium Acetate, 500 mM Lithium Sulfate, 100 mM trisodium citrate, 1% ethylene glycol	Resolution 3.41 Å R-free 0.259
5T5T AMPK bound to allosteric activator Deposited 2016-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–559（549 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CL CHLORIDE ION × 3 SO4 SULFATE ION × 2 75O 6-chloro-5-[6-(dimethylamino)-2-methoxypyridin-3-yl]-1H-indole-3-carboxylic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；100 mM trisodium citrate, 500 mM ammonium sulfate, 900 mM lithium sulfate, and 4% glycerol	Resolution 3.46 Å R-free 0.231
5T5T AMPK bound to allosteric activator Deposited 2016-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–559（549 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 CL CHLORIDE ION × 6 SO4 SULFATE ION × 4 75O 6-chloro-5-[6-(dimethylamino)-2-methoxypyridin-3-yl]-1H-indole-3-carboxylic acid × 2 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；100 mM trisodium citrate, 500 mM ammonium sulfate, 900 mM lithium sulfate, and 4% glycerol	Resolution 3.46 Å R-free 0.231
5UFU Structure of AMPK bound to activator Deposited 2017-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 85V 1,4:3,6-dianhydro-2-O-(6-chloro-5-{4-[1-(hydroxymethyl)cyclopropyl]phenyl}-1H-benzimidazol-2-yl)-D-mannitol × 1 CL CHLORIDE ION × 3 SO4 SULFATE ION × 2 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 mM ammonium sulfate 500 mM lithium sulfate 100 mM trisodium citrate 1% ethylene glycol	Resolution 3.45 Å R-free 0.238
5UFU Structure of AMPK bound to activator Deposited 2017-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 85V 1,4:3,6-dianhydro-2-O-(6-chloro-5-{4-[1-(hydroxymethyl)cyclopropyl]phenyl}-1H-benzimidazol-2-yl)-D-mannitol × 2 CL CHLORIDE ION × 6 SO4 SULFATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 mM ammonium sulfate 500 mM lithium sulfate 100 mM trisodium citrate 1% ethylene glycol	Resolution 3.45 Å R-free 0.238
6E4T Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	HTV 1-O-{6-chloro-5-[4-(1-hydroxycyclobutyl)phenyl]-1H-indole-3-carbonyl}-beta-D-glucopyranuronic acid × 1 STU STAUROSPORINE × 1 CL CHLORIDE ION × 5 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.40 Å R-free 0.245
6E4T Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	HTV 1-O-{6-chloro-5-[4-(1-hydroxycyclobutyl)phenyl]-1H-indole-3-carbonyl}-beta-D-glucopyranuronic acid × 2 STU STAUROSPORINE × 2 CL CHLORIDE ION × 10 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.40 Å R-free 0.245
6E4U Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 HU7 1-O-{6-chloro-5-[6-(dimethylamino)-2-methoxypyridin-3-yl]-1H-indole-3-carbonyl}-beta-D-glucopyranuronic acid × 1 CL CHLORIDE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.27 Å R-free 0.231
6E4U Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 HU7 1-O-{6-chloro-5-[6-(dimethylamino)-2-methoxypyridin-3-yl]-1H-indole-3-carbonyl}-beta-D-glucopyranuronic acid × 2 CL CHLORIDE ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.27 Å R-free 0.231
6E4W Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 HUG 1-O-(4,6-difluoro-5-{4-[(2S)-oxan-2-yl]phenyl}-1H-indole-3-carbonyl)-beta-D-glucopyranuronic acid × 1 CL CHLORIDE ION × 3 AMP ADENOSINE MONOPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.35 Å R-free 0.244
6E4W Structure of AMPK bound to activator Deposited 2018-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 11–480（470 aa） Chain A 536–559（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 2 HUG 1-O-(4,6-difluoro-5-{4-[(2S)-oxan-2-yl]phenyl}-1H-indole-3-carbonyl)-beta-D-glucopyranuronic acid × 2 CL CHLORIDE ION × 6 AMP ADENOSINE MONOPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；750 MM AMMONIUM SULFATE, 500 MM LITHIUM SULFATE, 100 MM TRISODIUM CITRATE, 1% ETHYLENE GLYCOL	Resolution 3.35 Å R-free 0.244

20 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AAPK1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–53； UniProt 295–347

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4f2l
Deposition date deposition_date	2012-05-08
Structure title title	Structure of a regulatory domain of AMPK
Keywords keywords	regulatory domain, helix, AMPK intramolecular interaction, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.33 Å
Radius of gyration Rg (electron density) rg_electron	14.24 Å
Forward intensity I(0) i0	1473590.00
Molecular weight molecular_weight	7376.0 kDa
Excluded volume excluded_volume	8825 Å³
Envelope volume envelope_volume	11042 Å³
Hydration-shell volume shell_volume	7621 Å³
Envelope diameter envelope_diameter	49.3 Å
Shell Rg shell_rg	17.96 Å
Envelope Rg envelope_rg	14.73 Å
Shape Rg shape_rg	14.30 Å
Total Rg total_rg	14.95 Å
Total atoms total_atoms	509
Residues n_residues	59
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.8 Å
Rg (real space) rg_real	15.47 Å
Rg uncertainty (real space) rg_real_error	0.49 Å
I(0) (real space) i0_real	1.4740e+06
I(0) uncertainty (real space) i0_real_error	1.8420e+04
Rg (reciprocal space) rg_reciprocal	15.46 Å
I(0) (reciprocal space) i0_reciprocal	1474000.0000
Solution quality estimate total_estimate	0.8563
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.1 Å
Skewness Skewness skewness	0.464
Kurtosis Kurtosis kurtosis	-0.359
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	125100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.734; Smooth: 0.969

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	;5'-AMP-activated protein kinase catalytic subunit alpha-1 ;
Molecular weight formula_weight	7387.9 kDa
EC 编号 ec_number	2.7.11.1, 2.7.11.26
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	604

SSTMIDDEALKEVCEKFECSEEEVLSCLYNRNHQDPLAVAYHLIIDNRRIMNELEHHHHHH

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	brown rat,rat,rats
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	79

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4f2lA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	10 — Ubiquitin-associated (UBA) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	22.117 Å
Unit-cell length b length_b	36.258 Å
Unit-cell length c length_c	98.755 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 2 21
Space-group number int_tables_number	17
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	24.372 Å
R factor r_factor	0.1833
R_work r_work	0.1819
R_free r_free	0.2116

fit	/app/data/saxs_computation/f2/4f2l/4f2l.fit
pddf	/app/data/pr_computation/f2/4f2l/4f2l.pr.out
profile	/app/data/saxs_computation/f2/4f2l/4f2l.dat

Structure of a regulatory domain of AMPK

1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-AMP-activated protein kinase catalytic subunit alpha-1 ;

State in the Current Structure

Other States of the Same Protein in the Database

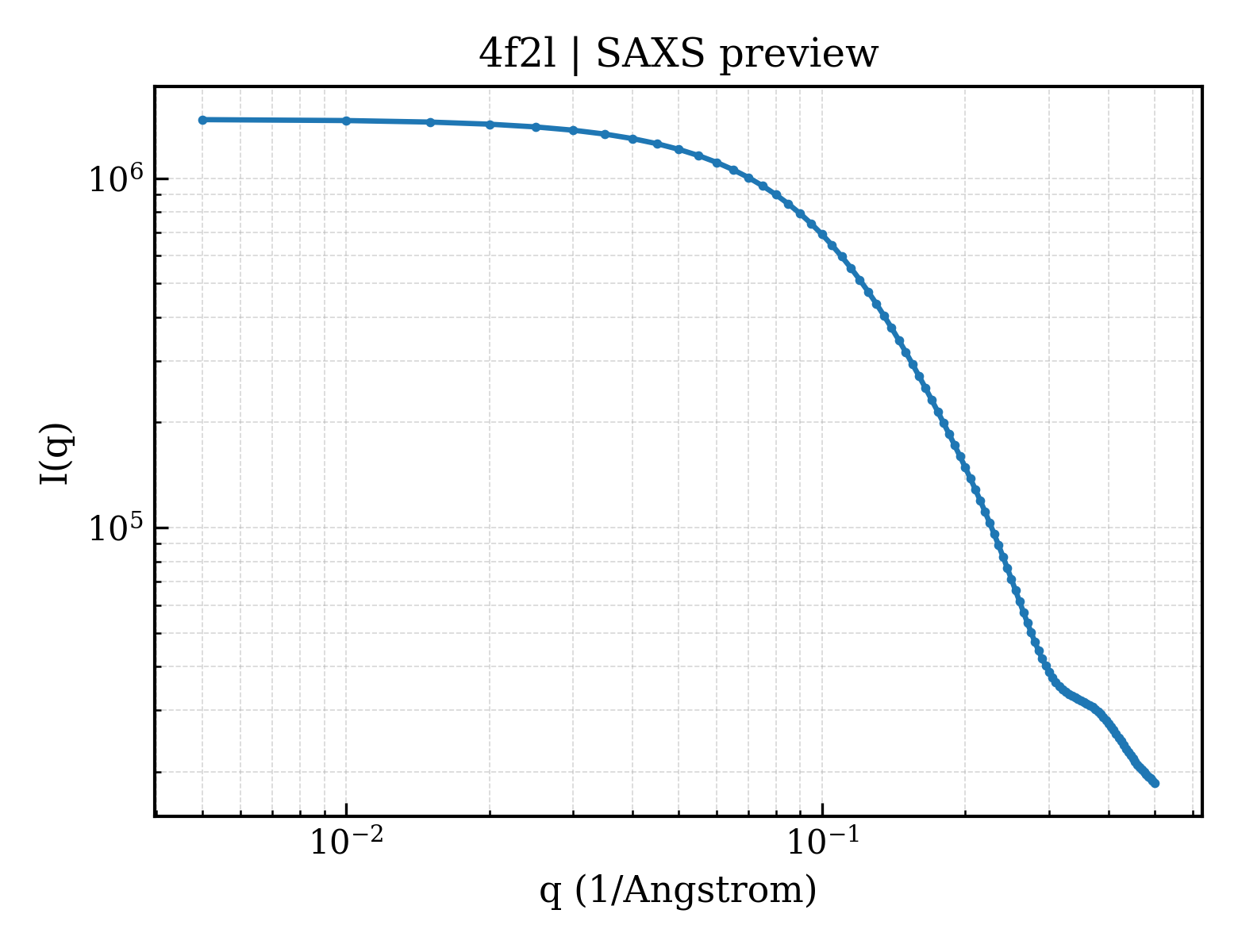

SAXS scattering curve SAXS Profile

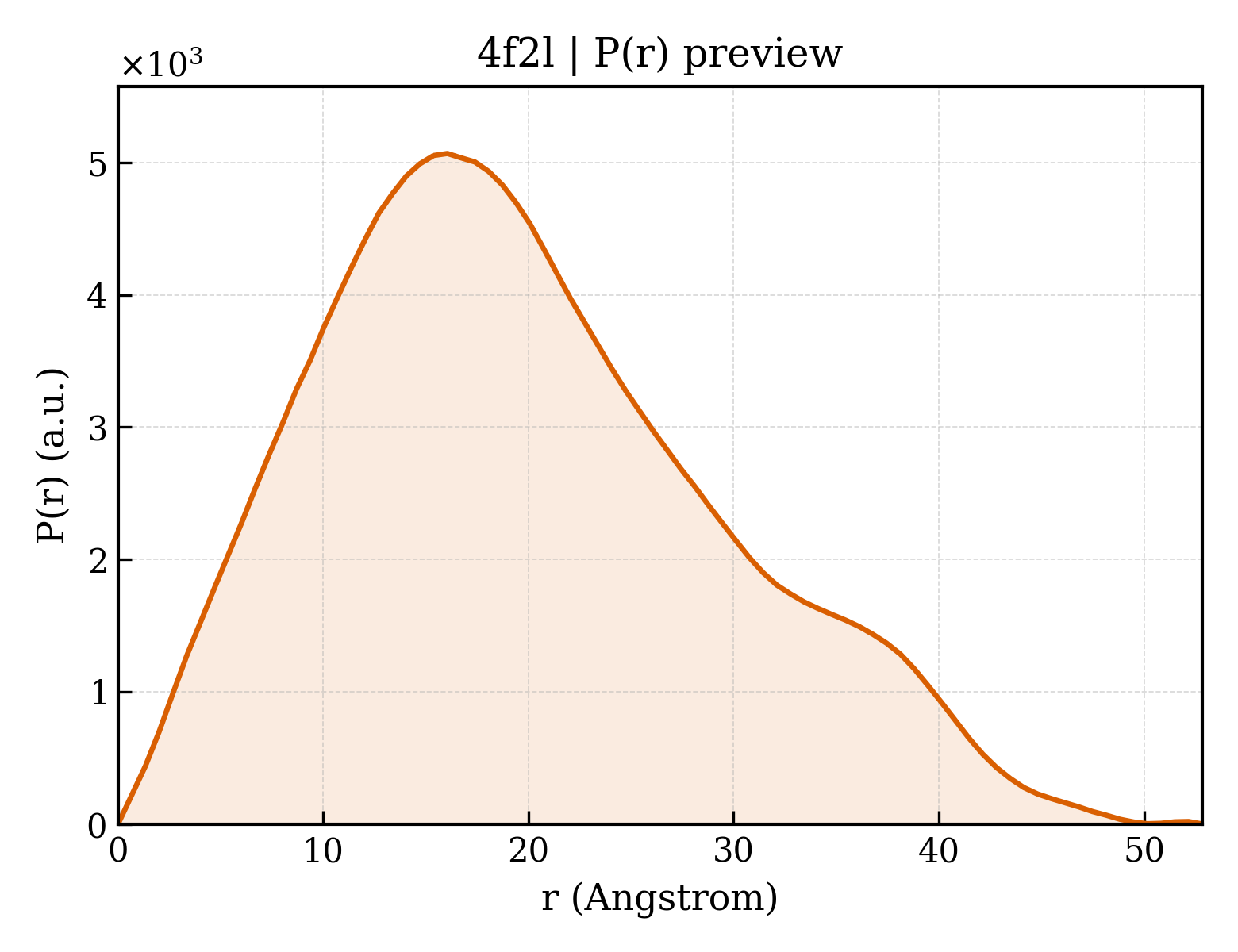

P(r) Distance Distribution P(r) Distribution
