SAXSdb — 4f7z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rap guanine nucleotide exchange factor 4

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–993	Fragment：SEE REMARK 999 Mutation：F435G	GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM Bis-Tris propane, pH 7.5, 200 mM sodium chloride, 1.3 M ammonium sulfate, 6% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4F7Z	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BYV Structure of the cAMP responsive exchange factor Epac2 in its auto- inhibited state Deposited 2005-08-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–993（993 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100 MM BISTRISPROPANE7.5, 200 MM NANO3, 12% PEG 3350, pH 7.50	Resolution 2.70 Å R-free 0.297
4MGI Selective activation of Epac1 and Epac2 Deposited 2013-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.271
4MGI Selective activation of Epac1 and Epac2 Deposited 2013-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.271
4MGK Selective activation of Epac1 and Epac2 Deposited 2013-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Mutation：K405Q	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264
4MGK Selective activation of Epac1 and Epac2 Deposited 2013-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Mutation：K405Q	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264
4MGY Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Mutation：K405Q	H07 (2S,4aR,6R,7R,7aR)-6-{6-amino-8-[(4-chlorophenyl)sulfanyl]-9H-purin-9-yl}-7-methoxytetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-2-ol 2-oxide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.60 Å R-free 0.270
4MGY Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Mutation：K405Q	H07 (2S,4aR,6R,7R,7aR)-6-{6-amino-8-[(4-chlorophenyl)sulfanyl]-9H-purin-9-yl}-7-methoxytetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-2-ol 2-oxide × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.60 Å R-free 0.270
4MGZ Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	HR6 (2S,4aR,6R,7R,7aS)-6-[6-amino-8-(benzylsulfanyl)-9H-purin-9-yl]-2-sulfanyltetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-7-ol 2-oxide × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.00 Å R-free 0.264
4MGZ Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	HR6 (2S,4aR,6R,7R,7aS)-6-[6-amino-8-(benzylsulfanyl)-9H-purin-9-yl]-2-sulfanyltetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-7-ol 2-oxide × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.00 Å R-free 0.264
4MH0 Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	HR4 (2S,4aR,6R,7R,7aS)-6-{6-amino-8-[(4-fluorobenzyl)sulfanyl]-9H-purin-9-yl}-2-sulfanyltetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-7-ol 2-oxide × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.282
4MH0 Selective activation of Epac1 and Epac2 Deposited 2013-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 324–1011（688 aa） Fragment：UNP residues 324-1011	Not recorded	HR4 (2S,4aR,6R,7R,7aS)-6-{6-amino-8-[(4-fluorobenzyl)sulfanyl]-9H-purin-9-yl}-2-sulfanyltetrahydro-4H-furo[3,2-d][1,3,2]dioxaphosphinin-7-ol 2-oxide × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.4M (NH4)2SO4, 1.2M LI2SO4, 0.1M CITRATE, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.282

6 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPGF4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–999； UniProt 1–993

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4f7z
Deposition date deposition_date	2012-05-16
Structure title title	Conformational dynamics of exchange protein directly activated by cAMP
Keywords keywords	cyclic nucleotide, GEF, exchange factor, regulation, auto-inhibition, CDC25 homology domain, EXOCYTOSIS; EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.36 Å
Radius of gyration Rg (electron density) rg_electron	32.33 Å
Forward intensity I(0) i0	186342000.00
Molecular weight molecular_weight	108900.0 kDa
Excluded volume excluded_volume	136510 Å³
Envelope volume envelope_volume	182390 Å³
Hydration-shell volume shell_volume	46026 Å³
Envelope diameter envelope_diameter	108.8 Å
Shell Rg shell_rg	40.06 Å
Envelope Rg envelope_rg	31.95 Å
Shape Rg shape_rg	32.33 Å
Total Rg total_rg	32.98 Å
Total atoms total_atoms	7649
Residues n_residues	946
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

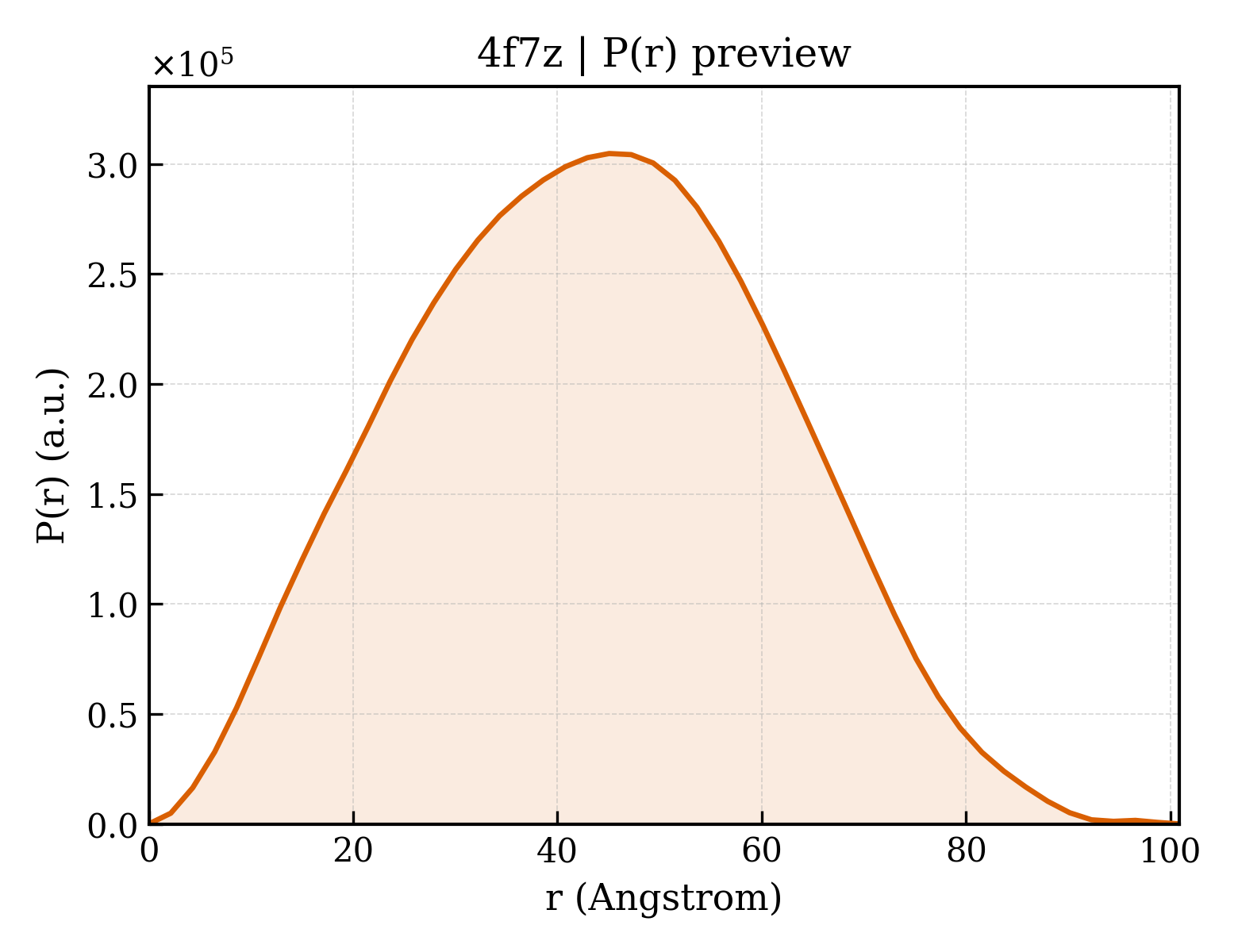

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.9 Å
Rg (real space) rg_real	33.19 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	1.8630e+08
I(0) uncertainty (real space) i0_real_error	3.0280e+06
Rg (reciprocal space) rg_reciprocal	33.30 Å
I(0) (reciprocal space) i0_reciprocal	186400000.0000
Solution quality estimate total_estimate	0.9088
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	45.1 Å
Skewness Skewness skewness	0.066
Kurtosis Kurtosis kurtosis	-0.582
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	25210000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.948

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Rap guanine nucleotide exchange factor 4
Molecular weight formula_weight	114060.4 kDa
Mutation mutation	F435G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7666

GSPGIPMVAAHAAHSQSSAEWIACLDKRPLERSSEDVDIIFTRLKGVKAFEKFHPNLLRQICLCGYYENLEKGITLFRQGDIGTNWYAVLAGSLDVKVSETSSHQDAVTICTLGIGTAFGESILDNTPRHATIVTRESSELLRIEQEDFKALWEKYRQYMAGLLAPPYGVMETGSNNDRIPDKENVPSEKILRAGKILRIAILSRAPHMIRDRKYHLKTYRQCCVGTELVDWMIQQTSCVHSRTQAVGMWQVLLEDGVLNHVDQERHFQDKYLFYRFLDDEREDAPLPTEEEKKECDEELQDTMLLLSQMGPDAHMRMILRKPPGQRTVDDLEIIYDELLHIKALSHLSTTVKRELAGVLIFESHAKGGTVLFNQGEEGTSWYIILKGSVNVVIYGKGVVCTLHEGDDFGKLALVNDAPRAASIVLREDNCHFLRVDKEDGNRILRDVEANTVRLKEHDQDVLVLEKVPAGNRAANQGNSQPQQKYTVMSGTPEKILEHFLETIRLEPSLNEATDSVLNDFVMMHCVFMPNTQLCPALVAHYHAQPSQGTEQERMDYALNNKRRVIRLVLQWAAMYGDLLQEDDVAMAFLEEFYVSVSDDARMMAAFKEQLPELEKIVKQISEDAKAPQKKHKVLLQQFNTGDERAQKRQPIRGSDEVLFKVYCIDHTYTTIRVPVAASVKEVISAVADKLGSGEGLIIVKMNSGGEKVVLKSNDVSVFTTLTINGRLFACPREQFDSLTPLPEQEGPTTGTVGTFELMSSKDLAYQMTTYDWELFNCVHELELIYHTFGRHNFKKTTANLDLFLRRFNEIQFWVVTEVCLCSQLSKRVQLLKKFIKIAAHCKEYKNLNSFFAIVMGLSNVAVSRLALTWEKLPSKFKKFYAEFESLMDPSRNHRAYRLTAAKLEPPLIPFMPLLIKDMTFTHEGNKTFIDNLVNFEKMRMIANTARTVRYYRSQPFNPDAAQANKNHQDVRSYVRQLNVIDNQRTLSQMSHRLEPRRP

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4f7zA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	4f7zA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	4f7zA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	4f7zA04
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	870 — Son of sevenless (SoS) protein; Chain S, domain 1
Homologous superfamily homologous superfamily	10 — Son of sevenless (SoS) protein Chain: S domain 1

Domain ID domain_id	4f7zA05
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	4f7zA06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	840 — Son of Sevenless (SoS) protein; Chain S, domain 2
Homologous superfamily homologous superfamily	10 — Ras guanine-nucleotide exchange factors catalytic domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	69.720 Å
Unit-cell length b length_b	95.350 Å
Unit-cell length c length_c	181.840 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	45.460 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2820

fit	/app/data/saxs_computation/f7/4f7z/4f7z.fit
pddf	/app/data/pr_computation/f7/4f7z/4f7z.pr.out
profile	/app/data/saxs_computation/f7/4f7z/4f7z.dat
