4kn4

X-ray crystal structure of the Escherichia coli RNA polymerase in complex with Benzoxazinorifamycin-2b

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–329； UniProt 1–329 Author chain B； PDBConstruct 1–329； UniProt 1–329 Author chain F； PDBConstruct 1–329； UniProt 1–329 Author chain G； PDBConstruct 1–329； UniProt 1–329

DNA-directed RNA polymerase subunit beta

Escherichia coli

UniProt P0A8V2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–1342； UniProt 1–1342 Author chain H； PDBConstruct 1–1342； UniProt 1–1342

;DNA-directed RNA polymerase subunit beta' ;

Escherichia coli

UniProt P0A8T7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–1407； UniProt 1–1407 Author chain I； PDBConstruct 1–1407； UniProt 1–1407

DNA-directed RNA polymerase subunit omega

Escherichia coli

UniProt P0A800

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） RNA polymerase sigma factor RpoD × 1 （P00579） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–91； UniProt 1–91 Author chain J； PDBConstruct 1–91； UniProt 1–91

RNA polymerase sigma factor RpoD

Escherichia coli

UniProt P00579

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V2） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） Benzoxazinorifamycin-2b × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOD_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain X； PDBConstruct 1–613； UniProt 1–613 Author chain Y； PDBConstruct 1–613； UniProt 1–613

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4kn4
Deposition date deposition_date	2013-05-08
Structure title title	X-ray crystal structure of the Escherichia coli RNA polymerase in complex with Benzoxazinorifamycin-2b
Keywords keywords	transcription, DNA, RNA, TRANSFERASE-ANTIBIOTIC complex; TRANSFERASE/ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4kn4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4kn4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

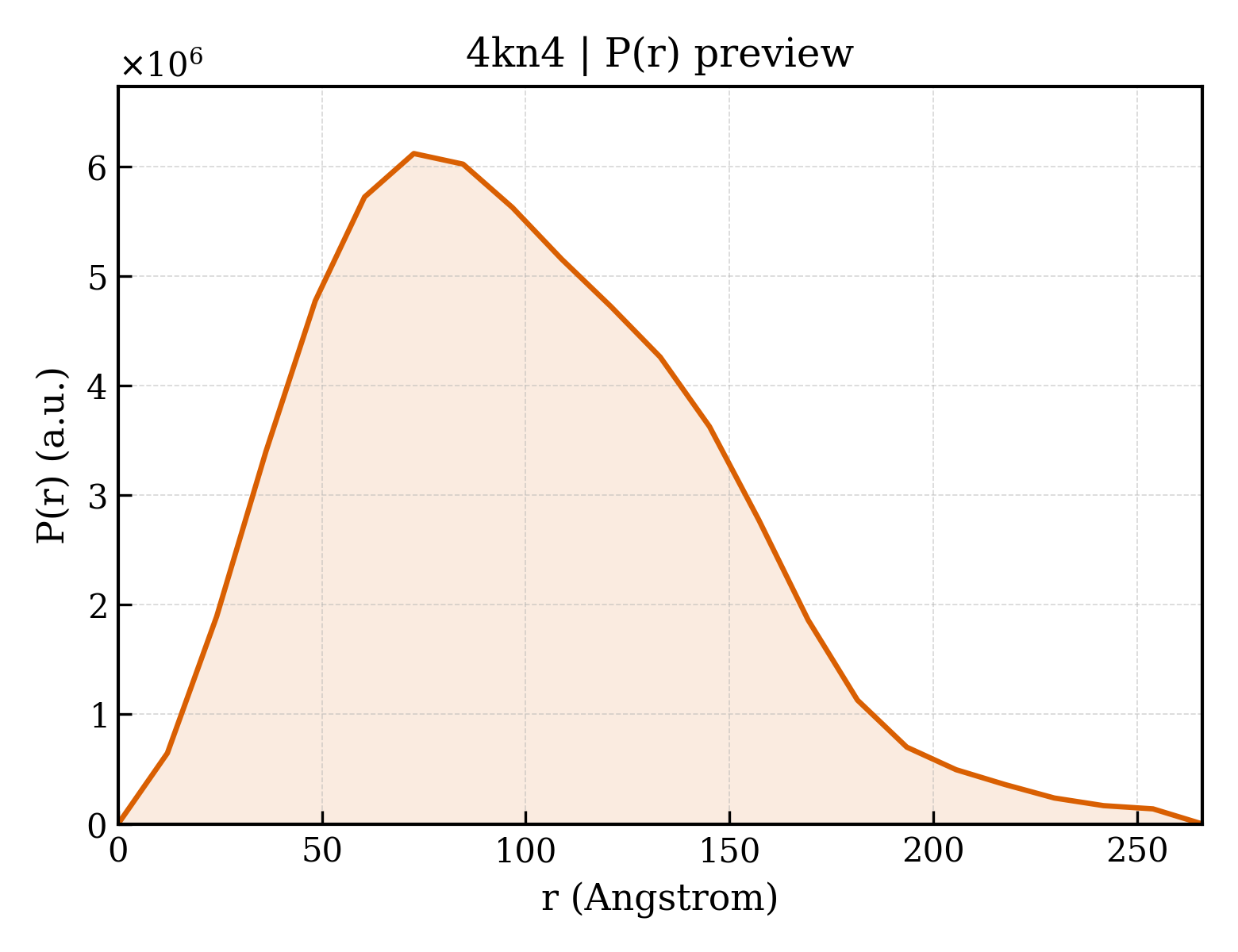

4kn4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.60 Å
Rg (electron density)	51.20 Å
Total Rg	51.42 Å
Atom count	28838
Residues	3646
Excluded volume	512760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4kn4__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4kn4__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	36558.7 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,F,G
Atom count atom_count	56333

MQGSVTEFLKPRLVDIEQVSSTHAKVTLEPLERGFGHTLGNALRRILLSSMPGCAVTEVEIDGVLHEYSTKEGVQEDILEILLNLKGLAVRVQGKDEVILTLNKSGIGPVTAADITHDGDVEIVKPQHVICHLTDENASISMRIKVQRGRGYVPASTRIHSEEDERPIGRLLVDACYSPVERIAYNVEAARVEQRTDLDKLVIEMETNGTIDPEEAIRRAATILAEQLEAFVDLRDVRQPEVKEEKPEFDPILLRPVDDLELTVRSANCLKAEAIHYIGDLVQRTEVELLKTPNLGKKSLTEIKDVLASRGLSLGMRLENWPPASIADE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	150820.9 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H

MVYSYTEKKRIRKDFGKRPQVLDVPYLLSIQLDSFQKFIEQDPEGQYGLEAAFRSVFPIQSYSGNSELQYVSYRLGEPVFDVQECQIRGVTYSAPLRVKLRLVIYEREAPEGTVKDIKEQEVYMGEIPLMTDNGTFVINGTERVIVSQLHRSPGVFFDSDKGKTHSSGKVLYNARIIPYRGSWLDFEFDPKDNLFVRIDRRRKLPATIILRALNYTTEQILDLFFEKVIFEIRDNKLQMELVPERLRGETASFDIEANGKVYVEKGRRITARHIRQLEKDDVKLIEVPVEYIAGKVVAKDYIDESTGELICAANMELSLDLLAKLSQSGHKRIETLFTNDLDHGPYISETLRVDPTNDRLSALVEIYRMMRPGEPPTREAAESLFENLFFSEDRYDLSAVGRMKFNRSLLREEIEGSGILSKDDIIDVMKKLIDIRNGKGEVDDIDHLGNRRIRSVGEMAENQFRVGLVRVERAVKERLSLGDLDTLMPQDMINAKPISAAVKEFFGSSQLSQFMDQNNPLSEITHKRRISALGPGGLTRERAGFEVRDVHPTHYGRVCPIETPEGPNIGLINSLSVYAQTNEYGFLETPYRKVTDGVVTDEIHYLSAIEEGNYVIAQANSNLDEEGHFVEDLVTCRSKGESSLFSRDQVDYMDVSTQQVVSVGASLIPFLEHDDANRALMGANMQRQAVPTLRADKPLVGTGMERAVAVDSGVTAVAKRGGVVQYVDASRIVIKVNEDEMYPGEAGIDIYNLTKYTRSNQNTCINQMPCVSLGEPVERGDVLADGPSTDLGELALGQNMRVAFMPWNGYNFEDSILVSERVVQEDRFTTIHIQELACVSRDTKLGPEEITADIPNVGEAALSKLDESGIVYIGAEVTGGDILVGKVTPKGETQLTPEEKLLRAIFGEKASDVKDSSLRVPNGVSGTVIDVQVFTRDGVEKDKRALEIEEMQLKQAKKDLSEELQILEAGLFSRIRAVLVAGGVEAEKLDKLPRDRWLELGLTDEEKQNQLEQLAEQYDELKHEFEKKLEAKRRKITQGDDLAPGVLKIVKVYLAVKRRIQPGDKMAGRHGNKGVISKINPIEDMPYDENGTPVDIVLNPLGVPSRMNIGQILETHLGMAAKGIGDKINAMLKQQQEVAKLREFIQRAYDLGADVRQKVDLSTFSDEEVMRLAENLRKGMPIATPVFDGAKEAEIKELLKLGDLPTSGQIRLYDGRTGEQFERPVTVGYMYMLKLNHLVDDKMHARSTGSYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEMLTVKSDDVNGRTKMYKNIVDGNHQMEPGMPESFNVLLKEIRSLGINIELEDE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	155366.8 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I

MKDLLKFLKAQTKTEEFDAIKIALASPDMIRSWSFGEVKKPETINYRTFKPERDGLFCARIFGPVKDYECLCGKYKRLKHRGVICEKCGVEVTQTKVRRERMGHIELASPTAHIWFLKSLPSRIGLLLDMPLRDIERVLYFESYVVIEGGMTNLERQQILTEEQYLDALEEFGDEFDAKMGAEAIQALLKSMDLEQECEQLREELNETNSETKRKKLTKRIKLLEAFVQSGNKPEWMILTVLPVLPPDLRPLVPLDGGRFATSDLNDLYRRVINRNNRLKRLLDLAAPDIIVRNEKRMLQEAVDALLDNGRRGRAITGSNKRPLKSLADMIKGKQGRFRQNLLGKRVDYSGRSVITVGPYLRLHQCGLPKKMALELFKPFIYGKLELRGLATTIKAAKKMVEREEAVVWDILDEVIREHPVLLNRAPTLHRLGIQAFEPVLIEGKAIQLHPLVCAAYNADFDGDQMAVHVPLTLEAQLEARALMMSTNNILSPANGEPIIVPSQDVVLGLYYMTRDCVNAKGEGMVLTGPKEAERLYRSGLASLHARVKVRITEYEKDANGELVAKTSLKDTTVGRAILWMIVPKGLPYSIVNQALGKKAISKMLNTCYRILGLKPTVIFADQIMYTGFAYAARSGASVGIDDMVIPEKKHEIISEAEAEVAEIQEQFQSGLVTAGERYNKVIDIWAAANDRVSKAMMDNLQTETVINRDGQEEKQVSFNSIYMMADSGARGSAAQIRQLAGMRGLMAKPDGSIIETPITANFREGLNVLQYFISTHGARKGLADTALKTANSGYLTRRLVDVAQDLVVTEDDCGTHEGIMMTPVIEGGDVKEPLRDRVLGRVTAEDVLKPGTADILVPRNTLLHEQWCDLLEENSVDAVKVRSVVSCDTDFGVCAHCYGRDLARGHIINKGEAIGVIAAQSIGEPGTQLTMRTFHIGGAASRAAAESSIQVKNKGSIKLSNVKSVVNSSGKLVITSRNTELKLIDEFGRTKESYKVPYGAVLAKGDGEQVAGGETVANWDPHTMPVITEVSGFVRFTDMIDGQTITRQTDELTGLSSLVVLDSAERTAGGKDLRPALKIVDAQGNDVLIPGTDMPAQYFLPGKAIVQLEDGVQISSGDTLARIPQESGGTKDITGGLPRVADLFEARRPKEPAILAEISGIVSFGKETKGKRRLVITPVDGSDPYEEMIPKWRQLNVFEGERVERGDVISDGPEAPHDILRLRGVHAVTRYIVNEVQDVYRLQGVKINDKHIEVIVRQMLRKATIVNAGSSDFLEGEQVEYSRVKIANRELEANGKVGATYSRDLLGITKASLATESFISAASFQETTRVLTEAAVAGKRDELRGLKENVIVGRLIPAGTGYAYHQDRMRRRAAGEAPAAPQVTAEDASASLAELLNAGLGGSDNE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	10249.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,J

MARVTVQDAVEKIGNRFDLVLVAARRARQMQVGGKDPLVPEENDKTTVIALREIEEGLINNQILDVRERQEQQEQEAAELQAVTAIAEGRR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	RNA polymerase sigma factor RpoD
Molecular weight formula_weight	70352.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

MEQNPQSQLKLLVTRGKEQGYLTYAEVNDHLPEDIVDSDQIEDIIQMINDMGIQVMEEAPDADDLMLAENTADEDAAEAAAQVLSSVESEIGRTTDPVRMYMREMGTVELLTREGEIDIAKRIEDGINQVQCSVAEYPEAITYLLEQYDRVEAEEARLSDLITGFVDPNAEEDLAPTATHVGSELSQEDLDDDEDEDEEDGDDDSADDDNSIDPELAREKFAELRAQYVVTRDTIKAKGRSHATAQEEILKLSEVFKQFRLVPKQFDYLVNSMRVMMDRVRTQERLIMKLCVEQCKMPKKNFITLFTGNETSDTWFNAAIAMNKPWSEKLHDVSEEVHRALQKLQQIEEETGLTIEQVKDINRRMSIGEAKARRAKKEMVEANLRLVISIAKKYTNRGLQFLDLIQEGNIGLMKAVDKFEYRRGYKFSTYATWWIRQAITRSIADQARTIRIPVHMIETINKLNRISRQMLQEMGREPTPEELAERMLMPEDKIRKVLKIAKEPISMETPIGDDEDSHLGDFIEDTTLELPLDSATTESLRAATHDVLAGLTAREAKVLRMRFGIDMNTDYTLEEVGKQFDVTRERIRQIEAKALRKLRHPSRSEVLRSFLDD

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	Benzoxazinorifamycin-2b
Molecular weight formula_weight	900.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 30 domains

CATH v4.4 (30 domains)

Domain ID domain_id	4kn4A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	4kn4A02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	4kn4A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	4kn4B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	4kn4B02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	4kn4C01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	270 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; Domain 6
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, subunit 2, domain 6

Domain ID domain_id	4kn4C02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1100 — Rna Polymerase Beta Subunit; Chain: C,domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	4kn4C04
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	150 — Rna Polymerase Beta Subunit; Chain: C, domain 4
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, beta subunit, external 1 domain

Domain ID domain_id	4kn4C05
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	4kn4C06
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	4kn4C07
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	1670 —

Domain ID domain_id	4kn4D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

Domain ID domain_id	4kn4E00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	940 — Eukaryotic RPB6 RNA polymerase subunit
Homologous superfamily homologous superfamily	10 — RNA polymerase subunit, RPB6/omega

Domain ID domain_id	4kn4F01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	4kn4F02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	4kn4G01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	4kn4G02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	4kn4H01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	270 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; Domain 6
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, subunit 2, domain 6

Domain ID domain_id	4kn4H02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1100 — Rna Polymerase Beta Subunit; Chain: C,domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	4kn4H04
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	150 — Rna Polymerase Beta Subunit; Chain: C, domain 4
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, beta subunit, external 1 domain

Domain ID domain_id	4kn4H05
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	4kn4I01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

Domain ID domain_id	4kn4J00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	940 — Eukaryotic RPB6 RNA polymerase subunit
Homologous superfamily homologous superfamily	10 — RNA polymerase subunit, RPB6/omega

Domain ID domain_id	4kn4X01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	120 — Sigma-70 factor, region 1.1

Domain ID domain_id	4kn4X02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	601 — RNA Polymerase Primary Sigma Factor
Homologous superfamily homologous superfamily	10 — RNA Polymerase Primary Sigma Factor

Domain ID domain_id	4kn4X03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	4kn4X04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	4kn4Y01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	601 — RNA Polymerase Primary Sigma Factor
Homologous superfamily homologous superfamily	10 — RNA Polymerase Primary Sigma Factor

Domain ID domain_id	4kn4Y02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	4kn4Y03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	184.675 Å
Unit-cell length b length_b	203.975 Å
Unit-cell length c length_c	307.910 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.965 Å
Low-resolution limit resolution_low	29.769 Å
R factor r_factor	0.2537
R_work r_work	0.2505
R_free r_free	0.3149

X-ray crystal structure of the Escherichia coli RNA polymerase in complex with Benzoxazinorifamycin-2b

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

;DNA-directed RNA polymerase subunit beta' ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit omega

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RNA polymerase sigma factor RpoD

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

4kn4__assembly_1__model_1

4kn4__assembly_1__model_1 | I(q)

4kn4__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

6. Fold Classification (SCOP + CATH) 30 domains

CATH v4.4 (30 domains)

7. Citations (1)
