SAXSdb — 4l8s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-2-microglobulin, MHC class I-related protein

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Muccosal Associated Invariant T Cell Receptor alpha chain × 1 Muccosal Associated Invariant T Cell Receptor beta chain × 1 SULFATE ION × 5 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C1ITJ8_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 114–390； UniProt 19–295

Beta-2-microglobulin, MHC class I-related protein

Bos taurus

UniProt P01888

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Muccosal Associated Invariant T Cell Receptor alpha chain × 1 Muccosal Associated Invariant T Cell Receptor beta chain × 1 SULFATE ION × 5 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–98； UniProt 21–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4l8s
Deposition date deposition_date	2013-06-17
Structure title title	Crystal structure of a human Valpha7.2/Vbeta13.3 MAIT TCR in complex with bovine MR1
Keywords keywords	Immunoglobulin domain, MHC-class I, Antigen presentation, Antigen recognition, Antigen, Cell membrane, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4l8s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4l8s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

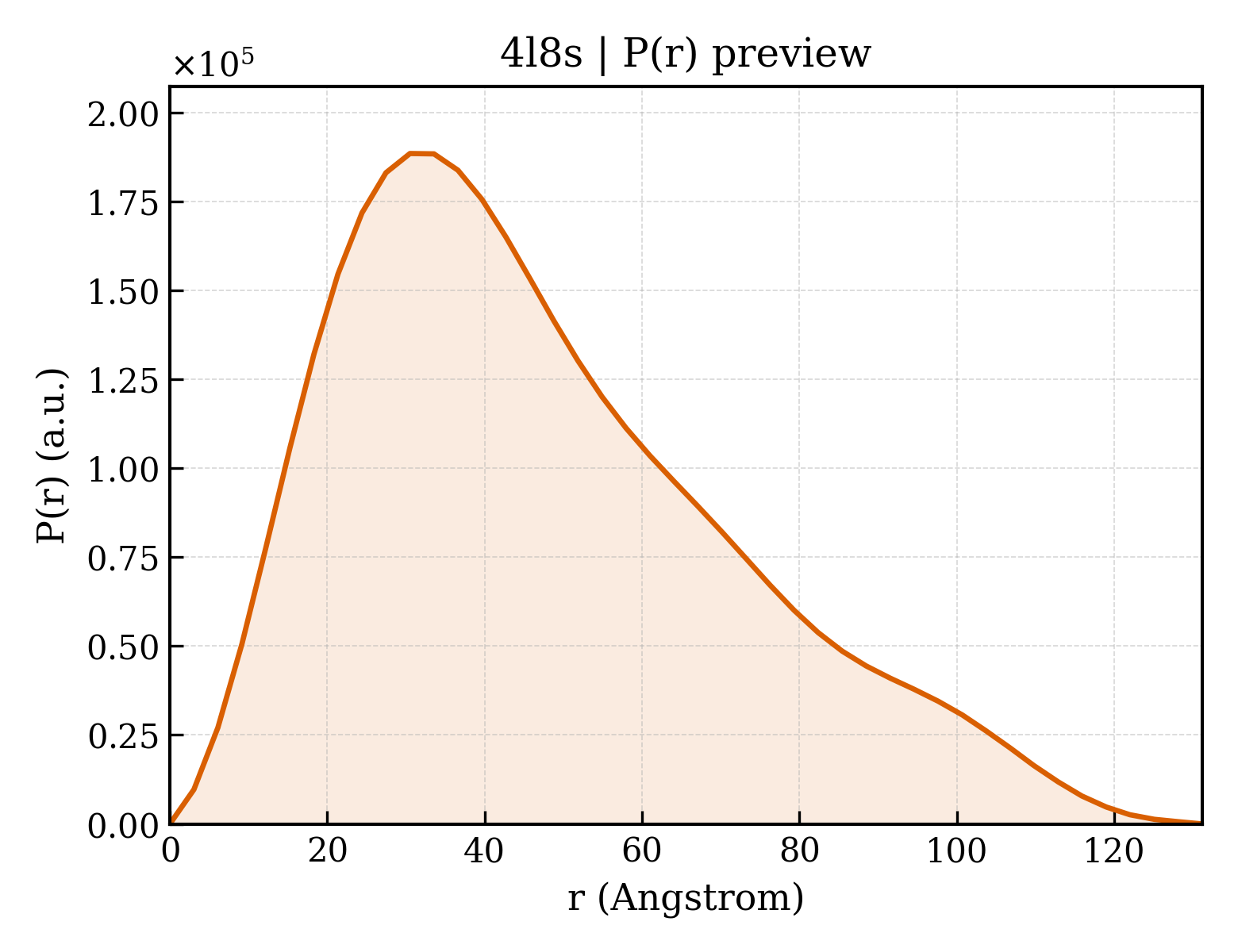

4l8s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.86 Å
Rg (electron density)	37.14 Å
Total Rg	37.21 Å
Atom count	6337
Residues	811
Excluded volume	110980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4l8s__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Muccosal Associated Invariant T Cell Receptor alpha chain
Molecular weight formula_weight	23154.7 kDa
Mutation mutation	T157C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6348

MAGQNIDQPTEMTATEGAIVQINCTYQTSGFNGLFWYQQHAGEAPTFLSYNVLDGLEEKGRFSSFLSRSKGYSYLLLKELQMKDSASYLCASMDSNYQLIWGAGTKLIIKPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESSALE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Muccosal Associated Invariant T Cell Receptor beta chain
Molecular weight formula_weight	28232.3 kDa
Mutation mutation	S172C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MANAGVTQTPKFQVLKTGQSMTLQCAQDMNHNSMYWYRQDPGMGLRLIYYSASEGTTDKGEVPNGYNVSRLNKREFSLRLESAAPSQTSVYFCASSETDPNTGELFFGEGSRLTVLEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRADSAAALE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Beta-2-microglobulin, MHC class I-related protein
Molecular weight formula_weight	45423.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

IQRPPKIQVYSRHPPEDGKPNYLNCYVYGFHPPQIEIDLLKNGEKIKSEQSDLSFSKDWSFYLLSHAEFTPNSKDQYSCRVKHVTLEQPRIVKWDRDLGGGGSGGSGSGGGGSRTHSLRYFRLGISEPGYGIPEFISAGYVDSHPITMYNSVSQLXEPRALWMEENLAPDHWERYTQLLRGWQQAFKVELKQLQHHYNHSGFHTYQRMIGCELLEDGSITGFLQYAYDGQDFLIFNKDTLSWMAMDNVADIIRRVWEANRHELQYQKNWLEEECIAWLKRFLEYGKDALQRTEPPKVRVNHKETFPGITTLYCRAYGFYPPEISINWMKNGEEIFQDTDYGGILPSGDGTYQTWVSVELDPQNGDIYSCHVEHGGVHMVLQGFQESETILGG

Source Source

Source organism organism	Bos taurus
Common name common_name	bovine,cow,domestic cattle,domestic cow
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▼

6. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4l8sa1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4l8sa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l8sb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4l8sb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

CATH v4.4 (7 domains)

Domain ID domain_id	4l8sA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l8sA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l8sB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l8sB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l8sC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l8sC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l8sC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	83.068 Å
Unit-cell length b length_b	87.285 Å
Unit-cell length c length_c	155.817 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	44.039 Å
R factor r_factor	0.2305
R_work r_work	0.2280
R_free r_free	0.2776

Crystal structure of a human Valpha7.2/Vbeta13.3 MAIT TCR in complex with bovine MR1
