SAXSdb — 3pwv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class I antigen

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P01888） 9-mer peptide from Hemagglutinin × 1 （Q9YKD7） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P01888） 9-mer peptide from Hemagglutinin × 1 （Q9YKD7） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q95477_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–274； UniProt 26–299 Author chain D； PDBConstruct 1–274； UniProt 26–299

Beta-2-microglobulin

Bos taurus

UniProt P01888

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	MHC class I antigen × 1 （Q95477） 9-mer peptide from Hemagglutinin × 1 （Q9YKD7） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	MHC class I antigen × 1 （Q95477） 9-mer peptide from Hemagglutinin × 1 （Q9YKD7） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–98； UniProt 21–118 Author chain E； PDBConstruct 1–98； UniProt 21–118

9-mer peptide from Hemagglutinin

OrganismNot specified

UniProt Q9YKD7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	MHC class I antigen × 1 （Q95477） Beta-2-microglobulin × 1 （P01888） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	MHC class I antigen × 1 （Q95477） Beta-2-microglobulin × 1 （P01888） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9YKD7_9PARA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–9； UniProt 407–415 Author chain F； PDBConstruct 1–9； UniProt 407–415

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3pwv
Deposition date deposition_date	2010-12-09
Structure title title	An immmunodominant CTL epitope from rinderpest virus presented by cattle MHC class I molecule N*01801 (BoLA-A11)
Keywords keywords	MHC BoLA-A11 conformation cattle, immunodominant epitope, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3pwv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3pwv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

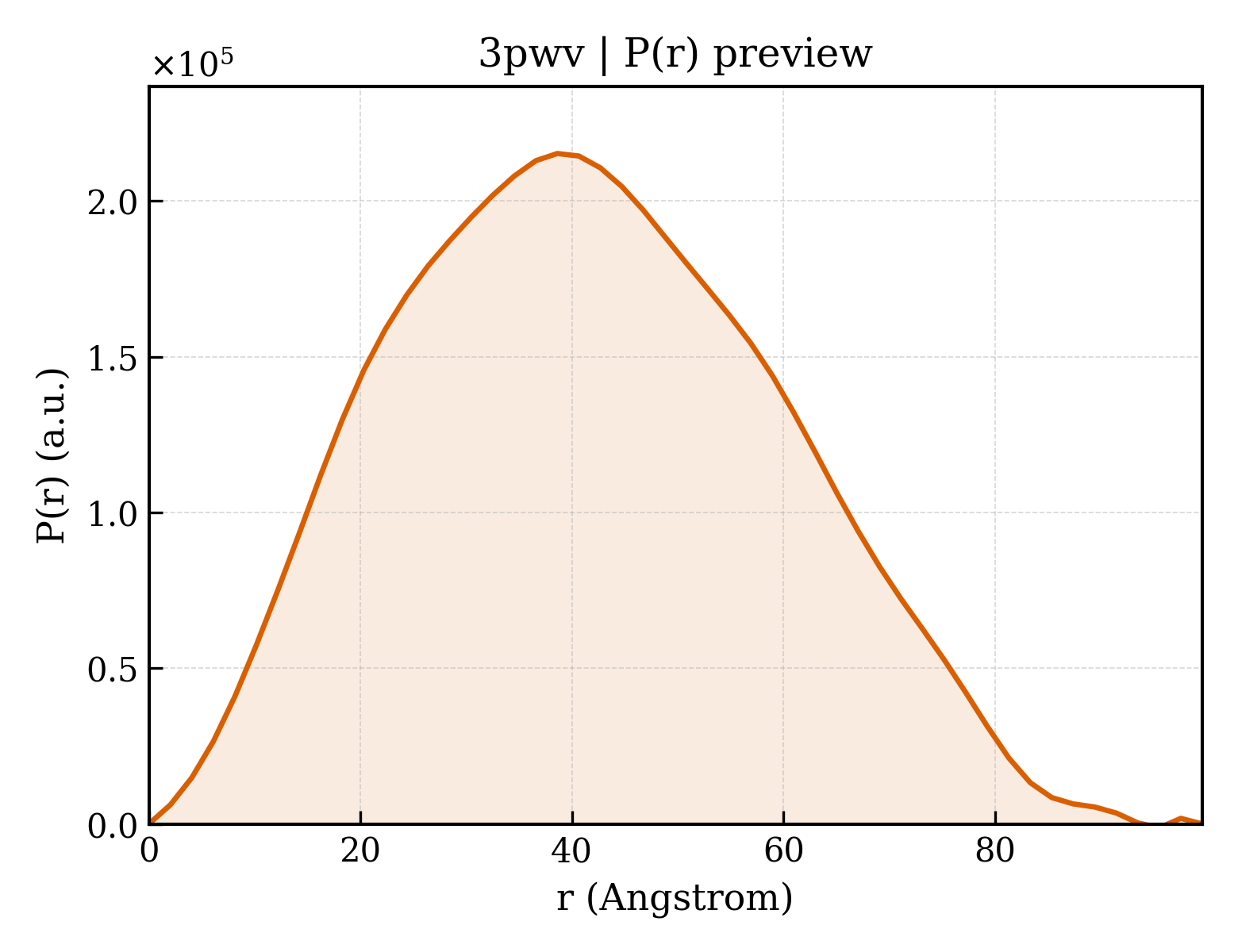

3pwv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.01 Å
Rg (electron density)	22.81 Å
Total Rg	23.70 Å
Atom count	3133
Residues	381
Excluded volume	54875 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3pwv__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3pwv__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MHC class I antigen
Molecular weight formula_weight	31797.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	6381

SHSLRYFYTAVSRPGLGEPRFIAVGYVDDTQFTRFDSDAPNPRDEPRVPWMEQEGPEYWDRNTRIYKDTAQIFRANLNTALGYYNQSEAGSHTFQEMYGCYVGPDGRLLLGFMQFAYDGRDYIALNEDLRSWTAADTAAQITKRKWEAAGEAERQRNYLEGRCVEGLRRYLENGKDTLLRADPPKAHVTHHPISDREVTLRCWALGFYPEEISLTWQHEGEDQTQDMELVETRPSGDGTFQKWAALVVPSGEEQRYTCRVQHEGLQEPLTLRWE

Source Source

Source organism organism	Bos taurus
Common name common_name	bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11653.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

IQRPPKIQVYSRHPPEDGKPNYLNCYVYGFHPPQIEIDLLKNGEKIKSEQSDLSFSKDWSFYLLSHAEFTPNSKDQYSCRVKHVTLEQPRIVKWDRDL

Source Source

Source organism organism	Bos taurus
Common name common_name	bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	9-mer peptide from Hemagglutinin
Molecular weight formula_weight	946.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

IPAYGVLTI

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3pwve_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	3pwvA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	3pwvA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3pwvB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3pwvD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	3pwvD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3pwvE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	83.905 Å
Unit-cell length b length_b	83.905 Å
Unit-cell length c length_c	153.005 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	2.696 Å
Low-resolution limit resolution_low	30.225 Å
R factor r_factor	0.1905
R_work r_work	0.1882
R_free r_free	0.2323

An immmunodominant CTL epitope from rinderpest virus presented by cattle MHC class I molecule N*01801 (BoLA-A11)
