4ln2

The second SH3 domain from CAP/Ponsin in complex with proline rich peptide from Vinculin

Method: X-RAY DIFFRACTION D_max: 42.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sorbin and SH3 domain-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 866–930	Fragment：UNP residues 866-930	proline rich peptide × 1 （P18206）	X-RAY DIFFRACTION X-ray crystallization conditions：EVAPORATION；EVAPORATION	Resolution 1.00 Å R-free 0.152

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4LN2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DL3 Solution structure of the first SH3 domain of human sorbin and Sh3 domain-containing protein 1 Deposited 2006-04-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 796–850（55 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.00mM 13C, 15N-labeled protein; 20mM d-Tris-HCl (pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2ECZ Solution structure of the SH3 domain of Sorbin and SH3 domain-containing protein 1 Deposited 2007-02-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 870–926（57 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 0.75mM Protein; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O, 90% H2O \| 90% H2O/10% D2O	Resolution not provided
2LJ0 The third SH3 domain of R85FL Deposited 2011-09-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1228–1292（65 aa） Fragment：third SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.12；Pressure ambient NMR sample composition 1mM [U-99% 13C; U-99% 15N] sodium phosphate-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LJ1 The third SH3 domain of R85FL with ataxin-7 PRR Deposited 2011-09-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1228–1291（64 aa） Fragment：third SH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.12；Pressure ambient NMR sample composition 1mM [U-99% 13C; U-99% 15N] sodium phosphate-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MOX solution structure of tandem SH3 domain of Sorbin and SH3 domain-containing protein 1 Deposited 2014-05-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–930（140 aa） Fragment：UNP residues 791-930	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 50 mM sodium phosphate-1, 0.5 mM [U-100% 15N] protein-2, 1 mM EDTA-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 50 mM sodium phosphate-4, 1 mM EDTA-5, 0.5 mM [U-100% 13C; U-100% 15N] protein-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 50 mM sodium phosphate-7, 1 mM EDTA-8, 0.5 mM [U-100% 13C; U-100% 15N] protein-9, 100% D2O \| 100% D2O	Resolution not provided
4LNP The first SH3 domain from CAP/Ponsin in complex with proline rich peptide from Vinculin Deposited 2013-07-11	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 794–854（61 aa） Fragment：protein-protein binding domain, UNP residues 794-854	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；293 K；pH 8.0, EVAPORATION, temperature 293K	Resolution 1.41 Å R-free 0.194

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SRBS1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–68； UniProt 866–930

proline rich peptide

Homo sapiens

UniProt P18206

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 857–867	Fragment：UNP residues 857-867	Sorbin and SH3 domain-containing protein 1 × 1 （Q9BX66）	X-RAY DIFFRACTION X-ray crystallization conditions：EVAPORATION；EVAPORATION	Resolution 1.00 Å R-free 0.152

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 4LN2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1RKC Human vinculin head (1-258) in complex with talin's vinculin binding site 3 (residues 1944-1969) Deposited 2003-11-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa） Fragment：vinculin head (residues 1-258)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；293 K；2% MPD; 100 mM citric acid (pH 4); 100 mM CdCl2, pH 4.0, temperature 293K	Resolution 2.70 Å R-free 0.335
1RKE Human vinculin head (1-258) in complex with human vinculin tail (879-1066) Deposited 2003-11-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa） Fragment：vinculin head (residues 1-258) Chain B 882–1066（185 aa） Fragment：vinculin tail (residues 879-1066)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；293 K；15% PEG 3350; 50 mM NaCl; 100 mM Tris (pH 8); 10 mM DTT, pH 8.0, temperature 293K	Resolution 2.35 Å R-free 0.278
1SYQ Human vinculin head domain VH1, residues 1-258, in complex with human talin's vinculin binding site 1, residues 607-636 Deposited 2004-04-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.42 Å R-free 0.236
1SYQ Human vinculin head domain VH1, residues 1-258, in complex with human talin's vinculin binding site 1, residues 607-636 Deposited 2004-04-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.42 Å R-free 0.236
1SYQ Human vinculin head domain VH1, residues 1-258, in complex with human talin's vinculin binding site 1, residues 607-636 Deposited 2004-04-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.42 Å R-free 0.236
1TR2 Crystal structure of human full-length vinculin (residues 1-1066) Deposited 2004-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 0–1065（1066 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å R-free 0.300
1TR2 Crystal structure of human full-length vinculin (residues 1-1066) Deposited 2004-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 0–1065（1066 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å R-free 0.300
2GWW Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site (residues 602-633) Deposited 2006-05-07	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.72 Å R-free 0.291
2GWW Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site (residues 602-633) Deposited 2006-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.72 Å R-free 0.291
2GWW Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site (residues 602-633) Deposited 2006-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.72 Å R-free 0.291
2HSQ Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site 2 (residues 565-587) Deposited 2006-07-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.97 Å R-free 0.316
2HSQ Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site 2 (residues 565-587) Deposited 2006-07-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.97 Å R-free 0.316
2HSQ Human vinculin (head domain, Vh1, residues 1-258) in complex with Shigella's IpaA vinculin binding site 2 (residues 565-587) Deposited 2006-07-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.97 Å R-free 0.316
2IBF Human vinculin's head domain (Vh1, residues 1-258) in complex with two vinculin binding sites of Shigella flexneri's IpaA (residues 565-587) Deposited 2006-09-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 0–257（258 aa） Fragment：Head domain (Vh1): Residues 1-258	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.270
3JBK Cryo-EM reconstruction of the metavinculin-actin interface Deposited 2015-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 858–1129（272 aa） Fragment：tail domain (UNP residues 858-1129)	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer 50 mM KCl, 1 mM MgCl2, 1 mM EGTA, 10 mM imidazole；pH 7；50 mM KCl, 1 mM MgCl2, 1 mM EGTA, 10 mM imidazole cryo-EM vitrification conditions 3 microliters of 0.3 micromolar actin was applied to the grid and incubated for 60 seconds at 25 degrees C. 3 microliters of 10 micromolar MVt was then applied and incubated for 60 seconds. 3 microliters of solution was removed, then an additional 3 microliters of MVt applied. After 60 seconds, 3 microliters of solution was removed, then the grid was blotted for 2 seconds before plunging.；Cryogen ETHANE；3 microliters of 0.3 micromolar actin was applied to the grid and incubated for 60 seconds at 25 degrees C. 3 microliters of 10 micromolar MVt was then applied and incubated for 60 seconds. 3 microliters of solution was removed, then an additional 3 microliters of MVt applied. After 60 seconds, 3 microliters of solution was removed, then the grid was blotted for 2 seconds before plunging into liquid ethane (LEICA EM GP).	Resolution 8.20 Å
3MYI Human metavinculin tail domain Deposited 2010-05-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 959–1130（172 aa） Fragment：UNP residues 959-1134	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.247
3RF3 Shigella IpaA-VBS3 in complex with human vinculin Deposited 2011-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa） Fragment：unp residues 1-258	Not recorded	CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；0.1 M sodium citrate, 20% PEG 3350, 0.1 M cacodylate, pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 1.61 Å R-free 0.195
3RF3 Shigella IpaA-VBS3 in complex with human vinculin Deposited 2011-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–258（258 aa） Fragment：unp residues 1-258	Not recorded	CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；0.1 M sodium citrate, 20% PEG 3350, 0.1 M cacodylate, pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 1.61 Å R-free 0.195
3RF3 Shigella IpaA-VBS3 in complex with human vinculin Deposited 2011-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–258（258 aa） Fragment：unp residues 1-258 Chain B 1–258（258 aa） Fragment：unp residues 1-258	Not recorded	CAC CACODYLATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；298 K；0.1 M sodium citrate, 20% PEG 3350, 0.1 M cacodylate, pH 7.2, VAPOR DIFFUSION, temperature 298K	Resolution 1.61 Å R-free 0.195
3S90 Human vinculin head domain Vh1 (residues 1-252) in complex with murine talin (VBS33; residues 1512-1546) Deposited 2011-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–252（252 aa） Fragment：unp residues 1-252	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；0.1 M citrate 5.3, 15% (w/v) PEG 10K, 1.5% (v/v) dioxane, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.97 Å R-free 0.210
3S90 Human vinculin head domain Vh1 (residues 1-252) in complex with murine talin (VBS33; residues 1512-1546) Deposited 2011-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–252（252 aa） Fragment：unp residues 1-252	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；0.1 M citrate 5.3, 15% (w/v) PEG 10K, 1.5% (v/v) dioxane, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.97 Å R-free 0.210
3TJ5 human vinculin head domain (Vh1, residues 1-258) in complex with the vinculin binding site of the surface cell antigen 4 (sca4-VBS-N; residues 412-434) from Rickettsia rickettsii Deposited 2011-08-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–255（255 aa） Fragment：unp residues 1-255	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；0.1 M MES monohydrate pH 6.5, 14% PEG 20,000, 20 mM Tris-HCl pH 8, 150 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.218
3TJ6 human vinculin head domain (Vh1, residues 1-258) in complex with the vinculin binding site of the surface cell antigen 4 (sca4-VBS-C; residues 812-835) from Rickettsia rickettsii Deposited 2011-08-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2% (v/v) tacsimate (pH 5), 100 mM sodium citrate tribasic dihydrate (pH 5.6), 16% (w/v) polyethylene glycol (3,350), 20 mM Tris-HCl (pH 9), 150 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.76 Å R-free 0.235
3TJ6 human vinculin head domain (Vh1, residues 1-258) in complex with the vinculin binding site of the surface cell antigen 4 (sca4-VBS-C; residues 812-835) from Rickettsia rickettsii Deposited 2011-08-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–257（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2% (v/v) tacsimate (pH 5), 100 mM sodium citrate tribasic dihydrate (pH 5.6), 16% (w/v) polyethylene glycol (3,350), 20 mM Tris-HCl (pH 9), 150 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.76 Å R-free 0.235
3VF0 Raver1 in complex with metavinculin L954 deletion mutant Deposited 2012-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 856–1134（279 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 GOL GLYCEROL × 13	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.54 Å R-free 0.205
4DJ9 Human vinculin head domain Vh1 (residues 1-258) in complex with the talin vinculin binding site 50 (VBS50, residues 2078-2099) Deposited 2012-02-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa） Fragment：unp residues 1-258	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；The human vinculin Vh1 domain (residues 1 - 258) was generated as described.9 Crystallization screens of Vh1 protein and VBS50 mixed in 1:5 molar ratio were performed at two temperatures. Co-crystals were obtained from Hampton crystal screen I with a reservoir of 0.1 M Hepes pH 7.5, 10% w/v polyethylene glycol 6,000, and 5% 2-Methyl-2,4-pentanediol. Crystals were transferred directly from the initial 96-well screening plate into Paratone-N oil and flash-frozen in liquid nitrogen. , VAPOR DIFFUSION	Resolution 2.25 Å R-free 0.247
4EHP Crystal Structure of human vinculin head domain (residues 1-252) in complex with alpha-catenin (residues 277-382) Deposited 2012-04-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–252（252 aa） Fragment：unp residues 1-252	Not recorded	ACT ACETATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；PEG 3350, sodium acetate, VAPOR DIFFUSION, temperature 295K	Resolution 2.66 Å R-free 0.229
4LNP The first SH3 domain from CAP/Ponsin in complex with proline rich peptide from Vinculin Deposited 2013-07-11	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 870–879（10 aa） Fragment：proline rich peptide, UNP residues 870-879	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；293 K；pH 8.0, EVAPORATION, temperature 293K	Resolution 1.41 Å R-free 0.194
4PR9 Human Vinculin (residues 891-1066) in complex with PIP Deposited 2014-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1) Chain B 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1)	Mutation：R1060A Mutation：R1060A	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；12% PEG3350, 2% tryptone, 0.05 M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.20 Å R-free 0.250
4PR9 Human Vinculin (residues 891-1066) in complex with PIP Deposited 2014-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1) Chain D 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1)	Mutation：R1060A Mutation：R1060A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；12% PEG3350, 2% tryptone, 0.05 M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.20 Å R-free 0.250
4PR9 Human Vinculin (residues 891-1066) in complex with PIP Deposited 2014-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1) Chain F 891–1066（176 aa） Fragment：C-terminal domain (UNP residues 891-1066 of isoform 1)	Mutation：R1060A Mutation：R1060A	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；12% PEG3350, 2% tryptone, 0.05 M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.20 Å R-free 0.250
5L0C Human metavinculin (residues 959-1134) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 959–1134（176 aa） Fragment：UNP Residues 959-1130 Chain C 959–1134（176 aa） Fragment：UNP Residues 959-1130	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；20 mM citric acid, 80 mM Bis-Tris propane (pH 3.4), and 16% (w/v) PEG 3350	Resolution 3.10 Å R-free 0.261
5L0C Human metavinculin (residues 959-1134) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 959–1134（176 aa） Fragment：UNP Residues 959-1130 Chain D 959–1134（176 aa） Fragment：UNP Residues 959-1130	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 3 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；20 mM citric acid, 80 mM Bis-Tris propane (pH 3.4), and 16% (w/v) PEG 3350	Resolution 3.10 Å R-free 0.261
5L0D Human Metavinculin(residues 959-1130) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 959–1130（172 aa） Fragment：UNP Residues 959-1130 Chain B 959–1130（172 aa） Fragment：UNP Residues 959-1130	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.4；294 K；20 mM citric acid, 80-100 mM Bis-Tris propane (pH 3.4), and 12-16% (w/v) PEG 3350	Resolution 2.75 Å R-free 0.259
5L0D Human Metavinculin(residues 959-1130) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 959–1130（172 aa） Fragment：UNP Residues 959-1130 Chain D 959–1130（172 aa） Fragment：UNP Residues 959-1130	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.4；294 K；20 mM citric acid, 80-100 mM Bis-Tris propane (pH 3.4), and 12-16% (w/v) PEG 3350	Resolution 2.75 Å R-free 0.259
5L0F Human metavinculin quadruple mutant (residues 959-1134) Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：R975Q, K979Q, R1107Q, R1128Q	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；294 K；20 mM citric acid, 80 mM Bis-Tris propane (pH 8.8), and 14 to 16% (w/v) PEG 3350	Resolution 2.76 Å R-free 0.247
5L0F Human metavinculin quadruple mutant (residues 959-1134) Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：R975Q, K979Q, R1107Q, R1128Q	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；294 K；20 mM citric acid, 80 mM Bis-Tris propane (pH 8.8), and 14 to 16% (w/v) PEG 3350	Resolution 2.76 Å R-free 0.247
5L0G Human metavinculin MVt Q971R, R975D, T978R mutant (residues 959-1134) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 959–1134（176 aa） Fragment：UNP Residues 959-1134 Chain B 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：Q971R, R975D, T978R Mutation：Q971R, R975D, T978R	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；12% PEG 3350, 2% tryptone, and 0.05 M HEPES	Resolution 3.40 Å R-free 0.221
5L0G Human metavinculin MVt Q971R, R975D, T978R mutant (residues 959-1134) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 959–1134（176 aa） Fragment：UNP Residues 959-1134 Chain D 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：Q971R, R975D, T978R Mutation：Q971R, R975D, T978R	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；12% PEG 3350, 2% tryptone, and 0.05 M HEPES	Resolution 3.40 Å R-free 0.221
5L0H Human metavinculin MVt cardiomyopathy-associated mutant R975W (residues 959-1134) in complex with PIP2 Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：R975W	PEG DI(HYDROXYETHYL)ETHER × 1 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.2 M LiSO4, 0.1 M HEPES (pH 7.5), and 22% PEG 3350	Resolution 2.90 Å R-free 0.278
5L0I Human metavinculin MVt R975W cardiomyopathy-associated mutant (residues 959-1134) Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 959–1134（176 aa） Fragment：UNP Residues 959-1134	Mutation：R975W	GOL GLYCEROL × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.1 M Na-citrate tribasic dihydrate, 2% Tacsimate (pH 5), and 16% PEG 3350	Resolution 2.45 Å R-free 0.238
5L0J Human vinculin R903Q, D907R, R910T mutant(residues 891-1066) Deposited 2016-07-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 891–1066（176 aa） Chain B 891–1066（176 aa）	Mutation：R903Q, D907R, R910T Mutation：R903Q, D907R, R910T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES sodium (pH 7.5), and 1.5 M Lithium sulfate monohydrate	Resolution 4.00 Å R-free 0.298
6FUY Crystal structure of human full-length vinculin-T12-A974K (residues 1-1066) Deposited 2018-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1066（1066 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；PEG 4000, calcium acetate, Tris-HOAc, 15% ethylene glycol	Resolution 3.00 Å R-free 0.305
6UPW Metavinculin ABD-F-actin complex Deposited 2019-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain L 1–1134（1134 aa） Chain M 1–1134（1134 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7KTT Cryogenic electron microscopy model of full-length human metavinculin Deposited 2020-11-24	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1134（1134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM Tris, pH 8.0, 150 mM NaCl, 0.2 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.17 Å
7KTU Cryogenic electron microscopy model of full-length human metavinculin H1'-parallel conformation 1 Deposited 2020-11-24	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1134（1134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM Tris, pH 8.0, 150 mM NaCl, 0.2 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
7KTV Cryogenic electron microscopy model of full-length human metavinculin H1' kinked conformation Deposited 2020-11-24	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1134（1134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM Tris, pH 8.0, 150 mM NaCl, 0.2 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7KTW Cryogenic electron microscopy model of full-length human metavinculin H1'-parallel conformation 2 Deposited 2020-11-24	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1134（1134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM Tris, pH 8.0, 150 mM NaCl, 0.2 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
9QWO Vinculin tail bound to paxillin LD2 Deposited 2025-04-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 891–1066（176 aa） Chain B 891–1066（176 aa） Chain C 891–1066（176 aa） Chain D 891–1066（176 aa）	Not recorded	SO4 SULFATE ION × 8 ACT ACETATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；1.26 M (NH4)2SO4, 0.2 M NaCl, 0.1 M Na Acetate pH4.5	Resolution 2.54 Å R-free 0.259

32 other PDB entries and 49 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VINC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–11； UniProt 857–867

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

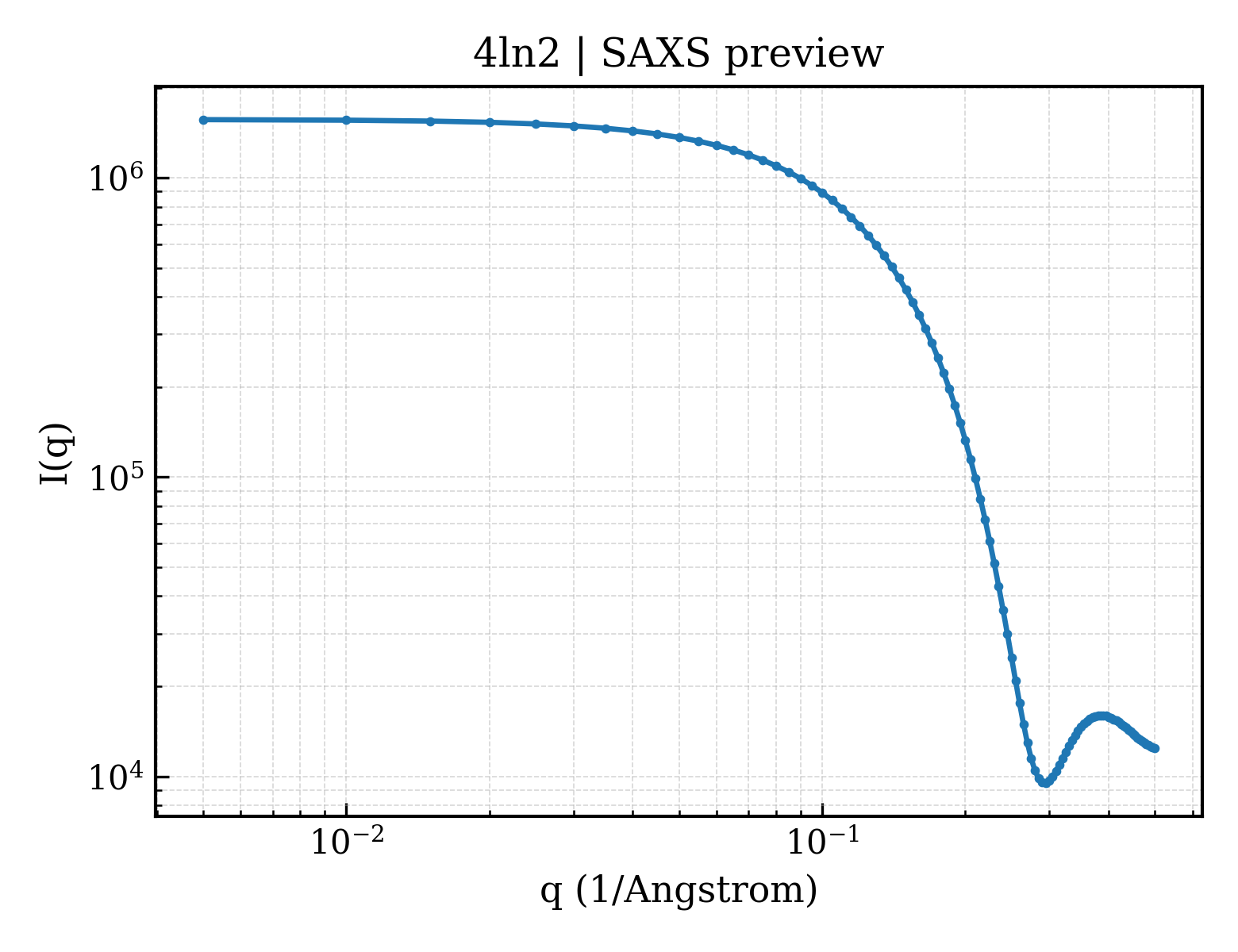

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ln2
Deposition date deposition_date	2013-07-11
Structure title title	The second SH3 domain from CAP/Ponsin in complex with proline rich peptide from Vinculin
Keywords keywords	sh3 domain, cell migration, focal adhesion, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.92 Å
Radius of gyration Rg (electron density) rg_electron	11.55 Å
Forward intensity I(0) i0	1566480.00
Molecular weight molecular_weight	8692.0 kDa
Excluded volume excluded_volume	11021 Å³
Envelope volume envelope_volume	12085 Å³
Hydration-shell volume shell_volume	9033 Å³
Envelope diameter envelope_diameter	41.5 Å
Shell Rg shell_rg	17.13 Å
Envelope Rg envelope_rg	12.03 Å
Shape Rg shape_rg	11.50 Å
Total Rg total_rg	13.15 Å
Total atoms total_atoms	615
Residues n_residues	76
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	42.0 Å
Rg (real space) rg_real	12.83 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	1.5660e+06
I(0) uncertainty (real space) i0_real_error	1.8140e+04
Rg (reciprocal space) rg_reciprocal	12.83 Å
I(0) (reciprocal space) i0_reciprocal	1566000.0000
Solution quality estimate total_estimate	0.7960
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	16.5 Å
Skewness Skewness skewness	0.144
Kurtosis Kurtosis kurtosis	-0.269
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	567800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.786; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Sorbin and SH3 domain-containing protein 1
Molecular weight formula_weight	7970.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	784

QHMVLEYGEAIAKFNFNGDTQVEMSFRKGERITLLRQVDENWYEGRIPGTSRQGIFPITYVDVIKRPL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	proline rich peptide
Molecular weight formula_weight	1188.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ELAPPKPPLPE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	121

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4ln2a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.0 — automated matches

Domain ID domain_id	d4ln2a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4ln2A00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	28.870 Å
Unit-cell length b length_b	45.850 Å
Unit-cell length c length_c	52.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.000 Å
Low-resolution limit resolution_low	26.430 Å
R factor r_factor	0.1399
R_work r_work	0.1393
R_free r_free	0.1519

fit	/app/data/saxs_computation/ln/4ln2/4ln2.fit
pddf	/app/data/pr_computation/ln/4ln2/4ln2.pr.out
profile	/app/data/saxs_computation/ln/4ln2/4ln2.dat

The second SH3 domain from CAP/Ponsin in complex with proline rich peptide from Vinculin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sorbin and SH3 domain-containing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

proline rich peptide

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
