4md9

Crystal Structure of symmetric CK2 holoenzyme with mutated alpha subunit (F121E truncated at aa 336)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase II subunit beta

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit alpha × 2 （P68400） ZINC ION × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit alpha × 2 （P68400） ZINC ION × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit alpha × 2 （P68400） ZINC ION × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit alpha × 2 （P68400） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSK2B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–215； UniProt 1–215 Author chain B； PDBConstruct 1–215； UniProt 1–215 Author chain C； PDBConstruct 1–215； UniProt 1–215 Author chain D； PDBConstruct 1–215； UniProt 1–215 Author chain I； PDBConstruct 1–215； UniProt 1–215 Author chain J； PDBConstruct 1–215； UniProt 1–215 Author chain N； PDBConstruct 1–215； UniProt 1–215 Author chain O； PDBConstruct 1–215； UniProt 1–215

Casein kinase II subunit alpha

Homo sapiens

UniProt P68400

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit beta × 2 （P67870） ZINC ION × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit beta × 2 （P67870） ZINC ION × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit beta × 2 （P67870） ZINC ION × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 4	Casein kinase II subunit beta × 2 （P67870） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSK21_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–336； UniProt 1–336 Author chain F； PDBConstruct 1–336； UniProt 1–336 Author chain G； PDBConstruct 1–336； UniProt 1–336 Author chain H； PDBConstruct 1–336； UniProt 1–336 Author chain K； PDBConstruct 1–336； UniProt 1–336 Author chain L； PDBConstruct 1–336； UniProt 1–336 Author chain M； PDBConstruct 1–336； UniProt 1–336 Author chain P； PDBConstruct 1–336； UniProt 1–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4md9
Deposition date deposition_date	2013-08-22
Structure title title	Crystal Structure of symmetric CK2 holoenzyme with mutated alpha subunit (F121E truncated at aa 336)
Keywords keywords	protein serine/threonine kinase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4md9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

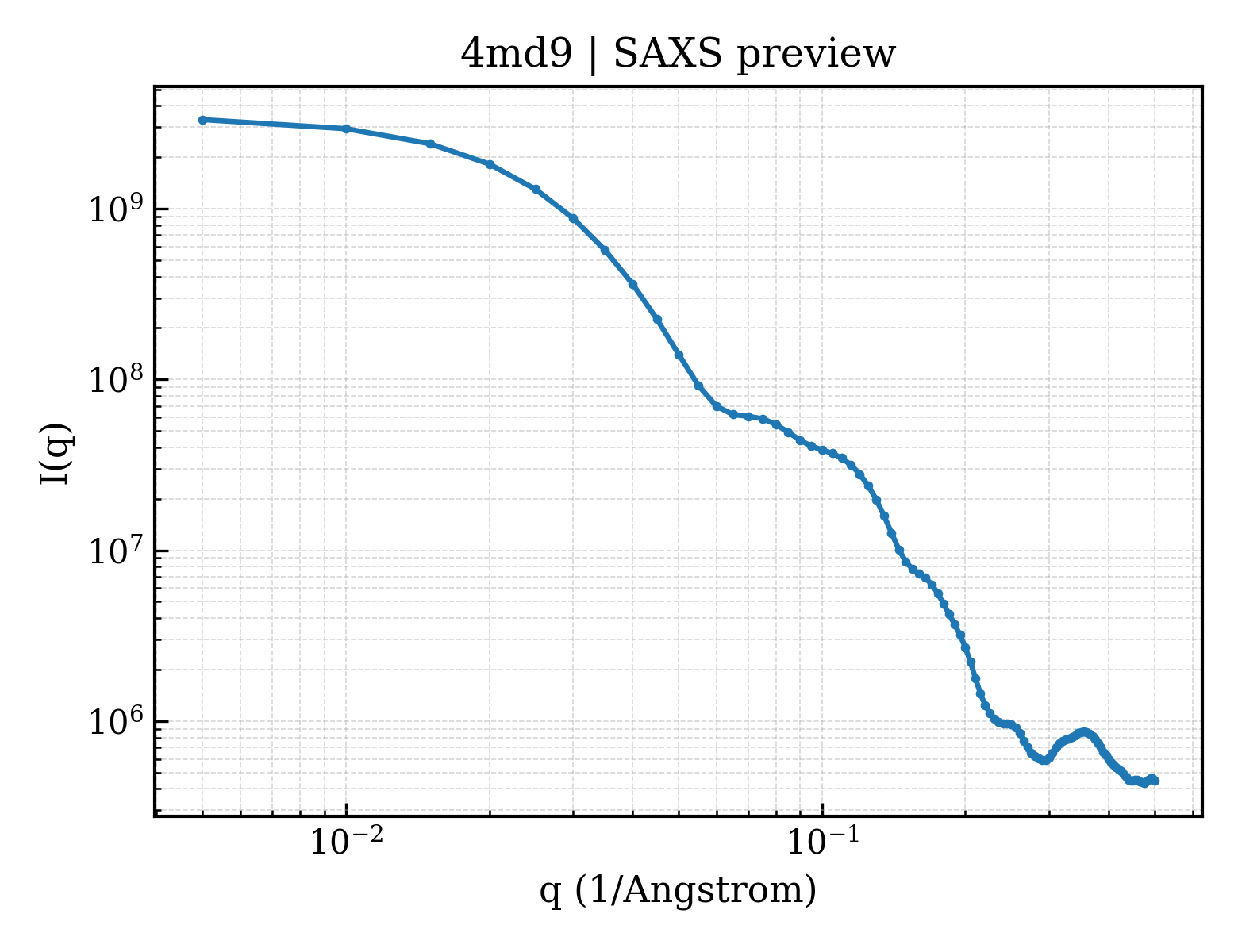

4md9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

4md9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.11 Å
Rg (electron density)	46.66 Å
Total Rg	46.38 Å
Atom count	8782
Residues	1052
Excluded volume	155840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4md9__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4md9__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`4md9__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`4md9__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Casein kinase II subunit beta
Molecular weight formula_weight	24969.4 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,I,J,N,O
Atom count atom_count	35073

MSSSEEVSWISWFCGLRGNEFFCEVDEDYIQDKFNLTGLNEQVPHYRQALDMILDLEPDEELEDNPNQSDLIEQAAEMLYGLIHARYILTNRGIAQMLEKYQQGDFGYCPRVYCENQPMLPIGLSDIPGEAMVKLYCPKCMDVYTPKSSRHHHTDGAYFGTGFPHMLFMVHPEYRPKRPANQFVPRLYGFKIHPMAYQLQLQAASNFKSPVKTIR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Casein kinase II subunit alpha
Molecular weight formula_weight	40135.8 kDa
EC 编号 ec_number	2.7.11.1
Mutation mutation	F121E
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H,K,L,M,P

MSGPVPSRARVYTDVNTHRPREYWDYESHVVEWGNQDDYQLVRKLGRGKYSEVFEAINITNNEKVVVKILKPVKKKKIKREIKILENLRGGPNIITLADIVKDPVSRTPALVFEHVNNTDEKQLYQTLTDYDIRFYMYEILKALDYCHSMGIMHRDVKPHNVMIDHEHRKLRLIDWGLAEFYHPGQEYNVRVASRYFKGPELLVDYQMYDYSLDMWSLGCMLASMIFRKEPFFHGHDNYDQLVRIAKVLGTEDLYDYIDKYNIELDPRFNDILGRHSRKRWERFVHSENQHLVSPEALDFLDKLLRYDHQSRLTAREAMEHPYFYTVVKDQARMGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 32 domains

CATH v4.4 (32 domains)

Domain ID domain_id	4md9A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9A02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9B02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9C02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9D02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9E01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9F01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9G01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9G02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9H01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9H02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9I01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9I02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9J01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9J02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9K01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9K02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9L01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9L02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9M01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9M02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4md9N01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9N02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9O01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1820 — protein kinase ck2 holoenzyme, chain C, domain 1
Homologous superfamily homologous superfamily	10 — protein kinase ck2 holoenzyme, chain C, domain 1

Domain ID domain_id	4md9O02
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	4md9P01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4md9P02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

▶

Unit-cell length a length_a	283.924 Å
Unit-cell length b length_b	115.707 Å
Unit-cell length c length_c	208.223 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.22 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	181.725 Å
R factor r_factor	0.2304
R_work r_work	0.2289
R_free r_free	0.2590

Crystal Structure of symmetric CK2 holoenzyme with mutated alpha subunit (F121E truncated at aa 336)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase II subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Casein kinase II subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

4md9__assembly_1__model_1

4md9__assembly_1__model_1 | I(q)

4md9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

CATH v4.4 (32 domains)

7. Citations (1)

Crystal Structure of symmetric CK2 holoenzyme with mutated alpha subunit (F121E truncated at aa 336)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase II subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Casein kinase II subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

4md9__assembly_1__model_1

4md9__assembly_1__model_1 | I(q)

4md9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

CATH v4.4 (32 domains)

7. Citations (1)
