SAXSdb — 3u87

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase II subunit alpha

Homo sapiens

UniProt P19784

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 2 CHLORIDE ION × 1 SULFATE ION × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 2 CHLORIDE ION × 1 SULFATE ION × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSK22_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 326–349； UniProt 327–350 Author chain B； PDBConstruct 326–349； UniProt 327–350

Casein kinase II subunit alpha

Homo sapiens

UniProt P68400

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 2 CHLORIDE ION × 1 SULFATE ION × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 2 CHLORIDE ION × 1 SULFATE ION × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CSK21_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–325； UniProt 1–325 Author chain B； PDBConstruct 1–325； UniProt 1–325

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3u87
Deposition date deposition_date	2011-10-16
Structure title title	Structure of a chimeric construct of human CK2alpha and human CK2alpha' in complex with a non-hydrolysable ATP-analogue
Keywords keywords	protein kinase CK2 casein kinase 2, protein kinase fold, eukaryotic protein kinase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3u87__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3u87__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

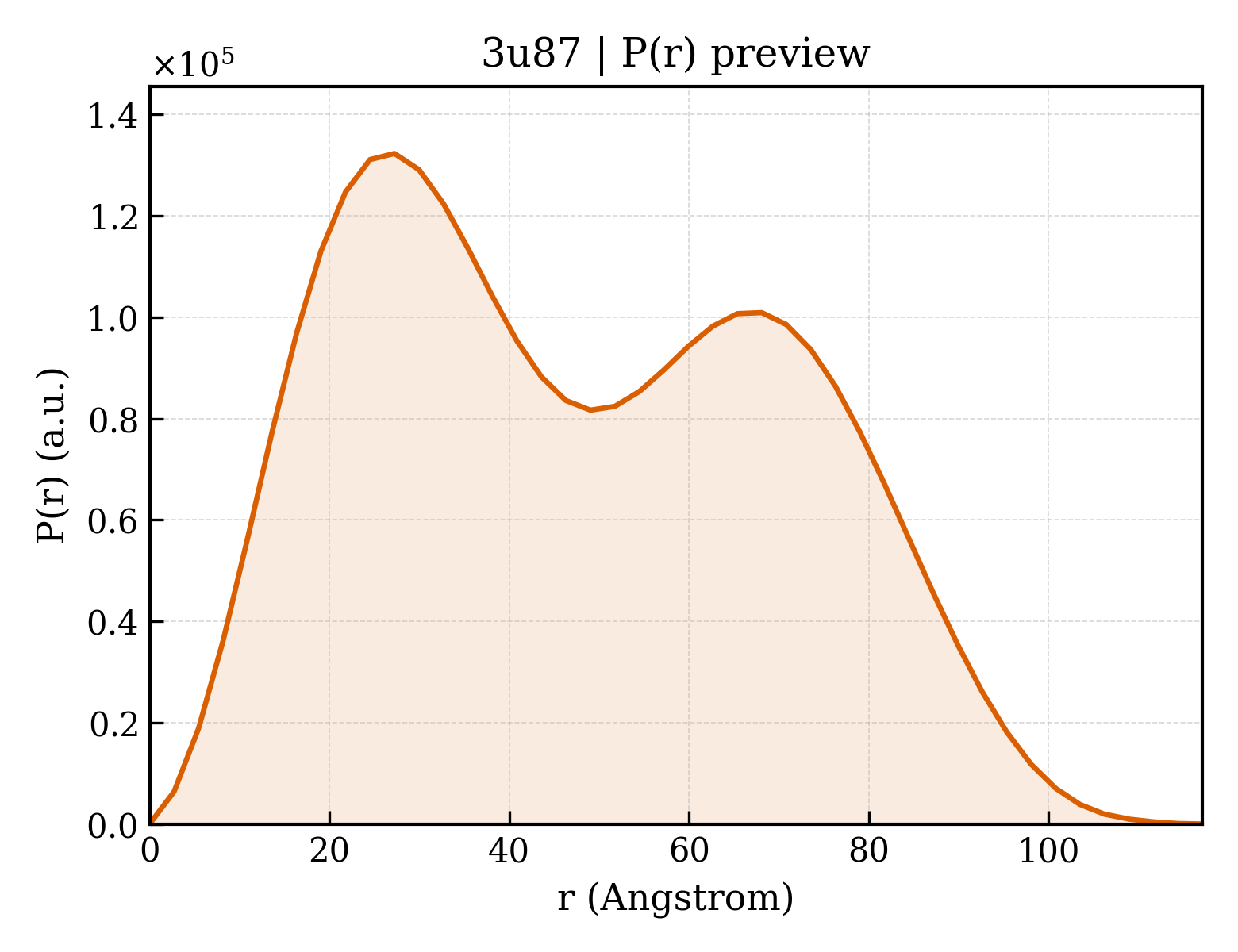

3u87__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.75 Å
Rg (electron density)	20.58 Å
Total Rg	21.45 Å
Atom count	2825
Residues	329
Excluded volume	49998 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3u87__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3u87__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Casein kinase II subunit alpha
Molecular weight formula_weight	41404.2 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5697

MSGPVPSRARVYTDVNTHRPREYWDYESHVVEWGNQDDYQLVRKLGRGKYSEVFEAINITNNEKVVVKILKPVKKKKIKREIKILENLRGGPNIITLADIVKDPVSRTPALVFEHVNNTDFKQLYQTLTDYDIRFYMYEILKALDYCHSMGIMHRDVKPHNVMIDHEHRKLRLIDWGLAEFYHPGQEYNVRVASRYFKGPELLVDYQMYDYSLDMWSLGCMLASMIFRKEPFFHGHDNYDQLVRIAKVLGTEDLYDYIDKYNIELDPRFNDILGRHSRKRWERFVHSENQHLVSPEALDFLDKLLRYDHQSRLTAREAMEHPYFYPVVKEQSQPCADNAVLSSGLTAAR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3u87a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d3u87b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (4 domains)

Domain ID domain_id	3u87A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3u87A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3u87B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3u87B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

▶

7. Citations (12)

;Low-density crystal packing of human protein kinase CK2 catalytic subunit in complex with resorufin or other ligands: a tool to study the unique hinge-region plasticity of the enzyme without packing bias. ;

Acta Crystallogr.,Sect.D (2012)

PMID: 22868753 · DOI: 10.1107/S0907444912016587 PRIMARY

;Enzymatic activity with an incomplete catalytic spine - insights from a comparative structural analysis of human CK2alpha and its paralogous isoform CK2alpha' ;

Mol.Cell.Biochem. (2011)

PMID: 21739153 · DOI: 10.1007/s11010-011-0948-5

;Structure of the human protein kinase CK2 catalytic subunit CK2alpha' and interaction thermodynamics with the regulatory subunit CK2beta ;

J.Mol.Biol. (2011)

PMID: 21241709 · DOI: 10.1016/j.jmb.2011.01.020

Protein kinase CK2: from structures to insights

Cell. Mol. Life Sci. (2009)

First inactive conformation of CK2alpha, the catalytic subunit of protein kinase CK2

J.Mol.Biol. (2009)

PMID: 19361447 · DOI: 10.1016/j.jmb.2009.01.033

The CK2alpha/CK2beta interface of human protein kinase CK2 harbors a binding pocket for small molecules

Chem.Biol. (2008)

PMID: 18291315 · DOI: 10.1016/j.chembiol.2007.12.012

;The catalytic subunit of human protein kinase CK2 structurally deviates from its maize homologue in complex with the mucleotide competitive inhibitor emodin ;

J.Mol.Biol. (2008)

PMID: 18242640 · DOI: 10.1016/j.jmb.2008.01.008

;Evolved to be active: sulfate ions define substrate recognition sites of CK2alpha and emphasise its exceptional role within the CMGC family of eukaryotic protein kinases. ;

J.Mol.Biol. (2007)

PMID: 17524418 · DOI: 10.1016/j.jmb.2007.04.068

;Inclining the purine base binding plane in protein kinase CK2 by exchanging the flanking side-chains generates a preference for ATP as a cosubstrate. ;

J.Mol.Biol. (2005)

PMID: 15740749 · DOI: 10.1016/j.jmb.2005.01.003

Crystal structure of a C-terminal deletion mutant of human protein kinase CK2 catalytic subunit.

J.Mol.Biol. (2003)

PMID: 12860116

Crystal structure of human protein kinase CK2: insights into basic properties of the CK2 holoenzyme.

Embo J. (2001)

PMID: 11574463 · DOI: 10.1093/emboj/20.19.5320

GTP plus water mimic ATP in the active site of protein kinase CK2.

Nat.Struct.Biol. (1999)

PMID: 10581548 · DOI: 10.1038/70033

Unit-cell length a length_a	127.821 Å
Unit-cell length b length_b	127.821 Å
Unit-cell length c length_c	125.333 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	36.655 Å
R factor r_factor	0.1873
R_work r_work	0.1857
R_free r_free	0.2180

Structure of a chimeric construct of human CK2alpha and human CK2alpha' in complex with a non-hydrolysable ATP-analogue
