SAXSdb — 4mn3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromobox protein homolog 7

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 7–62	Fragment：protein	peptide × 1 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；40% ethylene glycol, 0.1M HEPES pH 7.5, 5% PEG 3000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.54 Å R-free 0.213

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MN3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2K1B Solution NMR structure of the chromo domain of the chromobox protein homolog 7 Deposited 2008-02-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–62（56 aa） Fragment：Chromo domain: Residues 7-62	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 300；Pressure ambient NMR sample composition 10 mM phosphate, 300 mM sodium chloride, 2 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2L1B Solution NMR structure of the chromobox protein Cbx7 with H3K27me3 Deposited 2010-07-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–62（55 aa） Fragment：UNP Residues 7-62	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 300；Pressure ambient NMR sample composition 0.5 mM [U-13C; U-15N] protein, 2.7 mM peptide, 10 mM sodium phosphate, 300 mM sodium chloride, 0.5 mM PMSF, 0.5 mM TCEP, 1 mM Benzamidine, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 219–248（30 aa） Fragment：Cbox domain, residues 219-248 Chain D 219–248（30 aa） Fragment：Cbox domain, residues 219-248	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 219–248（30 aa） Fragment：Cbox domain, residues 219-248	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 219–248（30 aa） Fragment：Cbox domain, residues 219-248	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
5EPJ Crystal Structure of chromodomain of CBX7 in complex with inhibitor UNC3866 Deposited 2015-11-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 7–62（56 aa）	Not recorded	UNX UNKNOWN LIGAND × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2 M ammonium formate	Resolution 1.60 Å R-free 0.260
6V2R Crystal Structure of chromodomain of CBX7 mutant V13A in complex with inhibitor UNC3866 Deposited 2019-11-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 7–62（56 aa） Fragment：Chromodomain	Mutation：V13A	UNX UNKNOWN LIGAND × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.5 M ammonium sulfate, 0.1 M bis-tris propane, pH 7	Resolution 1.60 Å R-free 0.235
8SII Crystal Structure of CBX7 with compound UNC4976 Deposited 2023-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 7–62（56 aa） Fragment：chromodomain	Not recorded	SO4 SULFATE ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.5 M Ammonium Sulfate, 0.1 M BIS-Tris propane PH7.0	Resolution 1.37 Å R-free 0.223
8SII Crystal Structure of CBX7 with compound UNC4976 Deposited 2023-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 7–62（56 aa） Fragment：chromodomain	Not recorded	SO4 SULFATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.5 M Ammonium Sulfate, 0.1 M BIS-Tris propane PH7.0	Resolution 1.37 Å R-free 0.223
9V9P Cryo-EM structure of the cPRC1-di-nucleosome (CBX7) complex Deposited 2025-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain S 1–251（251 aa） Chain Y 1–251（251 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.40 Å

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CBX7_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–56； UniProt 7–62

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4mn3
Deposition date deposition_date	2013-09-09
Structure title title	Chromodomain antagonists that target the polycomb-group methyllysine reader protein Chromobox homolog 7 (CBX7)
Keywords keywords	chromobox domain 7, TRANSCRIPTION REGULATOR; TRANSCRIPTION REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.84 Å
Radius of gyration Rg (electron density) rg_electron	11.48 Å
Forward intensity I(0) i0	1255670.00
Molecular weight molecular_weight	7891.0 kDa
Excluded volume excluded_volume	10108 Å³
Envelope volume envelope_volume	11306 Å³
Hydration-shell volume shell_volume	8588 Å³
Envelope diameter envelope_diameter	42.3 Å
Shell Rg shell_rg	16.85 Å
Envelope Rg envelope_rg	12.01 Å
Shape Rg shape_rg	11.42 Å
Total Rg total_rg	13.14 Å
Total atoms total_atoms	557
Residues n_residues	60
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.0 Å
Rg (real space) rg_real	12.77 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	1.2560e+06
I(0) uncertainty (real space) i0_real_error	1.7150e+04
Rg (reciprocal space) rg_reciprocal	12.78 Å
I(0) (reciprocal space) i0_reciprocal	1256000.0000
Solution quality estimate total_estimate	0.8400
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.7 Å
Skewness Skewness skewness	0.198
Kurtosis Kurtosis kurtosis	-0.239
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	347600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.652; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Chromobox protein homolog 7
Molecular weight formula_weight	6816.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	597

GEQVFAVESIRKKRVRKGKVEYLVKWKGWPPKYSTWEPEEHILDPRLVMAYEEKEE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	peptide
Molecular weight formula_weight	681.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XFAYKSX

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
Molecular weight formula_weight	326.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4mn3A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	63.290 Å
Unit-cell length b length_b	31.860 Å
Unit-cell length c length_c	38.390 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.02 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.542 Å
Low-resolution limit resolution_low	29.500 Å
R factor r_factor	0.1742
R_work r_work	0.1722
R_free r_free	0.2127

fit	/app/data/saxs_computation/mn/4mn3/4mn3.fit
pddf	/app/data/pr_computation/mn/4mn3/4mn3.pr.out
profile	/app/data/saxs_computation/mn/4mn3/4mn3.dat

Chromodomain antagonists that target the polycomb-group methyllysine reader protein Chromobox homolog 7 (CBX7)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromobox protein homolog 7

State in the Current Structure

Other States of the Same Protein in the Database

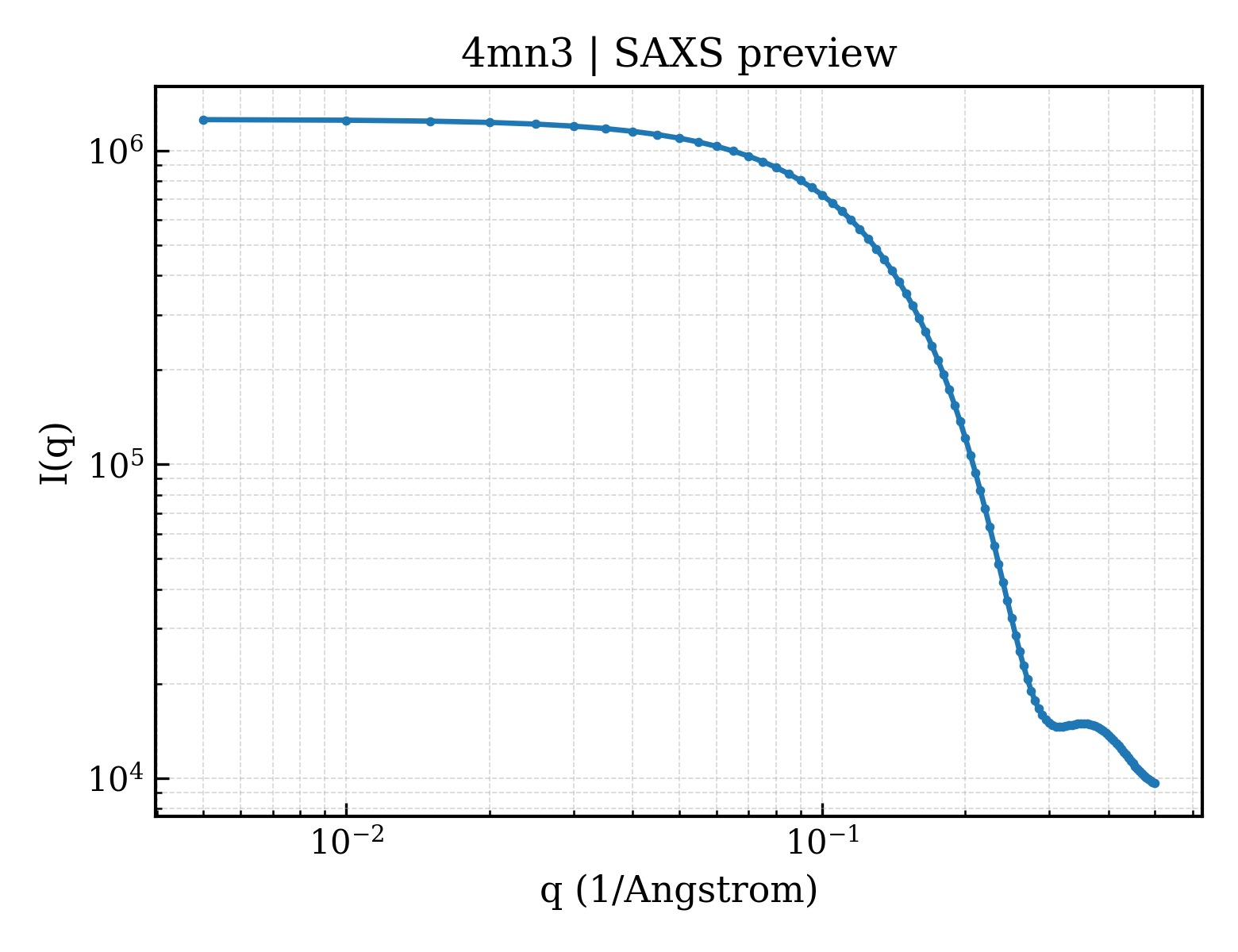

SAXS scattering curve SAXS Profile

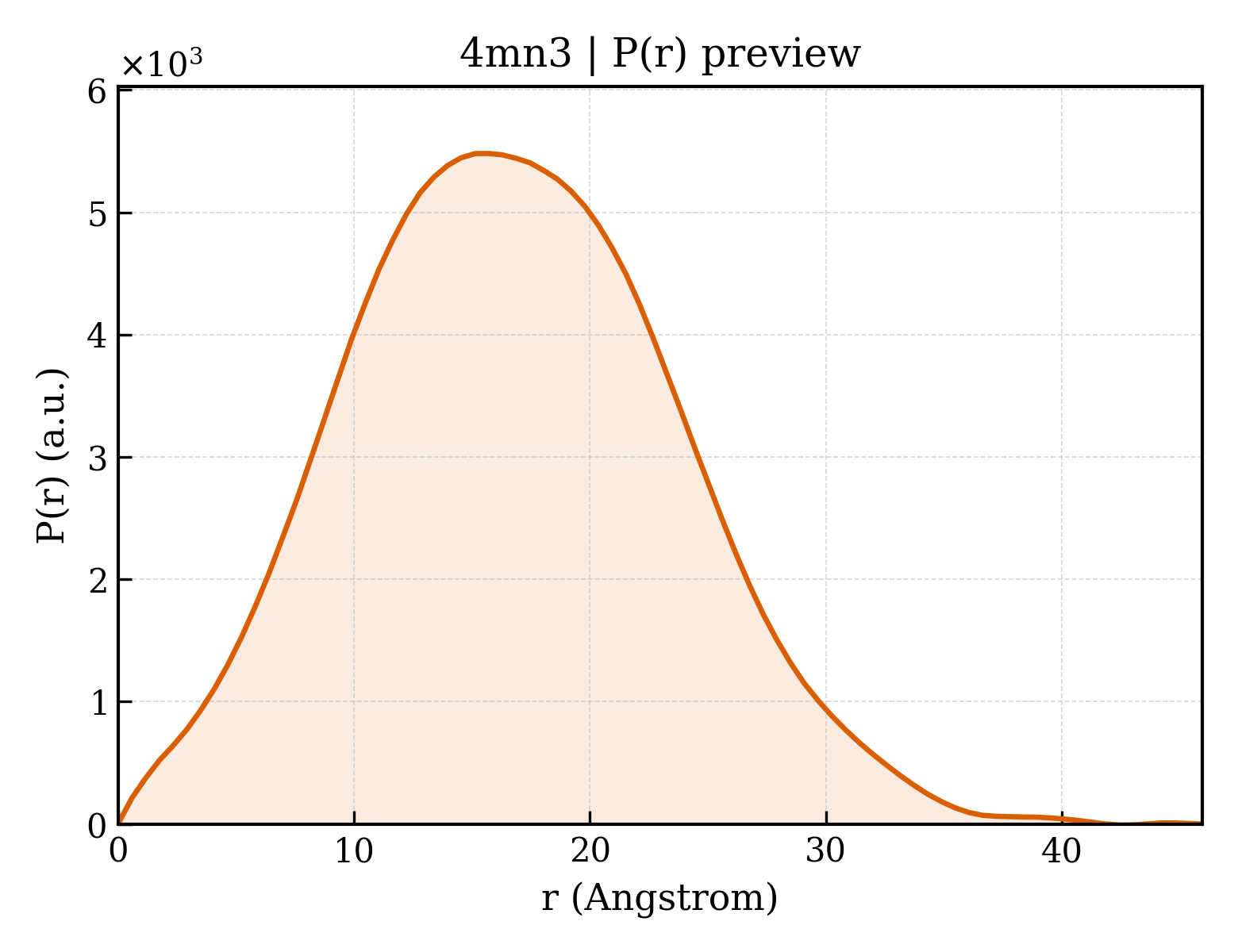

P(r) Distance Distribution P(r) Distribution
