SAXSdb — 4mo3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Coagulation factor VIII

Sus scrofa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain M； UniProt 1971–2129	Fragment：C2 domain (UNP residues 1971-2129)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 10.4；277 K；2:1 crystallization buffer (0.1 M magnesium acetate, 10% ethanol) to protein, crystals formed overnight with 0.1 M CHES buffer and 220 uL Hampton Research Al's oil over 400 uL reservoir, pH 10.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.209

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MO3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6MF0 Crystal Structure Determination of Human/Porcine Chimera Coagulation Factor VIII Deposited 2018-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: monomeric	Chain A 1–386（386 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain A 762–771（10 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain A 1438–1820（383 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain B 1–386（386 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain B 762–771（10 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain B 1438–1820（383 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human)	Not recorded	CA CALCIUM ION × 2 ZN ZINC ION × 2 CU1 COPPER (I) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 0.025 M magnesium chloride, 0.025 M HEPES	Resolution 3.20 Å R-free 0.287
6MF0 Crystal Structure Determination of Human/Porcine Chimera Coagulation Factor VIII Deposited 2018-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–386（386 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain A 762–771（10 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human) Chain A 1438–1820（383 aa） Fragment：UNP residues 1-386 (pig), 387-761 (human), 762-771,1438-1820 (pig), 2039-2351 (human)	Not recorded	CA CALCIUM ION × 1 ZN ZINC ION × 1 CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 0.025 M magnesium chloride, 0.025 M HEPES	Resolution 3.20 Å R-free 0.287
7K66 Structure of Blood Coagulation Factor VIII in Complex with an Anti-C1 Domain Pathogenic Antibody Inhibitor Deposited 2020-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–405（405 aa） Chain A 1438–1820（383 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CU COPPER (II) ION × 1 CA CALCIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；17.5 %(w/v) PEG 1500, 50 mM HEPES (pH 7.7)	Resolution 3.92 Å R-free 0.322
7KBT Factor VIII in complex with the anti-C2 domain antibody, G99 Deposited 2020-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–386（386 aa） Chain A 762–771（10 aa） Chain A 1438–1820（383 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CU COPPER (II) ION × 1 ZN ZINC ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8 - 18% PEG 1500, PEG 6K, or PEG 10K and 50mM malic acid, pH 7.	Resolution 4.15 Å R-free 0.338
7S0P Crystal structure of Porcine Factor VIII C2 Domain Bound to Phosphatidylserine Deposited 2021-08-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain M 1974–2129（156 aa）	Not recorded	SEP PHOSPHOSERINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2:1 drop ratio 0.1 M CHES (pH 7.4) 0.1M magnesium acetate 10% ethanol (v/v) Crystal soaked with 5 mM OPLS	Resolution 1.30 Å R-free 0.156
8G6I Coagulation factor VIII bound to a patient-derived anti-C1 domain antibody inhibitor Deposited 2023-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–405（405 aa） Chain A 1438–1820（383 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；150 mM NaCl, 20 mM HEPES pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
8TY1 Cryo-EM structure of coagulation factor VIII bound to NB2E9 Deposited 2023-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–391（391 aa） Chain A 1438–1820（383 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES (pH 7.4) and 150 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FA8_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain M； PDBConstruct 19–177； UniProt 1971–2129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4mo3
Deposition date deposition_date	2013-09-11
Structure title title	Crystal Structure of Porcine C2 Domain of Blood Coagulation Factor VIII
Keywords keywords	Blood coagulation domain, BLOOD CLOTTING; BLOOD CLOTTING
Experimental Method method	X-RAY DIFFRACTION

▼

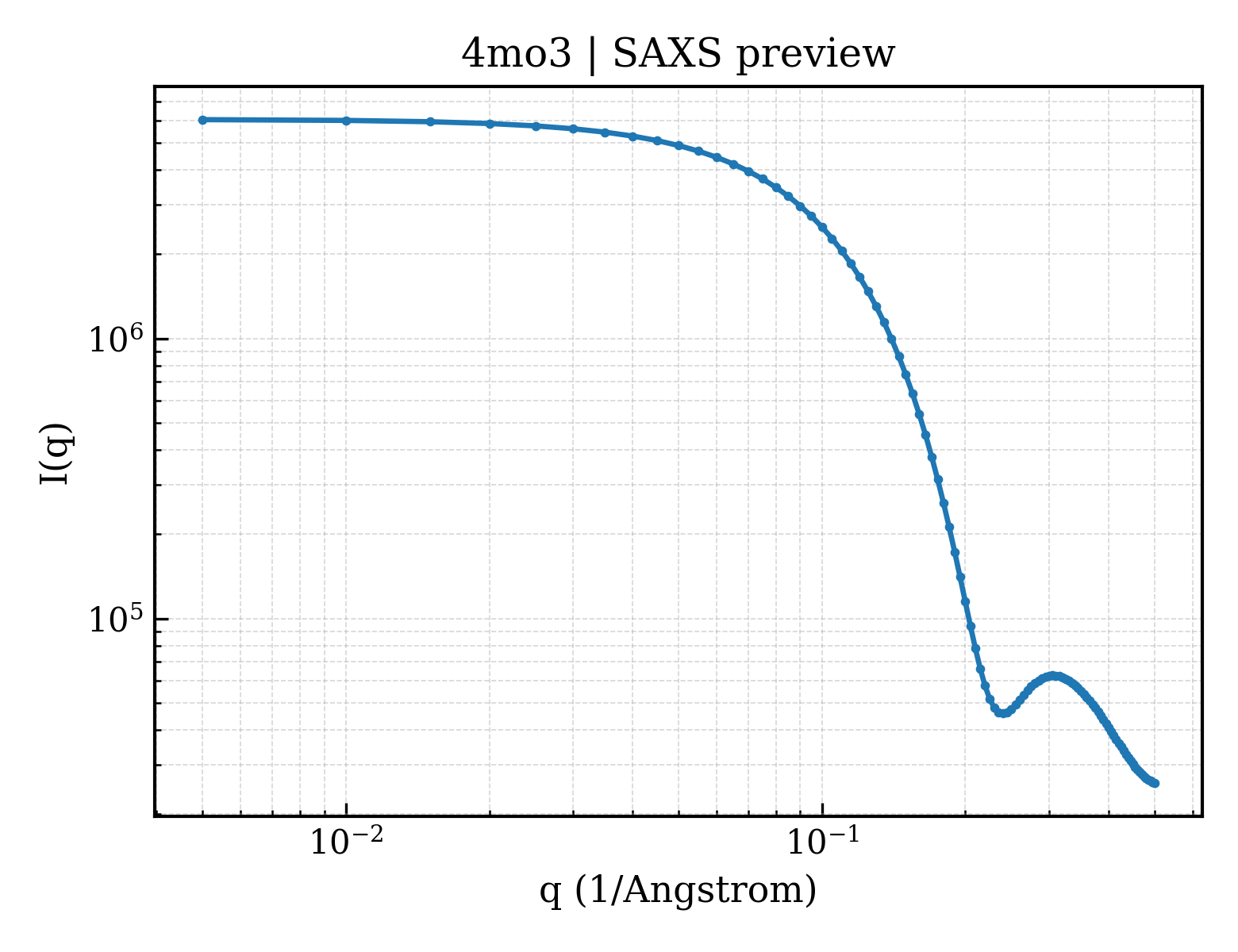

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.09 Å
Radius of gyration Rg (electron density) rg_electron	14.89 Å
Forward intensity I(0) i0	6057720.00
Molecular weight molecular_weight	17490.0 kDa
Excluded volume excluded_volume	21815 Å³
Envelope volume envelope_volume	24464 Å³
Hydration-shell volume shell_volume	13802 Å³
Envelope diameter envelope_diameter	53.6 Å
Shell Rg shell_rg	20.98 Å
Envelope Rg envelope_rg	15.43 Å
Shape Rg shape_rg	14.85 Å
Total Rg total_rg	16.14 Å
Total atoms total_atoms	1231
Residues n_residues	156
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

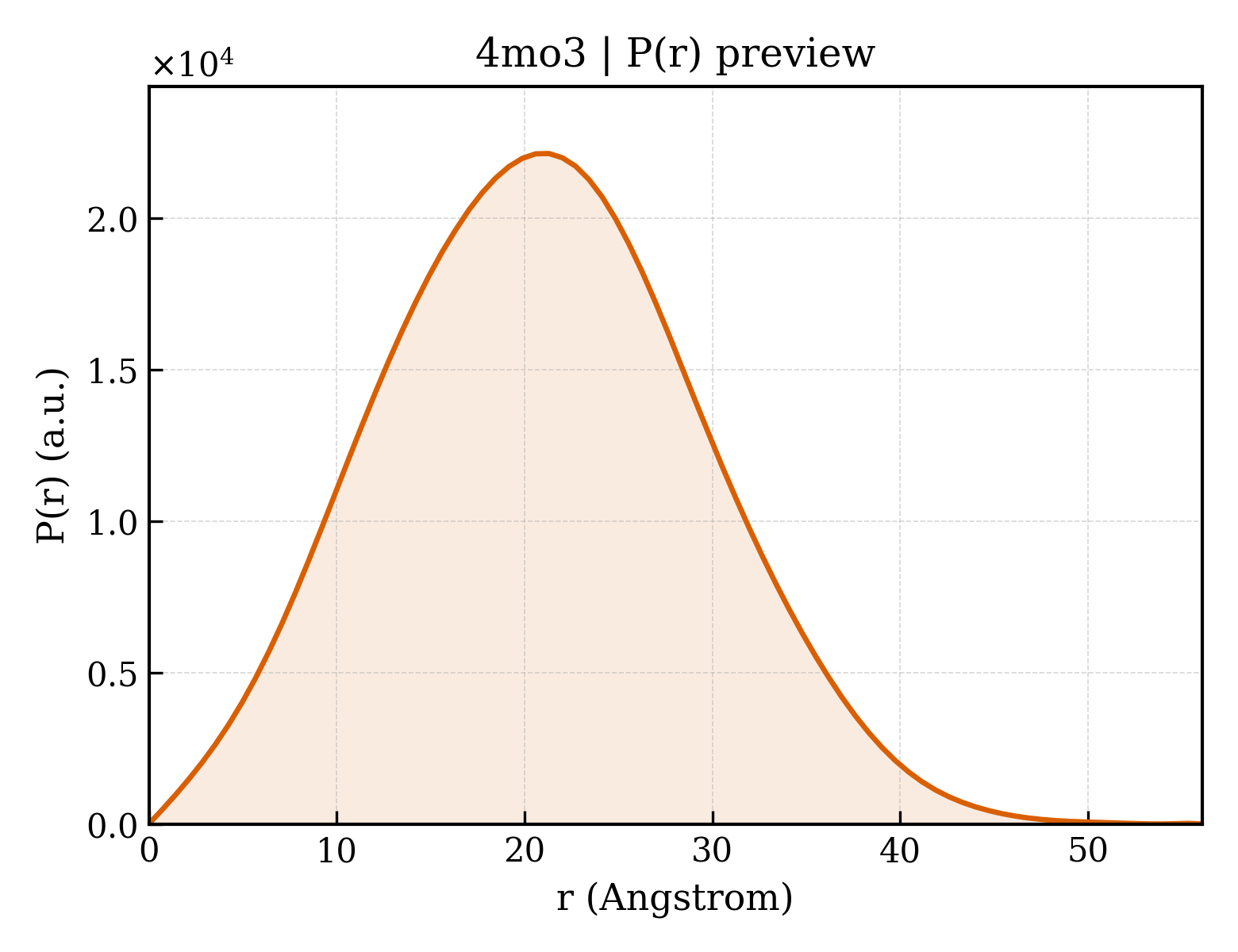

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.1 Å
Rg (real space) rg_real	15.99 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	6.0580e+06
I(0) uncertainty (real space) i0_real_error	7.4720e+04
Rg (reciprocal space) rg_reciprocal	16.00 Å
I(0) (reciprocal space) i0_reciprocal	6058000.0000
Solution quality estimate total_estimate	0.8524
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.166
Kurtosis Kurtosis kurtosis	-0.292
Angular range angular_range	— – 0.4950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1217000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.696; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Coagulation factor VIII
Molecular weight formula_weight	19903.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M
Atom count atom_count	1442

MGSSHHHHHHENLYFQGSDLNSCSMPLGMQNKAISDSQITASSHLSNIFATWSPSQARLHLQGRTNAWRPRVSSAEEWLQVDLQKTVKVTGITTQGVKSLLSSMYVKEFLVSSSQDGRRWTLFLQDGHTKVFQGNQDSSTPVVNALDPPLFTRYLRIHPTSWAQHIALRLEVLGCEA

来源 Source

来源生物 organism	Sus scrofa
通用名 common_name	pig
NCBI Class编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	179

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4mo3m_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.2 — Discoidin domain (FA58C, coagulation factor 5/8 C-terminal domain)

CATH v4.4 (1 domains)

Domain ID domain_id	4mo3M00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.070 Å
Unit-cell length b length_b	68.940 Å
Unit-cell length c length_c	105.960 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.702 Å
Low-resolution limit resolution_low	31.912 Å
R factor r_factor	0.1786
R_work r_work	0.1752
R_free r_free	0.2093
