SAXSdb — 4mrh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CD44 antigen

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	4-chloro-5-methylbenzene-1,2-diamine × 1 DIMETHYL SULFOXIDE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD44_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–150； UniProt 23–171

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4mrh
Deposition date deposition_date	2013-09-17
Structure title title	Crystal structure of the murine CD44 hyaluronan binding domain complex with a small molecule
Keywords keywords	Link module, Cell receptor, Hyaluronan binding, Cell surface, Cell adhesion-inhibitor complex; Cell adhesion/inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4mrh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4mrh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

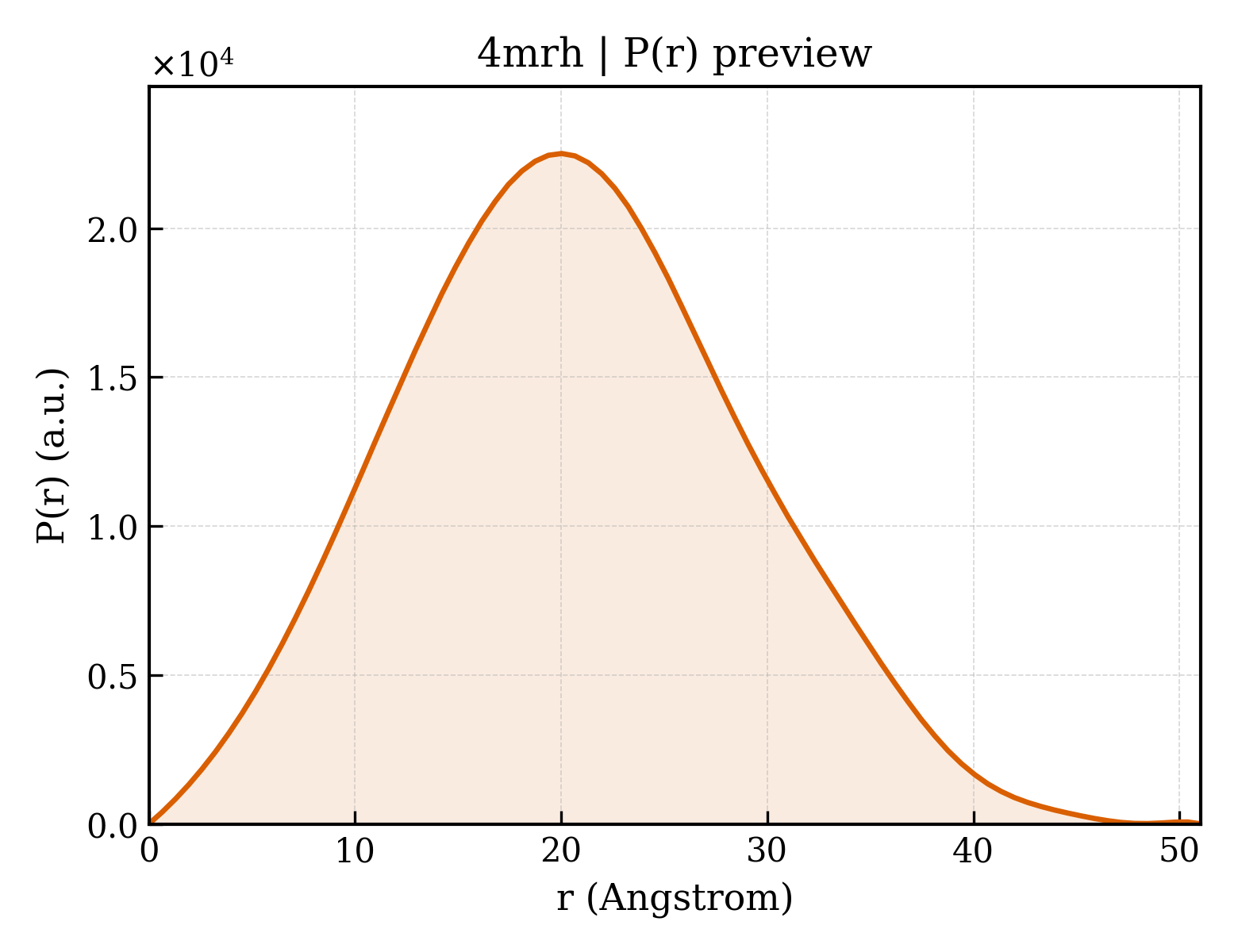

4mrh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.82 Å
Rg (electron density)	14.73 Å
Total Rg	15.79 Å
Atom count	1185
Residues	150
Excluded volume	20800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4mrh__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CD44 antigen
Molecular weight formula_weight	16724.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1363

NQIDLNVTCRYAGVFHVEKNGRYSISRTEAADLCQAFNSTLPTMDQMKLALSKGFETCRYGFIEGNVVIPRIHPNAICAANHTGVYILVTSNTSHYDTYCFNASAPPEEDCTSVTDLPNSFDGPVTITIVNRDGTRYSKKGEYRTHQEDI

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	4-chloro-5-methylbenzene-1,2-diamine
Molecular weight formula_weight	156.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4mrha1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.4 — Link domain

Domain ID domain_id	d4mrha2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

▶

Unit-cell length a length_a	30.987 Å
Unit-cell length b length_b	81.744 Å
Unit-cell length c length_c	32.236 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.21 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.120 Å
Low-resolution limit resolution_low	40.870 Å
R factor r_factor	0.1699
R_work r_work	0.1691
R_free r_free	0.1838
