SAXSdb — 4rnd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

V-type proton ATPase subunit D

Saccharomyces cerevisiae S288c

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–256 Chain C； UniProt 1–256	Not recorded	V-type proton ATPase subunit F × 2 （P39111） GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.1 M sodium citrate tribasic dehydrate, 1.2 M Ammonium citrate monobasic, ph 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.18 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4RND	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3J9T Yeast V-ATPase state 1 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 6.90 Å
3J9U Yeast V-ATPase state 2 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 7.60 Å
3J9V Yeast V-ATPase state 3 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 8.30 Å
5BW9 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain G 1–256（256 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROFLUIDIC；pH 7.5；291 K；9.5 % PEG 8k, 150mM Ammonium Sulfate, 100mM HEPES, 12.5mM MgCl2	Resolution 7.00 Å R-free 0.309
5BW9 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain g 1–256（256 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROFLUIDIC；pH 7.5；291 K；9.5 % PEG 8k, 150mM Ammonium Sulfate, 100mM HEPES, 12.5mM MgCl2	Resolution 7.00 Å R-free 0.309
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain G 1–256（256 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain g 1–256（256 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5VOX Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 1) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.80 Å
5VOY Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 2) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.90 Å
5VOZ Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 3) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.60 Å
6O7V Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 1 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.60 Å
6O7W Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 2 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å
6O7X Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 3 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.70 Å
7FDA CryoEM Structure of Reconstituted V-ATPase, state1 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7FDB CryoEM Structures of Reconstituted V-ATPase,State2 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7FDC CryoEM Structures of Reconstituted V-ATPase, state3 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å
7FDE CryoEM Structures of Reconstituted V-ATPase, Oxr1 bound V1 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9COP Yeast RAVE bound to V-ATPase V1 complex Deposited 2024-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric	Chain M 1–256（256 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9MOY Reconstituted yeast V-ATPase bound to Rtc5p Deposited 2024-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain M 1–256（256 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2	Resolution 3.60 Å
9NN1 Yeast V1-ATPase bound to Rtc5p Deposited 2025-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain M 1–256（256 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9ODU Yeast V-ATPase bound to Rtc5p, rotary state 2 Deposited 2025-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain M 1–256（256 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å

19 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VATD_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–256； UniProt 1–256 Author chain C； PDBConstruct 1–256； UniProt 1–256

V-type proton ATPase subunit F

Saccharomyces cerevisiae S288c

UniProt P39111

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–118 Chain D； UniProt 1–118	Not recorded	V-type proton ATPase subunit D × 2 （P32610） GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.1 M sodium citrate tribasic dehydrate, 1.2 M Ammonium citrate monobasic, ph 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.18 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4RND	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3J9T Yeast V-ATPase state 1 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 6.90 Å
3J9U Yeast V-ATPase state 2 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 7.60 Å
3J9V Yeast V-ATPase state 3 Deposited 2015-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside；pH 7.4；50 mM Tris-HCl, 150 mM NaCl, 0.02% w/v dodecylmaltoside cryo-EM vitrification conditions Blot for 23 seconds before freezing；77 K；Cryogen OTHER；Blot for 23 seconds before freezing in ethane/propane mixture (FEI VITROBOT MARK III).	Resolution 8.30 Å
4IX9 Crystal structure of subunit F of V-ATPase from S. cerevisiae Deposited 2013-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–94（94 aa） Fragment：Coupling and Regulatory Subunit F, UNP residues 1-94	Mutation：I69M Non-standard monomer：Yes (specific site not provided by mmCIF)	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；291 K；30% PEG 4000, 0.05M MgCl2,6H2O, 0.1M Tris HCl pH 8.8, 10% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.33 Å R-free 0.212
4IX9 Crystal structure of subunit F of V-ATPase from S. cerevisiae Deposited 2013-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–94（94 aa） Fragment：Coupling and Regulatory Subunit F, UNP residues 1-94	Mutation：I69M Non-standard monomer：Yes (specific site not provided by mmCIF)	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；291 K；30% PEG 4000, 0.05M MgCl2,6H2O, 0.1M Tris HCl pH 8.8, 10% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.33 Å R-free 0.212
4IX9 Crystal structure of subunit F of V-ATPase from S. cerevisiae Deposited 2013-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–94（94 aa） Fragment：Coupling and Regulatory Subunit F, UNP residues 1-94	Mutation：I69M Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；291 K；30% PEG 4000, 0.05M MgCl2,6H2O, 0.1M Tris HCl pH 8.8, 10% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.33 Å R-free 0.212
4IX9 Crystal structure of subunit F of V-ATPase from S. cerevisiae Deposited 2013-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–94（94 aa） Fragment：Coupling and Regulatory Subunit F, UNP residues 1-94	Mutation：I69M Non-standard monomer：Yes (specific site not provided by mmCIF)	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；291 K；30% PEG 4000, 0.05M MgCl2,6H2O, 0.1M Tris HCl pH 8.8, 10% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.33 Å R-free 0.212
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain O 1–118（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5D80 Crystal Structure of Yeast V1-ATPase in the Autoinhibited Form Deposited 2015-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain o 1–118（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；8.25% PEG 8000, 0.25 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 0.05 M Strontium Chloride	Resolution 6.20 Å R-free 0.302
5VOX Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 1) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.80 Å
5VOY Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 2) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.90 Å
5VOZ Yeast V-ATPase in complex with Legionella pneumophila effector SidK (rotational state 3) Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.60 Å
6O7V Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 1 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.60 Å
6O7W Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 2 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å
6O7X Saccharomyces cerevisiae V-ATPase Stv1-V1VO State 3 Deposited 2019-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.70 Å
7FDA CryoEM Structure of Reconstituted V-ATPase, state1 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7FDB CryoEM Structures of Reconstituted V-ATPase,State2 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7FDC CryoEM Structures of Reconstituted V-ATPase, state3 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 31 PDB declaration: 31-meric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å
7FDE CryoEM Structures of Reconstituted V-ATPase, Oxr1 bound V1 Deposited 2021-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain N 1–118（118 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9COP Yeast RAVE bound to V-ATPase V1 complex Deposited 2024-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric	Chain N 2–118（117 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9MOY Reconstituted yeast V-ATPase bound to Rtc5p Deposited 2024-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain N 1–118（118 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2	Resolution 3.60 Å
9NN1 Yeast V1-ATPase bound to Rtc5p Deposited 2025-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain N 1–118（118 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9ODU Yeast V-ATPase bound to Rtc5p, rotary state 2 Deposited 2025-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain N 1–118（118 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å

19 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VATF_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–118； UniProt 1–118 Author chain D； PDBConstruct 1–118； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4rnd
Deposition date deposition_date	2014-10-24
Structure title title	Crystal Structure of the subunit DF-assembly of the eukaryotic V-ATPase.
Keywords keywords	alpha helical, Rossmann Fold, Hydrolase, Regulatory, Coupling; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.55 Å
Radius of gyration Rg (electron density) rg_electron	36.48 Å
Forward intensity I(0) i0	68528200.00
Molecular weight molecular_weight	66371.0 kDa
Excluded volume excluded_volume	83207 Å³
Envelope volume envelope_volume	110530 Å³
Hydration-shell volume shell_volume	27184 Å³
Envelope diameter envelope_diameter	134.8 Å
Shell Rg shell_rg	39.33 Å
Envelope Rg envelope_rg	36.37 Å
Shape Rg shape_rg	36.50 Å
Total Rg total_rg	36.61 Å
Total atoms total_atoms	4682
Residues n_residues	578
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

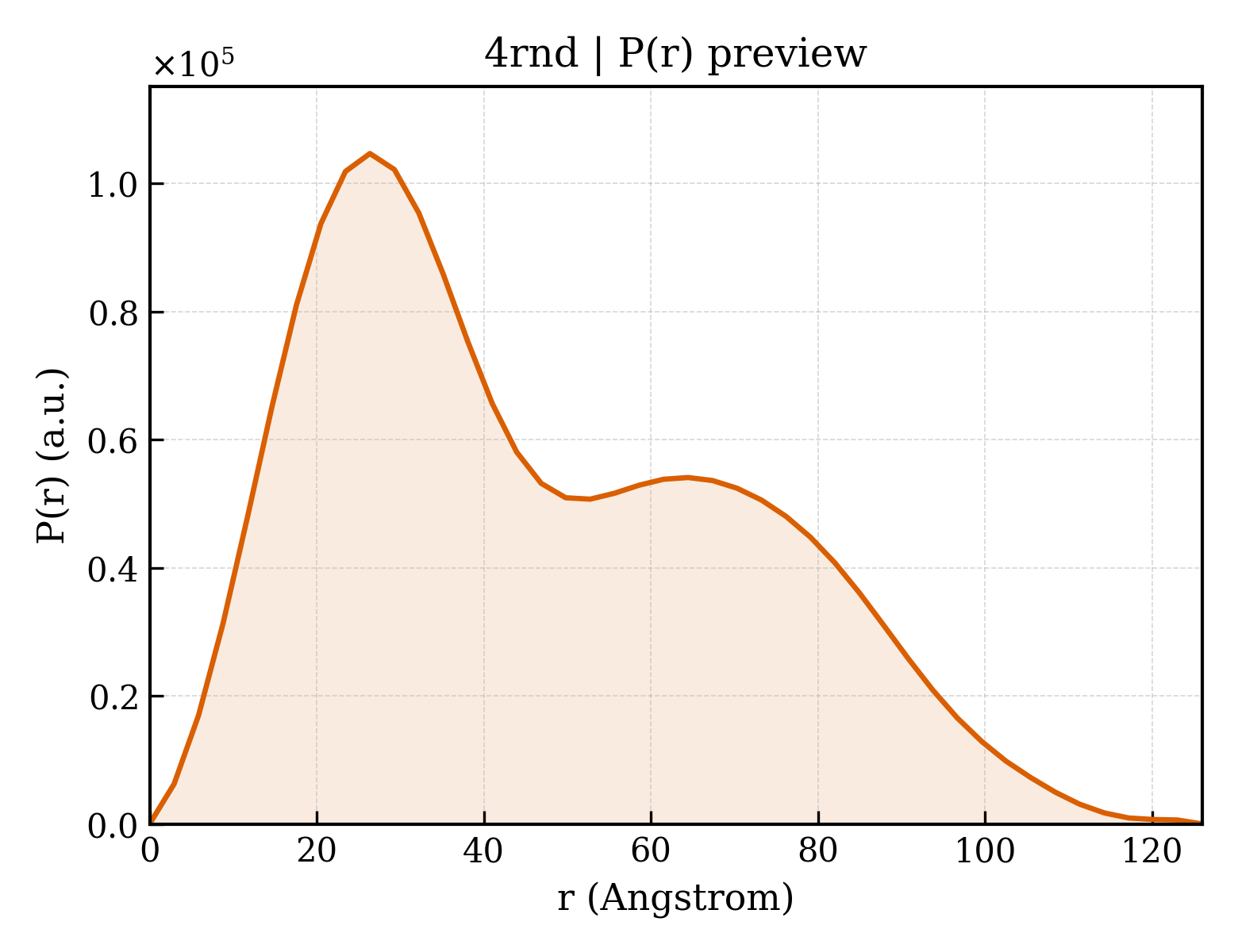

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	126.0 Å
Rg (real space) rg_real	37.07 Å
Rg uncertainty (real space) rg_real_error	1.41 Å
I(0) (real space) i0_real	6.8530e+07
I(0) uncertainty (real space) i0_real_error	1.2290e+06
Rg (reciprocal space) rg_reciprocal	36.75 Å
I(0) (reciprocal space) i0_reciprocal	68510000.0000
Solution quality estimate total_estimate	0.6832
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.485
Kurtosis Kurtosis kurtosis	-0.735
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	24280000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.282; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.184; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	V-type proton ATPase subunit D
Molecular weight formula_weight	29235.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4749

MSGNREQVFPTRMTLGLMKTKLKGANQGYSLLKRKSEALTKRFRDITKRIDDAKQKMGRVMQTAAFSLAEVSYATGENIGYQVQESVSTARFKVRARQENVSGVYLSQFESYIDPEINDFRLTGLGRGGQQVQRAKEIYSRAVETLVELASLQTAFIILDEVIKVTNRRVNAIEHVIIPRTENTIAYINSELDELDREEFYRLKKVQEKKQNETAKLDAEMKLKRDRAEQDASEVAADEEPQGETLVADQEDDVIF

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	V-type proton ATPase subunit F
Molecular weight formula_weight	13479.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAEKRTLIAVIADEDTTTGLLLAGIGQITPETQEKNFFVYQEGKTTKEEITDKFNHFTEERDDIAILLINQHIAENIRARVDSFTNAFPAILEIPSKDHPYDPEKDSVLKRVRKLFGE

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	59

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4rndb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.149 — AtpF-like
Superfamily Superfamily superfamily	c.149.1 — AtpF-like
Family Family family	c.149.1.1 — AtpF-like

Domain ID domain_id	d4rndd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.149 — AtpF-like
Superfamily Superfamily superfamily	c.149.1 — AtpF-like
Family Family family	c.149.1.1 — AtpF-like

CATH v4.4 (2 domains)

Domain ID domain_id	4rndB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10580 — ATPase, V1 complex, subunit F

Domain ID domain_id	4rndD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10580 — ATPase, V1 complex, subunit F

▶

8. Citations (2)

▶

Unit-cell length a length_a	168.063 Å
Unit-cell length b length_b	168.063 Å
Unit-cell length c length_c	128.629 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	3.180 Å
Low-resolution limit resolution_low	29.630 Å
R factor r_factor	0.2045
R_work r_work	0.2036
R_free r_free	0.2320

fit	/app/data/saxs_computation/rn/4rnd/4rnd.fit
pddf	/app/data/pr_computation/rn/4rnd/4rnd.pr.out
profile	/app/data/saxs_computation/rn/4rnd/4rnd.dat
