9odu

Yeast V-ATPase bound to Rtc5p, rotary state 2

Method: ELECTRON MICROSCOPY D_max: 213.4 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

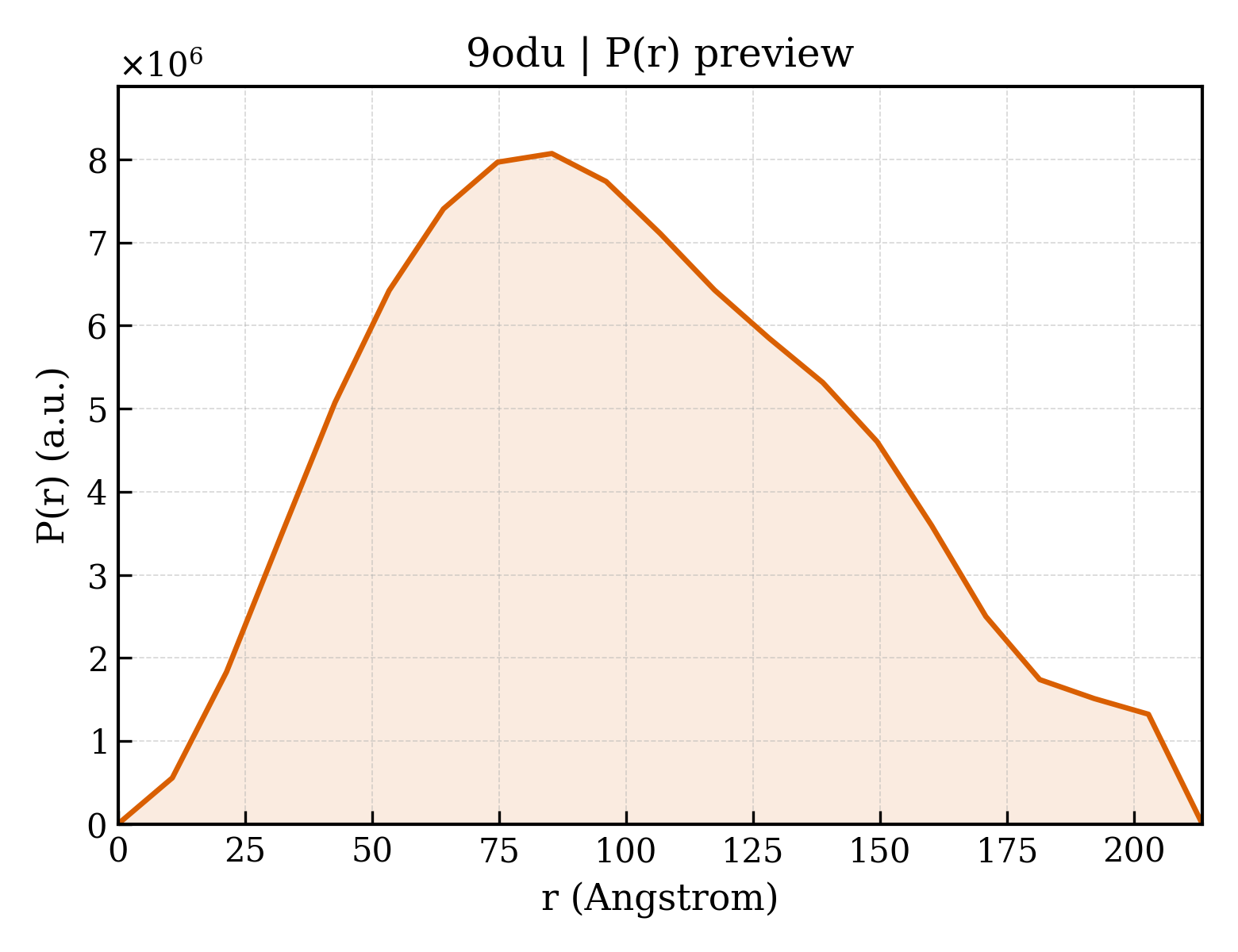

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9odu
沉积日期 deposition_date	2025-04-27
结构标题 title	Yeast V-ATPase bound to Rtc5p, rotary state 2
关键词 keywords	Vacuolar ATPase, Rtc5p, TLDc domain, protein structure, PROTON TRANSPORT; PROTON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	79.69 Å
回转半径 Rg (电子) rg_electron	80.48 Å
零角强度 I(0) i0	12368800000.00
分子量 molecular_weight	981230.0 kDa
排除体积 excluded_volume	1242600 Å³
包络体积 envelope_volume	2009100 Å³
水化壳体积 shell_volume	207910 Å³
包络直径 envelope_diameter	269.8 Å
壳层 Rg shell_rg	80.32 Å
包络 Rg envelope_rg	77.33 Å
形状 Rg shape_rg	80.46 Å
总 Rg total_rg	80.57 Å
总原子数 total_atoms	139120
残基数 n_residues	8867
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	213.4 Å
Rg (实空间) rg_real	76.65 Å
Rg 误差 (实空间) rg_real_error	0.71 Å
I(0) (实空间) i0_real	1.1870e+10
I(0) 误差 (实空间) i0_real_error	2.2620e+08
Rg (倒空间) rg_reciprocal	78.96 Å
I(0) (倒空间) i0_reciprocal	12340000000.0000
解质量估计 total_estimate	0.9172
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	85.4 Å
偏度 Skewness skewness	0.294
峰度 Kurtosis kurtosis	-0.600
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.6955
最高正则化参数 α highest_alpha	2202000000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.995; Stabil: 0.982; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.005

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (18)

Entity 1 polymer

描述 description	H(+)-transporting two-sector ATPase
分子量 formula_weight	67796.5 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	139120

MAGAIENARKEIKRISLEDHAESEYGAIYSVSGPVVIAENMIGCAMYELVKVGHDNLVGEVIRIDGDKATIQVYEETAGLTVGDPVLRTGKPLSVELGPGLMETIYDGIQRPLKAIKEESQSIYIPRGIDTPALDRTIKWQFTPGKFQVGDHISGGDIYGSVFENSLISSHKILLPPRSRGTITWIAPAGEYTLDEKILEVEFDGKKSDFTLYHTWPVRVPRPVTEKLSADYPLLTGQRVLDALFPCVQGGTTCIPGAFGCGKTVISQSLSKYSNSDAIIYVGCGERGNEMAEVLMEFPELYTEMSGTKEPIMKRTTLVANTSNMPVAAREASIYTGITLAEYFRDQGKNVSMIADSSSRWAEALREISGRLGEMPADQGFPAYLGAKLASFYERAGKAVALGSPDRTGSVSIVAAVSPAGGDFSDPVTTATLGITQVFWGLDKKLAQRKHFPSINTSVSYSKYTNVLNKFYDSNYPEFPVLRDRMKEILSNAEELEQVVQLVGKSALSDSDKITLDVATLIKEDFLQQNGYSTYDAFCPIWKTFDMMRAFISYHDEAQKAVANGANWSKLADSTGDVKHAVSSSKFFEPSRGEKEVHGEFEKLLSTMQERFAESTD

Entity 2 polymer

描述 description	V-type proton ATPase subunit E
分子量 formula_weight	26508.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,I,K

MSSAITALTPNQVNDELNKMQAFIRKEAEEKAKEIQLKADQEYEIEKTNIVRNETNNIDGNFKSKLKKAMLSQQITKSTIANKMRLKVLSAREQSLDGIFEETKEKLSGIANNRDEYKPILQSLIVEALLKLLEPKAIVKALERDVDLIESMKDDIMREYGEKAQRAPLEEIVISNDYLNKDLVSGGVVVSNASDKIEINNTLEERLKLLSEEALPAIRLELYGPSKTRKFFD

Entity 3 polymer

描述 description	V-type proton ATPase subunit G
分子量 formula_weight	12738.7 kDa
突变 mutation	N-terminal FLAG tag
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,J,L

MSQKNGIATLLQAEKEAHEIVSKARKYRQDKLKQAKTDAAKEIDSYKIQKDKELKEFEQKNAGGVGELEKKAEAGVQGELAEIKKIAEKKKDDVVKILIETVIKPSAEVHINAL

Entity 4 polymer

描述 description	V-type proton ATPase subunit D
分子量 formula_weight	29235.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSGNREQVFPTRMTLGLMKTKLKGANQGYSLLKRKSEALTKRFRDITKRIDDAKQKMGRVMQTAAFSLAEVSYATGENIGYQVQESVSTARFKVRARQENVSGVYLSQFESYIDPEINDFRLTGLGRGGQQVQRAKEIYSRAVETLVELASLQTAFIILDEVIKVTNRRVNAIEHVIIPRTENTIAYINSELDELDREEFYRLKKVQEKKQNETAKLDAEMKLKRDRAEQDASEVAADEEPQGETLVADQEDDVIF

Entity 5 polymer

描述 description	V-type proton ATPase subunit F
分子量 formula_weight	13479.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAEKRTLIAVIADEDTTTGLLLAGIGQITPETQEKNFFVYQEGKTTKEEITDKFNHFTEERDDIAILLINQHIAENIRARVDSFTNAFPAILEIPSKDHPYDPEKDSVLKRVRKLFGE

Entity 6 polymer

描述 description	V-type proton ATPase subunit C
分子量 formula_weight	44241.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MATALYTANDFILISLPQNAQPVTAPGSKTDSWFNETLIGGRAFVSDFKIPEFKIGSLDTLIVESEELSKVDNQIGASIGKIIEILQGLNETSTNAYRTLPINNMPVPEYLENFQWQTRKFKLDKSIKDLITLISNESSQLDADVRATYANYNSAKTNLAAAERKKTGDLSVRSLHDIVKPEDFVLNSEHLTTVLVAVPKSLKSDFEKSYETLSKNVVPASASVIAEDAEYVLFNVHLFKKNVQEFTTAAREKKFIPREFNYSEELIDQLKKEHDSAASLEQSLRVQLVRLAKTAYVDVFINWFHIKALRVYVESVLRYGLPPHFNIKIIAVPPKNLSKCKSELIDAFGFLGGNAFMKDKKGKINKQDTSLHQYASLVDTEYEPFVMYIINL

Entity 7 polymer

描述 description	Restriction of telomere capping protein 5
分子量 formula_weight	64368.3 kDa
突变 mutation	N-terminal 6xHis tag
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MGQSSSISSSNEEGSSHSKKFTNSKDILAYFNNKAQQQVTIPELVSFKGNLQIEDLNTPISHKALCNSLYFPQNHAMIVGIVTNMLRVLSNFPLMKSSYEPITGYGLLKCILLLNRARCAKFLKTKSYDQLKLLFISLSLQKTDKEELSEESENDGNKELTIKQIITGFDDVDTEMLCIPADFMLQFLTWLLILTVDCPTTNSKLDNTETHDQWGNFKVSALNLLRTMNPDVVGDIESHSITFQQFSTAIRTVMPNLLKPLENLMEHFFYLQHDLVDHDTNLSSIQDSKVMTPALLAQLSTGLPKELFIHKLQSLYIGRKSGFSMRSLQAKVFKWMAPSILVVSGMRITNSEEYAAEKNPRYRHFLEEFPKLKESDQMMDASHLNKRKTTFAVYIDDPWKVTNKDYFGDLNTRIIEISPRQDIYKVNQKGTIYFNTIGGGIGIGDKQPLIKPASKRYIPGNVSLTFDSTLEFAVFRNTGYGGSLDPGLLSMERKEENSPYELHFLIQDVEVWGCGGEKELEEQIKQLEWEEAESKRRQQINLRSLGEDRALLEMAGLVGQHQGGGSM

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 8 polymer

描述 description	V-type proton ATPase subunit d
分子量 formula_weight	39822.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MEGVYFNIDNGFIEGVVRGYRNGLLSNNQYINLTQCDTLEDLKLQLSSTDYGNFLSSVSSESLTTSLIQEYASSKLYHEFNYIRDQSSGSTRKFMDYITYGYMIDNVALMITGTIHDRDKGEILQRCHPLGWFDTLPTLSVATDLESLYETVLVDTPLAPYFKNCFDTAEELDDMNIEIIRNKLYKAYLEDFYNFVTEEIPEPAKECMQTLLGFEADRRSINIALNSLQSSDIDPDLKSDLLPNIGKLYPLATFHLAQAQDFEGVRAALANVYEYRGFLETGNLEDHFYQLEMELCRDAFTQQFAISTVWAWMKSKEQEVRNITWIAECIAQNQRERINNYISVY

Entity 9 polymer

描述 description	;V-type proton ATPase subunit c'' ;
分子量 formula_weight	22610.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MNKESKDDDMSLGKFSFSHFLYYLVLIVVIVYGLYKLFTGHGSDINFGKFLLRTSPYMWANLGIALCVGLSVVGAAWGIFITGSSMIGAGVRAPRITTKNLISIIFCEVVAIYGLIIAIVFSSKLTVATAENMYSKSNLYTGYSLFWAGITVGASNLICGIAVGITGATAAISDAADSALFVKILVIEIFGSILGLLGLIVGLLMAGKASEFQ

Entity 10 polymer

描述 description	;V-type proton ATPase subunit c' ;
分子量 formula_weight	17046.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MSTQLASNIYAPLYAPFFGFAGCAAAMVLSCLGAAIGTAKSGIGIAGIGTFKPELIMKSLIPVVMSGILAIYGLVVAVLIAGNLSPTEDYTLFNGFMHLSCGLCVGFACLSSGYAIGMVGDVGVRKYMHQPRLFVGIVLILIFSEVLGLYGMIVALILNTRGSE

Entity 11 polymer

描述 description	V-type proton ATPase subunit c
分子量 formula_weight	16357.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,X,Y,Z,a,b,c

MTELCPVYAPFFGAIGCASAIIFTSLGAAYGTAKSGVGICATCVLRPDLLFKNIVPVIMAGIIAIYGLVVSVLVCYSLGQKQALYTGFIQLGAGLSVGLSGLAAGFAIGIVGDAGVRGSSQQPRLFVGMILILIFAEVLGLYGLIVALLLNSRATQDVVC

Entity 12 polymer

描述 description	V-type proton ATPase subunit e
分子量 formula_weight	8387.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MSSFYTVVGVFIVVSAMSVLFWIMAPKNNQAVWRSTVILTLAMMFLMWAITFLCQLHPLVAPRRSDLRPEFAE

Entity 13 polymer

描述 description	V0 assembly protein 1
分子量 formula_weight	29694.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MVFGQLYALFIFTLSCCISKTVQADSSKESSSFISFDKESNWDTISTISSTADVISSVDSAIAVFEFDNFSLLDNLMIDEEYPFFNRFFANDVSLTVHDDSPLNISQSLSPIMEQFTVDELPESASDLLYEYSLDDKSIVLFKFTSDAYDLKKLDEFIDSCLSFLEDKSGDNLTVVINSLGWAFEDEDGDDEYATEETLSHHDNNKGKEGDDDILSSIWTEGLLMCLIVSALLLFILIVALSWISNLDITYGALEKSTNPIKKNN

Entity 14 polymer

描述 description	Yeast V-ATPase subunit f
分子量 formula_weight	9369.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MRPVVSTGKAWCCTVLSAFGVVILSVIAHLFNTNHESFVGSINDPEDGPAVAHTVYLAALVYLVFFVFCGFQVYLARRKPSIELR

Entity 15 polymer

描述 description	V-type proton ATPase subunit H
分子量 formula_weight	54482.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MGATKILMDSTHFNEIRSIIRSRSVAWDALARSEELSEIDASTAKALESILVKKNIGDGLSSSNNAHSGFKVNGKTLIPLIHLLSTSDNEDCKKSVQNLIAELLSSDKYGDDTVKFFQEDPKQLEQLFDVSLKGDFQTVLISGFNVVSLLVQNGLHNVKLVEKLLKNNNLINILQNIEQMDTCYVCIRLLQELAVIPEYRDVIWLHEKKFMPTLFKILQRATDSQLATRIVATNSNHLGIQLQYHSLLLIWLLTFNPVFANELVQKYLSDFLDLLKLVKITIKEKVSRLCISIILQCCSTRVKQHKKVIKQLLLLGNALPTVQSLSERKYSDEELRQDISNLKEILENEYQELTSFDEYVAELDSKLLCWSPPHVDNGFWSDNIDEFKKDNYKIFRQLIELLQAKVRNGDVNAKQEKIIIQVALNDITHVVELLPESIDVLDKTGGKADIMELLNHSDSRVKYEALKATQAIIGYTFK

Entity 16 polymer

描述 description	V-type proton ATPase subunit a, vacuolar isoform
分子量 formula_weight	95625.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MAEKEEAIFRSAEMALVQFYIPQEISRDSAYTLGQLGLVQFRDLNSKVRAFQRTFVNEIRRLDNVERQYRYFYSLLKKHDIKLYEGDTDKYLDGSGELYVPPSGSVIDDYVRNASYLEERLIQMEDATDQIEVQKNDLEQYRFILQSGDEFFLKGDNTDSTSYMDEDMIDANGENIAAAIGASVNYVTGVIARDKVATLEQILWRVLRGNLFFKTVEIEQPVYDVKTREYKHKNAFIVFSHGDLIIKRIRKIAESLDANLYDVDSSNEGRSQQLAKVNKNLSDLYTVLKTTSTTLESELYAIAKELDSWFQDVTREKAIFEILNKSNYDTNRKILIAEGWIPRDELATLQARLGEMIARLGIDVPSIIQVLDTNHTPPTFHRTNKFTAGFQSICDCYGIAQYREINAGLPTIVTFPFMFAIMFGDMGHGFLMTLAALSLVLNEKKINKMKRGEIFDMAFTGRYIILLMGVFSMYTGFLYNDIFSKTMTIFKSGWKWPDHWKKGESITATSVGTYPIGLDWAWHGTENALLFSNSYKMKLSILMGFIHMTYSYFFSLANHLYFNSMIDIIGNFIPGLLFMQGIFGYLSVCIVYKWAVDWVKDGKPAPGLLNMLINMFLSPGTIDDELYPHQAKVQVFLLLMALVCIPWLLLVKPLHFKFTHKKKSHEPLPSTEADASSEDLEAQQLISAMDADDAEEEEVGSGSHGEDFGDIMIHQVIHTIEFCLNCVSHTASYLRLWALSLAHAQLSSVLWTMTIQIAFGFRGFVGVFMTVALFAMWFALTCAVLVLMEGTSAMLHSLRLHWVESMSKFFVGEGLPYEPFAFEYKDMEVAVASASSSASS

Entity 17 polymer

描述 description	V-type proton ATPase subunit B
分子量 formula_weight	57815.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

MVLSDKELFAINKKAVEQGFNVKPRLNYNTVSGVNGPLVILEKVKFPRYNEIVNLTLPDGTVRQGQVLEIRGDRAIVQVFEGTSGIDVKKTTVEFTGESLRIPVSEDMLGRIFDGSGRPIDNGPKVFAEDYLDINGSPINPYARIYPEEMISTGVSAIDTMNSIARGQKIPIFSASGLPHNEIAAQICRQAGLVRPTKDVHDGHEENFSIVFAAMGVNLETARFFKQDFEENGSLERTSLFLNLANDPTIERIITPRLALTTAEYLAYQTERHVLTILTDMSSYADALREVSAAREEVPGRRGYPGYMYTDLSTIYERAGRVEGRNGSITQIPILTMPNDDITHPIPDLTGYITEGQIFVDRQLHNKGIYPPINVLPSLSRLMKSAIGEGMTRKDHGDVSNQLYAKYAIGKDAAAMKAVVGEEALSIEDKLSLEFLEKFEKTFITQGAYEDRTVFESLDQAWSLLRIYPKEMLNRISPKILDEFYDRARDDADEDEEDPDTRSSGKKKDASQEESLI

Entity 18 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	58688

fit	/app/data/saxs_computation/od/9odu/9odu.fit
pddf	/app/data/pr_computation/od/9odu/9odu.pr.out
profile	/app/data/saxs_computation/od/9odu/9odu.dat
