6m0r

2.7A Yeast Vo state3

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;V-type proton ATPase subunit c' ;

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATL2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–158； UniProt 7–164

;V-type proton ATPase subunit c'' ;

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P23968

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATO_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–198； UniProt 16–213

V0 assembly protein 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P53262

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VOA1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain N； PDBConstruct 1–52； UniProt 212–263

V-type proton ATPase subunit e

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt Q3E7B6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VA0E_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–71； UniProt 1–71

V-type proton ATPase subunit c

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P25515

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATL1_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–159； UniProt 1–159 Author chain F； PDBConstruct 1–159； UniProt 1–159 Author chain G； PDBConstruct 1–159； UniProt 1–159 Author chain H； PDBConstruct 1–159； UniProt 1–159 Author chain I； PDBConstruct 1–159； UniProt 1–159 Author chain J； PDBConstruct 1–159； UniProt 1–159 Author chain K； PDBConstruct 1–159； UniProt 1–159 Author chain L； PDBConstruct 1–159； UniProt 1–159

Uncharacterized protein YPR170W-B

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P0C5R9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） V-type proton ATPase subunit d × 1 （P32366） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YP17B_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain O； PDBConstruct 1–69； UniProt 7–75

V-type proton ATPase subunit d

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P32366

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit a, vacuolar isoform × 1 （P32563） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VA0D_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain B； PDBConstruct 1–345； UniProt 1–345

V-type proton ATPase subunit a, vacuolar isoform

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P32563

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 1	;V-type proton ATPase subunit c' ; × 1 （P32842） ;V-type proton ATPase subunit c'' ; × 1 （P23968） V0 assembly protein 1 × 1 （P53262） V-type proton ATPase subunit e × 1 （Q3E7B6） V-type proton ATPase subunit c × 8 （P25515） Uncharacterized protein YPR170W-B × 1 （P0C5R9） V-type proton ATPase subunit d × 1 （P32366） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 30 PYROPHOSPHATE × 1 (6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene × 1 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VPH1_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain A； PDBConstruct 1–825； UniProt 3–827

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6m0r
Deposition date deposition_date	2020-02-22
Structure title title	2.7A Yeast Vo state3
Keywords keywords	V-ATPase, Vo sub-complex, CryoEM, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6m0r__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6m0r__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

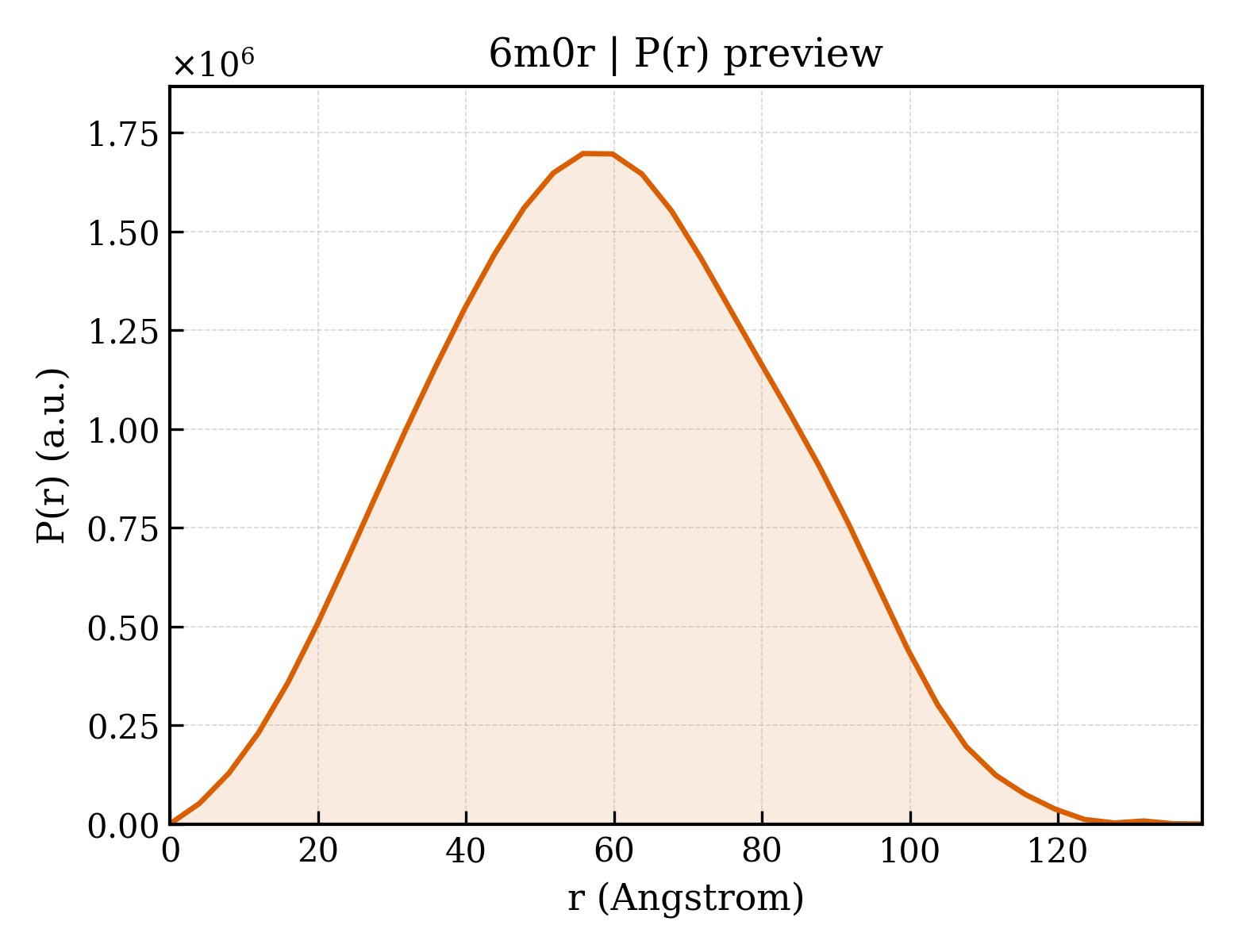

6m0r__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.08 Å
Rg (electron density)	43.91 Å
Total Rg	44.26 Å
Atom count	47976
Residues	2915
Excluded volume	432760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6m0r__assembly_1__model_1`	pentadecameric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Description description	;V-type proton ATPase subunit c' ;
Molecular weight formula_weight	16414.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	48160

SNIYAPLYAPFFGFAGCAAAMVLSCLGAAIGTAKSGIGIAGIGTFKPELIMKSLIPVVMSGILAIYGLVVAVLIAGNLSPTEDYTLFNGFMHLSCGLCVGFACLSSGYAIGMVGDVGVRKYMHQPRLFVGIVLILIFSEVLGLYGMIVALILNTRGSE

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	;V-type proton ATPase subunit c'' ;
Molecular weight formula_weight	20880.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SFSHFLYYLVLIVVIVYGLYKLFTGHGSDINFGKFLLRTSPYMWANLGIALCVGLSVVGAAWGIFITGSSMIGAGVRAPRITTKNLISIIFCEVVAIYGLIIAIVFSSKLTVATAENMYSKSNLYTGYSLFWAGITVGASNLICGIAVGITGATAAISDAADSALFVKILVIEIFGSILGLLGLIVGLLMAGKASEFQ

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	V0 assembly protein 1
Molecular weight formula_weight	5752.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

DDILSSIWTEGLLMCLIVSALLLFILIVALSWISNLDITYGALEKSTNPIKK

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 polymer

Description description	V-type proton ATPase subunit e
Molecular weight formula_weight	8186.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MSSFYTVVGVFIVVSAMSVLFWIMAPKNNQAVWRSTVILTLAMMFLMWAITFLCQLHPLVAPRRSDLRPEF

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 5 Entity 5 polymer

Description description	V-type proton ATPase subunit c
Molecular weight formula_weight	16254.4 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H,I,J,K,L

MTELCPVYAPFFGAIGCASAIIFTSLGAAYGTAKSGVGICATCVLRPDLLFKNIVPVIMAGIIAIYGLVVSVLVCYSLGQKQALYTGFIQLGAGLSVGLSGLAAGFAIGIVGDAGVRGSSQQPRLFVGMILILIFAEVLGLYGLIVALLLNSRATQDVV

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 6 Entity 6 polymer

Description description	Uncharacterized protein YPR170W-B
Molecular weight formula_weight	7487.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

TGKAWCCTVLSAFGVVILSVIAHLFNTNHESFVGSINDPEDGPAVAHTVYLAALVYLVFFVFCGFQVYL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 7 Entity 7 polymer

Description description	V-type proton ATPase subunit d
Molecular weight formula_weight	39822.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEGVYFNIDNGFIEGVVRGYRNGLLSNNQYINLTQCDTLEDLKLQLSSTDYGNFLSSVSSESLTTSLIQEYASSKLYHEFNYIRDQSSGSTRKFMDYITYGYMIDNVALMITGTIHDRDKGEILQRCHPLGWFDTLPTLSVATDLESLYETVLVDTPLAPYFKNCFDTAEELDDMNIEIIRNKLYKAYLEDFYNFVTEEIPEPAKECMQTLLGFEADRRSINIALNSLQSSDIDPDLKSDLLPNIGKLYPLATFHLAQAQDFEGVRAALANVYEYRGFLETGNLEDHFYQLEMELCRDAFTQQFAISTVWAWMKSKEQEVRNITWIAECIAQNQRERINNYISVY

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 8 Entity 8 polymer

Description description	V-type proton ATPase subunit a, vacuolar isoform
Molecular weight formula_weight	94289.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

EKEEAIFRSAEMALVQFYIPQEISRDSAYTLGQLGLVQFRDLNSKVRAFQRTFVNEIRRLDNVERQYRYFYSLLKKHDIKLYEGDTDKYLDGSGELYVPPSGSVIDDYVRNASYLEERLIQMEDATDQIEVQKNDLEQYRFILQSGDEFFLKGDNTDSTSYMDEDMIDANGENIAAAIGASVNYVTGVIARDKVATLEQILWRVLRGNLFFKTVEIEQPVYDVKTREYKHKNAFIVFSHGDLIIKRIRKIAESLDANLYDVDSSNEGRSQQLAKVNKNLSDLYTVLKTTSTTLESELYAIAKELDSWFQDVTREKAIFEILNKSNYDTNRKILIAEGWIPRDELATLQARLGEMIARLGIDVPSIIQVLDTNHTPPTFHRTNKFTAGFQSICDCYGIAQYREINAGLPTIVTFPFMFAIMFGDMGHGFLMTLAALSLVLNEKKINKMKRGEIFDMAFTGRYIILLMGVFSMYTGFLYNDIFSKTMTIFKSGWKWPDHWKKGESITATSVGTYPIGLDWAWHGTENALLFSNSYKMKLSILMGFIHMTYSYFFSLANHLYFNSMIDIIGNFIPGLLFMQGIFGYLSVCIVYKWAVDWVKDGKPAPGLLNMLINMFLSPGTIDDELYPHQAKVQVFLLLMALVCIPWLLLVKPLHFKFTHKKKSHEPLPSTEADASSEDLEAQQLISAMDADDAEEEEVGSGSHGEDFGDIMIHQVIHTIEFCLNCVSHTASYLRLWALSLAHAQLSSVLWTMTIQIAFGFRGFVGVFMTVALFAMWFALTCAVLVLMEGTSAMLHSLRLHWVESMSKFFVGEGLPYEPFAFEYKDM

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 9 Entity 9 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
Molecular weight formula_weight	744.0 kDa
Source method src_method	syn
Copy count entity_count	30

Entity 11 Entity 11 non-polymer

Description description	PYROPHOSPHATE
Molecular weight formula_weight	178.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 12 Entity 12 non-polymer

Description description	(6~{E},10~{E},14~{E},18~{E},22~{E},26~{E},30~{R})-2,6,10,14,18,22,26,30-octamethyldotriaconta-2,6,10,14,18,22,26-heptaene
Molecular weight formula_weight	549.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 13 Entity 13 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	184

▼

6. Fold Classification (SCOP + CATH) 19 domains

SCOP 2.08 (19 domains)

Domain ID domain_id	d6m0rb_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.40 — V-type ATP synthase subunit C
Superfamily Superfamily superfamily	f.40.1 — V-type ATP synthase subunit C
Family Family family	f.40.1.1 — V-type ATP synthase subunit C

Domain ID domain_id	d6m0rd1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rd2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.0 — automated matches

Domain ID domain_id	d6m0re1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0re2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rf1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rf2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rg1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rg2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rh1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rh2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0ri1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0ri2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rj1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rj2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rk1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rk2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rl1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

Domain ID domain_id	d6m0rl2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.1 — Rotary ATPase ring subunits
Family Family family	f.17.1.1 — F1F0 ATP synthase subunit C or V-type proton ATPase subunit c

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	117948

2.7A Yeast Vo state3

1. Protein Identity and Related Structures Protein Identity & Related Structures

;V-type proton ATPase subunit c' ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

;V-type proton ATPase subunit c'' ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V0 assembly protein 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit e

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit c

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Uncharacterized protein YPR170W-B

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit d

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit a, vacuolar isoform

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

6m0r__assembly_1__model_1

6m0r__assembly_1__model_1 | I(q)

6m0r__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
