SAXSdb — 4rs1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Granulocyte-macrophage colony-stimulating factor receptor subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 35–315	Fragment：Extracellular domain residues 35-315 Mutation：N27Q, N35Q, N80Q	Granulocyte-macrophage colony-stimulating factor × 1 （P04141） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；22% PEG8000, 1% MPD, 5MM DITHIOTHREITOL, 100MM IMIDAZOLE, PH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.68 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4RS1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NKQ Structure of a Cytokine Receptor Complex Deposited 2013-11-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 113–400（288 aa）	Mutation：N346Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；100mM HEPES buffer (pH 7.0), 6%(v/v) PEG3350, 0.2M proline, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.273

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSF2R_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–281； UniProt 35–315

Granulocyte-macrophage colony-stimulating factor

Homo sapiens

UniProt P04141

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 31–142	Fragment：RESIDUES 31-142	Granulocyte-macrophage colony-stimulating factor receptor subunit alpha × 1 （P15509） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；22% PEG8000, 1% MPD, 5MM DITHIOTHREITOL, 100MM IMIDAZOLE, PH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.68 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4RS1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CSG Three-dimensional structure of recombinant human granulocyte-macrophage colony-stimulating factor Deposited 1992-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 18–144（127 aa） Chain B 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
2GMF HUMAN GRANULOCYTE MACROPHAGE COLONY STIMULATING FACTOR Deposited 1996-04-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
2GMF HUMAN GRANULOCYTE MACROPHAGE COLONY STIMULATING FACTOR Deposited 1996-04-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
4NKQ Structure of a Cytokine Receptor Complex Deposited 2013-11-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 18–144（127 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；100mM HEPES buffer (pH 7.0), 6%(v/v) PEG3350, 0.2M proline, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.273
5C7X Crystal structure of MOR04357, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-06-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 18–144（127 aa） Fragment：UNP residues 18-144	Not recorded	PGE TRIETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 40 mg/mL protein	Resolution 2.95 Å R-free 0.276
5C7X Crystal structure of MOR04357, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-06-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 18–144（127 aa） Fragment：UNP residues 18-144	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 40 mg/mL protein	Resolution 2.95 Å R-free 0.276
5D70 Crystal structure of MOR03929, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 18–144（127 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；293 K；100 mM Tris, pH 8.75, 200 mM LiSO4, 25-28 % (w/v) PEG 3350, 28mg/mL protein	Resolution 2.06 Å R-free 0.222
5D71 Crystal structure of MOR04302, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 35 mg/mL protein	Resolution 2.25 Å R-free 0.219
5D72 Crystal structure of MOR04252, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 30 mg/mL protein	Resolution 2.60 Å R-free 0.266
5D72 Crystal structure of MOR04252, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 30 mg/mL protein	Resolution 2.60 Å R-free 0.266
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFS The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0. 2 M Sodium Chloride, 20% PEG 8000, 0.1 M phosphate Citrate 4.5	Resolution 2.00 Å R-free 0.248
9JKR human GM-CSF with Fabs from autoantibodies, F1 and C. Deposited 2024-09-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 18–144（127 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSF2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–112； UniProt 31–142

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4rs1
Deposition date deposition_date	2014-11-06
Structure title title	Crystal structure of receptor-cytokine complex
Keywords keywords	CYTOKINE, RECEPTOR, CYTOKINE RECEPTOR-CYTOKINE COMPLEX; CYTOKINE RECEPTOR/CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.55 Å
Radius of gyration Rg (electron density) rg_electron	24.77 Å
Forward intensity I(0) i0	33582700.00
Molecular weight molecular_weight	43911.0 kDa
Excluded volume excluded_volume	54644 Å³
Envelope volume envelope_volume	68380 Å³
Hydration-shell volume shell_volume	24151 Å³
Envelope diameter envelope_diameter	99.7 Å
Shell Rg shell_rg	30.47 Å
Envelope Rg envelope_rg	25.25 Å
Shape Rg shape_rg	24.76 Å
Total Rg total_rg	25.45 Å
Total atoms total_atoms	3086
Residues n_residues	372
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

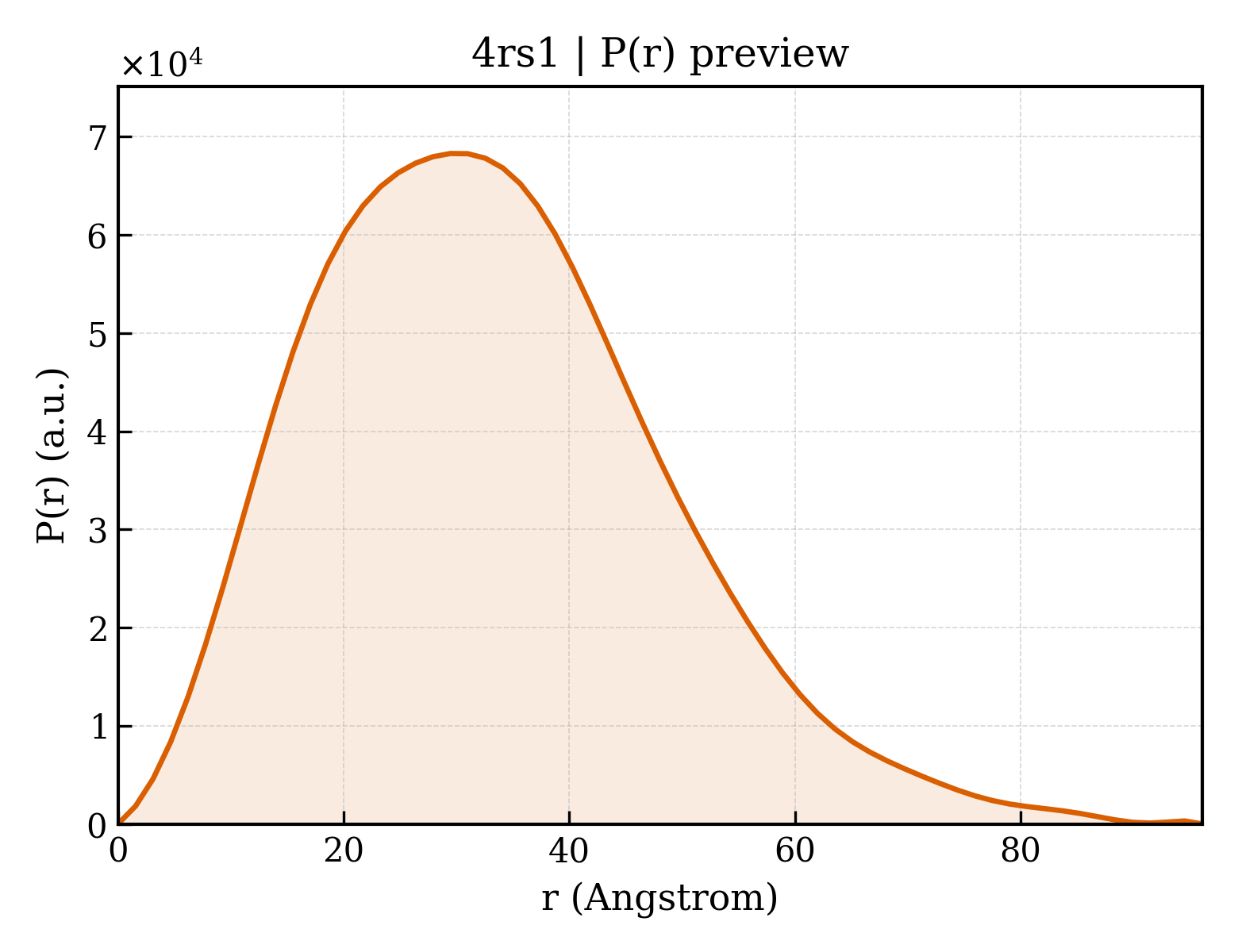

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.1 Å
Rg (real space) rg_real	25.67 Å
Rg uncertainty (real space) rg_real_error	1.08 Å
I(0) (real space) i0_real	3.3580e+07
I(0) uncertainty (real space) i0_real_error	5.8200e+05
Rg (reciprocal space) rg_reciprocal	25.63 Å
I(0) (reciprocal space) i0_reciprocal	33580000.0000
Solution quality estimate total_estimate	0.8215
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.5 Å
Skewness Skewness skewness	0.537
Kurtosis Kurtosis kurtosis	0.145
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10080000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.631; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.812; Smooth: 0.969

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Granulocyte-macrophage colony-stimulating factor receptor subunit alpha
Molecular weight formula_weight	32873.0 kDa
Mutation mutation	N27Q, N35Q, N80Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	3106

SLNVRFDSRTMQLSWDCQEQTTFSKCFLTDKKNRVVEPRLSNNECSCTFREICLHEGVTFEVHVQTSQRGFQQKLLYPNSGREGTAAQNFSCFIYNADLMNCTWARGPTAPRDVQYFLYIRNSKRRREIRCPYYIQDSGTHVGCHLDNLSGLTSRNYFLVNGTSREIGIQFFDSLLDTKKIERFNPPSNVTVRCNTTHCLVRWKQPRTYQKLSYLDFQYQLDVHRKNTQPGTENLLINVSGDLENRYNFPSSEPRAKHSVKIRAADVRILNWSSWSEAIEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	Granulocyte-macrophage colony-stimulating factor
Molecular weight formula_weight	12870.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

EHVNAIQEARRLLNLSRDTAAEMNETVEVISEMFDLQEPTCLQTRLELYKQGLRGSLTKLKGPLTMMASHYKQHCPPTPETSCATQIITFESFKENLKDFLLVIPFDCWEPV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4rs1a_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

CATH v4.4 (3 domains)

Domain ID domain_id	4rs1A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	4rs1B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4rs1B03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.801 Å
Unit-cell length b length_b	77.169 Å
Unit-cell length c length_c	117.741 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.680 Å
Low-resolution limit resolution_low	38.020 Å
R factor r_factor	0.2280
R_work r_work	0.2250
R_free r_free	0.2870

fit	/app/data/saxs_computation/rs/4rs1/4rs1.fit
pddf	/app/data/pr_computation/rs/4rs1/4rs1.pr.out
profile	/app/data/saxs_computation/rs/4rs1/4rs1.dat
