SAXSdb — 4nkq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytokine receptor common subunit beta

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 25–438	Not recorded	Granulocyte-macrophage colony-stimulating factor × 1 （P04141） Granulocyte-macrophage colony-stimulating factor receptor subunit alpha × 1 （P15509） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；293 K；100mM HEPES buffer (pH 7.0), 6%(v/v) PEG3350, 0.2M proline, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4NKQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C8P NMR STRUCTURE OF THE LIGAND BINDING DOMAIN OF THE COMMON BETA-CHAIN IN THE GM-CSF, IL-3 AND IL-5 RECEPTORS Deposited 1999-10-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 338–438（101 aa） Fragment：DOMAIN 4	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；293 K；Ionic strength (raw mmCIF value) 0.06M；Pressure AMBIENT NMR sample composition 0.4MM D4BC U-15N; 10MM PHOSPHATE BUFFER;90% H2O, 10% D2O NMR sample composition 0.4MM D4BC U-15N; 10MM PHOSPHATE BUFFER;100% D2O	Resolution not provided
1EGJ DOMAIN 4 OF THE BETA COMMON CHAIN IN COMPLEX WITH AN ANTIBODY Deposited 2000-02-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 338–438（101 aa） Fragment：DOMAIN 4	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；12% peg 4000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K	Resolution 2.80 Å R-free 0.288
1GH7 CRYSTAL STRUCTURE OF THE COMPLETE EXTRACELLULAR DOMAIN OF THE BETA-COMMON RECEPTOR OF IL-3, IL-5, AND GM-CSF Deposited 2000-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 25–437（413 aa） Fragment：EXTRACELLULAR DOMAIN Chain B 25–437（413 aa） Fragment：EXTRACELLULAR DOMAIN	Mutation：N328Q Mutation：N328Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG MME 5000, Phosphate, pH 6.5, VAPOR DIFFUSION/HANGING DROP, temperature 277K	Resolution 3.00 Å R-free 0.307
2NA8 Transmembrane Structure of the Cytokine Receptor Common Subunit beta Deposited 2015-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 432–473（42 aa） Fragment：Helical transmembrane residues 432-473	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；313 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N; 80% 2H] protein, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2NA9 Transmembrane Structure of the P441A Mutant of the Cytokine Receptor Common Subunit beta Deposited 2015-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 432–473（42 aa） Fragment：Helical transmembrane residues 432-473	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；313 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N; 80% 2H] protein, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
5DWU Beta common receptor in complex with a Fab Deposited 2015-09-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 17–240（224 aa） Chain B 241–443（203 aa）	Mutation：N106Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1 M Tris 8, 25% - 35% PEG200	Resolution 3.97 Å R-free 0.330
6NMY A Cytokine-receptor complex Deposited 2019-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 25–240（216 aa） Chain B 241–438（198 aa）	Mutation：N346Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.15 K；Crystals were grown in 10 mM Tris pH6.8, 8% PEG 8000, 0.15 M magnesium chloride	Resolution 3.30 Å R-free 0.278
6NMY A Cytokine-receptor complex Deposited 2019-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 25–240（216 aa） Chain D 241–438（198 aa）	Mutation：N346Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.15 K；Crystals were grown in 10 mM Tris pH6.8, 8% PEG 8000, 0.15 M magnesium chloride	Resolution 3.30 Å R-free 0.278
8TLD Structure of the IL-5 Signaling Complex Deposited 2023-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 23–442（420 aa） Chain E 23–442（420 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL3RB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–414； UniProt 25–438

Granulocyte-macrophage colony-stimulating factor

Homo sapiens

UniProt P04141

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 18–144	Not recorded	Cytokine receptor common subunit beta × 1 （P32927） Granulocyte-macrophage colony-stimulating factor receptor subunit alpha × 1 （P15509） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；293 K；100mM HEPES buffer (pH 7.0), 6%(v/v) PEG3350, 0.2M proline, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4NKQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CSG Three-dimensional structure of recombinant human granulocyte-macrophage colony-stimulating factor Deposited 1992-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 18–144（127 aa） Chain B 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
2GMF HUMAN GRANULOCYTE MACROPHAGE COLONY STIMULATING FACTOR Deposited 1996-04-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
2GMF HUMAN GRANULOCYTE MACROPHAGE COLONY STIMULATING FACTOR Deposited 1996-04-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
4RS1 Crystal structure of receptor-cytokine complex Deposited 2014-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 31–142（112 aa） Fragment：RESIDUES 31-142	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；22% PEG8000, 1% MPD, 5MM DITHIOTHREITOL, 100MM IMIDAZOLE, PH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.68 Å R-free 0.287
5C7X Crystal structure of MOR04357, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-06-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 18–144（127 aa） Fragment：UNP residues 18-144	Not recorded	PGE TRIETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 40 mg/mL protein	Resolution 2.95 Å R-free 0.276
5C7X Crystal structure of MOR04357, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-06-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 18–144（127 aa） Fragment：UNP residues 18-144	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 40 mg/mL protein	Resolution 2.95 Å R-free 0.276
5D70 Crystal structure of MOR03929, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 18–144（127 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；293 K；100 mM Tris, pH 8.75, 200 mM LiSO4, 25-28 % (w/v) PEG 3350, 28mg/mL protein	Resolution 2.06 Å R-free 0.222
5D71 Crystal structure of MOR04302, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 35 mg/mL protein	Resolution 2.25 Å R-free 0.219
5D72 Crystal structure of MOR04252, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 30 mg/mL protein	Resolution 2.60 Å R-free 0.266
5D72 Crystal structure of MOR04252, a neutralizing anti-human GM-CSF antibody Fab fragment in complex with human GM-CSF Deposited 2015-08-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；293 K；100 mM sodium acetate, pH 4.0-4.3, 39-42 % (w/v) PEG 400, 30 mg/mL protein	Resolution 2.60 Å R-free 0.266
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFQ The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0.16 M Calcium acetate, 14.4% PEG8000, 0.08 M Sodium Cacodylate pH 6.5 and 20% glycerol	Resolution 2.60 Å R-free 0.264
6BFS The mechanism of GM-CSF inhibition by human GM-CSF auto-antibodies Deposited 2017-10-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 18–144（127 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283.15 K；0. 2 M Sodium Chloride, 20% PEG 8000, 0.1 M phosphate Citrate 4.5	Resolution 2.00 Å R-free 0.248
9JKR human GM-CSF with Fabs from autoantibodies, F1 and C. Deposited 2024-09-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 18–144（127 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSF2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–127； UniProt 18–144

Granulocyte-macrophage colony-stimulating factor receptor subunit alpha

Homo sapiens

UniProt P15509

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 113–400	Mutation：N346Q	Cytokine receptor common subunit beta × 1 （P32927） Granulocyte-macrophage colony-stimulating factor × 1 （P04141） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；293 K；100mM HEPES buffer (pH 7.0), 6%(v/v) PEG3350, 0.2M proline, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4NKQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4RS1 Crystal structure of receptor-cytokine complex Deposited 2014-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 35–315（281 aa） Fragment：Extracellular domain residues 35-315	Mutation：N27Q, N35Q, N80Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；22% PEG8000, 1% MPD, 5MM DITHIOTHREITOL, 100MM IMIDAZOLE, PH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.68 Å R-free 0.287

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSF2R_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 18–305； UniProt 113–400

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4nkq
Deposition date deposition_date	2013-11-13
Structure title title	Structure of a Cytokine Receptor Complex
Keywords keywords	;GM-CSF, receptor complex, dodecamer, Disease mutation, Glycoprotein, Membrane, Phosphoprotein, Transmembrane, Cytokine, Growth factor, Secreted, CYTOKINE-CYTOKINE RECEPTOR complex ;; CYTOKINE/CYTOKINE RECEPTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.07 Å
Radius of gyration Rg (electron density) rg_electron	52.55 Å
Forward intensity I(0) i0	104456000.00
Molecular weight molecular_weight	81107.0 kDa
Excluded volume excluded_volume	100280 Å³
Envelope volume envelope_volume	183410 Å³
Hydration-shell volume shell_volume	30931 Å³
Envelope diameter envelope_diameter	185.1 Å
Shell Rg shell_rg	50.75 Å
Envelope Rg envelope_rg	51.99 Å
Shape Rg shape_rg	52.54 Å
Total Rg total_rg	52.51 Å
Total atoms total_atoms	5706
Residues n_residues	708
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

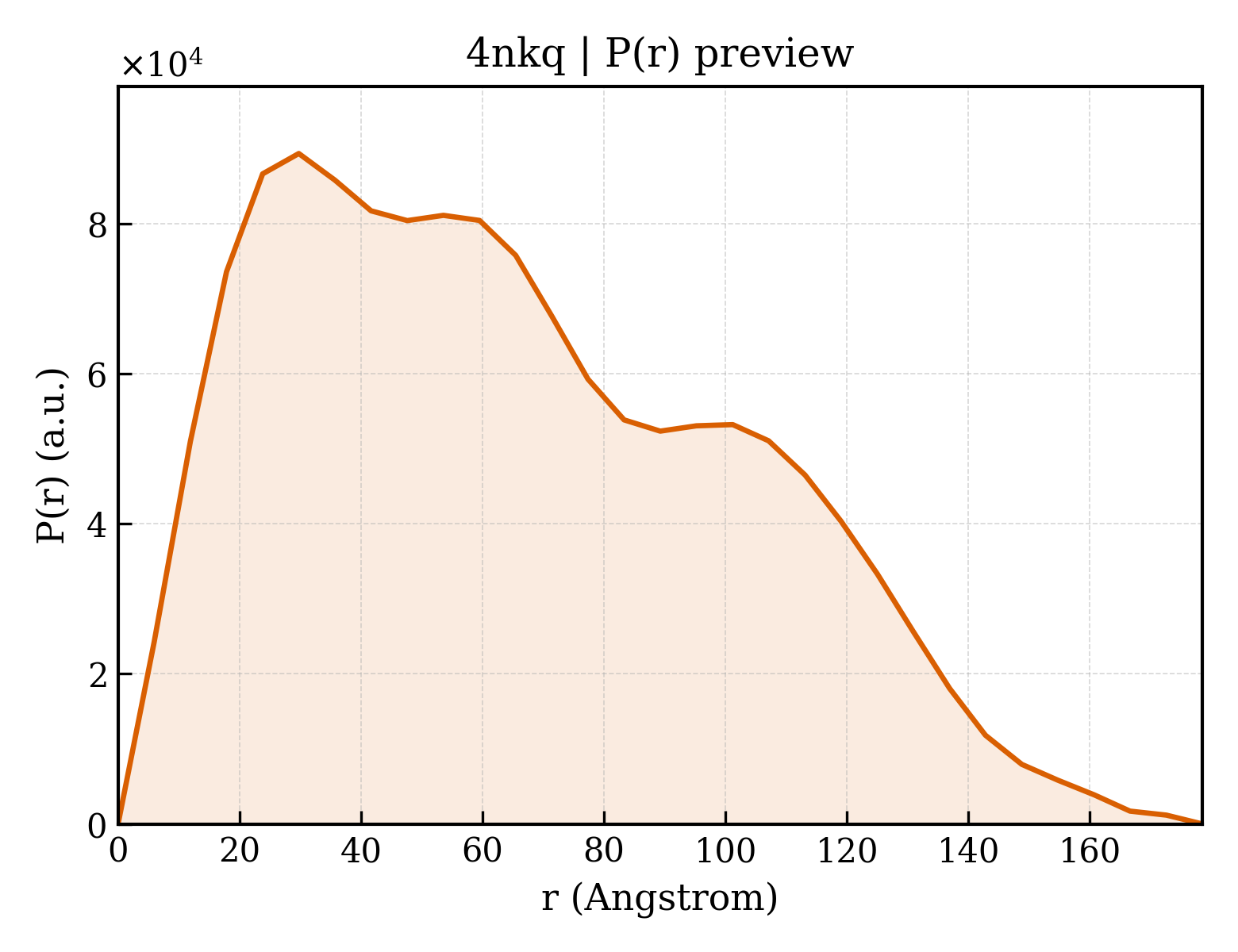

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	178.5 Å
Rg (real space) rg_real	52.64 Å
Rg uncertainty (real space) rg_real_error	2.46 Å
I(0) (real space) i0_real	1.0450e+08
I(0) uncertainty (real space) i0_real_error	2.3460e+06
Rg (reciprocal space) rg_reciprocal	51.57 Å
I(0) (reciprocal space) i0_reciprocal	104300000.0000
Solution quality estimate total_estimate	0.7236
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	29.8 Å
Skewness Skewness skewness	0.434
Kurtosis Kurtosis kurtosis	-0.696
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3320000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.525; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.453; Smooth: 0.377

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cytokine receptor common subunit beta
Molecular weight formula_weight	47258.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5706

EETIPLQTLRCYNDYTSHITCRWADTQDAQRLVNVTLIRRVNEDLLEPVSCDLSDDMPWSACPHPRCVPRRCVIPCQSFVVTDVDYFSFQPDRPLGTRLTVTLTQHVQPPEPRDLQISTDQDHFLLTWSVALGSPQSHWLSPGDLEFEVVYKRLQDSWEDAAILLSNTSQATLGPEHLMPSSTYVARVRTRLAPGSRLSGRPSKWSPEVCWDSQPGDEAQPQNLECFFDGAAVLSCSWEVRKEVASSVSFGLFYKPSPDAGEEECSPVLREGLGSLHTRHHCQIPVPDPATHGQYIVSVQPRRAEKHIKSSVNIQMAPPSLQVTKDGDSYSLRWETMKMRYEHIDHTFEIQYRKDTATWKDSKTETLQNAHSMALPALEPSTRYWARVRVRTSRTGYNGIWSEWSEARSWDTES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Granulocyte-macrophage colony-stimulating factor
Molecular weight formula_weight	14492.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

APARSPSPSTQPWEHVNAIQEARRLLNLSRDTAAEMNETVEVISEMFDLQEPTCLQTRLELYKQGLRGSLTKLKGPLTMMASHYKQHCPPTPETSCATQIITFESFKENLKDFLLVIPFDCWEPVQE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Granulocyte-macrophage colony-stimulating factor receptor subunit alpha
Molecular weight formula_weight	34850.5 kDa
Mutation mutation	N346Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XXXXXXXXXXXXXXXXXNSGREGTAAQNFSCFIYNADLMNCTWARGPTAPRDVQYFLYIRNSKRRREIRCPYYIQDSGTHVGCHLDNLSGLTSRNYFLVNGTSREIGIQFFDSLLDTKKIERFNPPSNVTVRCNTTHCLVRWKQPRTYQKLSYLDFQYQLDVHRKNTQPGTENLLINVSGDLENRYNFPSSEPRAKHSVKIRAADVRILNWSSWSEAIEFGSDDGNLGSVYIYVLLIVGTLVCGIVLGFLFKRFLRIQRLFPPVPQIKDKLNDNHEVEDEIIWEEFTPEEGKGYREEVLTVKEIT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4nkqb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.29 — Macroglobulin
Family Family family	b.1.29.9 — Granulocyte-macrophage colony-stimulating factor receptor alpha-like

Domain ID domain_id	d4nkqb2
Class class	i — Low resolution protein structures
Fold Fold fold	i.12 — Proteins of incorrect, partial and unknown sequence
Superfamily Superfamily superfamily	i.12.1 — Proteins of incorrect, partial and unknown sequence
Family Family family	i.12.1.1 — Proteins of incorrect, partial and unknown sequence

Domain ID domain_id	d4nkqc1
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

Domain ID domain_id	d4nkqc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	4nkqA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4nkqA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4nkqA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4nkqA04
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4nkqB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4nkqC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	166.656 Å
Unit-cell length b length_b	166.656 Å
Unit-cell length c length_c	213.132 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	3.301 Å
Low-resolution limit resolution_low	36.082 Å
R factor r_factor	0.2315
R_work r_work	0.2293
R_free r_free	0.2729

fit	/app/data/saxs_computation/nk/4nkq/4nkq.fit
pddf	/app/data/pr_computation/nk/4nkq/4nkq.pr.out
profile	/app/data/saxs_computation/nk/4nkq/4nkq.dat

Structure of a Cytokine Receptor Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytokine receptor common subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Granulocyte-macrophage colony-stimulating factor

State in the Current Structure

Other States of the Same Protein in the Database

Granulocyte-macrophage colony-stimulating factor receptor subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

CATH v4.4 (6 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
