1. Protein Identity and Related Structures Protein Identity & Related Structures

Segment polarity protein dishevelled homolog DVL-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 12–106 Chain B； UniProt 12–106 Chain C； UniProt 12–106	Fragment：UNP residues 13-105 Mutation：Y27D	1PE PENTAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；292 K；grew in PEG400 (cryo condition) over night	Resolution 2.69 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4WIP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2REY Crystal structure of the PDZ domain of human dishevelled 2 (homologous to Drosophila dsh) Deposited 2007-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 260–354（95 aa） Fragment：PDZ domain: Residues 261-355	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2M Ammonium acetate, 0.1M Bis-tris pH 5.5, 25% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.240
3CBX The Dvl2 PDZ Domain in Complex with the C1 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；292 K；60% 2-Methyl-2,4-pentanediol, 0.1 M sodium acetate, pH 4.8, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.70 Å R-free 0.227
3CBY The Dvl2 PDZ Domain in Complex with the N1 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；1.6 M tri-sodium citrate, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.50 Å R-free 0.182
3CBZ The Dvl2 PDZ Domain in Complex with the N2 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S	PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.8 M sodium phosphate, 0.8 M Potassium phosphate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.38 Å R-free 0.166
3CC0 The Dvl2 PDZ Domain in Complex with the N3 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain C 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S Mutation：C341S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；292 K；1.0 M Ammonium citrate tribasic, 0.1 M BIS-TRIS propane, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.75 Å R-free 0.238
5LNP Domain-swapped dimer of human Dishevelled2 DEP domain: monoclinic crystal form crystallised from monomeric fraction Deposited 2016-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain B 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain C 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain D 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M MES, pH=6.5 0.1 M NaCl 0.1 M Li2SO4 23 % PEG400	Resolution 1.99 Å R-free 0.246
5SUY Domain-swapped dimer of human Dishevelled2 DEP domain: monoclinic crystal form crystallised from dimeric fraction Deposited 2016-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–510（95 aa） Fragment：UNP residues 416-510 Chain B 416–510（95 aa） Fragment：UNP residues 416-510 Chain C 416–510（95 aa） Fragment：UNP residues 416-510 Chain D 416–510（95 aa） Fragment：UNP residues 416-510	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MES 0.1 M NaCl 0.1 M Li2SO4 22-26% PEG400	Resolution 1.88 Å R-free 0.217
5SUZ Domain-swapped dimer of human Dishevelled2 DEP domain: C-centered monoclinic crystal form crystallised from monomeric fraction Deposited 2016-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–509（94 aa） Fragment：UNP residues 416-509 Chain B 416–509（94 aa） Fragment：UNP residues 416-509	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M MES, pH=6.5 0.2 M CaCl2 23% PEG350 MME	Resolution 1.84 Å R-free 0.263
6IW3 High resolution structure of Dvl2-DIX Y27W/C80S mutant Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 12–93（82 aa） Fragment：DIX-domain	Mutation：Y27W, C80S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；20% (w/v) PEG 6000, Tris-HCl pH 8.0, 200 mM lithium chloride	Resolution 1.64 Å R-free 0.229
6JCK Complex structure of Axin-DIX and Dvl2-DIX Deposited 2019-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 12–93（82 aa）	Mutation：V67A,K68A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；25% (w/v) PEG1500, 0.1 M Malonate-Imidazole-Borate buffer pH 7.0	Resolution 3.09 Å R-free 0.290
8WM9 Fzd4/DEP complex Deposited 2023-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–736（736 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8WMA Fzd4/DEP complex (local refined) Deposited 2023-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–736（736 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
8WWR Crystal structure of apo human dishevelled 2 (Dvl2) PDZ domain Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 261–354（94 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tri-sodium citrate, pH 5.6 20% (v/v) Isopropanol 20%(w/v) PEG4000	Resolution 1.75 Å R-free 0.253
8YR7 Crystal structure of human dishevelled 2 (Dvl2) PDZ domain fused with WGEF internal peptide motif Deposited 2024-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 261–353（93 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M Sodium acetate (pH 4.5), 3M Sodium chloride	Resolution 3.00 Å R-free 0.335

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DVL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–96； UniProt 12–106 Author chain B； PDBConstruct 2–96； UniProt 12–106 Author chain C； PDBConstruct 2–96； UniProt 12–106

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4wip
Deposition date deposition_date	2014-09-26
Structure title title	DIX domain of human Dvl2
Keywords keywords	polymer signaling ubiquitin-like, signaling protein; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.59 Å
Radius of gyration Rg (electron density) rg_electron	22.75 Å
Forward intensity I(0) i0	13431100.00
Molecular weight molecular_weight	28131.0 kDa
Excluded volume excluded_volume	35531 Å³
Envelope volume envelope_volume	45187 Å³
Hydration-shell volume shell_volume	18068 Å³
Envelope diameter envelope_diameter	84.6 Å
Shell Rg shell_rg	27.58 Å
Envelope Rg envelope_rg	22.82 Å
Shape Rg shape_rg	22.70 Å
Total Rg total_rg	23.64 Å
Total atoms total_atoms	1981
Residues n_residues	243
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

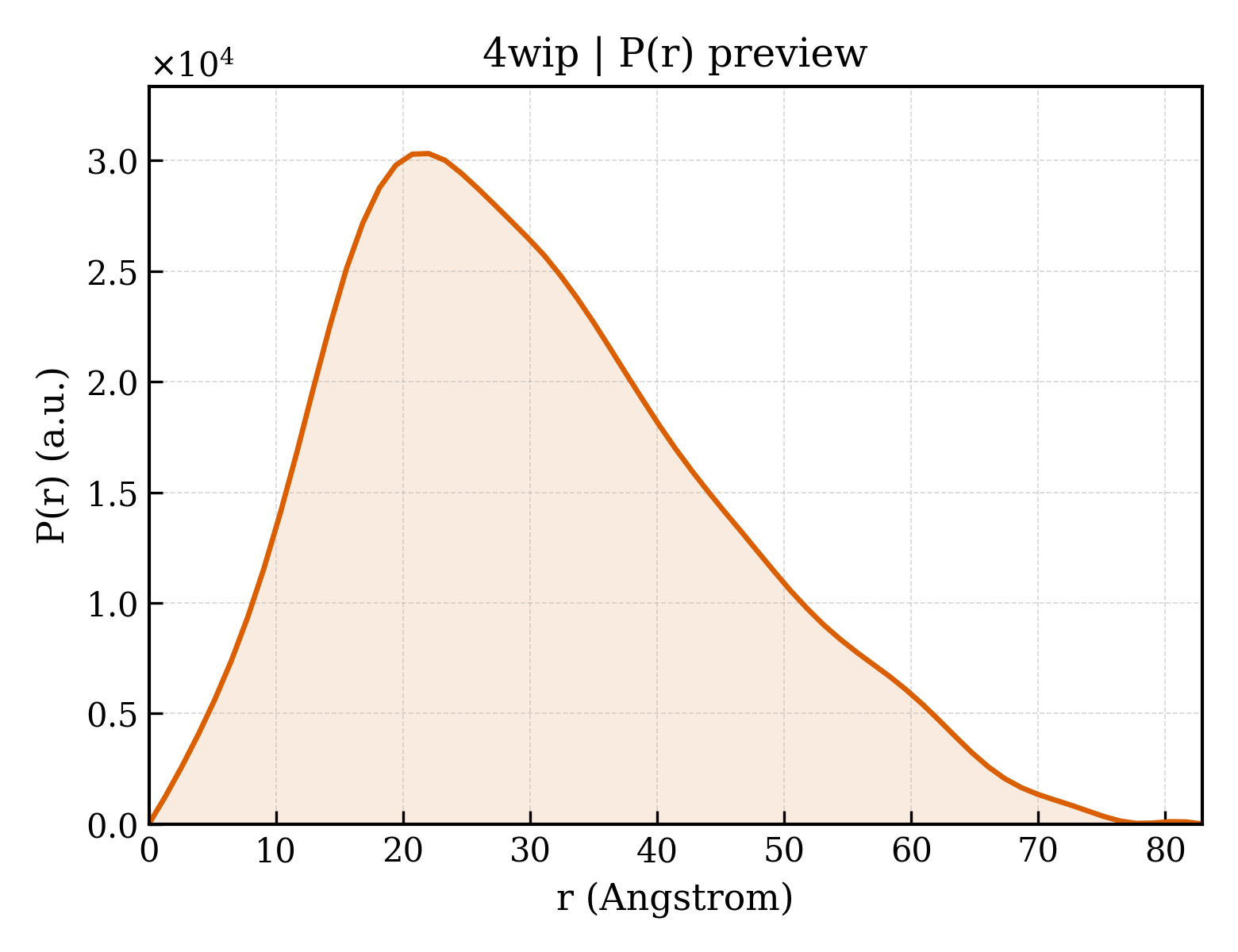

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.9 Å
Rg (real space) rg_real	23.78 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	1.3430e+07
I(0) uncertainty (real space) i0_real_error	2.2290e+05
Rg (reciprocal space) rg_reciprocal	23.74 Å
I(0) (reciprocal space) i0_reciprocal	13430000.0000
Solution quality estimate total_estimate	0.8297
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.0 Å
Skewness Skewness skewness	0.519
Kurtosis Kurtosis kurtosis	-0.278
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3676000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.704; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Segment polarity protein dishevelled homolog DVL-2
Molecular weight formula_weight	10970.4 kDa
Mutation mutation	Y27D
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	1994

MGETKVIYHLDEEETPDLVKIPVPAERITLGDFKSVLQRPAGAKYFFKSMDQDFGVVKEEISDDNARLPCFNGRVVSWLVSSDNPQPEMAPPVHEPR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	13

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d4wipa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.0 — automated matches

Domain ID domain_id	d4wipb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.0 — automated matches

Domain ID domain_id	d4wipc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.0 — automated matches

CATH v4.4 (3 domains)

Domain ID domain_id	4wipA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	240 — Ribosomal Protein L25; Chain P
Homologous superfamily homologous superfamily	130 —

Domain ID domain_id	4wipB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	240 — Ribosomal Protein L25; Chain P
Homologous superfamily homologous superfamily	130 —

Domain ID domain_id	4wipC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	240 — Ribosomal Protein L25; Chain P
Homologous superfamily homologous superfamily	130 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	56.300 Å
Unit-cell length b length_b	84.820 Å
Unit-cell length c length_c	98.260 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.691 Å
Low-resolution limit resolution_low	64.210 Å
R factor r_factor	0.2235
R_work r_work	0.2221
R_free r_free	0.2482

fit	/app/data/saxs_computation/wi/4wip/4wip.fit
pddf	/app/data/pr_computation/wi/4wip/4wip.pr.out
profile	/app/data/saxs_computation/wi/4wip/4wip.dat
