SAXSdb — 8wm9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Frizzled-4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–537 Chain B； UniProt 1–537	Not recorded	Segment polarity protein dishevelled homolog DVL-2 × 1 （O14641） Y01 CHOLESTEROL HEMISUCCINATE × 10	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.53 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8WM9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5BPB Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form I Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–179（138 aa） Fragment：UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；1.6 M tri-sodium citrate, pH 6.5	Resolution 2.20 Å R-free 0.223
5BPB Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form I Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 42–179（138 aa） Fragment：UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；1.6 M tri-sodium citrate, pH 6.5	Resolution 2.20 Å R-free 0.223
5BPB Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form I Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 42–179（138 aa） Fragment：UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；1.6 M tri-sodium citrate, pH 6.5	Resolution 2.20 Å R-free 0.223
5BPB Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form I Deposited 2015-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 42–179（138 aa） Fragment：UNP residues 42-179	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；1.6 M tri-sodium citrate, pH 6.5	Resolution 2.20 Å R-free 0.223
5BPQ Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form II Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–179（138 aa） Fragment：cysteine-rich domain, UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M HEPES, pH 7.5, 0.1 M NaCl, 1.6 M ammonium sulfate	Resolution 2.40 Å R-free 0.243
5BPQ Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form II Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 42–179（138 aa） Fragment：cysteine-rich domain, UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M HEPES, pH 7.5, 0.1 M NaCl, 1.6 M ammonium sulfate	Resolution 2.40 Å R-free 0.243
5BPQ Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form II Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 42–179（138 aa） Fragment：cysteine-rich domain, UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M HEPES, pH 7.5, 0.1 M NaCl, 1.6 M ammonium sulfate	Resolution 2.40 Å R-free 0.243
5BPQ Crystal structure of the cysteine-rich domain of human Frizzled 4 - Crystal Form II Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 42–179（138 aa） Fragment：cysteine-rich domain, UNP residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M HEPES, pH 7.5, 0.1 M NaCl, 1.6 M ammonium sulfate	Resolution 2.40 Å R-free 0.243
5BQC Crystal structure of Norrin in complex with the cysteine-rich domain of Frizzled 4 and sucrose octasulfate Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 42–179（138 aa） Fragment：residues 42-179	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Tris, pH 8.0, 0.15 M NaCl, 8% PEG8000	Resolution 3.00 Å R-free 0.268
5BQE Crystal structure of Norrin in complex with the cysteine-rich domain of Frizzled 4 -Methylated form Deposited 2015-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 42–179（138 aa） Fragment：residues 42-179	Non-standard monomer：Yes (specific site not provided by mmCIF)	PG0 2-(2-METHOXYETHOXY)ETHANOL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Bicine, pH 9.0, 10% PEG6000	Resolution 2.30 Å R-free 0.221
5CL1 Complex structure of Norrin with human Frizzled 4 Deposited 2015-07-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 38–160（123 aa） Fragment：UNP residues 38-160 Chain D 38–160（123 aa） Fragment：UNP residues 38-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；200 mM ammonium sulfate, 100 mM sodium cacodylate trihydrate (pH 6.5), 15% w/v polyethylene glycol 8,000	Resolution 3.80 Å R-free 0.310
5CM4 Crystal structure of human Frizzled 4 Cysteine-Rich Domain (CRD) Deposited 2015-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 40–164（125 aa） Fragment：UNP residues 40-164	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；1.8 M ammonium sulfate, 0.1 M tri-Na citrate pH 5.6 and 0.2 M Na/K tartrate	Resolution 2.40 Å R-free 0.255
5CM4 Crystal structure of human Frizzled 4 Cysteine-Rich Domain (CRD) Deposited 2015-07-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 40–164（125 aa） Fragment：UNP residues 40-164	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；1.8 M ammonium sulfate, 0.1 M tri-Na citrate pH 5.6 and 0.2 M Na/K tartrate	Resolution 2.40 Å R-free 0.255
5UWG The crystal structure of Fz4-CRD in complex with palmitoleic acid Deposited 2017-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 40–164（125 aa） Fragment：Cysteine Rich Domain (UNP residues 40-164)	Not recorded	PAM PALMITOLEIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293 K；0.1 M citric acid pH 3.5, 28% w/v polyethylene glycol 8,000	Resolution 2.56 Å R-free 0.267
5UWG The crystal structure of Fz4-CRD in complex with palmitoleic acid Deposited 2017-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 40–164（125 aa） Fragment：Cysteine Rich Domain (UNP residues 40-164)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293 K；0.1 M citric acid pH 3.5, 28% w/v polyethylene glycol 8,000	Resolution 2.56 Å R-free 0.267
6BD4 Crystal structure of human apo-Frizzled4 receptor Deposited 2017-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 178–419（242 aa） Chain A 428–517（90 aa）	Mutation：M309L, C450I, C507F, S508Y Mutation：M309L, C450I, C507F, S508Y	ZN ZINC ION × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 OLA OLEIC ACID × 5 SO4 SULFATE ION × 3 UNX UNKNOWN LIGAND × 4	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；100 mM sodium cacodylate trihydrate (pH 6.0), 80 mM Magnesium Sulfate, 30% PEG400, 1.5-2.5% v/v (+/-)-2-Methyl-2,4-pentanediol	Resolution 2.40 Å R-free 0.233
6NE1 Designed repeat protein in complex with Fz4 Deposited 2018-12-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 42–161（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M ammonium chloride, pH 6.3 and 20% PEG3,350	Resolution 3.01 Å R-free 0.293
8WMA Fzd4/DEP complex (local refined) Deposited 2023-10-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–537（537 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å

10 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FZD4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–537； UniProt 1–537 Author chain B； PDBConstruct 1–537； UniProt 1–537

Segment polarity protein dishevelled homolog DVL-2

Homo sapiens

UniProt O14641

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–736	Not recorded	Frizzled-4 × 2 （Q9ULV1） Y01 CHOLESTEROL HEMISUCCINATE × 10	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.53 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8WM9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2REY Crystal structure of the PDZ domain of human dishevelled 2 (homologous to Drosophila dsh) Deposited 2007-09-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 260–354（95 aa） Fragment：PDZ domain: Residues 261-355	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2M Ammonium acetate, 0.1M Bis-tris pH 5.5, 25% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.240
3CBX The Dvl2 PDZ Domain in Complex with the C1 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；292 K；60% 2-Methyl-2,4-pentanediol, 0.1 M sodium acetate, pH 4.8, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.70 Å R-free 0.227
3CBY The Dvl2 PDZ Domain in Complex with the N1 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；1.6 M tri-sodium citrate, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.50 Å R-free 0.182
3CBZ The Dvl2 PDZ Domain in Complex with the N2 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S	PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.8 M sodium phosphate, 0.8 M Potassium phosphate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.38 Å R-free 0.166
3CC0 The Dvl2 PDZ Domain in Complex with the N3 Inhibitory Peptide Deposited 2008-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain B 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354) Chain C 264–354（91 aa） Fragment：PDZ domain (UNP residues 264-354)	Mutation：C341S Mutation：C341S Mutation：C341S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；292 K；1.0 M Ammonium citrate tribasic, 0.1 M BIS-TRIS propane, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 1.75 Å R-free 0.238
4WIP DIX domain of human Dvl2 Deposited 2014-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 12–106（95 aa） Fragment：UNP residues 13-105 Chain B 12–106（95 aa） Fragment：UNP residues 13-105 Chain C 12–106（95 aa） Fragment：UNP residues 13-105	Mutation：Y27D Mutation：Y27D Mutation：Y27D	1PE PENTAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；292 K；grew in PEG400 (cryo condition) over night	Resolution 2.69 Å R-free 0.248
5LNP Domain-swapped dimer of human Dishevelled2 DEP domain: monoclinic crystal form crystallised from monomeric fraction Deposited 2016-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain B 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain C 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510 Chain D 416–510（95 aa） Fragment：DEP domain, UNP residues 416-510	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M MES, pH=6.5 0.1 M NaCl 0.1 M Li2SO4 23 % PEG400	Resolution 1.99 Å R-free 0.246
5SUY Domain-swapped dimer of human Dishevelled2 DEP domain: monoclinic crystal form crystallised from dimeric fraction Deposited 2016-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–510（95 aa） Fragment：UNP residues 416-510 Chain B 416–510（95 aa） Fragment：UNP residues 416-510 Chain C 416–510（95 aa） Fragment：UNP residues 416-510 Chain D 416–510（95 aa） Fragment：UNP residues 416-510	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MES 0.1 M NaCl 0.1 M Li2SO4 22-26% PEG400	Resolution 1.88 Å R-free 0.217
5SUZ Domain-swapped dimer of human Dishevelled2 DEP domain: C-centered monoclinic crystal form crystallised from monomeric fraction Deposited 2016-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 416–509（94 aa） Fragment：UNP residues 416-509 Chain B 416–509（94 aa） Fragment：UNP residues 416-509	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M MES, pH=6.5 0.2 M CaCl2 23% PEG350 MME	Resolution 1.84 Å R-free 0.263
6IW3 High resolution structure of Dvl2-DIX Y27W/C80S mutant Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 12–93（82 aa） Fragment：DIX-domain	Mutation：Y27W, C80S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；20% (w/v) PEG 6000, Tris-HCl pH 8.0, 200 mM lithium chloride	Resolution 1.64 Å R-free 0.229
6JCK Complex structure of Axin-DIX and Dvl2-DIX Deposited 2019-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 12–93（82 aa）	Mutation：V67A,K68A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；25% (w/v) PEG1500, 0.1 M Malonate-Imidazole-Borate buffer pH 7.0	Resolution 3.09 Å R-free 0.290
8WMA Fzd4/DEP complex (local refined) Deposited 2023-10-03	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–736（736 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
8WWR Crystal structure of apo human dishevelled 2 (Dvl2) PDZ domain Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 261–354（94 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tri-sodium citrate, pH 5.6 20% (v/v) Isopropanol 20%(w/v) PEG4000	Resolution 1.75 Å R-free 0.253
8YR7 Crystal structure of human dishevelled 2 (Dvl2) PDZ domain fused with WGEF internal peptide motif Deposited 2024-03-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 261–353（93 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M Sodium acetate (pH 4.5), 3M Sodium chloride	Resolution 3.00 Å R-free 0.335

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DVL2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–736； UniProt 1–736

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wm9
Deposition date deposition_date	2023-10-03
Structure title title	Fzd4/DEP complex
Keywords keywords	GPCR complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.66 Å
Radius of gyration Rg (electron density) rg_electron	30.46 Å
Forward intensity I(0) i0	86163900.00
Molecular weight molecular_weight	83188.0 kDa
Excluded volume excluded_volume	108260 Å³
Envelope volume envelope_volume	144030 Å³
Hydration-shell volume shell_volume	39457 Å³
Envelope diameter envelope_diameter	111.3 Å
Shell Rg shell_rg	37.53 Å
Envelope Rg envelope_rg	30.73 Å
Shape Rg shape_rg	30.47 Å
Total Rg total_rg	31.21 Å
Total atoms total_atoms	5879
Residues n_residues	719
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

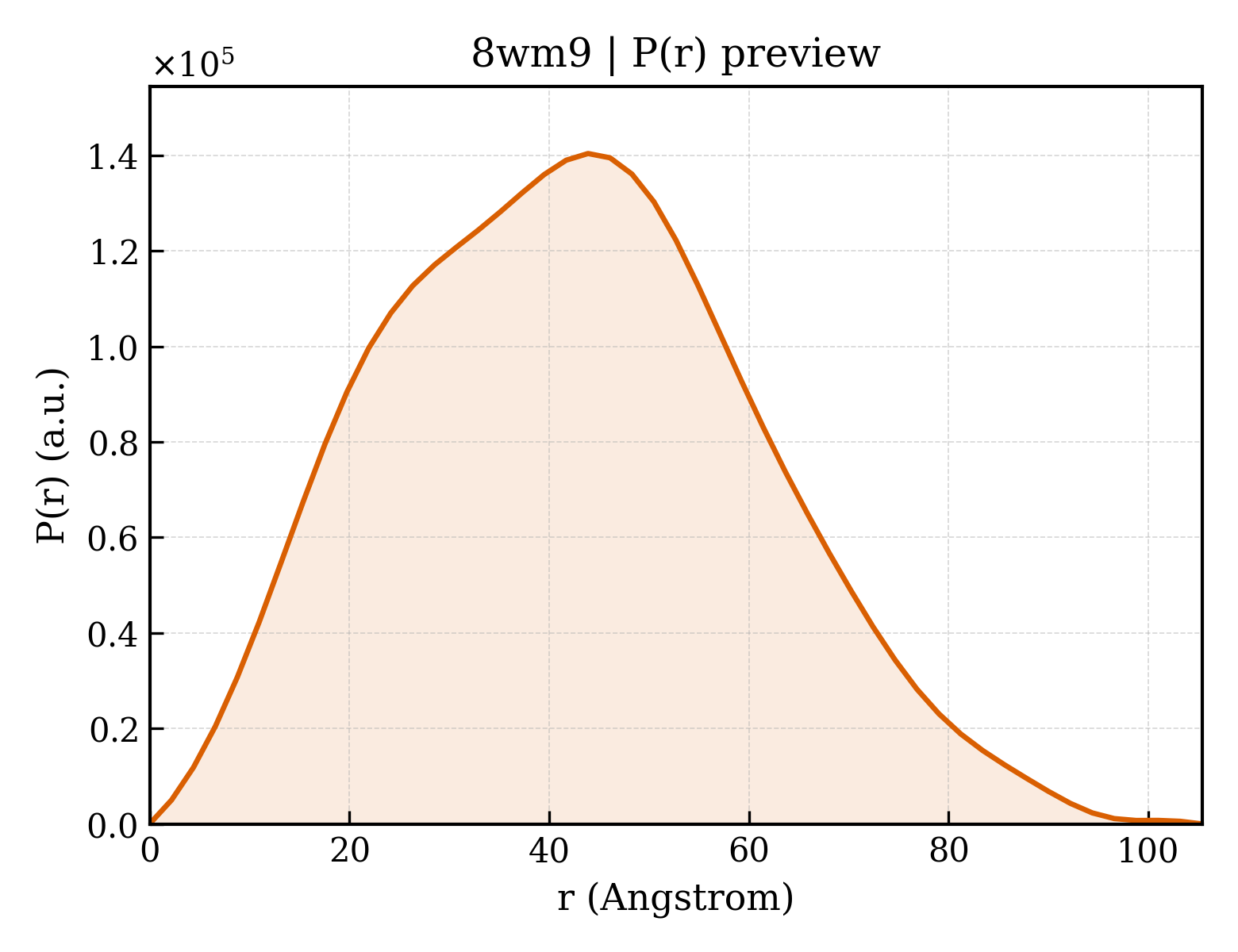

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	105.4 Å
Rg (real space) rg_real	32.59 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	8.6160e+07
I(0) uncertainty (real space) i0_real_error	1.3520e+06
Rg (reciprocal space) rg_reciprocal	32.62 Å
I(0) (reciprocal space) i0_reciprocal	86170000.0000
Solution quality estimate total_estimate	0.8999
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.9 Å
Skewness Skewness skewness	0.228
Kurtosis Kurtosis kurtosis	-0.431
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17860000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.952

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Frizzled-4
Molecular weight formula_weight	60047.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5879

MAWRGAGPSVPGAPGGVGLSLGLLLQLLLLLGPARGFGDEEERRCDPIRISMCQNLGYNVTKMPNLVGHELQTDAELQLTTFTPLIQYGCSSQLQFFLCSVYVPMCTEKINIPIGPCGGMCLSVKRRCEPVLKEFGFAWPESLNCSKFPPQNDHNHMCMEGPGDEEVPLPHKTPIQPGEECHSVGTNSDQYIWVKRSLNCVLKCGYDAGLYSRSAKEFTDIWMAVWASLCFISTAFTVLTFLIDSSRFSYPERPIIFLSMCYNIYSIAYIVRLTVGRERISCDFEEAAEPVLIQEGLKNTGCAIIFLLLYFFGMASSIWWVILTLTWFLAAGLKWGHEAIEMHSSYFHIAAWAIPAVKTIVILIMRLVDADELTGLCYVGNQNLDALTGFVVAPLFTYLVIGTLFIAAGLVALFKIRSNLQKDGTKTDKLERLMVKIGVFSVLYTVPATIVIACYFYEISNWALFRYSADDSNMAVEMLKIFMSLLVGITSGMWIWSAKTLHTWQKFYNRLVNSGKVKREKRGNGWVKPGKGSETVV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Segment polarity protein dishevelled homolog DVL-2
Molecular weight formula_weight	79036.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MAGSSTGGGGVGETKVIYHLDEEETPYLVKIPVPAERITLGDFKSVLQRPAGAKYFFKSMDQDFGVVKEEISDDNARLPCFNGRVVSWLVSSDNPQPEMAPPVHEPRAELAPPAPPLPPLPPERTSGIGDSRPPSFHPNVSSSHENLEPETETESVVSLRRERPRRRDSSEHGAGGHRTGGPSRLERHLAGYESSSTLMTSELESTSLGDSDEEDTMSRFSSSTEQSSASRLLKRHRRRRKQRPPRLERTSSFSSVTDSTMSLNIITVTLNMEKYNFLGISIVGQSNERGDGGIYIGSIMKGGAVAADGRIEPGDMLLQVNDMNFENMSNDDAVRVLRDIVHKPGPIVLTVAKCWDPSPQAYFTLPRNEPIQPIDPAAWVSHSAALTGTFPAYPGSSSMSTITSGSSLPDGCEGRGLSVHTDMASVTKAMAAPESGLEVRDRMWLKITIPNAFLGSDVVDWLYHHVEGFPERREARKYASGLLKAGLIRHTVNKITFSEQCYYVFGDLSGGCESYLVNLSLNDNDGSSGASDQDTLAPLPGATPWPLLPTFSYQYPAPHPYSPQPPPYHELSSYTYGGGSASSQHSEGSRSSGSTRSDGGAGRTGRPEERAPESKSGSGSESEPSSRGGSLRRGGEASGTSDGGPPPSRGSTGGAPNLRAHPGLHPYGPPPGMALPYNPMMVVMMPPPPPPVPPAVQPPGAPPVRDLGSVPPELTASRQSFHMAMGNPSEFFVDVM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	syn
Copy count entity_count	10

▶

8. Citations (1)

▶

Resolution resolution	3.53 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	95333

fit	/app/data/saxs_computation/wm/8wm9/8wm9.fit
pddf	/app/data/pr_computation/wm/8wm9/8wm9.pr.out
profile	/app/data/saxs_computation/wm/8wm9/8wm9.dat
