SAXSdb — 4zii

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apoptosis regulator BAX

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	BH3-interacting domain death agonist × 2 （P55957） 1,2-ETHANEDIOL × 10 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAX_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–170； UniProt 1–170

BH3-interacting domain death agonist

OrganismNot specified

UniProt P55957

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Apoptosis regulator BAX × 2 （Q07812） 1,2-ETHANEDIOL × 10 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BID_HUMAN
Isoform	P55957-2
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–34； UniProt 122–155

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4zii
Deposition date deposition_date	2015-04-28
Structure title title	Crystal Structure of core/latch dimer of BaxI66A in complex with BidBH3
Keywords keywords	Bax, Apoptosis, BH3 domain, Structural Genomics; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4zii__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

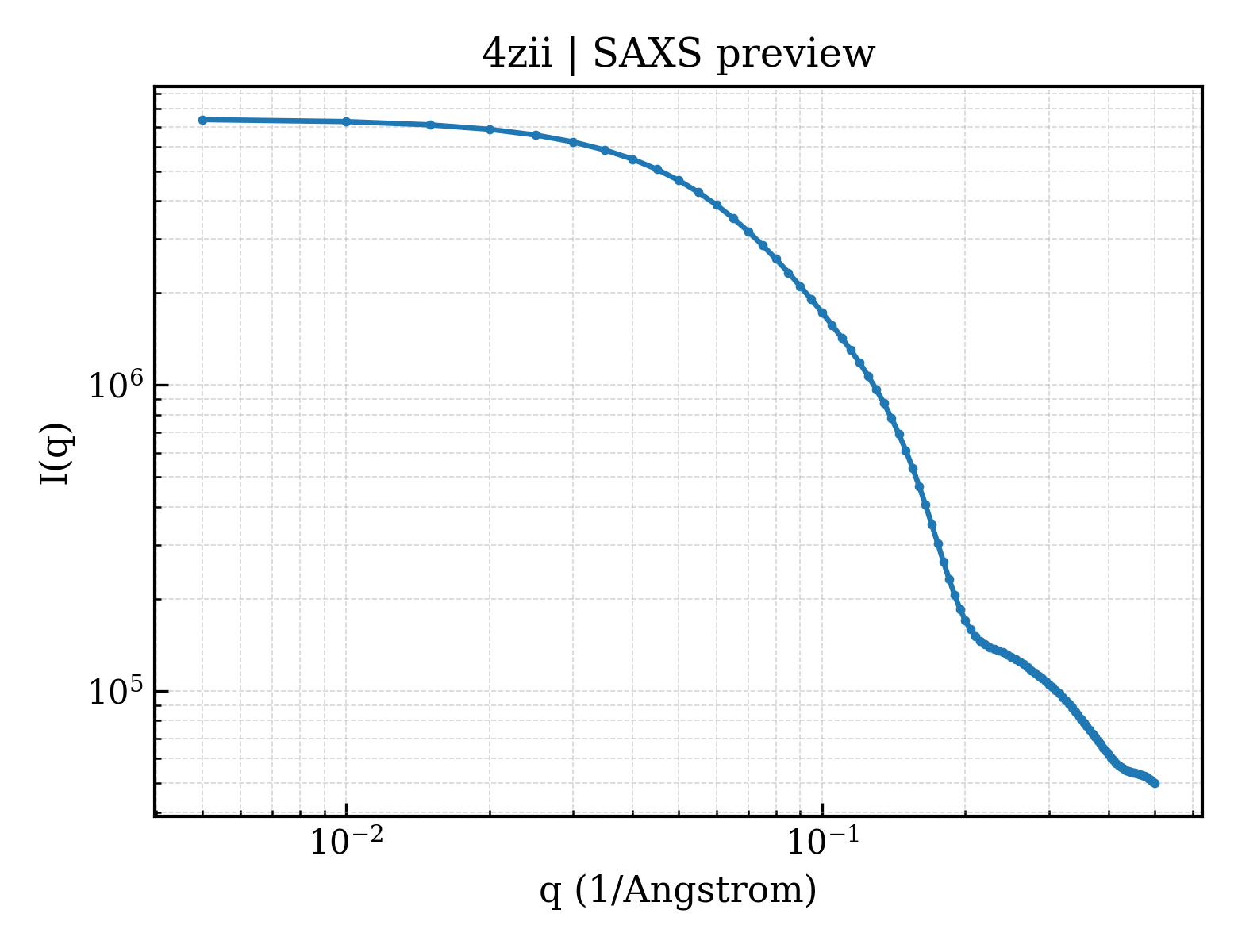

4zii__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

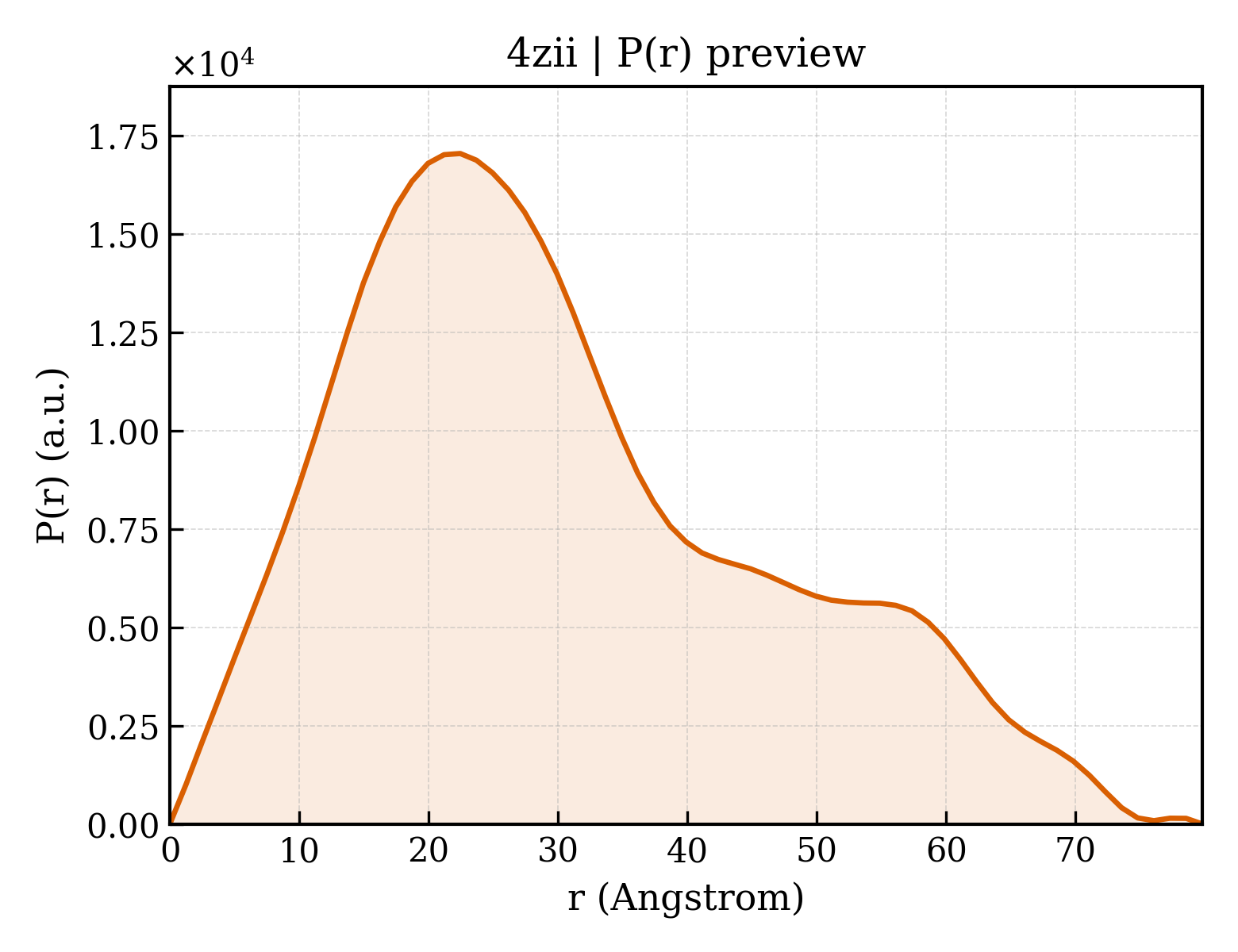

4zii__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.08 Å
Rg (electron density)	24.89 Å
Total Rg	25.50 Å
Atom count	2784
Residues	352
Excluded volume	49496 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4zii__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Apoptosis regulator BAX
Molecular weight formula_weight	18823.4 kDa
Mutation mutation	C62S, C126S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1445

MDGSGEQPRGGGPTSSEQIMKTGALLLQGFIQDRAGRMGGEAPELALDPVPQDASTKKLSESLKRIGDELDSNMELQRMIAAVDTDSPREVFFRVAADMFSDGNFNWGRVVALFYFASKLVLKALSTKVPELIRTIMGWTLDFLRERLLGWIQDQGGWDGLLSYFGTPTW

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	BH3-interacting domain death agonist
Molecular weight formula_weight	3693.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SESQEDIIRNIARHLAQVGDSMDRSIPPGLVNGL

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	53

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4ziiA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	437 — Apoptosis Regulator Bcl-x
Homologous superfamily homologous superfamily	10 — Blc2-like

▶

Unit-cell length a length_a	103.801 Å
Unit-cell length b length_b	103.801 Å
Unit-cell length c length_c	38.007 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.191 Å
Low-resolution limit resolution_low	46.420 Å
R factor r_factor	0.1800
R_work r_work	0.1751
R_free r_free	0.2230
