OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | SEC61B × 1 （P60467） SEC61G × 1 （P60058） | Consistent with protein count |
| UniProt name | S61A1_CANFA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–451； UniProt 26–476 |
OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | SEC61A × 1 （P38377） SEC61G × 1 （P60058） | Consistent with protein count |
| UniProt name | SC61B_CANFA |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–36； UniProt 61–96 |
OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | SEC61A × 1 （P38377） SEC61B × 1 （P60467） | Consistent with protein count |
| UniProt name | SC61G_CANFA |
| Isoform | — |
| PDB entities | 3 |
| Chains and sequence ranges | Author chain G； PDBConstruct 1–62； UniProt 7–68 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 5a6u |
| Deposition date deposition_date | 2015-07-01 |
| Structure title title | Native mammalian ribosome-bound Sec61 protein-conducting channel in the 'non-inserting' state |
| Keywords keywords | TRANSLATION, RIBOSOME, SEC61, TRANSLOCON, ENDOPLASMIC RETICULUM, CRYOELECTRON TOMOGRAPHY, SUBTOMOGRAM ANALYSIS; TRANSLATION |
| Experimental Method method | ELECTRON MICROSCOPY |

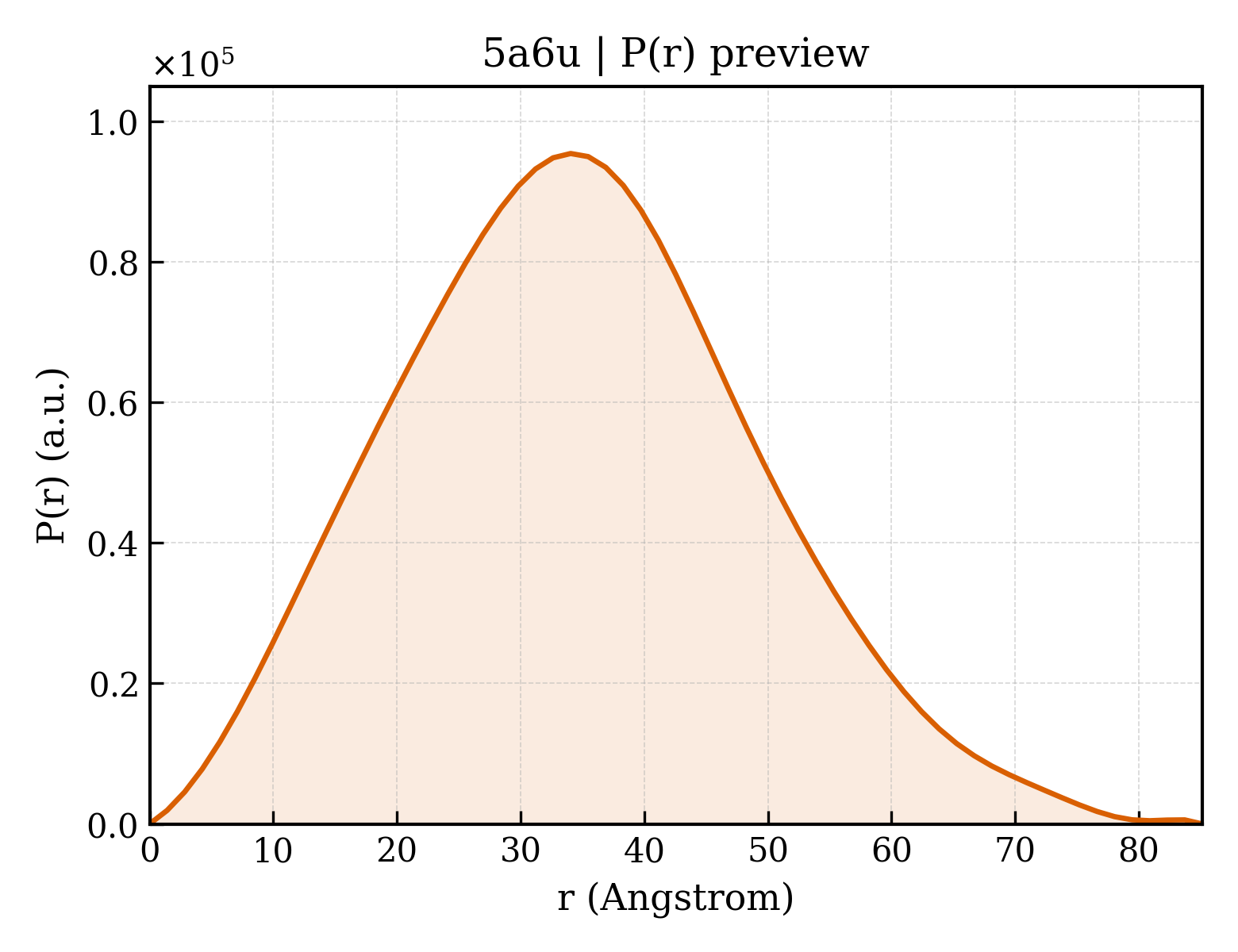

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 26.63 Å |
| Rg (electron density) | 25.48 Å |
| Total Rg | 26.46 Å |
| Atom count | 7770 |
| Residues | 494 |
| Excluded volume | 68468 ų |
| Maximum q | 0.500 Å⁻¹ |
