2wwb

CRYO-EM STRUCTURE OF THE MAMMALIAN SEC61 COMPLEX BOUND TO THE ACTIVELY TRANSLATING WHEAT GERM 80S RIBOSOME

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT ALPHA ISOFORM 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 11 RNA 4	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT GAMMA × 1 （P60058） PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT BETA × 1 （P60467） 5.8S RRNA × 1 25S RRNA × 1 25S RRNA × 1 25S RRNA × 1 60S RIBOSOMAL PROTEIN L4-B × 1 60S RIBOSOMAL PROTEIN L17-A × 1 60S RIBOSOMAL PROTEIN L19 × 1 60S RIBOSOMAL PROTEIN L25 × 1 60S RIBOSOMAL PROTEIN L26-A × 1 60S RIBOSOMAL PROTEIN L31-A × 1 60S RIBOSOMAL PROTEIN L35 × 1 60S RIBOSOMAL PROTEIN L39 × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	S61A1_CANFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–476； UniProt 1–476

PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT GAMMA

OrganismNot specified

UniProt P60058

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 11 RNA 4	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT ALPHA ISOFORM 1 × 1 （P38377） PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT BETA × 1 （P60467） 5.8S RRNA × 1 25S RRNA × 1 25S RRNA × 1 25S RRNA × 1 60S RIBOSOMAL PROTEIN L4-B × 1 60S RIBOSOMAL PROTEIN L17-A × 1 60S RIBOSOMAL PROTEIN L19 × 1 60S RIBOSOMAL PROTEIN L25 × 1 60S RIBOSOMAL PROTEIN L26-A × 1 60S RIBOSOMAL PROTEIN L31-A × 1 60S RIBOSOMAL PROTEIN L35 × 1 60S RIBOSOMAL PROTEIN L39 × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC61G_CANFA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–68； UniProt 1–68

PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT BETA

OrganismNot specified

UniProt P60467

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 11 RNA 4	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT ALPHA ISOFORM 1 × 1 （P38377） PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT GAMMA × 1 （P60058） 5.8S RRNA × 1 25S RRNA × 1 25S RRNA × 1 25S RRNA × 1 60S RIBOSOMAL PROTEIN L4-B × 1 60S RIBOSOMAL PROTEIN L17-A × 1 60S RIBOSOMAL PROTEIN L19 × 1 60S RIBOSOMAL PROTEIN L25 × 1 60S RIBOSOMAL PROTEIN L26-A × 1 60S RIBOSOMAL PROTEIN L31-A × 1 60S RIBOSOMAL PROTEIN L35 × 1 60S RIBOSOMAL PROTEIN L39 × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC61B_CANFA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–96； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wwb
Deposition date deposition_date	2009-10-22
Structure title title	CRYO-EM STRUCTURE OF THE MAMMALIAN SEC61 COMPLEX BOUND TO THE ACTIVELY TRANSLATING WHEAT GERM 80S RIBOSOME
Keywords keywords	RIBOSOME, PROTEIN EXIT TUNNEL, COTRANSLATIONAL PROTEIN TRANSLOCATION, PROTEIN CONDUCTING CHANNEL, SIGNAL SEQUENCE; RIBOSOME
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2wwb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2wwb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

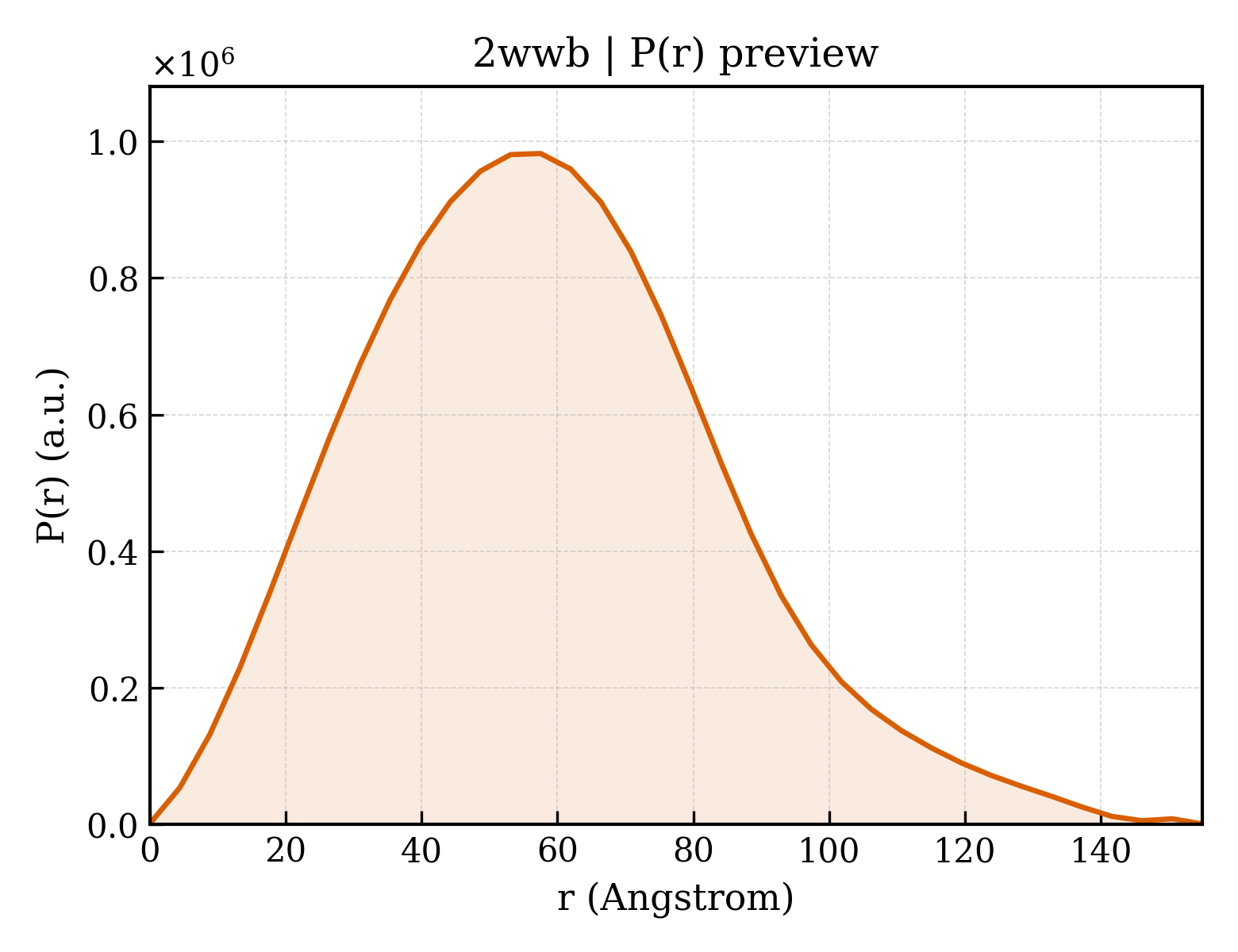

2wwb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.94 Å
Rg (electron density)	46.58 Å
Total Rg	46.48 Å
Atom count	14313
Residues	1591
Excluded volume	247010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2wwb__assembly_1__model_1`	pentadecameric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (15)

Entity 1 Entity 1 polymer

Description description	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT ALPHA ISOFORM 1
Molecular weight formula_weight	52279.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14313

MAIKFLEVIKPFCVILPEIQKPERKIQFKEKVLWTAITLFIFLVCCQIPLFGIMSSDSADPFYWMRVILASNRGTLMELGISPIVTSGLIMQLLAGAKIIEVGDTPKDRALFNGAQKLFGMIITIGQSIVYVMTGMYGDPSEMGAGICLLITIQLFVAGLIVLLLDELLQKGYGLGSGISLFIATNICETIVWKAFSPTTVNTGRGMEFEGAIIALFHLLATRTDKVRALREAFYRQNLPNLMNLIATIFVFAVVIYFQGFRVDLPIKSARYRGQYNTYPIKLFYTSNIPIILQSALVSNLYVISQMLSARFSGNLLVSLLGTWSDTSSGGPARAYPVGGLCHYLSPPESFGSVLEDPVHAVVYIVFMLGSCAFFSKTWIEVSGSSAKDVAKQLKEQQMVMRGHRETSMVHELNRYIPTAAAFGGLCIGALSVLADFLGAIGSGTGILLAVTIIYQYFEIFVKEQSEVGSMGALLF

Entity 2 Entity 2 polymer

Description description	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT GAMMA
Molecular weight formula_weight	7752.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MDQVMQFVEPSRQFVKDSIRLVKRCTKPDRKEFQKIAMATAIGFAIMGFIGFFVKLIHIPINNIIVGG

Entity 3 Entity 3 polymer

Description description	PROTEIN TRANSPORT PROTEIN SEC61 SUBUNIT BETA
Molecular weight formula_weight	9987.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPGPTPSGTNVGSSGRSPSKAVAARAAGSTVRQRKNASCGTRSAGRTTSAGTGGMWRFYTEDSPGLKVGPVPVLVMSLLFIASVFMLHIWGKYTRS

Entity 4 Entity 4 polymer

Description description	5.8S RRNA
Molecular weight formula_weight	20302.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	D

AGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUG

Entity 5 Entity 5 polymer

Description description	25S RRNA
Molecular weight formula_weight	11089.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	E

UGAAAAGAACUUUGAAAAGAGAGUGAAAAAGUAC

Entity 6 Entity 6 polymer

Description description	25S RRNA
Molecular weight formula_weight	8052.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	F

CCACGUCAACAGCAGUUGGACGUGG

Entity 7 Entity 7 polymer

Description description	25S RRNA
Molecular weight formula_weight	4477.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	G

ACACGUCGCGCGGU

Entity 8 Entity 8 polymer

Description description	60S RIBOSOMAL PROTEIN L4-B
Molecular weight formula_weight	39129.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSRPQVTVHSLTGEATANALPLPAVFSAPIRPDIVHTVFTSVNKNKRQAYAVSEKAGHQTSAESWGTGRAVARIPRVGGGGTGRSGQGAFGNMCRGGRMFAPTKTWRKWNVKVNHNEKRYATASAIAATAVASLVLARGHRVEKIPEIPLVVSTDLESIQKTKEAVAALKAVGAHSDLLKVLKSKKLRAGKGKYRNRRWTQRRGPLVVYAEDNGIVKALRNVPGVETANVASLNLLQLAPGAHLGRFVIWTEAAFTKLDQVWGSETVASSKVGYTLPSHIISTSDVTRIINSSEIQSAIRPAGQATQKRTHVLKKNPLKNKQVLLRLNPYAKVFAAEKLGSKKAEKTGTKPAAVFAETLKHD

Entity 9 Entity 9 polymer

Description description	60S RIBOSOMAL PROTEIN L17-A
Molecular weight formula_weight	20589.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MARYGATSTNPAKSASARGSYLRVSFKNTRETAQAINGWELTKAQKYLEQVLDHQRAIPFRRFNSSIGRTAQGKEFGVTKARWPAKSVKFVQGLLQNAAANAEAKGLDATKLYVSHIQVNQAPKQRRRTYRAHGRINKYESSPSHIELVVTEKEEAVAKAAEKKVVRLTSRQRGRIAAQKRIAA

Entity 10 Entity 10 polymer

Description description	60S RIBOSOMAL PROTEIN L19
Molecular weight formula_weight	21762.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MANLRTQKRLAASVVGVGKRKVWLDPNETSEIAQANSRNAIRKLVKNGTIVKKAVTVHSKSRTRAHAQSKREGRHSGYGKRKGTREARLPSQVVWIRRLRVLRRLLAKYRDAGKIDKHLYHVLYKESKGNAFKHKRALVEHIIQAKADAQREKALNEEAEARRLKNRAARDRRAQRVAEKRDALLKEDA

Entity 11 Entity 11 polymer

Description description	60S RIBOSOMAL PROTEIN L25
Molecular weight formula_weight	15787.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAPSAKATAAKKAVVKGTNGKKALKVRTSATFRLPKTLKLARAPKYASKAVPHYNRLDSYKVIEQPITSETAMKKVEDGNILVFQVSMKANKYQIKKAVKELYEVDVLKVNTLVRPNGTKKAYVRLTADYDALDIANRIGYI

Entity 12 Entity 12 polymer

Description description	60S RIBOSOMAL PROTEIN L26-A
Molecular weight formula_weight	14265.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MAKQSLDVSSDRRKARKAYFTAPSSQRRVLLSAPLSKELRAQYGIKALPIRRDDEVLVVRGSKKGQEGKISSVYRLKFAVQVDKVTKEKVNGASVPINLHPSKLVITKLHLDKDRKALIQRKGGKLE

Entity 13 Entity 13 polymer

Description description	60S RIBOSOMAL PROTEIN L31-A
Molecular weight formula_weight	12980.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MAGLKDVVTREYTINLHKRLHGVSFKKRAPRAVKEIKKFAKLHMGTDDVRLAPELNQAIWKRGVKGVEYRLRLRISRKRNEEEDAKNPLFSYVEPVLVASAKGLQTVVVEEDA

Entity 14 Entity 14 polymer

Description description	60S RIBOSOMAL PROTEIN L35
Molecular weight formula_weight	13942.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MAGVKAYELRTKSKEQLASQLVDLKKELAELKVQKLSRPSLPKIKTVRKSIACVLTVINEQQREAVRQLYKGKKYQPKDLRAKKTRALRRALTKFEASQVTEKQRKKQIAFPQRKYAIKA

Entity 15 Entity 15 polymer

Description description	60S RIBOSOMAL PROTEIN L39
Molecular weight formula_weight	6358.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MAAQKSFRIKQKMAKAKKQNRPLPQWIRLRTNNTIRYNAKRRNWRRTKMNI

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.480 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	6.48 Å
Resolution测定Method resolution_method	PROJECTION MATCHING
颗粒数 num_particles	221445
