SAXSdb — 5cyz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase I homolog HRR25

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–394	Mutation：K38R, N-terminal Ala from tag Non-standard monomer：Yes (specific site not provided by mmCIF)	Monopolin complex subunit MAM1 × 1 （P40065） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；0.1M CHES pH8.9, 5% Tacsimate, 25 mM YCl3, 19% PEG3350	Resolution 1.84 Å R-free 0.192

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5CYZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XHL Structure of S. cerevisiae Hrr25 1-394 (K38R mutant) Deposited 2015-01-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–394（394 aa） Fragment：UNP residues 1-394	Mutation：K38R	CKI N-(2-AMINOETHYL)-5-CHLOROISOQUINOLINE-8-SULFONAMIDE × 1 SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 11；293 K；0.1 M CAPS pH 11, 0.2 M lithium sulfate, and 1.5-1.6 M ammonium sulfate	Resolution 3.01 Å R-free 0.285
5CZO Structure of S. cerevisiae Hrr25:Mam1 complex, form 2 Deposited 2015-07-31	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–394（394 aa）	Mutation：K38R Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253
5CZO Structure of S. cerevisiae Hrr25:Mam1 complex, form 2 Deposited 2015-07-31	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Mutation：K38R Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HRR25_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–395； UniProt 1–394

Monopolin complex subunit MAM1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P40065

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 87–191	Non-standard monomer：Yes (specific site not provided by mmCIF)	Casein kinase I homolog HRR25 × 1 （P29295） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；0.1M CHES pH8.9, 5% Tacsimate, 25 mM YCl3, 19% PEG3350	Resolution 1.84 Å R-free 0.192

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5CYZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CZO Structure of S. cerevisiae Hrr25:Mam1 complex, form 2 Deposited 2015-07-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 87–191（105 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253
5CZO Structure of S. cerevisiae Hrr25:Mam1 complex, form 2 Deposited 2015-07-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 87–191（105 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253
5KTB Structure of a complex between S. cerevisiae Csm1 and Mam1 Deposited 2016-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 221–290（70 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 100 mM magnesium chloride, 6% PEG4000	Resolution 3.05 Å R-free 0.241

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MAM1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–105； UniProt 87–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5cyz
Deposition date deposition_date	2015-07-31
Structure title title	Structure of S. cerevisiae Hrr25:Mam1 complex, form 1
Keywords keywords	casein kinase, monopolin, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.46 Å
Radius of gyration Rg (electron density) rg_electron	23.23 Å
Forward intensity I(0) i0	50201200.00
Molecular weight molecular_weight	56172.0 kDa
Excluded volume excluded_volume	70834 Å³
Envelope volume envelope_volume	84439 Å³
Hydration-shell volume shell_volume	29332 Å³
Envelope diameter envelope_diameter	80.1 Å
Shell Rg shell_rg	31.17 Å
Envelope Rg envelope_rg	23.51 Å
Shape Rg shape_rg	23.20 Å
Total Rg total_rg	24.27 Å
Total atoms total_atoms	3955
Residues n_residues	452
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

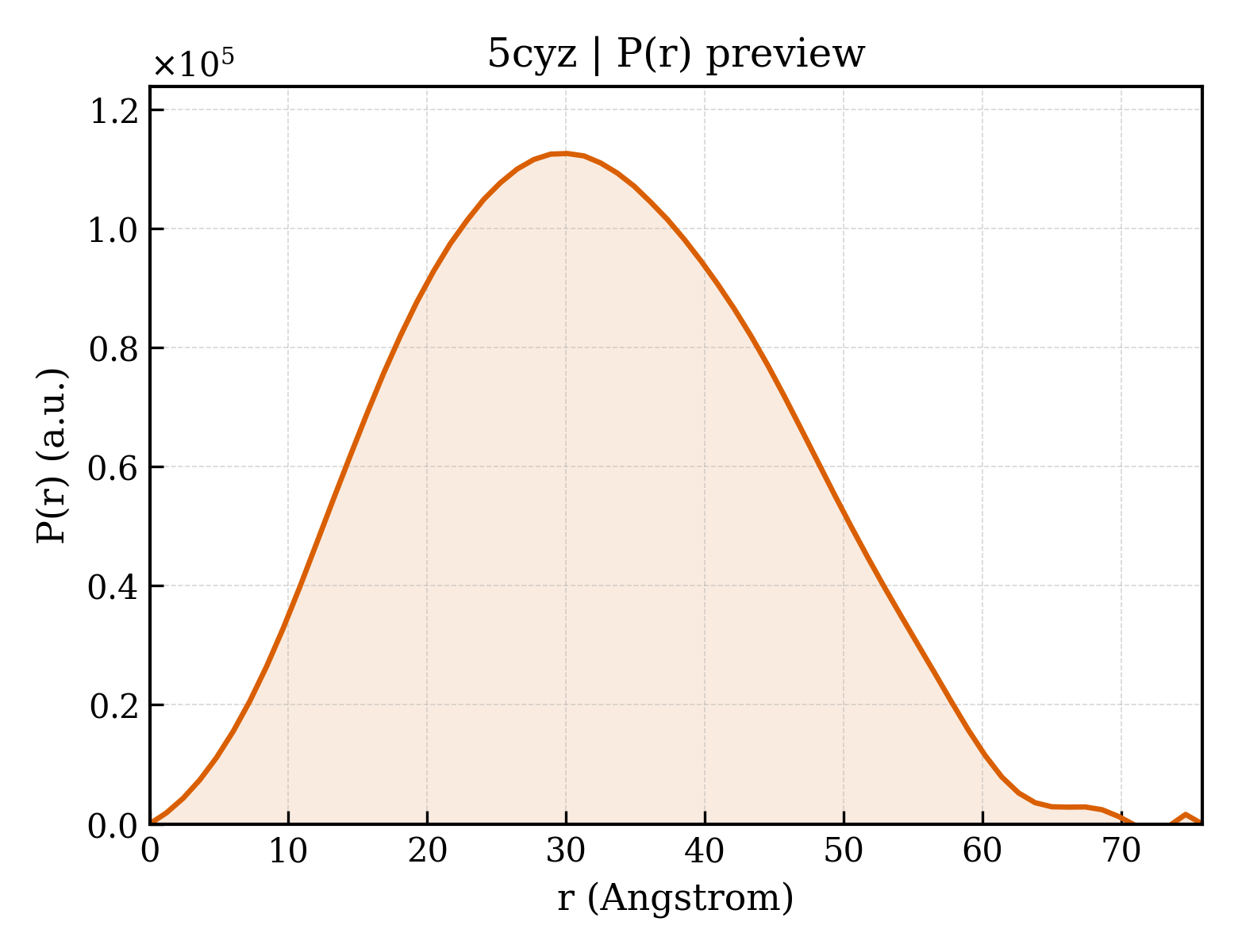

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.8 Å
Rg (real space) rg_real	24.31 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	5.0200e+07
I(0) uncertainty (real space) i0_real_error	7.0070e+05
Rg (reciprocal space) rg_reciprocal	24.35 Å
I(0) (reciprocal space) i0_reciprocal	50200000.0000
Solution quality estimate total_estimate	0.8294
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	30.1 Å
Skewness Skewness skewness	0.146
Kurtosis Kurtosis kurtosis	-0.549
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14050000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.929; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Casein kinase I homolog HRR25
Molecular weight formula_weight	46438.4 kDa
EC 编号 ec_number	2.7.11.1
Mutation mutation	K38R, N-terminal Ala from tag
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4308

AMDLRVGRKFRIGRKIGSGSFGDIYHGTNLISGEEVAIRLESIRSRHPQLDYESRVYRYLSGGVGIPFIRWFGREGEYNAMVIDLLGPSLEDLFNYCHRRFSFKTVIMLALQMFCRIQYIHGRSFIHRDIKPDNFLMGVGRRGSTVHVIDFGLSKKYRDFNTHRHIPYRENKSLTGTARYASVNTHLGIEQSRRDDLESLGYVLIYFCKGSLPWQGLKATTKKQKYDRIMEKKLNVSVETLCSGLPLEFQEYMAYCKNLKFDEKPDYLFLARLFKDLSIKLEYHNDHLFDWTMLRYTKAMVEKQRDLLIEKGDLNANSNAASASNSTDNKSETFNKIKLLAMKKFPTHFHYYKNEDKHNPSPEEIKQQTILNNNAASSLPEELLNALDKGMENLR

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Monopolin complex subunit MAM1
Molecular weight formula_weight	12903.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EATECLTRSNLKKLQEKIFDRELNDIACDHCLCSTENRRDIKYSRLWFLFELEMSENWNENLRLSCYNKYVYSAIDESWKMENILLKEQEKHYEYFPIGQLLIPN

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	353

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.190 Å
Unit-cell length b length_b	83.986 Å
Unit-cell length c length_c	67.424 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.841 Å
Low-resolution limit resolution_low	48.200 Å
R factor r_factor	0.1647
R_work r_work	0.1632
R_free r_free	0.1921

fit	/app/data/saxs_computation/cy/5cyz/5cyz.fit
pddf	/app/data/pr_computation/cy/5cyz/5cyz.pr.out
profile	/app/data/saxs_computation/cy/5cyz/5cyz.dat
