SAXSdb — 5czo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Casein kinase I homolog HRR25

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–394	Mutation：K38R Non-standard monomer：Yes (specific site not provided by mmCIF)	Monopolin complex subunit MAM1 × 1 （P40065） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–394	Mutation：K38R Non-standard monomer：Yes (specific site not provided by mmCIF)	Monopolin complex subunit MAM1 × 1 （P40065） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5CZO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XHL Structure of S. cerevisiae Hrr25 1-394 (K38R mutant) Deposited 2015-01-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–394（394 aa） Fragment：UNP residues 1-394	Mutation：K38R	CKI N-(2-AMINOETHYL)-5-CHLOROISOQUINOLINE-8-SULFONAMIDE × 1 SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 11；293 K；0.1 M CAPS pH 11, 0.2 M lithium sulfate, and 1.5-1.6 M ammonium sulfate	Resolution 3.01 Å R-free 0.285
5CYZ Structure of S. cerevisiae Hrr25:Mam1 complex, form 1 Deposited 2015-07-31	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–394（394 aa）	Mutation：K38R, N-terminal Ala from tag Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；0.1M CHES pH8.9, 5% Tacsimate, 25 mM YCl3, 19% PEG3350	Resolution 1.84 Å R-free 0.192

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HRR25_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–395； UniProt 1–394 Author chain B； PDBConstruct 2–395； UniProt 1–394

Monopolin complex subunit MAM1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P40065

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 87–191	Non-standard monomer：Yes (specific site not provided by mmCIF)	Casein kinase I homolog HRR25 × 1 （P29295） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 87–191	Non-standard monomer：Yes (specific site not provided by mmCIF)	Casein kinase I homolog HRR25 × 1 （P29295） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Imidazole pH 8.0, 14% PEG3350, 6% Glycerol	Resolution 2.89 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5CZO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CYZ Structure of S. cerevisiae Hrr25:Mam1 complex, form 1 Deposited 2015-07-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 87–191（105 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；0.1M CHES pH8.9, 5% Tacsimate, 25 mM YCl3, 19% PEG3350	Resolution 1.84 Å R-free 0.192
5KTB Structure of a complex between S. cerevisiae Csm1 and Mam1 Deposited 2016-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 221–290（70 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 100 mM magnesium chloride, 6% PEG4000	Resolution 3.05 Å R-free 0.241

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MAM1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–105； UniProt 87–191 Author chain D； PDBConstruct 1–105； UniProt 87–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5czo
Deposition date deposition_date	2015-07-31
Structure title title	Structure of S. cerevisiae Hrr25:Mam1 complex, form 2
Keywords keywords	casein kinase, monopolin, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.99 Å
Radius of gyration Rg (electron density) rg_electron	37.62 Å
Forward intensity I(0) i0	188373000.00
Molecular weight molecular_weight	112510.0 kDa
Excluded volume excluded_volume	141390 Å³
Envelope volume envelope_volume	185290 Å³
Hydration-shell volume shell_volume	42378 Å³
Envelope diameter envelope_diameter	130.2 Å
Shell Rg shell_rg	41.70 Å
Envelope Rg envelope_rg	37.50 Å
Shape Rg shape_rg	37.56 Å
Total Rg total_rg	38.06 Å
Total atoms total_atoms	7919
Residues n_residues	928
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

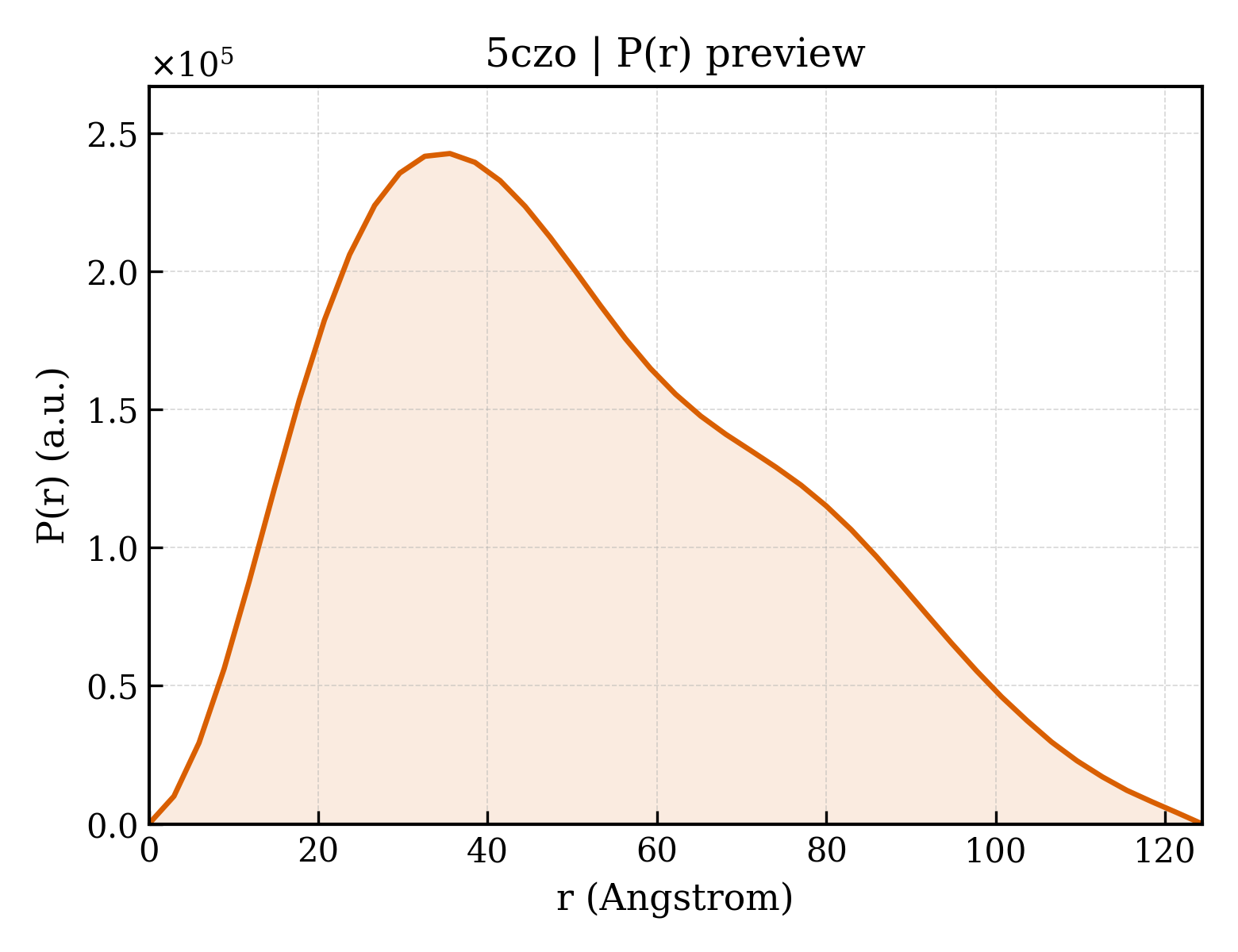

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	124.4 Å
Rg (real space) rg_real	39.51 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	1.8740e+08
I(0) uncertainty (real space) i0_real_error	2.7750e+06
Rg (reciprocal space) rg_reciprocal	38.11 Å
I(0) (reciprocal space) i0_reciprocal	188300000.0000
Solution quality estimate total_estimate	0.6448
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.5 Å
Skewness Skewness skewness	0.466
Kurtosis Kurtosis kurtosis	-0.533
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	3.1530
Highest regularization parameter α highest_alpha	30740000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.876; Stabil: 0.907; Sysdev: 0.000; Positv: 1.000; Valcen: 0.884; Smooth: 0.164

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Casein kinase I homolog HRR25
Molecular weight formula_weight	46249.1 kDa
EC 编号 ec_number	2.7.11.1
Mutation mutation	K38R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7958

AMDLRVGRKFRIGRKIGSGSFGDIYHGTNLISGEEVAIRLESIRSRHPQLDYESRVYRYLSGGVGIPFIRWFGREGEYNAMVIDLLGPSLEDLFNYCHRRFSFKTVIMLALQMFCRIQYIHGRSFIHRDIKPDNFLMGVGRRGSTVHVIDFGLSKKYRDFNTHRHIPYRENKSLTGTARYASVNTHLGIEQSRRDDLESLGYVLIYFCKGSLPWQGLKATTKKQKYDRIMEKKLNVSVETLCSGLPLEFQEYMAYCKNLKFDEKPDYLFLARLFKDLSIKLEYHNDHLFDWTMLRYTKAMVEKQRDLLIEKGDLNANSNAASASNSTDNKSETFNKIKLLAMKKFPTHFHYYKNEDKHNPSPEEIKQQTILNNNAASSLPEELLNALDKGMENLR

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Monopolin complex subunit MAM1
Molecular weight formula_weight	12876.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

EATECLTRSNLKKLQEKIFDRELNDIACDHCLCSTENRRDIKYSRLWFLFELEMSENWNENLRLSCYNKYVYSAIDESWKMENILLKEQEKHYEYFPIGQLLIPN

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▶

8. Citations (1)

▶

Unit-cell length a length_a	52.701 Å
Unit-cell length b length_b	83.841 Å
Unit-cell length c length_c	132.508 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.57 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.894 Å
Low-resolution limit resolution_low	49.692 Å
R factor r_factor	0.2197
R_work r_work	0.2178
R_free r_free	0.2533

fit	/app/data/saxs_computation/cz/5czo/5czo.fit
pddf	/app/data/pr_computation/cz/5czo/5czo.pr.out
profile	/app/data/saxs_computation/cz/5czo/5czo.dat
