5fwk

Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex

Method: ELECTRON MICROSCOPY D_max: 142.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEAT SHOCK PROTEIN HSP 90 BETA

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–724 Chain B； UniProt 1–724	Fragment：FULL LENGTH	HSP90 CO-CHAPERONE CDC37 × 1 （Q16543） CYCLIN-DEPENDENT KINASE 4 × 1 （P11802） ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5FWK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QZ2 Crystal Structure of FKBP52 C-terminal Domain complex with the C-terminal peptide MEEVD of Hsp90 Deposited 2003-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 719–723（5 aa） Chain H 719–723（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；Sodium Citrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.00 Å R-free 0.287
1UYM Human Hsp90-beta with PU3 (9-Butyl-8(3,4,5-trimethoxy-benzyl)-9H-purin-6-ylamine) Deposited 2004-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–220（220 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 1-220	Not recorded	PU3 9-BUTYL-8-(3,4,5-TRIMETHOXYBENZYL)-9H-PURIN-6-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；25% PEG MME 2000, 0.1M NA CACODYLATE, PH6.5, 0.2M MGCL2., pH 6.50	Resolution 2.45 Å R-free 0.294
3FWV Crystal Structure of a Redesigned TPR Protein, T-MOD(VMY), in Complex with MEEVF Peptide Deposited 2009-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 719–723（5 aa） Fragment：C-terminal residues	Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100 mM Tris pH 8.5, 30% PEG MME 2000, 5-10 mM NiCl2, 10% xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.244
3FWV Crystal Structure of a Redesigned TPR Protein, T-MOD(VMY), in Complex with MEEVF Peptide Deposited 2009-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 719–723（5 aa） Fragment：C-terminal residues	Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100 mM Tris pH 8.5, 30% PEG MME 2000, 5-10 mM NiCl2, 10% xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.244
3NMQ Hsp90b N-terminal domain in complex with EC44, a pyrrolo-pyrimidine methoxypyridine inhibitor Deposited 2010-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–223（223 aa） Fragment：N-terminal domain (UNP residues 1-223)	Not recorded	7PP 5-{2-amino-4-chloro-7-[(4-methoxy-3,5-dimethylpyridin-2-yl)methyl]-7H-pyrrolo[2,3-d]pyrimidin-5-yl}-2-methylpent-4-yn-2 -ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；277 K；0.1M Na Cacodylate, 20% PEG 2000 MME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.267
3PRY Crystal structure of the middle domain of human HSP90-beta refined at 2.3 A resolution Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 284–543（260 aa） Fragment：middle domain (UNP residues 284-543)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；25.5% PEG3350, 0.17 M ammonium sulfate, 15% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.28 Å R-free 0.217
3PRY Crystal structure of the middle domain of human HSP90-beta refined at 2.3 A resolution Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 284–543（260 aa） Fragment：middle domain (UNP residues 284-543)	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；25.5% PEG3350, 0.17 M ammonium sulfate, 15% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.28 Å R-free 0.217
3PRY Crystal structure of the middle domain of human HSP90-beta refined at 2.3 A resolution Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 284–543（260 aa） Fragment：middle domain (UNP residues 284-543)	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；25.5% PEG3350, 0.17 M ammonium sulfate, 15% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.28 Å R-free 0.217
5FWL Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
5FWM Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 8.00 Å
5FWP Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM Tris-HCl (pH 7.5), 150 mM NaCl, 10 mM KCl, 10 mM MgCl2, 20 mM Na2MoO4, 2mM DTT, 0.085mM DDM cryo-EM vitrification conditions Single blot from 4 to 6 seconds, at 20C；95 K；Cryogen ETHANE；LIQUID ETHANE	Resolution 7.20 Å
5UC4 Hsp90b N-terminal domain with inhibitors Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–218（218 aa） Fragment：N-terminal domain (UNP residues 1-218)	Not recorded	83S 5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylbenzaldehyde × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.05 Å R-free 0.207
5UC4 Hsp90b N-terminal domain with inhibitors Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–218（218 aa） Fragment：N-terminal domain (UNP residues 1-218)	Not recorded	83S 5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylbenzaldehyde × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.05 Å R-free 0.207
5UC4 Hsp90b N-terminal domain with inhibitors Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–218（218 aa） Fragment：N-terminal domain (UNP residues 1-218)	Not recorded	83S 5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylbenzaldehyde × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.05 Å R-free 0.207
5UC4 Hsp90b N-terminal domain with inhibitors Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–218（218 aa） Fragment：N-terminal domain (UNP residues 1-218)	Not recorded	83S 5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylbenzaldehyde × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.05 Å R-free 0.207
5UCH Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	871 2-(5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylphenyl)acetonitrile × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.65 Å R-free 0.226
5UCH Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	871 2-(5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylphenyl)acetonitrile × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.65 Å R-free 0.226
5UCH Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	871 2-(5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylphenyl)acetonitrile × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.65 Å R-free 0.226
5UCH Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	871 2-(5-Hydroxy-4-(isoindoline-2-carbonyl)-2-isopropylphenyl)acetonitrile × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.65 Å R-free 0.226
5UCI Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	874 (2,4-Dihydroxy-3-(hydroxymethyl)-5-isopropylphenyl)(isoindolin-2-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.70 Å R-free 0.238
5UCI Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	874 (2,4-Dihydroxy-3-(hydroxymethyl)-5-isopropylphenyl)(isoindolin-2-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.70 Å R-free 0.238
5UCI Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	874 (2,4-Dihydroxy-3-(hydroxymethyl)-5-isopropylphenyl)(isoindolin-2-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.70 Å R-free 0.238
5UCI Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	874 (2,4-Dihydroxy-3-(hydroxymethyl)-5-isopropylphenyl)(isoindolin-2-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 2.70 Å R-free 0.238
5UCJ Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	KU3 (5-fluoroisoindolin-2-yl)(4-hydroxy-5-isopropylbenzo[d]isoxazol-7-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 1.69 Å R-free 0.197
5UCJ Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	KU3 (5-fluoroisoindolin-2-yl)(4-hydroxy-5-isopropylbenzo[d]isoxazol-7-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 1.69 Å R-free 0.197
5UCJ Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	KU3 (5-fluoroisoindolin-2-yl)(4-hydroxy-5-isopropylbenzo[d]isoxazol-7-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 1.69 Å R-free 0.197
5UCJ Hsp90b N-terminal domain with inhibitors Deposited 2016-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–218（218 aa） Fragment：UNP residues 1-218	Not recorded	KU3 (5-fluoroisoindolin-2-yl)(4-hydroxy-5-isopropylbenzo[d]isoxazol-7-yl)methanone × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；30% PEG 8,000, 0.2 M sodium acetate, 0.1 sodium cacodylate pH 6.5	Resolution 1.69 Å R-free 0.197
6N8W Structure of Unliganded Hsp90-Beta N-Terminal Domain Deposited 2018-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–231（231 aa）	Not recorded	GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；Tris-HCl pH 8.5, MgCl2, PEG 4000, Glycerol	Resolution 3.09 Å R-free 0.286
6N8W Structure of Unliganded Hsp90-Beta N-Terminal Domain Deposited 2018-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–231（231 aa）	Not recorded	GOL GLYCEROL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；Tris-HCl pH 8.5, MgCl2, PEG 4000, Glycerol	Resolution 3.09 Å R-free 0.286
6N8W Structure of Unliganded Hsp90-Beta N-Terminal Domain Deposited 2018-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–231（231 aa）	Not recorded	GOL GLYCEROL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；Tris-HCl pH 8.5, MgCl2, PEG 4000, Glycerol	Resolution 3.09 Å R-free 0.286
6N8W Structure of Unliganded Hsp90-Beta N-Terminal Domain Deposited 2018-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–231（231 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；Tris-HCl pH 8.5, MgCl2, PEG 4000, Glycerol	Resolution 3.09 Å R-free 0.286
6N8Y Hsp90-beta bound to PU-11-trans Deposited 2018-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–221（221 aa）	Not recorded	KFY 9-[(2E)-but-2-en-1-yl]-8-[(3,4,5-trimethoxyphenyl)methyl]-9H-purin-6-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；MES pH 6.5, MgCl2, PEG 2000 MME. Incubate with PU-11-trans prior to setup.	Resolution 1.55 Å R-free 0.183
7ULJ Hsp90b N-terminal domain in complex with 42C Deposited 2022-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–218（218 aa）	Not recorded	42C N,N-dimethyl-7H-purin-6-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M Sodium cacodylate pH 6.5, 0.1 M Sodium acetate, 5% MPD and 25% PEG8000	Resolution 1.82 Å R-free 0.219
7ULJ Hsp90b N-terminal domain in complex with 42C Deposited 2022-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–218（218 aa）	Not recorded	42C N,N-dimethyl-7H-purin-6-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M Sodium cacodylate pH 6.5, 0.1 M Sodium acetate, 5% MPD and 25% PEG8000	Resolution 1.82 Å R-free 0.219
7ULJ Hsp90b N-terminal domain in complex with 42C Deposited 2022-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–218（218 aa）	Not recorded	42C N,N-dimethyl-7H-purin-6-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M Sodium cacodylate pH 6.5, 0.1 M Sodium acetate, 5% MPD and 25% PEG8000	Resolution 1.82 Å R-free 0.219
7ULJ Hsp90b N-terminal domain in complex with 42C Deposited 2022-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–218（218 aa）	Not recorded	42C N,N-dimethyl-7H-purin-6-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M Sodium cacodylate pH 6.5, 0.1 M Sodium acetate, 5% MPD and 25% PEG8000	Resolution 1.82 Å R-free 0.219
7Z37 Structure of the RAF1-HSP90-CDC37 complex (RHC-II) Deposited 2022-03-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain AP1 3–724（722 aa） Chain BP1 3–724（722 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging	Resolution 3.67 Å
7Z38 Structure of the RAF1-HSP90-CDC37 complex (RHC-I) Deposited 2022-03-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 3–724（722 aa） Chain B 3–724（722 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging	Resolution 3.16 Å
7ZR0 CryoEM structure of HSP90-CDC37-BRAF(V600E) complex. Deposited 2022-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7ZR5 CryoEM structure of HSP90-CDC37-BRAF(V600E)-PP5(closed) complex Deposited 2022-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7ZR6 CryoEM structure of HSP90-CDC37-BRAF(V600E)-PP5(open) complex Deposited 2022-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7ZUB Cryo-EM structure of the indirubin-bound Hsp90-XAP2-AHR complex Deposited 2022-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–724（723 aa） Chain B 2–724（723 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MOO MOLYBDATE ION × 2 JY6 (3~{Z})-3-(3-oxidanylidene-1~{H}-indol-2-ylidene)-1~{H}-indol-2-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å
8EOA Cryo-EM structure of human HSP90B-AIPL1 complex Deposited 2022-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–724（723 aa） Chain B 2–724（723 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM HEPES, 200 mM NaCl, 1 mM TCEP, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8EOB Cryo-EM structure of human HSP90B in the closed state Deposited 2022-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–724（723 aa） Chain B 2–724（723 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM HEPES, 200 mM NaCl, 1 mM TCEP, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8GAE Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-02-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	K POTASSIUM ION × 2 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3UL OF SAMPLE 10C 100% HUMIDITY 30S WAIT TIME 3S BLOT TIME -2 BLOT FORCE	Resolution 3.30 Å
8GFT Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-03-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3uL OF SAMPLE, 10C, 100% HUMIDITY, 30S WAIT TIME, 3S BLOT TIME, -2 BLOT FORCE	Resolution 3.80 Å
8QMO Cryo-EM structure of the benzo[a]pyrene-bound Hsp90-XAP2-AHR complex Deposited 2023-09-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–724（723 aa） Chain B 2–724（723 aa）	Not recorded	MOO MOLYBDATE ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 W62 benzo[a]pyrene × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
9D9H Human Hsp90b nucleotide binding domain in complex with BRI2311 Deposited 2024-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–223（223 aa） Fragment：nucleotide binding domain	Not recorded	A1A26 (1P)-3-amino-6-[({1-[(2S)-2-(2,4-difluorophenyl)-2-hydroxy-3-(1H-1,2,4-triazol-1-yl)propyl]piperidin-4-yl}amino)methyl]-1-(4-phenyl-3,4-dihydro-2H-1,4-benzoxazin-6-yl)thieno[2,3-b]pyrazin-2(1H)-one × 1 CL CHLORIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；21% PEG8000, 0.1M Hepes pH 7.5,1M LiCl	Resolution 1.96 Å R-free 0.208
9D9I Human Hsp90b nucleotide binding domain in complex with BRI2312 Deposited 2024-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–223（223 aa） Fragment：nucleotide binding domain	Not recorded	A1A24 (1P)-3-amino-6-[({1-[(2R)-2-(2,4-difluorophenyl)-2-hydroxy-3-(1H-1,2,4-triazol-1-yl)propyl]piperidin-4-yl}amino)methyl]-1-(4-phenyl-3,4-dihydro-2H-1,4-benzoxazin-6-yl)thieno[2,3-b]pyrazin-2(1H)-one × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；21% PEG6000, 0.1M NaCacodylate pH 6.6, 1M Li	Resolution 1.50 Å R-free 0.187
9W5I AGO maturation complex (AMC): AGO2-miRNA duplex in complex with Hsp90 beta and co-chaperone p23 Deposited 2025-08-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–724（724 aa） Chain B 1–724（724 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å

29 other PDB entries and 50 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HS90B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–727； UniProt 1–724 Author chain B； PDBConstruct 4–727； UniProt 1–724

HSP90 CO-CHAPERONE CDC37

HOMO SAPIENS

UniProt Q16543

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–378	Fragment：FULL LENGTH Non-standard monomer：Yes (specific site not provided by mmCIF)	HEAT SHOCK PROTEIN HSP 90 BETA × 2 （P08238） CYCLIN-DEPENDENT KINASE 4 × 1 （P11802） ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 3.90 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5FWK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1US7 Complex of Hsp90 and P50 Deposited 2003-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 127–378（252 aa） Fragment：C-TERMINAL DOMAIN, RESIDUES 125-378	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；CRYSTALS OF THE COMPLEX WERE GROWN FROM A MIXTURE OF N-HSP90 AND C-P50 AT A FINAL CONCENTRATION OF 0.5MM AND 0.4MM RESPECTIVELY, IN A SOLUTION CONTAINING 12% POLYETHYLENE GLYCOL 4000, 16% ISOPROPANOL AND 100MM SODIUM CITRATE, PH 6.0. CRYSTAL DROPS WERE SET UP USING THE HANGING-DROP VAPOUR DIFFUSION METHOD, INITIALLY AT 4 DEGREES C FOR 48 HOURS AND THEN TRANSFERRED TO 14 DEGREES C.	Resolution 2.30 Å R-free 0.241
2K5B Human CDC37-HSP90 docking model based on NMR Deposited 2008-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 148–276（129 aa） Fragment：residues 148-276	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.8mM [U-100% 15N] human HSP90, 0.8mM [U-100% 15N] human CDC37, 50mM HEPES, 100mM sodium chloride, 1mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8mM [U-100% 15N, U-100% 2H] human HSP90, 0.8mM human CDC37, 50mM HEPES, 100mM sodium chloride, 1mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8mM human HSP90, 0.8mM [U-100% 15N, U-100% 2H] human CDC37, 50mM HEPES, 100mM sodium chloride, 1mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N5X C-terminal domain of Cdc37 cochaperone Deposited 2015-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 288–378（91 aa） Fragment：C-terminal domain of Cdc37, UNP residues 288-378	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.3-0.5 mM [U-100% 13C; U-100% 15N] Cdc37, 100 mM sodium chloride, 50 mM HEPES, 7 % [U-100% 2H] D2O, 93 % H2O, 2 mM DTT, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.3-0.5 mM [U-100% 15N] Cdc37, 100 mM sodium chloride, 50 mM HEPES, 7 % [U-2H] D2O, 93 % H2O, 2 mM DTT, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 0.3-0.5 mM [U-10% 13C; U-100% 15N] Cdc37, 100 mM sodium chloride, 5 mM HEPES, 7 % [U-2H] D2O, 93 % H2O, 2 mM DTT, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2NCA Structural Model for the N-terminal Domain of Human Cdc37 Deposited 2016-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–126（126 aa） Fragment：N-terminal Domain residues 1-120	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.5 mM [U-100% 15N] N-Cdc37, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM U-2H; VILMA methyl 1H/13C N-Cdc37, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] N-Cdc37, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2W0G HSP90 CO-CHAPERONE CDC37 Deposited 2008-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 148–276（129 aa） Fragment：RESIDUES 148-276	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.88 Å R-free 0.246
5FWL Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
5FWM Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 8.00 Å
5FWP Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM Tris-HCl (pH 7.5), 150 mM NaCl, 10 mM KCl, 10 mM MgCl2, 20 mM Na2MoO4, 2mM DTT, 0.085mM DDM cryo-EM vitrification conditions Single blot from 4 to 6 seconds, at 20C；95 K；Cryogen ETHANE；LIQUID ETHANE	Resolution 7.20 Å
7Z37 Structure of the RAF1-HSP90-CDC37 complex (RHC-II) Deposited 2022-03-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain DP1 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging	Resolution 3.67 Å
7Z38 Structure of the RAF1-HSP90-CDC37 complex (RHC-I) Deposited 2022-03-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging	Resolution 3.16 Å
7ZR0 CryoEM structure of HSP90-CDC37-BRAF(V600E) complex. Deposited 2022-05-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–378（378 aa）	Mutation：V600E Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7ZR5 CryoEM structure of HSP90-CDC37-BRAF(V600E)-PP5(closed) complex Deposited 2022-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7ZR6 CryoEM structure of HSP90-CDC37-BRAF(V600E)-PP5(open) complex Deposited 2022-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8GAE Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-02-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	K POTASSIUM ION × 2 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3UL OF SAMPLE 10C 100% HUMIDITY 30S WAIT TIME 3S BLOT TIME -2 BLOT FORCE	Resolution 3.30 Å
8GFT Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-03-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3uL OF SAMPLE, 10C, 100% HUMIDITY, 30S WAIT TIME, 3S BLOT TIME, -2 BLOT FORCE	Resolution 3.80 Å
8U1L Cryo-EM structure of the RAF1-HSP90-CDC37 complex in the closed state Deposited 2023-09-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–378（378 aa）	Mutation：0 Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 4.5 seconds before plunging	Resolution 3.70 Å
9KQN Hsp90-Cdc37-PINK1 complex Deposited 2024-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–378（378 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.84 Å

17 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CDC37_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–378； UniProt 1–378

CYCLIN-DEPENDENT KINASE 4

HOMO SAPIENS

UniProt P11802

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain K； UniProt 1–303	Fragment：FULL LENGTH	HEAT SHOCK PROTEIN HSP 90 BETA × 2 （P08238） HSP90 CO-CHAPERONE CDC37 × 1 （Q16543） ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 3.90 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5FWK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2W96 Crystal Structure of CDK4 in complex with a D-type cyclin Deposited 2009-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–44（44 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303 Chain B 48–303（256 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303	Mutation：YES Mutation：YES	GOL GLYCEROL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.259
2W99 Crystal Structure of CDK4 in complex with a D-type cyclin Deposited 2009-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–44（44 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303 Chain B 48–303（256 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303	Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.270
2W9F Crystal Structure of CDK4 in complex with a D-type cyclin Deposited 2009-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–44（44 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303 Chain B 48–303（256 aa） Fragment：KINASE DOMAIN, RESIDUES 1-44,48-303	Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.85 Å R-free 0.300
2W9Z Crystal Structure of CDK4 in complex with a D-type cyclin Deposited 2009-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–44（44 aa） Chain B 48–303（256 aa）	Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.45 Å R-free 0.272
3G33 Crystal structure of CDK4/cyclin D3 Deposited 2009-02-01	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–303（303 aa） Chain C 1–303（303 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；298 K；0.1 M Hepes, 15% PEG 3,350, 10% tacsimate, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.00 Å R-free 0.314
5FWL Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 1–303（303 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL, 150 MM NACL, 10MM KCL, 10MM MGCL2, 20MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
5FWM Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 1–303（303 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer 20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM；pH 7.5；20MM TRIS-HCL (PH 7.5), 150 MM NACL, 10 MM KCL, 10 MM MGCL2, 20 MM NA2MOO4, 2MM DTT, 0.085MM DDM cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 8.00 Å
5FWP Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex Deposited 2016-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 1–303（303 aa） Fragment：KINASE DOMAIN	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM Tris-HCl (pH 7.5), 150 mM NaCl, 10 mM KCl, 10 mM MgCl2, 20 mM Na2MoO4, 2mM DTT, 0.085mM DDM cryo-EM vitrification conditions Single blot from 4 to 6 seconds, at 20C；95 K；Cryogen ETHANE；LIQUID ETHANE	Resolution 7.20 Å
6P8E Crystal structure of CDK4 in complex with CyclinD1 and P27 Deposited 2019-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–303（302 aa）	Mutation：G48E, G49E	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；295 K；100mM Tris (7.0) 200mM MgCl2 25%PEG 8000	Resolution 2.30 Å R-free 0.222
6P8F Crystal structure of CDK4 in complex with CyclinD1 and P27 Deposited 2019-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–303（302 aa）	Mutation：G48E, G49E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；100mM Tris (7.0) 17% PEG 3350 100 mM CaCl2 10 mM MgCl2	Resolution 2.89 Å R-free 0.242
6P8G Crystal structure of CDK4 in complex with CyclinD1 and P27 Deposited 2019-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–303（302 aa）	Mutation：G48E, G49E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；295 K；100mM Tris (7.0) 200mM MgCl2 10% PEG 8000	Resolution 2.80 Å R-free 0.275
6P8H Crystal structure of CDK4 in complex with CyclinD1 and P21 Deposited 2019-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–303（302 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7；295 K；100mM Tris (7.0), 10% PEG 8000 200mM MgCl2	Resolution 3.19 Å R-free 0.258
7SJ3 Structure of CDK4-Cyclin D3 bound to abemaciclib Deposited 2021-10-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–303（302 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	6ZV N-{5-[(4-ethylpiperazin-1-yl)methyl]pyridin-2-yl}-5-fluoro-4-[4-fluoro-2-methyl-1-(propan-2-yl)-1H-benzimidazol-6-yl]py rimidin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100mM MES pH 6.5, 10% PEG 8000, 200mM sodium acetate, 10mM TCEP	Resolution 2.51 Å R-free 0.234
9CSK Crystal structure of CDK4 cyclin D1 in complex with atirmociclib Deposited 2024-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–303（303 aa）	Mutation：DELTA(43-47)EE	A1AZ4 Atirmociclib × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294.15 K；Salt: 0.1 M DL-Malic acid Polymer: 12.4642857143 %w/v PEG 3350 Buffer: 0.1 M HEPES (pH 6.91) Additive: 10mM DTT [protein] 6mg/ml	Resolution 2.25 Å R-free 0.270
9CSK Crystal structure of CDK4 cyclin D1 in complex with atirmociclib Deposited 2024-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–303（303 aa）	Mutation：DELTA(43-47)EE	A1AZ4 Atirmociclib × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294.15 K；Salt: 0.1 M DL-Malic acid Polymer: 12.4642857143 %w/v PEG 3350 Buffer: 0.1 M HEPES (pH 6.91) Additive: 10mM DTT [protein] 6mg/ml	Resolution 2.25 Å R-free 0.270

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CDK4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain K； PDBConstruct 8–310； UniProt 1–303

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

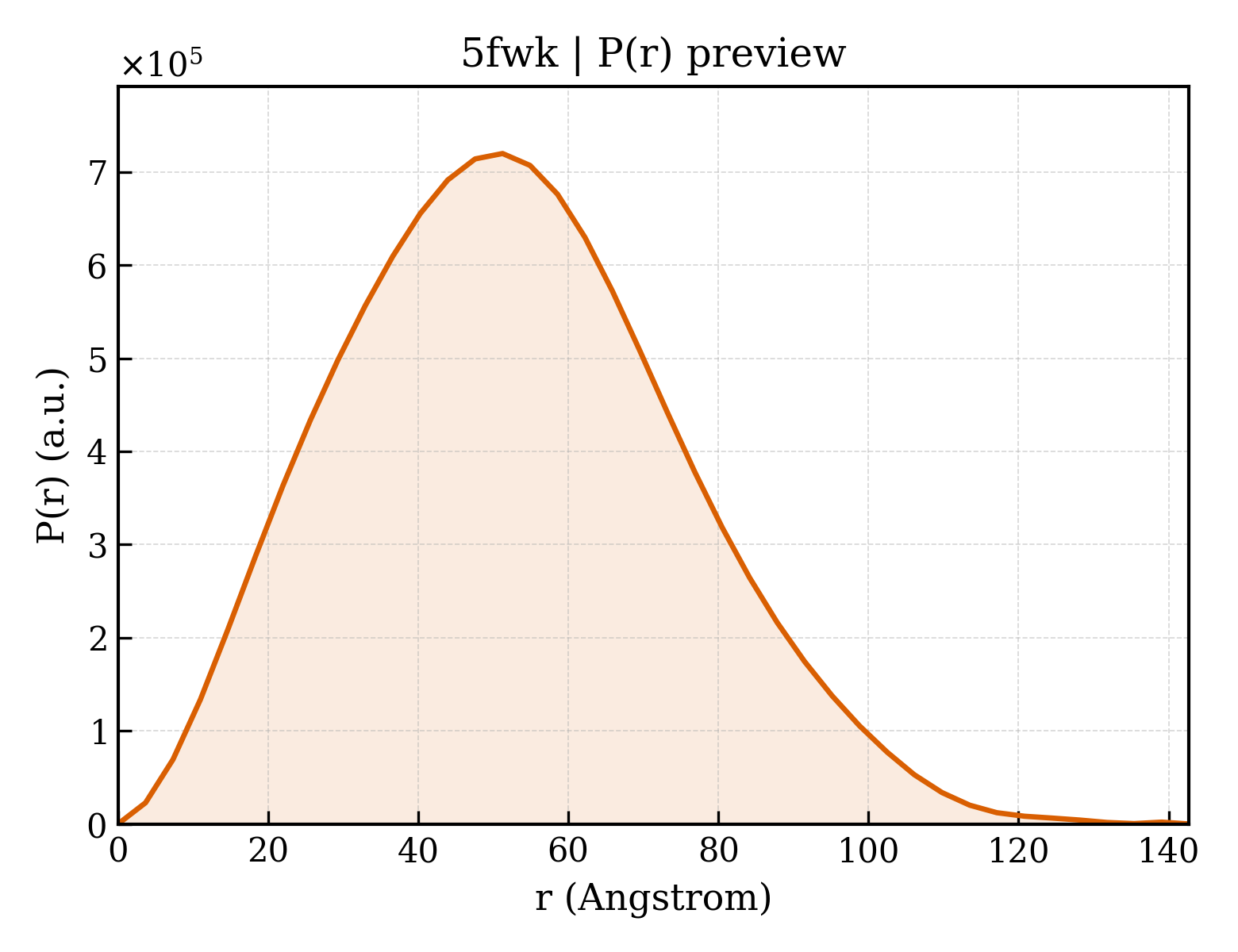

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5fwk
Deposition date deposition_date	2016-02-17
Structure title title	Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex
Keywords keywords	SIGNALING PROTEIN, HSP90, CDC37, CDK4, CHAPERONE, KINASE, UNFOLDING; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.36 Å
Radius of gyration Rg (electron density) rg_electron	39.76 Å
Forward intensity I(0) i0	520137000.00
Molecular weight molecular_weight	186680.0 kDa
Excluded volume excluded_volume	234000 Å³
Envelope volume envelope_volume	309250 Å³
Hydration-shell volume shell_volume	64942 Å³
Envelope diameter envelope_diameter	153.4 Å
Shell Rg shell_rg	45.38 Å
Envelope Rg envelope_rg	39.37 Å
Shape Rg shape_rg	39.74 Å
Total Rg total_rg	40.14 Å
Total atoms total_atoms	26225
Residues n_residues	1611
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	142.7 Å
Rg (real space) rg_real	40.29 Å
Rg uncertainty (real space) rg_real_error	1.34 Å
I(0) (real space) i0_real	5.2010e+08
I(0) uncertainty (real space) i0_real_error	9.1590e+06
Rg (reciprocal space) rg_reciprocal	40.36 Å
I(0) (reciprocal space) i0_reciprocal	520200000.0000
Solution quality estimate total_estimate	0.8621
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	51.2 Å
Skewness Skewness skewness	0.296
Kurtosis Kurtosis kurtosis	-0.257
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	79820000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.745; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HEAT SHOCK PROTEIN HSP 90 BETA
Molecular weight formula_weight	83645.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	26225

GGFMPEEVHHGEEEVETFAFQAEIAQLMSLIINTFYSNKEIFLRELISNASDALDKIRYESLTDPSKLDSGKELKIDIIPNPQERTLTLVDTGIGMTKADLINNLGTIAKSGTKAFMEALQAGADISMIGQFGVGFYSAYLVAEKVVVITKHNDDEQYAWESSAGGSFTVRADHGEPIGRGTKVILHLKEDQTEYLEERRVKEVVKKHSQFIGYPITLYLEKEREKEISDDEAEEEKGEKEEEDKDDEEKPKIEDVGSDEEDDSGKDKKKKTKKIKEKYIDQEELNKTKPIWTRNPDDITQEEYGEFYKSLTNDWEDHLAVKHFSVEGQLEFRALLFIPRRAPFDLFENKKKKNNIKLYVRRVFIMDSCDELIPEYLNFIRGVVDSEDLPLNISREMLQQSKILKVIRKNIVKKCLELFSELAEDKENYKKFYEAFSKNLKLGIHEDSTNRRRLSELLRYHTSQSGDEMTSLSEYVSRMKETQKSIYYITGESKEQVANSAFVERVRKRGFEVVYMTEPIDEYCVQQLKEFDGKSLVSVTKEGLELPEDEEEKKKMEESKAKFENLCKLMKEILDKKVEKVTISNRLVSSPCCIVTSTYGWTANMERIMKAQALRDNSTMGYMMAKKHLEINPDHPIVETLRQKAEADKNDKAVKDLVVLLFETALLSSGFSLEDPQTHSNRIYRMIKLGLGIDEDEVAAEEPNAAVPDEIPPLEGDEDASRMEEVD

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	HSP90 CO-CHAPERONE CDC37
Molecular weight formula_weight	44622.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MVDYSVWDHIEVSDDEDETHPNIDTASLFRWRHQARVERMEQFQKEKEELDRGCRECKRKVAECQRKLKELEVAEGGKAELERLQAEAQQLRKEERSWEQKLEEMRKKEKSMPWNVDTLSKDGFSKSMVNTKPEKTEEDSEEVREQKHKTFVEKYEKQIKHFGMLRRWDDSQKYLSDNVHLVCEETANYLVIWCIDLEVEEKCALMEQVAHQTIVMQFILELAKSLKVDPRACFRQFFTKIKTADRQYMEGFNDELEAFKERVRGRAKLRIEKAMKEYEEEERKKRLGPGGLDPVEVYESLPEELQKCFDVKDVQMLQDAISKMDPTDAKYHMQRCIDSGLWVPNSKASEAKEGEEAGPGDPLLEAVPKTGDEKDVSV

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 3 Entity 3 polymer

Description description	CYCLIN-DEPENDENT KINASE 4
Molecular weight formula_weight	34520.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

GAMDPEFMATSRYEPVAEIGVGAYGTVYKARDPHSGHFVALKSVRVPNGGGGGGGLPISTVREVALLRRLEAFEHPNVVRLMDVCATSRTDREIKVTLVFEHVDQDLRTYLDKAPPPGLPAETIKDLMRQFLRGLDFLHANCIVHRDLKPENILVTSGGTVKLADFGLARIYSYQMALTPVVVTLWYRAPEVLLQSTYATPVDMWSVGCIFAEMFRRKPLFCGNSEADQLGKIFDLIGLPPEDDWPRDVSLPRGAFPPRGPRPVQSVVPEMEESGAQLLLEMLTFNPHKRISAFRALQHSYLHKDEGNPE

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	5fwkA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	565 — Heat Shock Protein 90
Homologous superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

Domain ID domain_id	5fwkA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	5fwkB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	565 — Heat Shock Protein 90
Homologous superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

Domain ID domain_id	5fwkB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	5fwkK00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	388688

fit	/app/data/saxs_computation/fw/5fwk/5fwk.fit
pddf	/app/data/pr_computation/fw/5fwk/5fwk.pr.out
profile	/app/data/saxs_computation/fw/5fwk/5fwk.dat

Atomic cryoEM structure of Hsp90-Cdc37-Cdk4 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEAT SHOCK PROTEIN HSP 90 BETA

State in the Current Structure

Other States of the Same Protein in the Database

HSP90 CO-CHAPERONE CDC37

State in the Current Structure

Other States of the Same Protein in the Database

CYCLIN-DEPENDENT KINASE 4

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
