1. Protein Identity and Related Structures Protein Identity & Related Structures

Gremlin-2

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 22–168 Chain F； UniProt 22–168	Not recorded	Growth/differentiation factor 5 × 2 （P43026）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 22–168 Chain F； UniProt 22–168	Not recorded	Growth/differentiation factor 5 × 2 （P43026）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 22–168 Chain H； UniProt 22–168	Not recorded	Growth/differentiation factor 5 × 2 （P43026）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
4	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 22–168 Chain H； UniProt 22–168	Not recorded	Growth/differentiation factor 5 × 2 （P43026）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5HK5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4JPH Crystal structure of Protein Related to DAN and Cerberus (PRDC) Deposited 2013-03-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 22–168（147 aa） Fragment：UNP residues 22-168 Chain B 22–168（147 aa） Fragment：UNP residues 22-168	Not recorded	GOL GLYCEROL × 8 GSH Glutathione × 2 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；PEG3350, sodium citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.25 Å R-free 0.222
4JPH Crystal structure of Protein Related to DAN and Cerberus (PRDC) Deposited 2013-03-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 22–168（147 aa） Fragment：UNP residues 22-168 Chain D 22–168（147 aa） Fragment：UNP residues 22-168	Not recorded	GOL GLYCEROL × 4 GSH Glutathione × 2 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；PEG3350, sodium citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.25 Å R-free 0.222

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GREM2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–147； UniProt 22–168 Author chain F； PDBConstruct 1–147； UniProt 22–168 Author chain G； PDBConstruct 1–147； UniProt 22–168 Author chain H； PDBConstruct 1–147； UniProt 22–168

Growth/differentiation factor 5

Homo sapiens

UniProt P43026

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 382–501 Chain C； UniProt 382–501	Not recorded	Gremlin-2 × 2 （O88273）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 382–501 Chain C； UniProt 382–501	Not recorded	Gremlin-2 × 2 （O88273）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 382–501 Chain D； UniProt 382–501	Not recorded	Gremlin-2 × 2 （O88273）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
4	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 382–501 Chain D； UniProt 382–501	Not recorded	Gremlin-2 × 2 （O88273）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5HK5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WAQ Crystal structure of human Growth and Differentiation Factor 5 (GDF-5) Deposited 2004-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：RESIDUES 387-501 (RESIDUES 6-120 OF MATURE GDF-5)	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions 25% 2-METHLY-2,4-PENTANEDIOL, 0.1M SODIUM CITRATE PH 4.0	Resolution 2.28 Å R-free 0.237
2BHK Crystal structure of human growth and differentiation factor 5 (GDF5) Deposited 2005-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 382–501（120 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；100 MM SODIUM ACETATE, PH 5.0 30% ISOPROPANOL 14 MG/ML PROTEIN HANGING DROP	Resolution 2.40 Å R-free 0.220
3EVS Crystal structure of the GDF-5:BMP receptor IB complex. Deposited 2008-10-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 387–501（115 aa） Fragment：UNP residues 387-501	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.25；294 K；0.1M sodium acetate, 50% PPG 400, 30mM magnesium sulfate, pH 5.25, VAPOR DIFFUSION, temperature 294K	Resolution 2.10 Å R-free 0.256
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501 Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
6Z3G Repulsive Guidance Molecule A (RGMA) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.5, 24% v/v polyethylene glycol (PEG) 400.	Resolution 2.78 Å R-free 0.288
6Z3H Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 2) Deposited 2020-05-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M (NH4)2SO4, 0.1 M sodium acetate pH 4.6, 35% w/v pentaerythritol ethoxylate (15/4 EO/OH; average MW 797 Da)	Resolution 3.16 Å R-free 0.268
6Z3J Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 1) Deposited 2020-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Mutation：Y487K, Q489D Mutation：Y487K, Q489D	SO4 SULFATE ION × 2 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；294 K；0.2 M Li2SO4, 0.1 M HEPES pH 7.5, 25% v/v PEG 3350.	Resolution 1.65 Å R-free 0.219
6Z3L Repulsive Guidance Molecule C (RGMC, Hemojuvelin, HJV, HFE2) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1 M LiCl, 0.1 M citric acid pH 4.0, 8% gamma-butyrolactone.	Resolution 2.51 Å R-free 0.267
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 387–501（115 aa） Chain H 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain M 387–501（115 aa） Chain N 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
7ZJF R399E, a mutated form of GDF5, for disease modification of osteoarthritis Deposited 2022-04-10	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.15；293 K；01 M Hepes, 32% PEG 400, 230 mM MgCl2, pH 8.15	Resolution 1.30 Å R-free 0.222
8BWL Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium Deposited 2022-12-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 1.96 Å R-free 0.212
8BWM Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4042 eV) Deposited 2022-12-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 2.50 Å R-free 0.278
8BWN Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation Factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4010 eV) Deposited 2022-12-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 100 mM CaCl2, 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 2.57 Å R-free 0.283
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 382–501（120 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 382–501（120 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234

14 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GDF5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–120； UniProt 382–501 Author chain B； PDBConstruct 1–120； UniProt 382–501 Author chain C； PDBConstruct 1–120； UniProt 382–501 Author chain D； PDBConstruct 1–120； UniProt 382–501

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5hk5
Deposition date deposition_date	2016-01-13
Structure title title	Structure of the Grem2-GDF5 Inhibitory Complex
Keywords keywords	DAN-family, Bone Morphogenetic Proteins, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.70 Å
Radius of gyration Rg (electron density) rg_electron	36.82 Å
Forward intensity I(0) i0	183191000.00
Molecular weight molecular_weight	106300.0 kDa
Excluded volume excluded_volume	132160 Å³
Envelope volume envelope_volume	188990 Å³
Hydration-shell volume shell_volume	44616 Å³
Envelope diameter envelope_diameter	139.2 Å
Shell Rg shell_rg	40.61 Å
Envelope Rg envelope_rg	37.26 Å
Shape Rg shape_rg	36.87 Å
Total Rg total_rg	36.92 Å
Total atoms total_atoms	7425
Residues n_residues	925
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

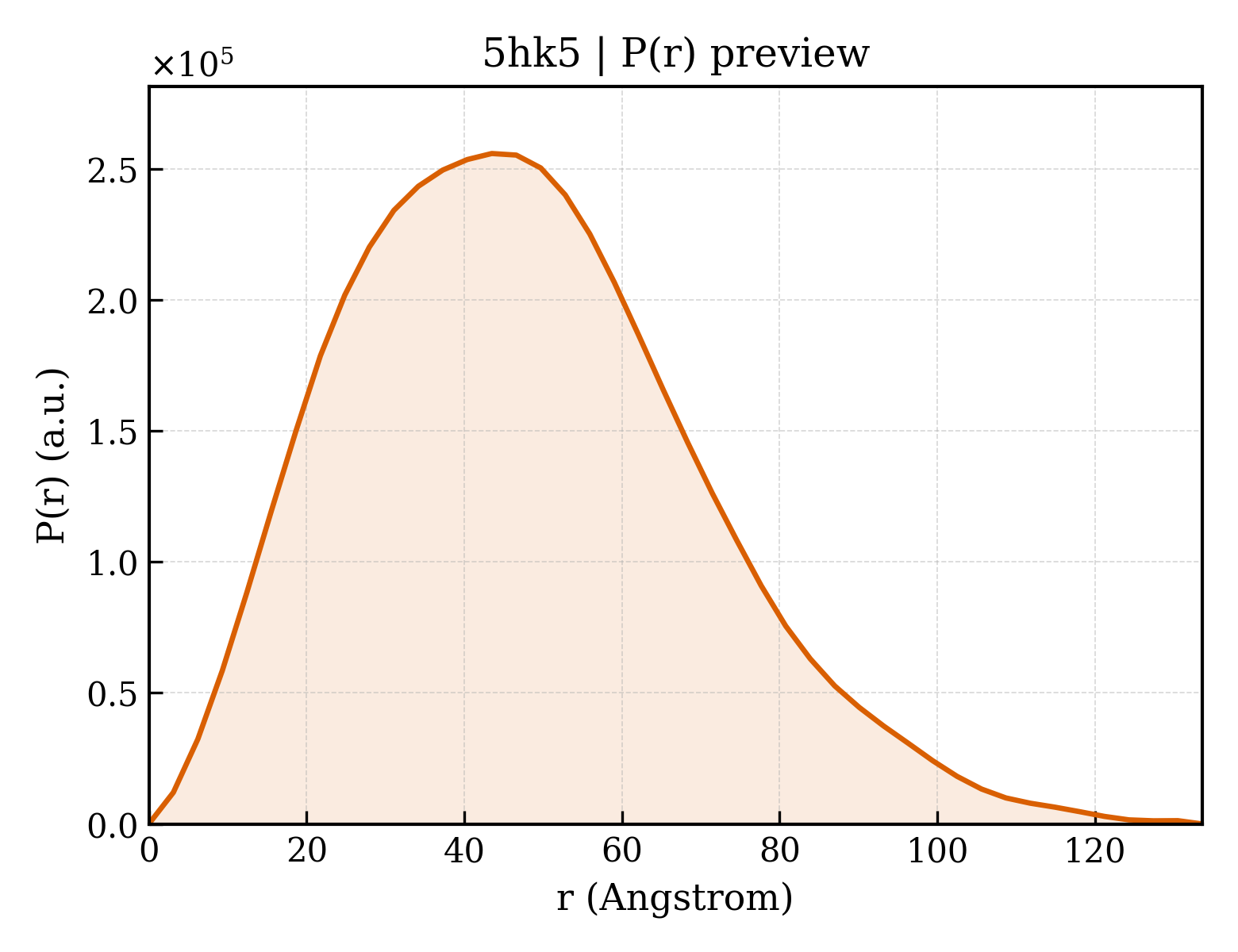

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	133.6 Å
Rg (real space) rg_real	36.87 Å
Rg uncertainty (real space) rg_real_error	1.73 Å
I(0) (real space) i0_real	1.8320e+08
I(0) uncertainty (real space) i0_real_error	3.2660e+06
Rg (reciprocal space) rg_reciprocal	36.77 Å
I(0) (reciprocal space) i0_reciprocal	183200000.0000
Solution quality estimate total_estimate	0.8450
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.5 Å
Skewness Skewness skewness	0.483
Kurtosis Kurtosis kurtosis	-0.023
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	22810000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.734; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.836; Smooth: 0.944

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Gremlin-2
Molecular weight formula_weight	17007.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H
Atom count atom_count	7436

RKNRPAGAIPSPYKDGSSNNSERWHHQIKEVLASSQEALVVTERKYLKSDWCKTQPLRQTVSEEGCRSRTILNRFCYGQCNSFYIPRHVKKEEDSFQSCAFCKPQRVTSVIVELECPGLDPPFRIKKIQKVKHCRCMSVNLSDSDKQ

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Growth/differentiation factor 5
Molecular weight formula_weight	13598.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

APLATRQGKRPSKNLKARCSRKALHVNFKDMGWDDWIIAPLEYEAFHCEGLCEFPLRSHLEPTNHAVIQTLMNSMDPESTPPTCCVPTRLSPISILFIDSANNVVYKQYEDMVVESCGCR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d5hk5a_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.0 — automated matches

Domain ID domain_id	d5hk5b_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.0 — automated matches

Domain ID domain_id	d5hk5c_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.0 — automated matches

Domain ID domain_id	d5hk5d_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.0 — automated matches

CATH v4.4 (7 domains)

Domain ID domain_id	5hk5A00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5B00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5C00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5D00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5E00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5F00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	5hk5G00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

▶

8. Citations (1)

▶

Unit-cell length a length_a	114.721 Å
Unit-cell length b length_b	125.791 Å
Unit-cell length c length_c	125.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	50.550 Å
R factor r_factor	0.2625
R_work r_work	0.2614
R_free r_free	0.2824

fit	/app/data/saxs_computation/hk/5hk5/5hk5.fit
pddf	/app/data/pr_computation/hk/5hk5/5hk5.pr.out
profile	/app/data/saxs_computation/hk/5hk5/5hk5.dat
