1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth/differentiation factor 5

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 382–501 Chain B； UniProt 382–501	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.15；293 K；01 M Hepes, 32% PEG 400, 230 mM MgCl2, pH 8.15	Resolution 1.30 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ZJF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WAQ Crystal structure of human Growth and Differentiation Factor 5 (GDF-5) Deposited 2004-10-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：RESIDUES 387-501 (RESIDUES 6-120 OF MATURE GDF-5)	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions 25% 2-METHLY-2,4-PENTANEDIOL, 0.1M SODIUM CITRATE PH 4.0	Resolution 2.28 Å R-free 0.237
2BHK Crystal structure of human growth and differentiation factor 5 (GDF5) Deposited 2005-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 382–501（120 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；100 MM SODIUM ACETATE, PH 5.0 30% ISOPROPANOL 14 MG/ML PROTEIN HANGING DROP	Resolution 2.40 Å R-free 0.220
3EVS Crystal structure of the GDF-5:BMP receptor IB complex. Deposited 2008-10-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 387–501（115 aa） Fragment：UNP residues 387-501	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.25；294 K；0.1M sodium acetate, 50% PPG 400, 30mM magnesium sulfate, pH 5.25, VAPOR DIFFUSION, temperature 294K	Resolution 2.10 Å R-free 0.256
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501 Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain C 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain C 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 382–501（120 aa） Chain D 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 382–501（120 aa） Chain D 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
6Z3G Repulsive Guidance Molecule A (RGMA) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.5, 24% v/v polyethylene glycol (PEG) 400.	Resolution 2.78 Å R-free 0.288
6Z3H Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 2) Deposited 2020-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M (NH4)2SO4, 0.1 M sodium acetate pH 4.6, 35% w/v pentaerythritol ethoxylate (15/4 EO/OH; average MW 797 Da)	Resolution 3.16 Å R-free 0.268
6Z3J Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 1) Deposited 2020-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Mutation：Y487K, Q489D Mutation：Y487K, Q489D	SO4 SULFATE ION × 2 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；294 K；0.2 M Li2SO4, 0.1 M HEPES pH 7.5, 25% v/v PEG 3350.	Resolution 1.65 Å R-free 0.219
6Z3L Repulsive Guidance Molecule C (RGMC, Hemojuvelin, HJV, HFE2) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1 M LiCl, 0.1 M citric acid pH 4.0, 8% gamma-butyrolactone.	Resolution 2.51 Å R-free 0.267
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 387–501（115 aa） Chain H 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain M 387–501（115 aa） Chain N 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
8BWL Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium Deposited 2022-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 1.96 Å R-free 0.212
8BWM Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4042 eV) Deposited 2022-12-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 2.50 Å R-free 0.278
8BWN Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation Factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4010 eV) Deposited 2022-12-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 100 mM CaCl2, 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 2.57 Å R-free 0.283
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 382–501（120 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 382–501（120 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234

14 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GDF5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–120； UniProt 382–501 Author chain B； PDBConstruct 1–120； UniProt 382–501

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7zjf
Deposition date deposition_date	2022-04-10
Structure title title	R399E, a mutated form of GDF5, for disease modification of osteoarthritis
Keywords keywords	GROWTH FACTOR, GROWTH DIFFERENTIATION FACTOR, BONE MORPHOGENETIC, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.59 Å
Radius of gyration Rg (electron density) rg_electron	20.58 Å
Forward intensity I(0) i0	11438800.00
Molecular weight molecular_weight	24596.0 kDa
Excluded volume excluded_volume	30478 Å³
Envelope volume envelope_volume	36603 Å³
Hydration-shell volume shell_volume	16119 Å³
Envelope diameter envelope_diameter	81.3 Å
Shell Rg shell_rg	25.41 Å
Envelope Rg envelope_rg	21.13 Å
Shape Rg shape_rg	20.67 Å
Total Rg total_rg	21.03 Å
Total atoms total_atoms	1716
Residues n_residues	217
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.7 Å
Rg (real space) rg_real	20.81 Å
Rg uncertainty (real space) rg_real_error	0.84 Å
I(0) (real space) i0_real	1.1440e+07
I(0) uncertainty (real space) i0_real_error	1.7150e+05
Rg (reciprocal space) rg_reciprocal	20.77 Å
I(0) (reciprocal space) i0_reciprocal	11440000.0000
Solution quality estimate total_estimate	0.7756
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.7 Å
Skewness Skewness skewness	0.693
Kurtosis Kurtosis kurtosis	0.299
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1773000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.500; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.624; Smooth: 0.953

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.426 Å
Unit-cell length b length_b	84.732 Å
Unit-cell length c length_c	98.448 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	49.220 Å
R factor r_factor	0.2077
R_work r_work	0.2070
R_free r_free	0.2219

Description description	Growth/differentiation factor 5
Molecular weight formula_weight	13570.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2107

R399E, a mutated form of GDF5, for disease modification of osteoarthritis

1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth/differentiation factor 5

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

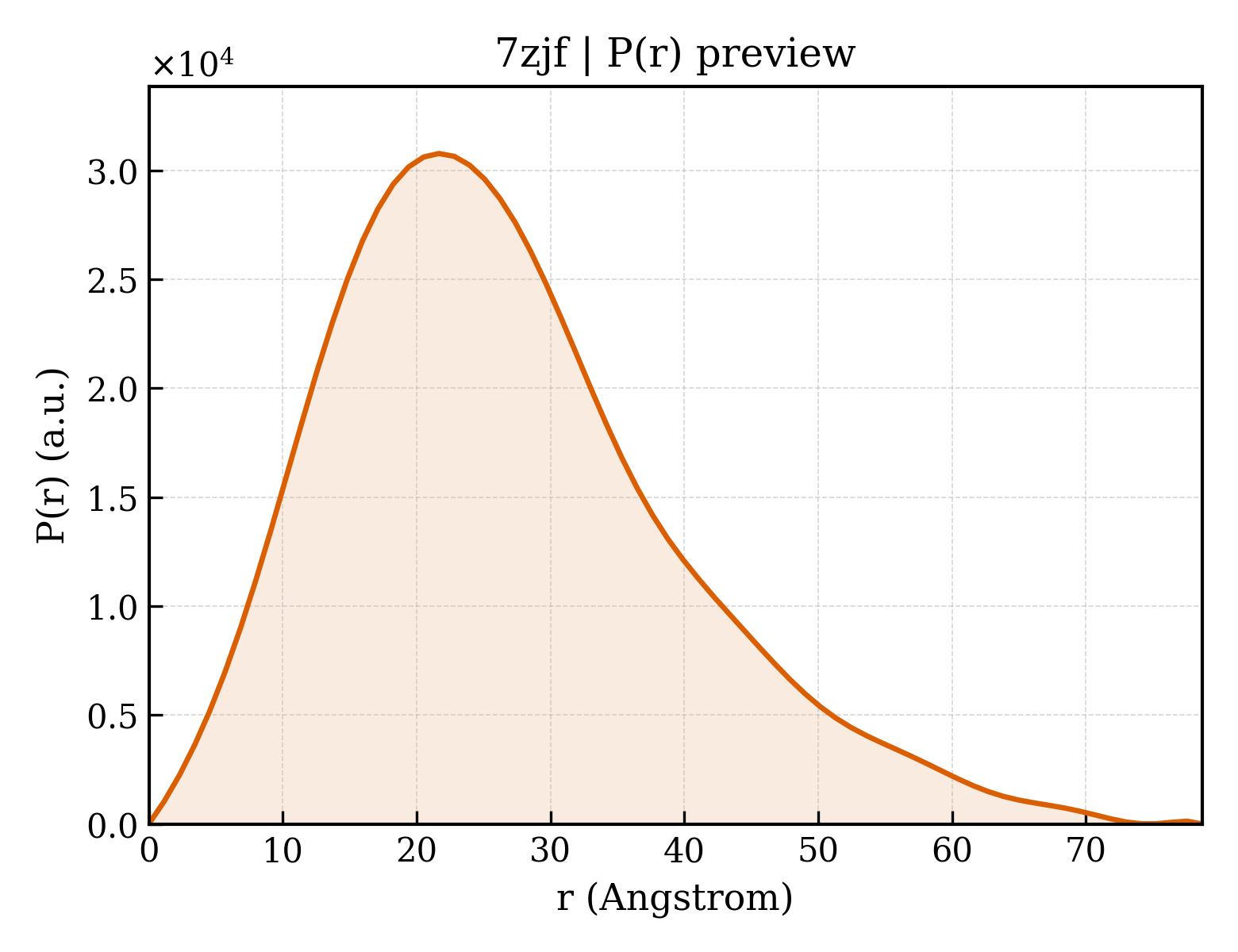

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	306

fit	/app/data/saxs_computation/zj/7zjf/7zjf.fit
pddf	/app/data/pr_computation/zj/7zjf/7zjf.pr.out
profile	/app/data/saxs_computation/zj/7zjf/7zjf.dat
