1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth/differentiation factor 5

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 387–501	Fragment：UNP residues 387-501	Bone morphogenetic protein receptor type-1B × 2 （P36898）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.25；294 K；0.1M sodium acetate, 50% PPG 400, 30mM magnesium sulfate, pH 5.25, VAPOR DIFFUSION, temperature 294K	Resolution 2.10 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3EVS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WAQ Crystal structure of human Growth and Differentiation Factor 5 (GDF-5) Deposited 2004-10-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：RESIDUES 387-501 (RESIDUES 6-120 OF MATURE GDF-5)	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions 25% 2-METHLY-2,4-PENTANEDIOL, 0.1M SODIUM CITRATE PH 4.0	Resolution 2.28 Å R-free 0.237
2BHK Crystal structure of human growth and differentiation factor 5 (GDF5) Deposited 2005-01-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 382–501（120 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；100 MM SODIUM ACETATE, PH 5.0 30% ISOPROPANOL 14 MG/ML PROTEIN HANGING DROP	Resolution 2.40 Å R-free 0.220
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
3QB4 Crystal structure of a TGF-beta ligand-receptor complex Deposited 2011-01-12	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Fragment：GDF-5, residues 387-501 Chain C 387–501（115 aa） Fragment：GDF-5, residues 387-501	Mutation：R57A Mutation：R57A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes pH 7.5, 0.2M NaCl 20% (w/v) PEG3350 , VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.28 Å R-free 0.241
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain C 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain C 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 382–501（120 aa） Chain D 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
5HK5 Structure of the Grem2-GDF5 Inhibitory Complex Deposited 2016-01-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 382–501（120 aa） Chain D 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HEPES, ammonium chloride, ethylammonium nitrate	Resolution 2.90 Å R-free 0.282
6Z3G Repulsive Guidance Molecule A (RGMA) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.5, 24% v/v polyethylene glycol (PEG) 400.	Resolution 2.78 Å R-free 0.288
6Z3H Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 2) Deposited 2020-05-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M (NH4)2SO4, 0.1 M sodium acetate pH 4.6, 35% w/v pentaerythritol ethoxylate (15/4 EO/OH; average MW 797 Da)	Resolution 3.16 Å R-free 0.268
6Z3J Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 1) Deposited 2020-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Mutation：Y487K, Q489D Mutation：Y487K, Q489D	SO4 SULFATE ION × 2 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；294 K；0.2 M Li2SO4, 0.1 M HEPES pH 7.5, 25% v/v PEG 3350.	Resolution 1.65 Å R-free 0.219
6Z3L Repulsive Guidance Molecule C (RGMC, Hemojuvelin, HJV, HFE2) in complex with Growth Differentiation Factor 5 (GDF5) Deposited 2020-05-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 387–501（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；1 M LiCl, 0.1 M citric acid pH 4.0, 8% gamma-butyrolactone.	Resolution 2.51 Å R-free 0.267
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 387–501（115 aa） Chain B 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 387–501（115 aa） Chain H 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain M 387–501（115 aa） Chain N 387–501（115 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
7ZJF R399E, a mutated form of GDF5, for disease modification of osteoarthritis Deposited 2022-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.15；293 K；01 M Hepes, 32% PEG 400, 230 mM MgCl2, pH 8.15	Resolution 1.30 Å R-free 0.222
8BWL Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium Deposited 2022-12-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 1.96 Å R-free 0.212
8BWM Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4042 eV) Deposited 2022-12-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；12.1% w/v PEG 1000, 12.1% w/v PEG 3350, 12.1% v/v MPD, 97 mM CaCl2, 0.097 M Bicine/Trizma pH 8.5	Resolution 2.50 Å R-free 0.278
8BWN Crystal structure of human Twisted gastrulation protein homolog 1 (TWSG1) in complex with human Growth Differentiation Factor 5 (GDF5) and calcium, long-wavelength X-ray dataset (4010 eV) Deposited 2022-12-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 382–501（120 aa） Chain B 382–501（120 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 100 mM CaCl2, 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 2.57 Å R-free 0.283
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 382–501（120 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 382–501（120 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234

14 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GDF5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 3–117； UniProt 387–501

Bone morphogenetic protein receptor type-1B

Mus musculus

UniProt P36898

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 14–126	Fragment：Extracellular domain	Growth/differentiation factor 5 × 2 （P43026）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.25；294 K；0.1M sodium acetate, 50% PPG 400, 30mM magnesium sulfate, pH 5.25, VAPOR DIFFUSION, temperature 294K	Resolution 2.10 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	BMR1B_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 7–119； UniProt 14–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3evs
Deposition date deposition_date	2008-10-13
Structure title title	Crystal structure of the GDF-5:BMP receptor IB complex.
Keywords keywords	;ligand-receptor complex, cystin-knot ligand; three-finger toxn fold (receptor), Cleavage on pair of basic residues, Cytokine, Disease mutation, Dwarfism, Glycoprotein, Growth factor, Secreted, ATP-binding, Kinase, Magnesium, Manganese, Membrane, Metal-binding, Nucleotide-binding, Receptor, Serine/threonine-protein kinase, Transferase, Transmembrane, CYTOKINE-Transferase Receptor COMPLEX ;; CYTOKINE/Transferase Receptor
Experimental Method method	X-RAY DIFFRACTION

▼

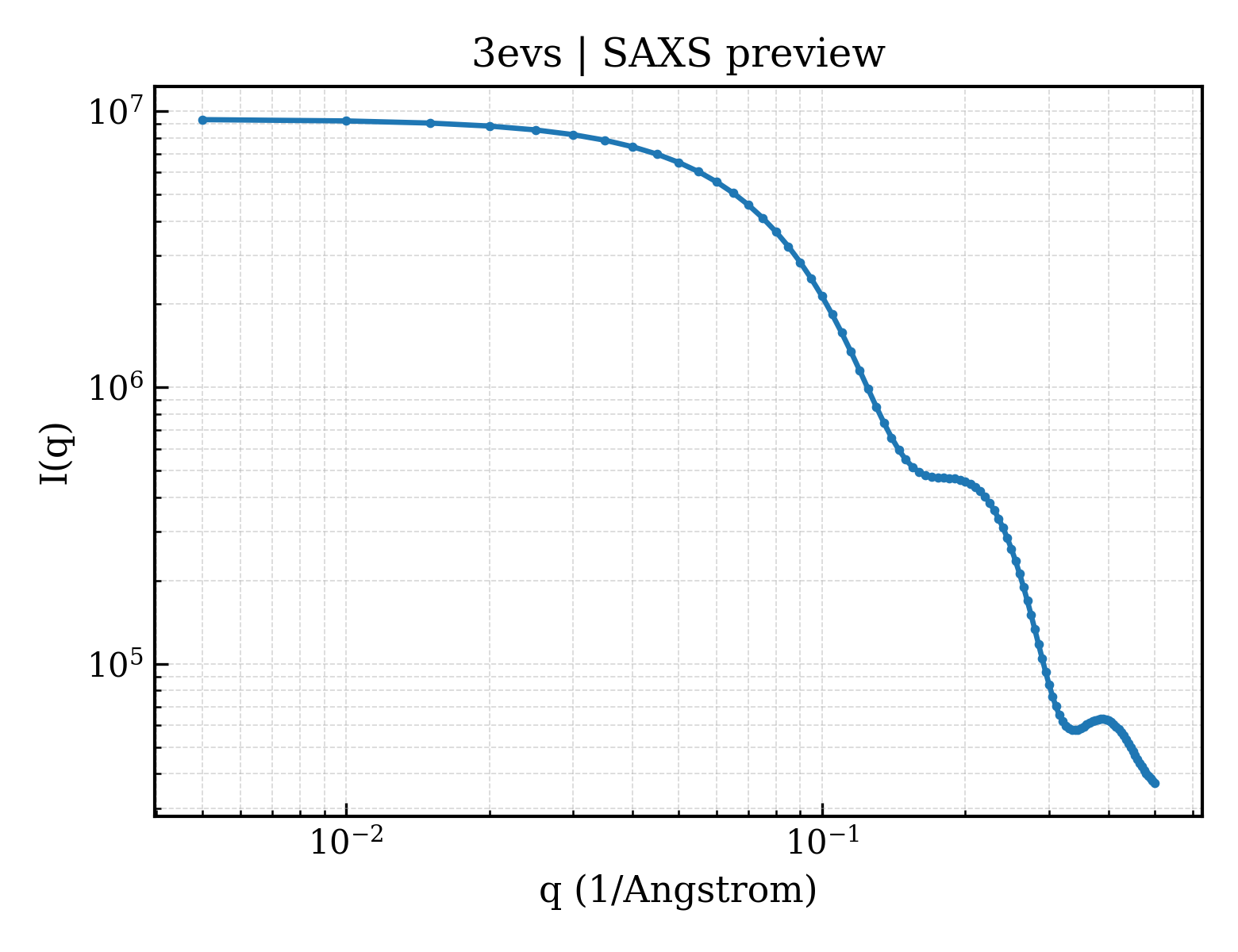

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.76 Å
Radius of gyration Rg (electron density) rg_electron	20.06 Å
Forward intensity I(0) i0	9343500.00
Molecular weight molecular_weight	21355.0 kDa
Excluded volume excluded_volume	26038 Å³
Envelope volume envelope_volume	35230 Å³
Hydration-shell volume shell_volume	15275 Å³
Envelope diameter envelope_diameter	62.5 Å
Shell Rg shell_rg	25.60 Å
Envelope Rg envelope_rg	19.47 Å
Shape Rg shape_rg	20.05 Å
Total Rg total_rg	20.87 Å
Total atoms total_atoms	1483
Residues n_residues	189
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

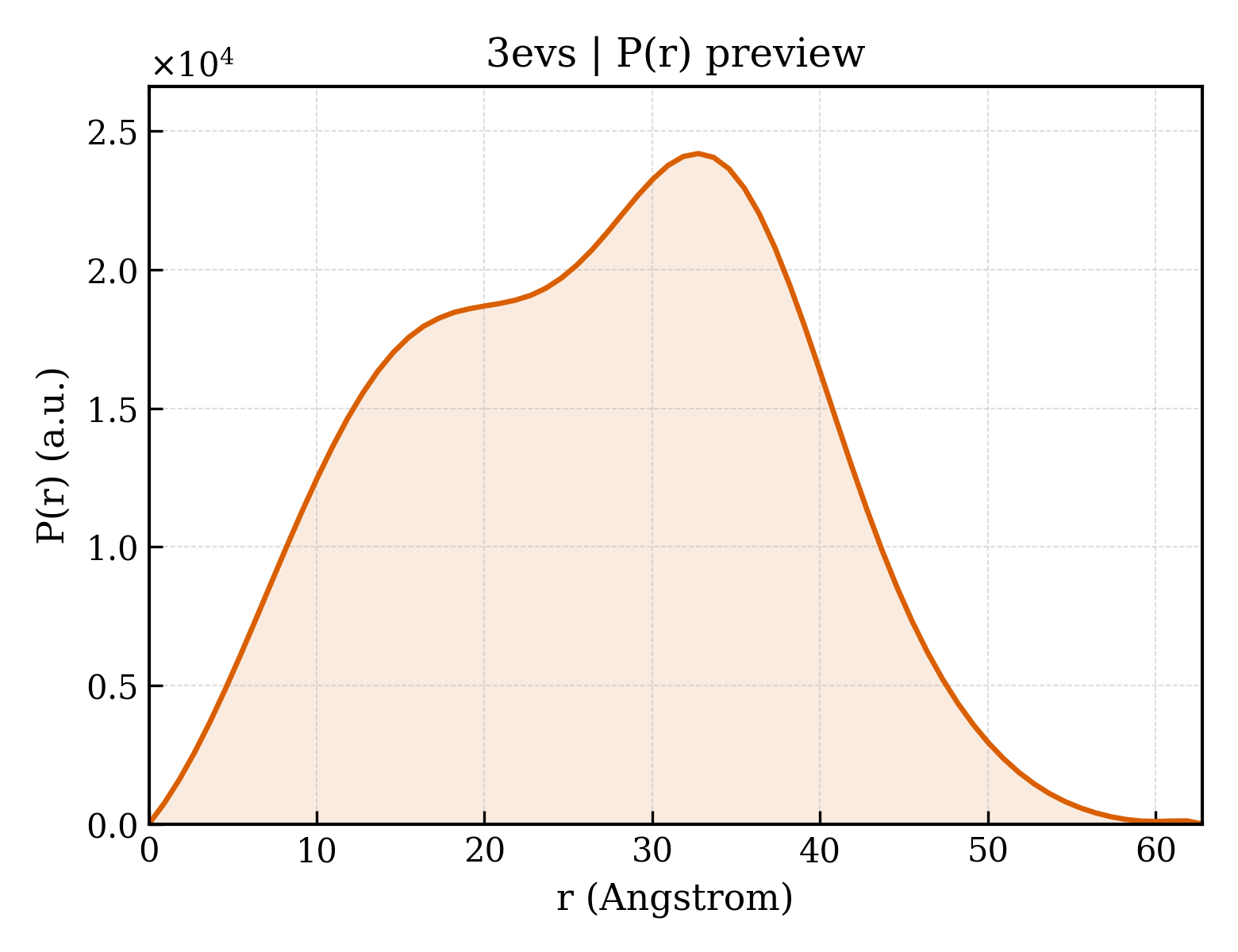

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	62.8 Å
Rg (real space) rg_real	20.65 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	9.3430e+06
I(0) uncertainty (real space) i0_real_error	1.2230e+05
Rg (reciprocal space) rg_reciprocal	20.67 Å
I(0) (reciprocal space) i0_reciprocal	9344000.0000
Solution quality estimate total_estimate	0.9001
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.8 Å
Skewness Skewness skewness	-0.028
Kurtosis Kurtosis kurtosis	-0.719
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	938600.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Growth/differentiation factor 5
Molecular weight formula_weight	13405.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	1587

MKRQGKRPSKNLKARCSRKALHVNFKDMGWDDWIIAPLEYEAFHCEGLCEFPLRSHLEPTNHAVIQTLMNSMDPESTPPTCCVPTRLSPISILFIDSANNVVYKQYEDMVVESCGCR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Bone morphogenetic protein receptor type-1B
Molecular weight formula_weight	13214.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSGAMAKKEDGESTAPTPRPKILRCKCHHHCPEDSVNNICSTDGYCFTMIEEDDSGMPVVTSGCLGLEGSDFQCRDTPIPHQRRSIECCTERNECNKDLHPTLPPLKDRDFVDGPIHHK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3evsb_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.0 — automated matches

Domain ID domain_id	d3evsc_
Class class	g — Small proteins
Fold Fold fold	g.7 — Snake toxin-like
Superfamily Superfamily superfamily	g.7.1 — Snake toxin-like
Family Family family	g.7.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	3evsB00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	3evsC00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	60 — CD59
Homologous superfamily homologous superfamily	10 — CD59

▶

8. Citations (1)

▶

Unit-cell length a length_a	76.455 Å
Unit-cell length b length_b	76.455 Å
Unit-cell length c length_c	82.784 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	34.190 Å
R factor r_factor	0.2170
R_work r_work	0.2150
R_free r_free	0.2560

fit	/app/data/saxs_computation/ev/3evs/3evs.fit
pddf	/app/data/pr_computation/ev/3evs/3evs.pr.out
profile	/app/data/saxs_computation/ev/3evs/3evs.dat
