SAXSdb — 5iok

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription initiation factor TFIID subunit 14

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–137	Not recorded	(ACE)QTAR(KCR)ST × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；44% PEG600 (v/v) and 0.2 M citric acid (pH 6.0)	Resolution 2.22 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5IOK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2L7E The structure of a domain from yeast Deposited 2010-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–123（123 aa） Fragment：YEATS domain residues 1-123	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；298 K；Ionic strength (raw mmCIF value) 0.12；Pressure ambient NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 100% D2O \| 100% D2O	Resolution not provided
3QRL Crystal Structure of the Taf14 YEATS domain Deposited 2011-02-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–137（137 aa） Fragment：YEATS Domain (UNP Residues 1-137)	Not recorded	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；42.5% (v/v) PEG-600, 100 mM Sodium Citrate pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.70 Å R-free 0.235
5D7E Crystal structure of Taf14 YEATS domain in complex with H3K9ac Deposited 2015-08-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–137（137 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 3 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.2 M sodium citrate and 48% PEG600 (v/v)	Resolution 1.90 Å R-free 0.218
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric	Chain n 1–244（244 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 15.30 Å
6LQZ Solution structure of Taf14ET-Sth1EBMC Deposited 2020-01-15	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 174–244（71 aa） Fragment：Taf14ET	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Taf14ET, 1.5 mM [U-100% 13C; U-100% 15N] Sth1EBMC, 20 mM Phosphate buffer, 100 mM sodium chloride, 1 % v/v inhabitor cocktail, 0.04 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6MIN Crystal structure of Taf14 YEATS domain G82A mutant in complex with histone H3K9cr Deposited 2018-09-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–137（137 aa） Fragment：YEATS domain residues 1-137	Mutation：G82A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；44% PEG600 (v/v) and 0.2 M citric acid (pH 6.0)	Resolution 1.90 Å R-free 0.256
6MIO Crystal structure of Taf14 YEATS domain in complex with histone H3K9pr Deposited 2018-09-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–137（137 aa） Fragment：YEATS domain residues 1-137	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；46% PEG600 (v/v) and 0.2 M citric acid (pH 6.0)	Resolution 1.85 Å R-free 0.232
6MIP Crystal structure of Taf14 YEATS domain G82A mutant Deposited 2018-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–137（137 aa） Fragment：YEATS domain residues 1-137	Mutation：G82A	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；48% PEG600 with 0.2 M sodium citrate (pH 6.0)	Resolution 2.00 Å R-free 0.219
6MIQ Crystal structure of Taf14 YEATS domain in complex with histone H3K9bu Deposited 2018-09-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–137（137 aa） Fragment：YEATS domain residues 1-137	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；44% PEG600 (v/v) and 0.2 M citric acid (pH 6.0)	Resolution 1.75 Å R-free 0.218
7F4A Crystal structure of Taf14 YEATS domain in complex with H3K9bz peptide Deposited 2021-06-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–137（136 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；48% PEG 600, 0.04M citric acid	Resolution 2.00 Å R-free 0.204
7UHE Taf14 ET domain in complex with C-terminal tail of Taf2 Deposited 2022-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 168–243（76 aa） Fragment：ET domain Chain C 168–243（76 aa） Fragment：ET domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；296 K；2.4 M sodium malonate	Resolution 1.66 Å R-free 0.234
8U77 Crystal structure of Taf14 in complex with Yng1 Deposited 2023-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 176–243（68 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；40% PEG 400, 0.1 M Tris pH 8.5, 0.2 M LiSO4	Resolution 1.93 Å R-free 0.221
8U77 Crystal structure of Taf14 in complex with Yng1 Deposited 2023-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 176–243（68 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；40% PEG 400, 0.1 M Tris pH 8.5, 0.2 M LiSO4	Resolution 1.93 Å R-free 0.221
8U77 Crystal structure of Taf14 in complex with Yng1 Deposited 2023-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 176–243（68 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；40% PEG 400, 0.1 M Tris pH 8.5, 0.2 M LiSO4	Resolution 1.93 Å R-free 0.221
8U77 Crystal structure of Taf14 in complex with Yng1 Deposited 2023-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 176–243（68 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；40% PEG 400, 0.1 M Tris pH 8.5, 0.2 M LiSO4	Resolution 1.93 Å R-free 0.221
9UUO The NuA3 histone acetyltransferase complex Deposited 2025-05-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–244（244 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.68 Å
9UUS The NuA3 histone acetyltransferase complex bound to acetyl-CoA and H3 tail Deposited 2025-05-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–244（244 aa）	Not recorded	ZN ZINC ION × 5 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9VKW Cryo-EM structure of the NuA3 complex bound to Ace-coenzyme A Deposited 2025-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–244（244 aa）	Not recorded	ZN ZINC ION × 4 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TAF14_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–142； UniProt 1–137

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5iok
Deposition date deposition_date	2016-03-08
Structure title title	Crystal structure of Taf14 YEATS domain in complex with histone H3K9cr
Keywords keywords	crotonylation, crotonyllysine, epigenetics, reader, histone H3, H3K9cr, transcription; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.92 Å
Radius of gyration Rg (electron density) rg_electron	17.11 Å
Forward intensity I(0) i0	5146550.00
Molecular weight molecular_weight	17255.0 kDa
Excluded volume excluded_volume	21946 Å³
Envelope volume envelope_volume	25727 Å³
Hydration-shell volume shell_volume	13419 Å³
Envelope diameter envelope_diameter	66.8 Å
Shell Rg shell_rg	22.21 Å
Envelope Rg envelope_rg	17.69 Å
Shape Rg shape_rg	17.06 Å
Total Rg total_rg	18.18 Å
Total atoms total_atoms	1221
Residues n_residues	148
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

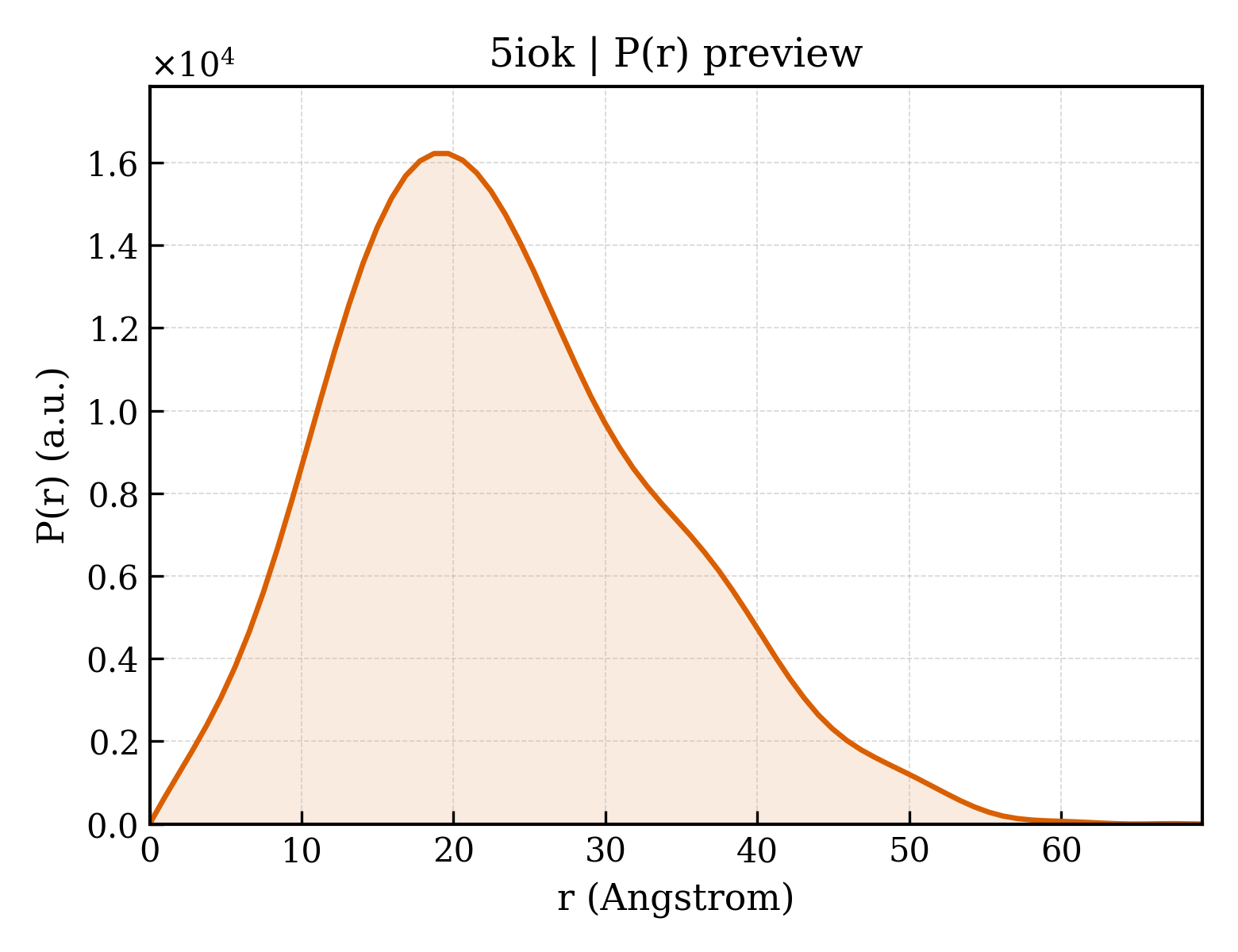

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.3 Å
Rg (real space) rg_real	18.00 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	5.1470e+06
I(0) uncertainty (real space) i0_real_error	6.9700e+04
Rg (reciprocal space) rg_reciprocal	17.99 Å
I(0) (reciprocal space) i0_reciprocal	5147000.0000
Solution quality estimate total_estimate	0.7828
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	67.4 Å
Skewness Skewness skewness	0.488
Kurtosis Kurtosis kurtosis	-0.121
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1446000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.477; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.744; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transcription initiation factor TFIID subunit 14
Molecular weight formula_weight	16180.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1365

GPLGSMVATVKRTIRIKTQQHILPEVPPVENFPVRQWSIEIVLLDDEGKEIPATIFDKVIYHLHPTFANPNRTFTDPPFRIEEQGWGGFPLDISVFLLEKAGERKIPHDLNFLQESYEVEHVIQIPLNKPLLTEELAKSGST

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	(ACE)QTAR(KCR)ST
Molecular weight formula_weight	886.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

XQTARXST

Entity 3 Entity 3 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	113

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	5iokA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1970 — YEATS domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	113.095 Å
Unit-cell length b length_b	113.095 Å
Unit-cell length c length_c	26.176 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.220 Å
Low-resolution limit resolution_low	32.648 Å
R factor r_factor	0.2117
R_work r_work	0.2101
R_free r_free	0.2391

fit	/app/data/saxs_computation/io/5iok/5iok.fit
pddf	/app/data/pr_computation/io/5iok/5iok.pr.out
profile	/app/data/saxs_computation/io/5iok/5iok.dat
