SAXSdb — 5izu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SH3 and multiple ankyrin repeat domains protein 3

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	peptide from Disks large-associated protein 3 × 2 （Q6PFD5） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SHAN3_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–139； UniProt 533–665 Author chain C； PDBConstruct 7–139； UniProt 533–665

peptide from Disks large-associated protein 3

OrganismNot specified

UniProt Q6PFD5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	SH3 and multiple ankyrin repeat domains protein 3 × 2 （Q4ACU6） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DLGP3_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–15； UniProt 963–977 Author chain D； PDBConstruct 1–15； UniProt 963–977

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5izu
Deposition date deposition_date	2016-03-26
Structure title title	A new binding site outside the canonical PDZ domain determines the specific interaction between Shank and SAPAP and their function
Keywords keywords	Shank, SAPAP, PDZ, extension, synapse, specific interaction, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5izu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5izu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

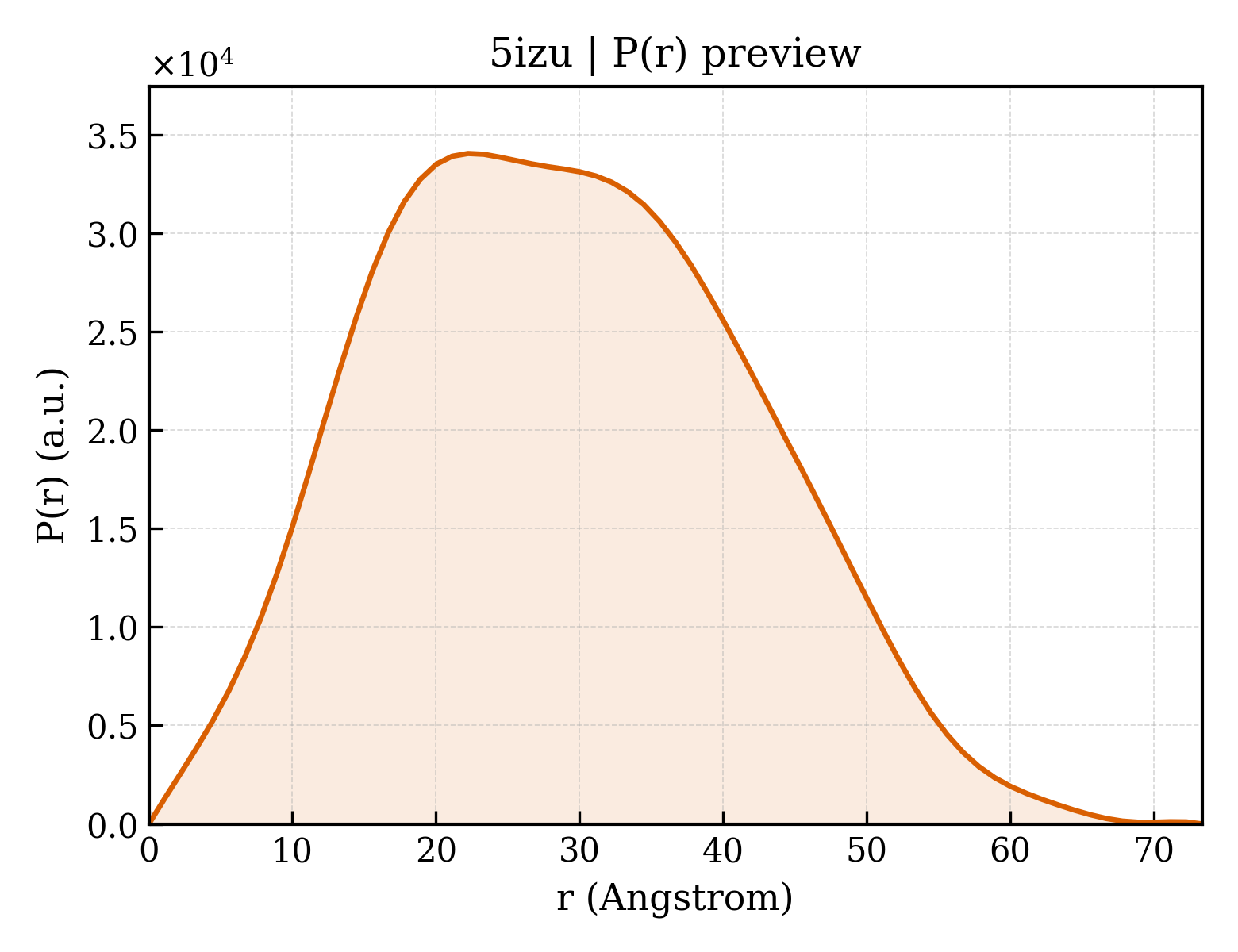

5izu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.38 Å
Rg (electron density)	21.36 Å
Total Rg	22.26 Å
Atom count	2137
Residues	278
Excluded volume	38197 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5izu__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SH3 and multiple ankyrin repeat domains protein 3
Molecular weight formula_weight	15565.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	2232

GPGSEFDTRHETREDRTKRLFRHYTVGSYDSLTSHSDYVIDDKVAILQKRDHEGFGFVLRGAKAETPIEEFTPTPAFPALQYLESVDVEGVAWRAGLRTGDFLIEVNGVNVVKVGHKQVVGLIRQGGNRLVMKVVSVTR

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	peptide from Disks large-associated protein 3
Molecular weight formula_weight	1719.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

ADSIEIYIPEAQTRL

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	95

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	5izuC01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	72.824 Å
Unit-cell length b length_b	72.824 Å
Unit-cell length c length_c	116.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 1 2
Space-group number int_tables_number	151
Crystal system crystal_system	—

Resolution resolution	2.494 Å
Low-resolution limit resolution_low	42.763 Å
R factor r_factor	0.1863
R_work r_work	0.1831
R_free r_free	0.2506
