5ksa

Bel602-DQ8.5-glia-gamma1 complex

Method: X-RAY DIFFRACTION D_max: 136.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class II histocompatibility antigen, DQ alpha 1 chain

Homo sapiens

UniProt P01909

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 24–206	Not recorded	HLA class II histocompatibility antigen, DQ beta 1 chain × 1 （O19707） Bel602 alpha TRAV2001 × 1 Bel602 beta TRBV901 × 1 DQ8.5-glia-gamma1 peptide × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Ca-Acetate, 21 % PEG3350, Tris pH 8.0	Resolution 2.00 Å R-free 0.206

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5KSA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1S9V Crystal structure of HLA-DQ2 complexed with deamidated gliadin peptide Deposited 2004-02-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–216（193 aa） Fragment：residues (-1)-191	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；300 K；sodium acetate, ammonium acetate, ammonium sulfate, ethylene glycol, PEG 3350, pH 3.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.22 Å R-free 0.283
1S9V Crystal structure of HLA-DQ2 complexed with deamidated gliadin peptide Deposited 2004-02-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–216（193 aa） Fragment：residues (-1)-191	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；300 K；sodium acetate, ammonium acetate, ammonium sulfate, ethylene glycol, PEG 3350, pH 3.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.22 Å R-free 0.283
4GG6 Protein complex Deposited 2012-08-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa） Fragment：EXTRACELLULAR DOMAINS, UNP RESIDUES 24-206	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.2M SODIUM ACETATE, 0.1M MES PH 6.5, 17% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.20 Å R-free 0.285
4GG6 Protein complex Deposited 2012-08-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–206（183 aa） Fragment：EXTRACELLULAR DOMAINS, UNP RESIDUES 24-206	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.2M SODIUM ACETATE, 0.1M MES PH 6.5, 17% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.20 Å R-free 0.285
4OZF JR5.1 protein complex Deposited 2014-02-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15 - 0.25M CaOAc, 0.1M Tris/HCl, 12-18% PEG3350, Additives:2-3 mM reduced and oxidised Glutathione	Resolution 2.70 Å R-free 0.238
4OZG D2 protein complex Deposited 2014-02-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 3.00 Å R-free 0.241
4OZG D2 protein complex Deposited 2014-02-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 3.00 Å R-free 0.241
4OZH S16 protein complex Deposited 2014-02-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 2.80 Å R-free 0.243
4OZH S16 protein complex Deposited 2014-02-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 2.80 Å R-free 0.243
4OZI S2 protein complex Deposited 2014-02-16	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 3.20 Å R-free 0.243
4OZI S2 protein complex Deposited 2014-02-16	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 0.15- 0.25M CaOAc, 0.1 M Tris/HCl, 12-18% PEG3350, Additives: 2-3 mM reduced and oxidised Glutathione	Resolution 3.20 Å R-free 0.243
5KSB T15-DQ8.5-glia-gamma1 complex Deposited 2016-07-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；8% Tacsimate pH 7.5, 20% PEG3350	Resolution 2.90 Å R-free 0.254
5KSB T15-DQ8.5-glia-gamma1 complex Deposited 2016-07-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；8% Tacsimate pH 7.5, 20% PEG3350	Resolution 2.90 Å R-free 0.254
5KSU Crystal structure of HLA-DQ2.5-CLIP1 at 2.73 resolution Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–216（193 aa） Fragment：UNP residues 1-193	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000, ammonium sulphate, sodium cacodylate, glycerol	Resolution 2.73 Å R-free 0.249
5KSU Crystal structure of HLA-DQ2.5-CLIP1 at 2.73 resolution Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–216（193 aa） Fragment：UNP residues 1-193	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000, ammonium sulphate, sodium cacodylate, glycerol	Resolution 2.73 Å R-free 0.249
6MFF HLA-DQ2-glia-omega1 Deposited 2018-09-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23% PEG3350 and 0.1 M NaH2PO4, pH 6	Resolution 2.60 Å R-free 0.250
6MFG HLA-DQ2-glia-alpha1 Deposited 2018-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–206（183 aa） Chain C 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；23% PEG3350 and 0.1 M NaH2PO4, pH 6	Resolution 2.00 Å R-free 0.222
6U3M DQ2-P.fluor-alpha1a Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–206（183 aa）	Not recorded	GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG3350 and 0.15M NH4H2PO4	Resolution 1.90 Å R-free 0.220
6U3M DQ2-P.fluor-alpha1a Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–206（183 aa）	Not recorded	GOL GLYCEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG3350 and 0.15M NH4H2PO4	Resolution 1.90 Å R-free 0.220
7SG0 W316 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；24% PEG3350, 0.25 M (NH4)2SO4 and 0.1 M Tris/HCl at pH 8.0	Resolution 3.00 Å R-free 0.230
7SG1 XPA5 TCR in complex with HLA-DQ2-alpha1 Deposited 2021-10-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.258
7SG1 XPA5 TCR in complex with HLA-DQ2-alpha1 Deposited 2021-10-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.258
7SG2 XPA5 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.259
7SG2 XPA5 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.259
8VSP Cryo-EM structure of human invariant chain in complex with HLA-DQ Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–254（254 aa） Chain D 1–254（254 aa） Chain G 1–254（254 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain O 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W84 HLA-DQ2.5-alpha2 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；80 mM di-Sodium malonate (pH4.0), 9.6 %w/v Polyethylene glycol 3,350, and 25 %v/v Ethylene glycol as cryoprotectant	Resolution 2.10 Å R-free 0.325
8W85 HLA-DQ2.5-gamma2 gliadin peptide in complex with DQN0385AE01 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Ammonium sulfate, 10.0 %w/v Polyethylene glycol 3,350, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.77 Å R-free 0.300
8W85 HLA-DQ2.5-gamma2 gliadin peptide in complex with DQN0385AE01 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Ammonium sulfate, 10.0 %w/v Polyethylene glycol 3,350, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.77 Å R-free 0.300
8W86 HLA-DQ2.5-B/C hordein peptide in complex with DQN0385AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；0.1 M MES monohydrate (pH5.5), 12.0 %w/v Polyethylene glycol 8,000, 0.1 M Calcium acetate hydrate, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.24 Å R-free 0.280
8W86 HLA-DQ2.5-B/C hordein peptide in complex with DQN0385AE02 Deposited 2023-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 24–206（183 aa）	Mutation：C47S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；0.1 M MES monohydrate (pH5.5), 12.0 %w/v Polyethylene glycol 8,000, 0.1 M Calcium acetate hydrate, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.24 Å R-free 0.280
9EJG Peptide-independent T cell receptor recognition of HLA-DQ2 Deposited 2024-11-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 FMT FORMIC ACID × 5 GOL GLYCEROL × 2 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% Tacsimate, pH 8.0, 20-24% w/v PEG3350	Resolution 2.20 Å R-free 0.225
9EJH Peptide-independent T cell receptor recognition of HLA-DQ2 Deposited 2024-11-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–206（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ACT ACETATE ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% Tacsimate, pH 8.0, 20-24% w/v PEG3350	Resolution 2.45 Å R-free 0.232

21 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DQA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–183； UniProt 24–206

HLA class II histocompatibility antigen, DQ beta 1 chain

Homo sapiens

UniProt O19707

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 1–192	Not recorded	HLA class II histocompatibility antigen, DQ alpha 1 chain × 1 （P01909） Bel602 alpha TRAV2001 × 1 Bel602 beta TRBV901 × 1 DQ8.5-glia-gamma1 peptide × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Ca-Acetate, 21 % PEG3350, Tris pH 8.0	Resolution 2.00 Å R-free 0.206

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5KSA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4Z7U S13 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；140 mM Na-acetate, 0.1 M Bis-Tris-Propane pH 7.5, 15% PEG8000	Resolution 2.70 Å R-free 0.220
4Z7U S13 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；140 mM Na-acetate, 0.1 M Bis-Tris-Propane pH 7.5, 15% PEG8000	Resolution 2.70 Å R-free 0.220
4Z7V L3-12 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；80 mM Na-acetate, 0.1 M Bis-Tris-Propane pH 6.5, 16% PEG8000	Resolution 2.65 Å R-free 0.226
4Z7V L3-12 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；80 mM Na-acetate, 0.1 M Bis-Tris-Propane pH 6.5, 16% PEG8000	Resolution 2.65 Å R-free 0.226
4Z7W T316 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.32 M (NH4)2SO4, 0.1 M HEPES pH 7.8, 20% PEG3350	Resolution 2.89 Å R-free 0.247
4Z7W T316 complex Deposited 2015-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–192（192 aa） Fragment：UNP residues 1-192	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.32 M (NH4)2SO4, 0.1 M HEPES pH 7.8, 20% PEG3350	Resolution 2.89 Å R-free 0.247
5KSB T15-DQ8.5-glia-gamma1 complex Deposited 2016-07-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；8% Tacsimate pH 7.5, 20% PEG3350	Resolution 2.90 Å R-free 0.254
5KSB T15-DQ8.5-glia-gamma1 complex Deposited 2016-07-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；8% Tacsimate pH 7.5, 20% PEG3350	Resolution 2.90 Å R-free 0.254
5UJT Crystal structure of human HLA-DQ8 in complex with insulin mimotope binding in register 3 Deposited 2017-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 3–191（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；278 K；15% PEG3350, 100mM Tacsimate	Resolution 1.94 Å R-free 0.238
5UJT Crystal structure of human HLA-DQ8 in complex with insulin mimotope binding in register 3 Deposited 2017-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 3–191（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；278 K；15% PEG3350, 100mM Tacsimate	Resolution 1.94 Å R-free 0.238
5UJT Crystal structure of human HLA-DQ8 in complex with insulin mimotope binding in register 3 Deposited 2017-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 3–191（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；278 K；15% PEG3350, 100mM Tacsimate	Resolution 1.94 Å R-free 0.238
6XCO Immune receptor complex Deposited 2020-06-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 6 CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293.15 K；0.1 M calcium acetate, 0.1 M sodium cacodylate pH 5.5, 13% polyethylene glycol (PEG) 20,000	Resolution 2.90 Å R-free 0.247
6XCP Immune receptor complex Deposited 2020-06-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；13% PEG 8000, 0.2M Potassium dihydrogen phosphate	Resolution 3.30 Å R-free 0.268
8VCX Human TCR A2.13 in complex with DQ8-InsCpep Deposited 2023-12-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M Potassium sodium tartrate, 24% PEG 3350	Resolution 2.59 Å R-free 0.238
8VCY Human TCR A2.13 in complex with DQ8-InsC8-15NPY Deposited 2023-12-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 5 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M Potassium sodium tartrate, 14% PEG 20,000 with seeding C8 silver bullet (Hampton Research)	Resolution 2.60 Å R-free 0.225
8VD0 Human TCR ET650-4 in complex with DQ8-InsC8-15-IAPP2 Deposited 2023-12-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M K Na tartrate, 15% w/v PEG 20,000 with seeding and additive C8 silver bullet	Resolution 2.40 Å R-free 0.220
8VD0 Human TCR ET650-4 in complex with DQ8-InsC8-15-IAPP2 Deposited 2023-12-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 8 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M K Na tartrate, 15% w/v PEG 20,000 with seeding and additive C8 silver bullet	Resolution 2.40 Å R-free 0.220
8VD2 Human TCR ET650-4 in complex with DQ8-InsC8-15-IAPP1 Deposited 2023-12-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M potassium dihydrogen phosphate (KH2PO4), 15% w/v PEG 20,000 with seeding and additive 30 mM MnCl2	Resolution 2.90 Å R-free 0.259
8VDD Crystal structure of Proinsulin C-peptide bound to HLA-DQ8 Deposited 2023-12-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M K Na tartrate, 14% w/v PEG 20,000 with seeding and additive C8 silver bullet	Resolution 2.60 Å R-free 0.280
8VDU Crystal structure of hybrid insulin peptide (InsC8-15-IAPP74-80) bound to HLA-DQ8 Deposited 2023-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 1–192（192 aa） Chain E 1–192（192 aa） Chain H 1–192（192 aa） Chain K 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；0.2 M Monopotassium phosphate, 17% PEG 8K	Resolution 3.50 Å R-free 0.246

13 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O19707_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 26–217； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

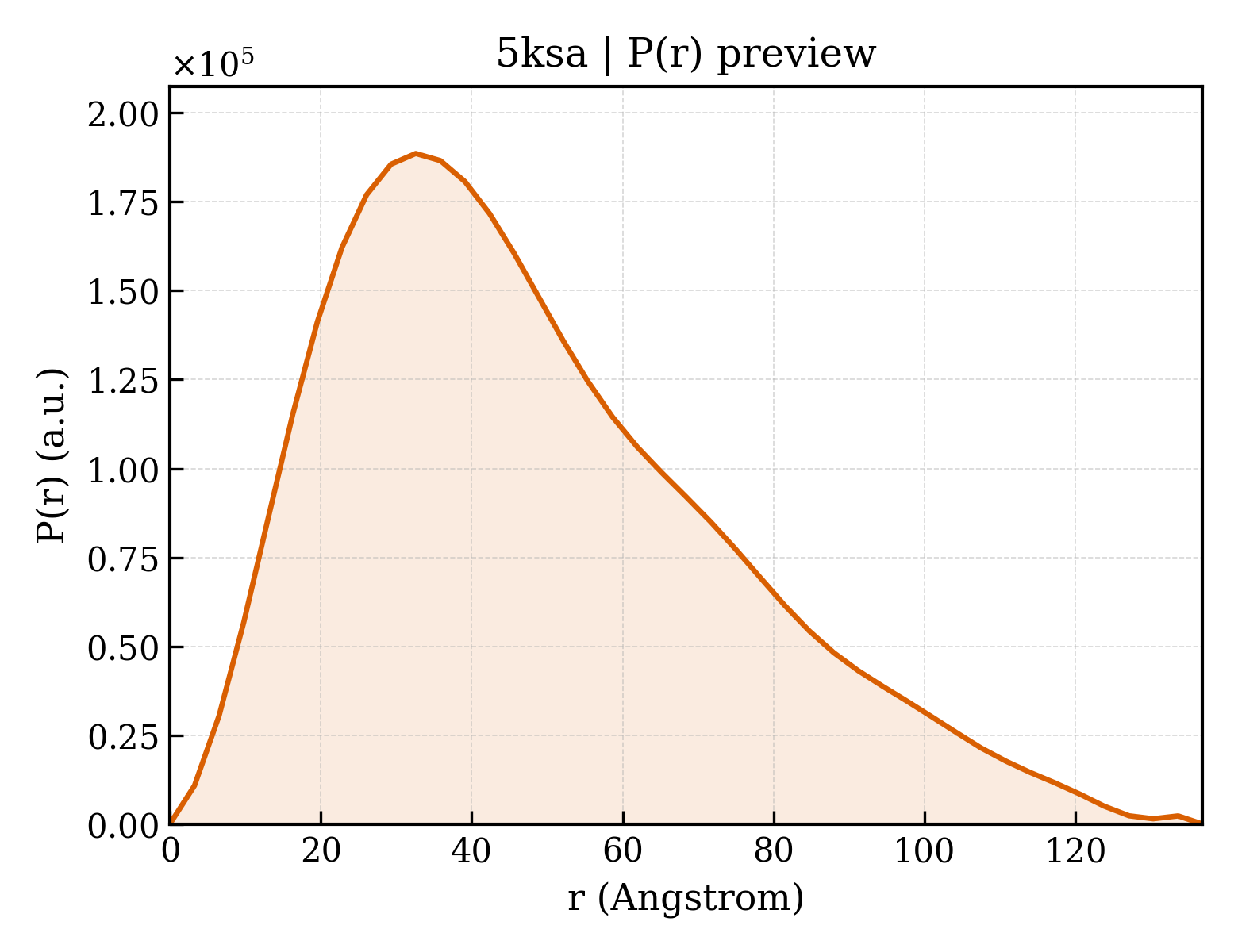

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5ksa
Deposition date deposition_date	2016-07-08
Structure title title	Bel602-DQ8.5-glia-gamma1 complex
Keywords keywords	Celiac Disease T cell receptor peptide MHC complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.68 Å
Radius of gyration Rg (electron density) rg_electron	38.01 Å
Forward intensity I(0) i0	136164000.00
Molecular weight molecular_weight	92910.0 kDa
Excluded volume excluded_volume	115680 Å³
Envelope volume envelope_volume	154610 Å³
Hydration-shell volume shell_volume	37449 Å³
Envelope diameter envelope_diameter	149.8 Å
Shell Rg shell_rg	39.00 Å
Envelope Rg envelope_rg	38.49 Å
Shape Rg shape_rg	37.98 Å
Total Rg total_rg	38.18 Å
Total atoms total_atoms	6560
Residues n_residues	819
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	136.8 Å
Rg (real space) rg_real	38.35 Å
Rg uncertainty (real space) rg_real_error	1.40 Å
I(0) (real space) i0_real	1.3620e+08
I(0) uncertainty (real space) i0_real_error	2.1390e+06
Rg (reciprocal space) rg_reciprocal	37.93 Å
I(0) (reciprocal space) i0_reciprocal	136100000.0000
Solution quality estimate total_estimate	0.7712
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.6 Å
Skewness Skewness skewness	0.689
Kurtosis Kurtosis kurtosis	-0.066
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15610000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.565; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.618; Smooth: 0.710

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	HLA class II histocompatibility antigen, DQ alpha 1 chain
Molecular weight formula_weight	21501.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7226

EDIVADHVASYGVNLYQSYGPSGQYTHEFDGDEQFYVDLGRKETVWSLPVLRQFRFDPQFALTNIAVLKHNLNSLIKRSNSTAATNEVPEVTVFSKSPVTLGQPNILICLVDNIFPPVVNITWLSNGHSVTEGVSETSFLSKSDHSFFKISYLTLLPSAEESYDCKVEHWGLDKPLLKHWEPETSGDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	HLA class II histocompatibility antigen, DQ beta 1 chain
Molecular weight formula_weight	25827.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QPQQSFPEQEGSGGSIEGRGGSGASRDSPEDFVYQFKGMCYFTNGTERVRLVTRYIYNREEYARFDSDVGVYRAVTPLGPPAAEYWNSQKEVLERTRAELDTVCRHNYQLELRTTLQRRVEPTVTISPSRTEALNHHNLLVCSVTDFYPAQIKVRWFRNDQEETTGVVSTPLIRNGDWTFQILVMLEMTPQRGDVYTCHVEHPSLQNPIIVEWRAQSTGGDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Bel602 alpha TRAV20*01
Molecular weight formula_weight	23108.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MEDQVTQSPEALRLQEGESSSLNCSYTVSGLRGLFWYRQDPGKGPEFLFTLYSAGEEKEKERLKATLTKKESFLHITAPKPEDSATYLCAVQFMDSNYQLIWGAGTKLIIKPDIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Bel602 beta TRBV9*01
Molecular weight formula_weight	27398.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGVTQTPKHLITATGQRVTLRCSPRSGDLSVYWYQQSLDQGLQFLIQYYNGEERAKGNILERFSAQQFPDLHSELNLSSLELGDSALYFCASSVAGTPSYEQYFGPGTRLTVTEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFFPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DQ8.5-glia-gamma1 peptide
Molecular weight formula_weight	1288.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

QPQQSFPEQEA

来源 Source

来源生物 organism	Triticum aestivum
NCBI Class编号 ncbi_taxonomy_id	4565
宿主生物 host_organism	Trichoplusia ni

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	633

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d5ksaa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d5ksaa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d5ksab1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d5ksab2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5ksac1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5ksac2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d5ksad1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d5ksad2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

Domain ID domain_id	5ksaA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

Domain ID domain_id	5ksaA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5ksaB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

Domain ID domain_id	5ksaB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5ksaC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5ksaC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5ksaD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5ksaD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.548 Å
Unit-cell length b length_b	98.831 Å
Unit-cell length c length_c	80.175 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.69 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	45.750 Å
R factor r_factor	0.1710
R_work r_work	0.1690
R_free r_free	0.2060

fit	/app/data/saxs_computation/ks/5ksa/5ksa.fit
pddf	/app/data/pr_computation/ks/5ksa/5ksa.pr.out
profile	/app/data/saxs_computation/ks/5ksa/5ksa.dat

Bel602-DQ8.5-glia-gamma1 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class II histocompatibility antigen, DQ alpha 1 chain

State in the Current Structure

Other States of the Same Protein in the Database

HLA class II histocompatibility antigen, DQ beta 1 chain

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
