SAXSdb — 5mp3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Igh protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	ENSMUSG00000076577 protein × 1 （Q52L64） Microtubule-associated protein × 1 （A0A024R9Y0） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	ENSMUSG00000076577 protein × 1 （Q52L64） Microtubule-associated protein × 1 （A0A024R9Y0） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q99LC4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–220； UniProt 21–239 Author chain H； PDBConstruct 2–220； UniProt 21–239

ENSMUSG00000076577 protein

OrganismNot specified

UniProt Q52L64

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Igh protein × 1 （Q99LC4） Microtubule-associated protein × 1 （A0A024R9Y0） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Igh protein × 1 （Q99LC4） Microtubule-associated protein × 1 （A0A024R9Y0） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q52L64_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–218； UniProt 21–239 Author chain L； PDBConstruct 1–218； UniProt 21–239

Microtubule-associated protein

OrganismNot specified

UniProt A0A024R9Y0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Igh protein × 1 （Q99LC4） ENSMUSG00000076577 protein × 1 （Q52L64） water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Igh protein × 1 （Q99LC4） ENSMUSG00000076577 protein × 1 （Q52L64） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A024R9Y0_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–30； UniProt 234–263 Author chain D； PDBConstruct 1–30； UniProt 234–263

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5mp3
Deposition date deposition_date	2016-12-15
Structure title title	Crystal structure of DC8E8 Fab in the complex with a 30-mer tau peptide at pH 6.5
Keywords keywords	Antibody Fab, complex, tau protein, immune system; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5mp3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

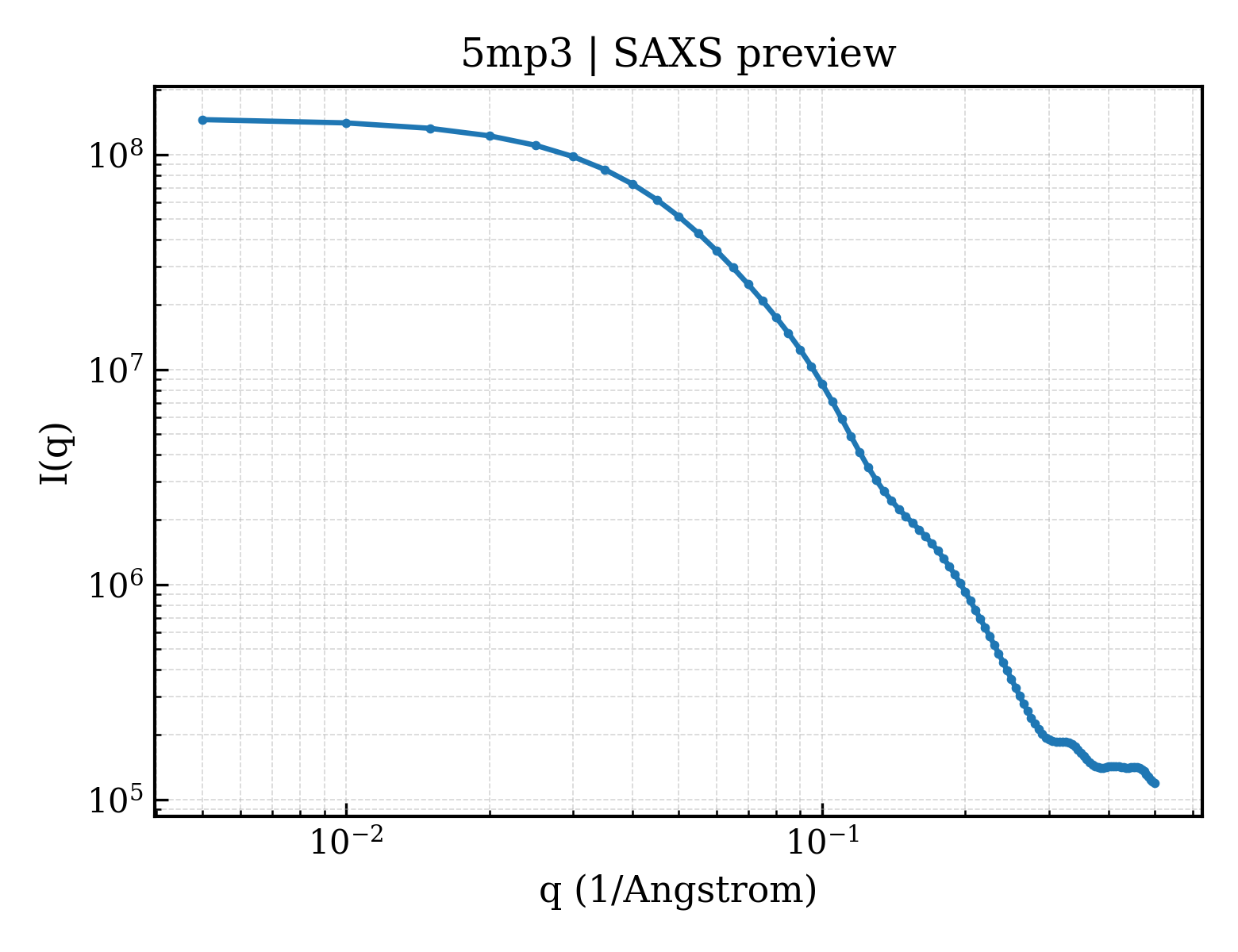

5mp3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5mp3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.47 Å
Rg (electron density)	24.61 Å
Total Rg	25.37 Å
Atom count	3390
Residues	446
Excluded volume	59974 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5mp3__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5mp3__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Igh protein
Molecular weight formula_weight	23685.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,A
Atom count atom_count	6842

QVQLQQSGPELVKPGTSVKMPCKASGYIFTDYVISWVKQRTGQGLEWIGEIFPRSGSTYYNEKFKGKATLTADKSSNTAYMQLSSVTSEDSAVYFCARDYYGTSFAMDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR

Entity 2 Entity 2 polymer

Description description	ENSMUSG00000076577 protein
Molecular weight formula_weight	24172.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,B

DIVMSQSPSSLAVSAGEKVTMSCKSSQSLLNSRTRKNYLAWYQQKPGQSPKLLIYWASTRESGVPDRFTGSGSGTDFTLTISSVQAEDLAVYYCKQSFYLRTFGGGTKLDIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVRWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNE

Entity 3 Entity 3 polymer

Description description	Microtubule-associated protein
Molecular weight formula_weight	3144.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GSKDNIKHVPGGGSVQIVYKPVDLSKVTSK

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	5mp3A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5mp3B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5mp3B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5mp3H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5mp3L01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5mp3L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	61.850 Å
Unit-cell length b length_b	89.890 Å
Unit-cell length c length_c	83.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.11 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	44.940 Å
R factor r_factor	0.2014
R_work r_work	0.1990
R_free r_free	0.2495

Crystal structure of DC8E8 Fab in the complex with a 30-mer tau peptide at pH 6.5
