5nur

Structural basis for maintenance of bacterial outer membrane lipid asymmetry

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein F

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 3	ABC transporter permease × 3 （A0A0W8AQT6） ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 CALCIUM ION × 3 SULFATE ION × 8 (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OMPF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–340； UniProt 23–362 Author chain C； PDBConstruct 1–340； UniProt 23–362 Author chain E； PDBConstruct 1–340； UniProt 23–362

ABC transporter permease

Klebsiella pneumoniae

UniProt A0A0W8AQT6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 3	Outer membrane protein F × 3 （P02931） ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 ;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ; × 1 CALCIUM ION × 3 SULFATE ION × 8 (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0W8AQT6_KLEPN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–236； UniProt 18–253 Author chain D； PDBConstruct 1–236； UniProt 18–253 Author chain F； PDBConstruct 1–236； UniProt 18–253

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5nur
Deposition date deposition_date	2017-05-01
Structure title title	Structural basis for maintenance of bacterial outer membrane lipid asymmetry
Keywords keywords	Outer membrane, lipid asymmetry, lipoprotein, phospholipid translocation, membrane protein; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5nur__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5nur__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

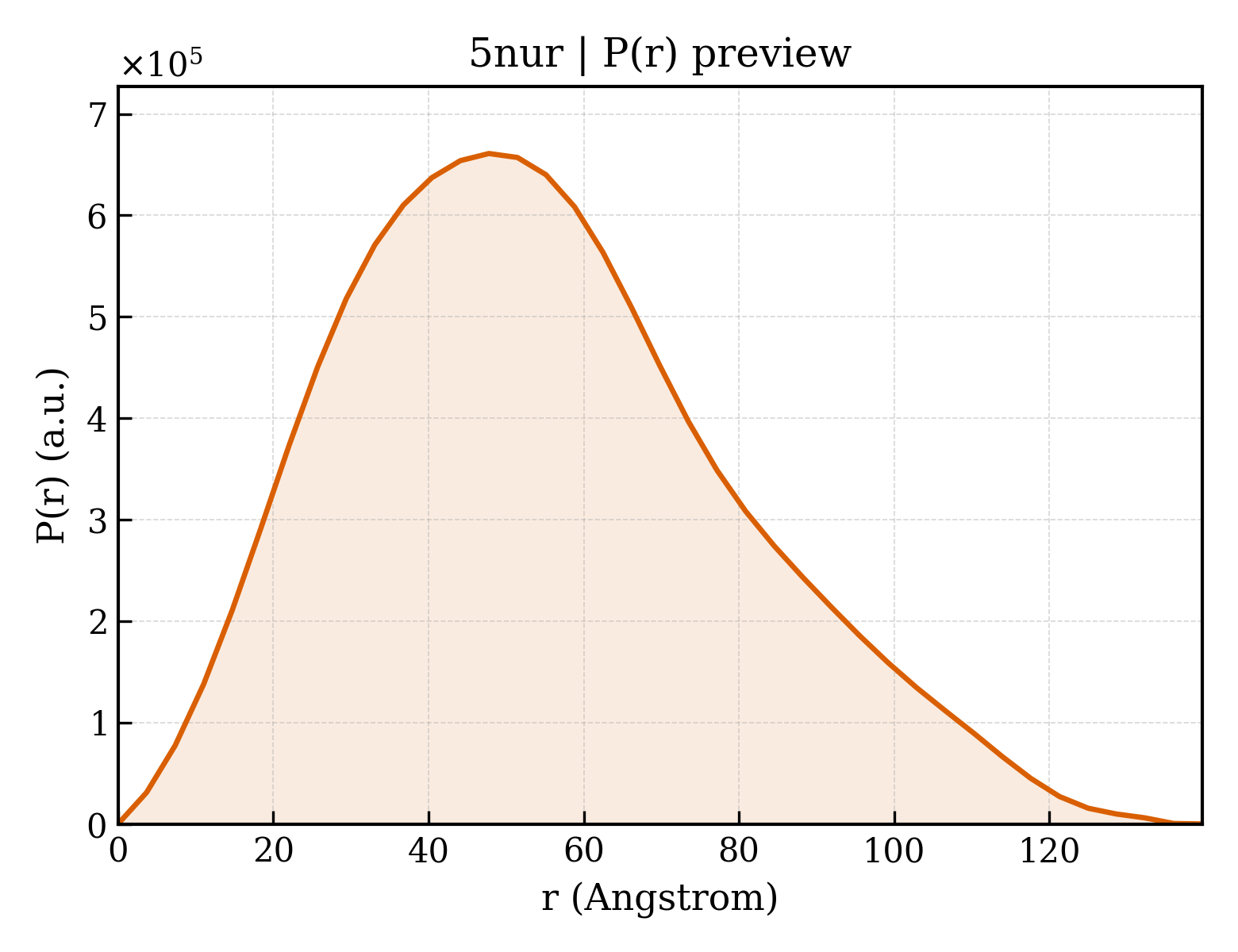

5nur__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.05 Å
Rg (electron density)	42.44 Å
Total Rg	42.54 Å
Atom count	12920
Residues	1615
Excluded volume	226770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5nur__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Outer membrane protein F
Molecular weight formula_weight	37114.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A,E
Atom count atom_count	12920

AEIYNKDGNKVDLYGKAVGLHYFSKGNGENSYGGNGDMTYARLGFKGETQINSDLTGYGQWEYNFQGNNSEGADAQTGNKTRLAFAGLKYADVGSFDYGRNYGVVYDALGYTDMLPEFGGDTAYSDDFFVGRVGGVATYRNSNFFGLVDGLNFAVQYLGKNERDTARRSNGDGVGGSISYEYEGFGIVGAYGAADRTNLQEAQPLGNGKKAEQWATGLKYDANNIYLAANYGETRNATPITNKFTNTSGFANKTQDVLLVAQYQFDFGLRPSIAYTKSKAKDVEGIGDVDLVNYFEVGATYYFNKNMSTYVDYIINQIDSDNKLGVGSDDTVAVGIVYQF

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ABC transporter permease
Molecular weight formula_weight	26364.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B,F

CASSSSGDRPQGRSDPLEGFNRTMFNFNFNVVDPYVLRPVAVAWRDYVPQPARNGLSNFTSNLEEPAVMVNYFLQGDPYKGMVHFTRFFLNTILGMGGLIDVAGMANPQLQRVEPHRFGSTLGHYGVGYGPYVQLPFYGSFTLRDEGGDMADGLYPVLSWLTWPMSIGKWAVEGIETRAQLLDSDGLLRQSSDPYILMREAYFQRHDFIANGGKLTPADNPNAQAIQDELKDIDSQ

Source Source

Source organism organism	Klebsiella pneumoniae
NCBI taxonomy ID ncbi_taxonomy_id	573
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ;
Molecular weight formula_weight	940.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-4)-3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(2-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ;
Molecular weight formula_weight	940.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	;3-deoxy-alpha-D-manno-oct-2-ulopyranosonic acid-(3-6)-2-amino-2-deoxy-4-O-phosphono-beta-D-glucopyranose-(1-6)-2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose ;
Molecular weight formula_weight	720.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 8 Entity 8 non-polymer

Description description	(HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE
Molecular weight formula_weight	306.4 kDa
Source method src_method	syn
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	5nurA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	10 — Porin

Domain ID domain_id	5nurC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	10 — Porin

Domain ID domain_id	5nurE00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	10 — Porin

▶

Unit-cell length a length_a	190.550 Å
Unit-cell length b length_b	179.660 Å
Unit-cell length c length_c	133.390 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.55 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.290 Å
Low-resolution limit resolution_low	47.399 Å
R factor r_factor	0.2212
R_work r_work	0.2193
R_free r_free	0.2591
