1. Protein Identity and Related Structures Protein Identity & Related Structures

Sestrin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–480	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；0.1 M MES pH 6.0, 1.2 M sodium malonate, 1% (w/v) Jeffamine ED 2001	Resolution 3.00 Å R-free 0.225
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–480	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；0.1 M MES pH 6.0, 1.2 M sodium malonate, 1% (w/v) Jeffamine ED 2001	Resolution 3.00 Å R-free 0.225
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–480	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；0.1 M MES pH 6.0, 1.2 M sodium malonate, 1% (w/v) Jeffamine ED 2001	Resolution 3.00 Å R-free 0.225
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–480	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；0.1 M MES pH 6.0, 1.2 M sodium malonate, 1% (w/v) Jeffamine ED 2001	Resolution 3.00 Å R-free 0.225
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 1–480	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；0.1 M MES pH 6.0, 1.2 M sodium malonate, 1% (w/v) Jeffamine ED 2001	Resolution 3.00 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5T0N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CUF X-ray crystal structure of SeMet human Sestrin2 Deposited 2015-07-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–480（480 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES 1.15 M sodium malonate	Resolution 3.50 Å R-free 0.272
5CUF X-ray crystal structure of SeMet human Sestrin2 Deposited 2015-07-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–480（480 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES 1.15 M sodium malonate	Resolution 3.50 Å R-free 0.272
5CUF X-ray crystal structure of SeMet human Sestrin2 Deposited 2015-07-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–480（480 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES 1.15 M sodium malonate	Resolution 3.50 Å R-free 0.272
5CUF X-ray crystal structure of SeMet human Sestrin2 Deposited 2015-07-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–480（480 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES 1.15 M sodium malonate	Resolution 3.50 Å R-free 0.272
5CUF X-ray crystal structure of SeMet human Sestrin2 Deposited 2015-07-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–480（480 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES 1.15 M sodium malonate	Resolution 3.50 Å R-free 0.272
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–480（480 aa）	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–480（480 aa）	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–480（480 aa）	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–480（480 aa）	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–480（480 aa）	Not recorded	LEU LEUCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–480（480 aa）	Not recorded	LEU LEUCINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 1–480（480 aa）	Not recorded	LEU LEUCINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
5DJ4 Leucine-bound Sestrin2 from Homo sapiens Deposited 2015-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 1–480（480 aa） Chain D 1–480（480 aa） Chain E 1–480（480 aa）	Not recorded	LEU LEUCINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.2 M disodium malonate, 0.1 M MES pH 6.0, 1% (v/v) Jeffamine ED 2001	Resolution 2.70 Å R-free 0.223
6N0M CRYSTAL STRUCTURE OF SESTRIN2 IN COMPLEX WITH NV-0005138 Deposited 2018-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 66–480（415 aa）	Not recorded	K94 4-(difluoromethyl)-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.35M Na malonate pH 6.5, 0.1M Mes pH 6.0	Resolution 3.30 Å R-free 0.250
6N0M CRYSTAL STRUCTURE OF SESTRIN2 IN COMPLEX WITH NV-0005138 Deposited 2018-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 66–480（415 aa）	Not recorded	K94 4-(difluoromethyl)-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.35M Na malonate pH 6.5, 0.1M Mes pH 6.0	Resolution 3.30 Å R-free 0.250
6N0M CRYSTAL STRUCTURE OF SESTRIN2 IN COMPLEX WITH NV-0005138 Deposited 2018-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 66–480（415 aa）	Not recorded	K94 4-(difluoromethyl)-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.35M Na malonate pH 6.5, 0.1M Mes pH 6.0	Resolution 3.30 Å R-free 0.250
6N0M CRYSTAL STRUCTURE OF SESTRIN2 IN COMPLEX WITH NV-0005138 Deposited 2018-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 66–480（415 aa）	Not recorded	K94 4-(difluoromethyl)-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.35M Na malonate pH 6.5, 0.1M Mes pH 6.0	Resolution 3.30 Å R-free 0.250
6N0M CRYSTAL STRUCTURE OF SESTRIN2 IN COMPLEX WITH NV-0005138 Deposited 2018-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 66–480（415 aa）	Not recorded	K94 4-(difluoromethyl)-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.35M Na malonate pH 6.5, 0.1M Mes pH 6.0	Resolution 3.30 Å R-free 0.250
9LVJ Cryo-EM structure of Sestrin2 bound human GATOR2 complex Deposited 2025-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain U 1–480（480 aa） Chain V 1–480（480 aa）	Not recorded	ZN ZINC ION × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.82 Å
9LWF Cryo-EM structure of dual sensor bound GATOR2 complex Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain X 1–480（480 aa） Chain Y 1–480（480 aa）	Mutation：Y375F Mutation：Y375F	ZN ZINC ION × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å

5 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SESN2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–480； UniProt 1–480 Author chain B； PDBConstruct 1–480； UniProt 1–480 Author chain C； PDBConstruct 1–480； UniProt 1–480 Author chain D； PDBConstruct 1–480； UniProt 1–480 Author chain E； PDBConstruct 1–480； UniProt 1–480

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5t0n
Deposition date deposition_date	2016-08-16
Structure title title	Pseudo-apo structure of Sestrin2 at 3.0 angstrom resolution
Keywords keywords	mTOR, signaling, leucine, sestrin, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	50.64 Å
Radius of gyration Rg (electron density) rg_electron	50.82 Å
Forward intensity I(0) i0	610486000.00
Molecular weight molecular_weight	207690.0 kDa
Excluded volume excluded_volume	260790 Å³
Envelope volume envelope_volume	356980 Å³
Hydration-shell volume shell_volume	61787 Å³
Envelope diameter envelope_diameter	180.8 Å
Shell Rg shell_rg	50.25 Å
Envelope Rg envelope_rg	50.21 Å
Shape Rg shape_rg	50.81 Å
Total Rg total_rg	50.83 Å
Total atoms total_atoms	14648
Residues n_residues	1809
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

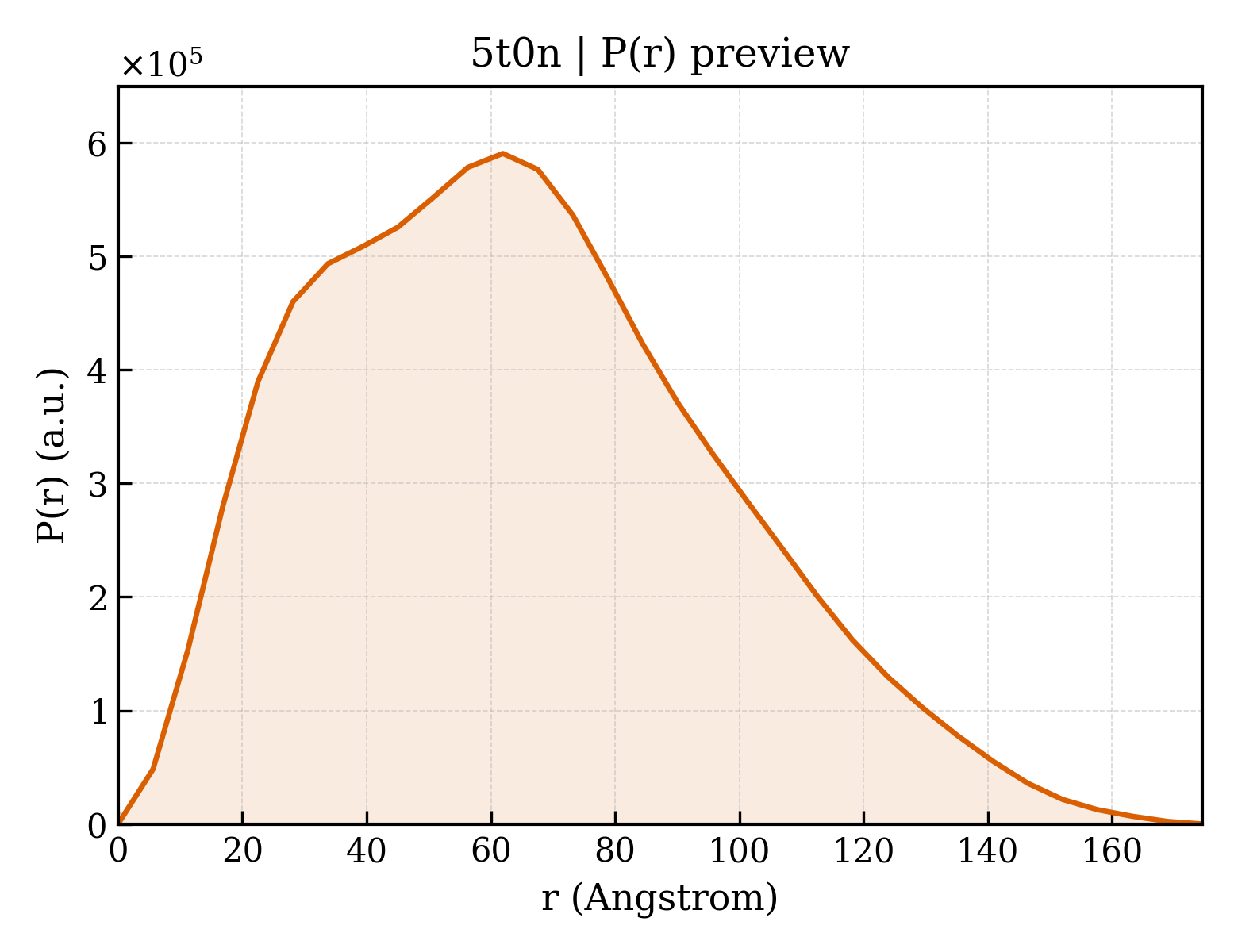

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	174.5 Å
Rg (real space) rg_real	50.86 Å
Rg uncertainty (real space) rg_real_error	1.86 Å
I(0) (real space) i0_real	6.1050e+08
I(0) uncertainty (real space) i0_real_error	1.2710e+07
Rg (reciprocal space) rg_reciprocal	50.45 Å
I(0) (reciprocal space) i0_reciprocal	610100000.0000
Solution quality estimate total_estimate	0.8355
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	61.9 Å
Skewness Skewness skewness	0.428
Kurtosis Kurtosis kurtosis	-0.351
Angular range angular_range	— – 0.1550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	36070000.0000
Real-space data points n_real_points	32
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.832; Smooth: 0.596

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Sestrin-2
Molecular weight formula_weight	54560.6 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	14648

MIVADSECRAELKDYLRFAPGGVGDSGPGEEQRESRARRGPRGPSAFIPVEEVLREGAESLEQHLGLEALMSSGRVDNLAVVMGLHPDYFTSFWRLHYLLLHTDGPLASSWRHYIAIMAAARHQCSYLVGSHMAEFLQTGGDPEWLLGLHRAPEKLRKLSEINKLLAHRPWLITKEHIQALLKTGEHTWSLAELIQALVLLTHCHSLSSFVFGCGILPEGDADGSPAPQAPTPPSEQSSPPSRDPLNNSGGFESARDVEALMERMQQLQESLLRDEGTSQEEMESRFELEKSESLLVTPSADILEPSPHPDMLCFVEDPTFGYEDFTRRGAQAPPTFRAQDYTWEDHGYSLIQRLYPEGGQLLDEKFQAAYSLTYNTIAMHSGVDTSVLRRAIWNYIHCVFGIRYDDYDYGEVNQLLERNLKVYIKTVACYPEKTTRRMYNLFWRHFRHSEKVHVNLLLLEARMQAALLYALRAITRYMT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	LEUCINE
Molecular weight formula_weight	131.2 kDa
Source method src_method	syn
Copy count entity_count	5

▶

8. Citations (2)

▶

Unit-cell length a length_a	292.263 Å
Unit-cell length b length_b	292.263 Å
Unit-cell length c length_c	292.263 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	120

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	3.004 Å
Low-resolution limit resolution_low	103.331 Å
R factor r_factor	0.1895
R_work r_work	0.1888
R_free r_free	0.2254

fit	/app/data/saxs_computation/t0/5t0n/5t0n.fit
pddf	/app/data/pr_computation/t0/5t0n/5t0n.pr.out
profile	/app/data/saxs_computation/t0/5t0n/5t0n.dat
