5tr4

Structure of Ubiquitin activating enzyme (Uba1) in complex with ubiquitin and TAK-243

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-activating enzyme E1 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin × 1 （P0CG53） ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin × 1 （P0CG53） ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–1017； UniProt 9–1024 Author chain C； PDBConstruct 2–1017； UniProt 9–1024

Ubiquitin

Bos taurus

UniProt P0CG53

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBB_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76 Author chain D； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5tr4
Deposition date deposition_date	2016-10-25
Structure title title	Structure of Ubiquitin activating enzyme (Uba1) in complex with ubiquitin and TAK-243
Keywords keywords	LIGASE-LIGASE INHIBITOR complex; LIGASE/LIGASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5tr4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5tr4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

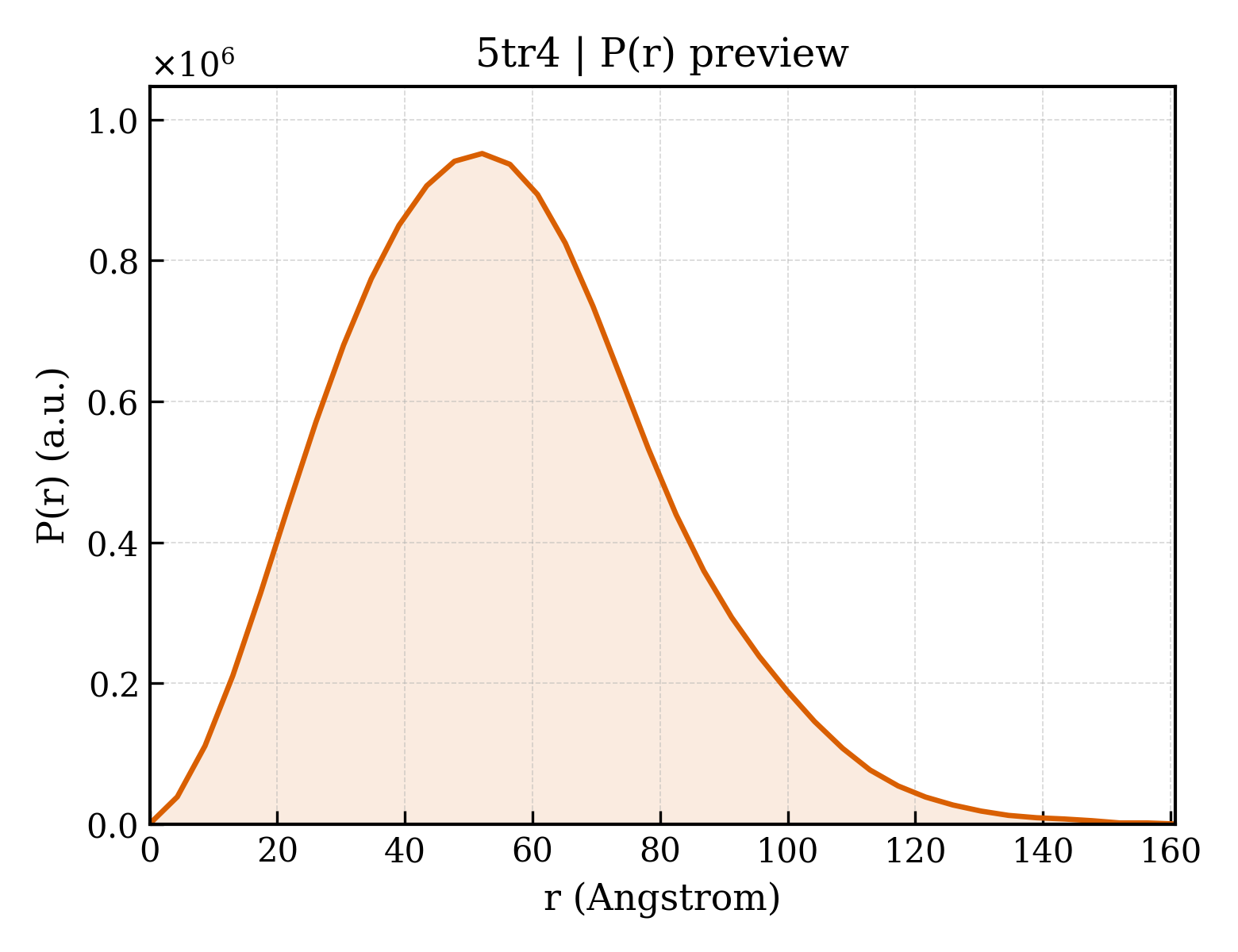

5tr4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.09 Å
Rg (electron density)	32.20 Å
Total Rg	32.72 Å
Atom count	8082
Residues	1048
Excluded volume	144060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5tr4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5tr4__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-activating enzyme E1 1
Molecular weight formula_weight	113705.2 kDa
EC 编号 ec_number	6.2.1.45
Mutation mutation	N471M, K519R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	16349

GSAAGEIDESLYSRQLYVLGKEAMLKMQTSNVLILGLKGLGVEIAKNVVLAGVKSMTVFDPEPVQLADLSTQFFLTEKDIGQKRGDVTRAKLAELNAYVPVNVLDSLDDVTQLSQFQVVVATDTVSLEDKVKINEFCHSSGIRFISSETRGLFGNTFVDLGDEFTVLDPTGEEPRTGMVSDIEPDGTVTMLDDNRHGLEDGNFVRFSEVEGLDKLNDGTLFKVEVLGPFAFRIGSVKEYGEYKKGGIFTEVKVPRKISFKSLKQQLSNPEFVFSDFAKFDRAAQLHLGFQALHQFAVRHNGELPRTMNDEDANELIKLVTDLSVQQPEVLGEGVDVNEDLIKELSYQARGDIPGVVAFFGGLVAQEVLKACSGKFTPLKQFMYFDSLESLPDPKNFPRNEKTTQPVNSRYDNQIAVFGLDFQKKIANSKVFLVGSGAIGCEMLKNWALLGLGSGSDGYIVVTDMDSIEKSNLNRQFLFRPKDVGKNKSEVAAEAVCAMNPDLKGKINAKIDRVGPETEEIFNDSFWESLDFVTNALDNVDARTYVDRRCVFYRKPLLESGTLGTKGNTQVIIPRLTESYSSSRDPPEKSIPLCTLRSFPNKIDHTIAWAKSLFQGYFTDSAENVNMYLTQPNFVEQTLKQSGDVKGVLESISDSLSSKPHNFEDCIKWARLEFEKKFNHDIKQLLFNFPKDAKTSNGEPFWSGAKRAPTPLEFDIYNNDHFHFVVAGASLRAYNYGIKSDDSNSKPNVDEYKSVIDHMIIPEFTPNANLKIQVNDDDPDPNANAANGSDEIDQLVSSLPDPSTLAGFKLEPVDFEKDDDTNHHIEFITACSNCRAQNYFIETADRQKTKFIAGRIIPAIATTTSLVTGLVNLELYKLIDNKTDIEQYKNGFVNLALPFFGFSEPIASPKGEYNNKKYDKIWDRFDIKGDIKLSDLIEHFEKDEGLEITMLSYGVSLLYASFFPPKKLKERLNLPITQLVKLVTKKDIPAHVSTMILEICADDKEGEDVEVPFITIHL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8568.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVESSDTIDNVKSKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913

Entity 3 Entity 3 non-polymer

Description description	;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ;
Molecular weight formula_weight	519.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	404

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5tr4b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d5tr4d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (12 domains)

Domain ID domain_id	5tr4A01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	80 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 1

Domain ID domain_id	5tr4A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	12550 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 2

Domain ID domain_id	5tr4A03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	5tr4A04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	5tr4A05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2660 — Ubiquitin-activating enzyme E1, SCCH domain

Domain ID domain_id	5tr4A06
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

Domain ID domain_id	5tr4C01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	80 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 1

Domain ID domain_id	5tr4C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	12550 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 2

Domain ID domain_id	5tr4C03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	5tr4C04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	5tr4C05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2660 — Ubiquitin-activating enzyme E1, SCCH domain

Domain ID domain_id	5tr4C06
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

▶

Unit-cell length a length_a	212.485 Å
Unit-cell length b length_b	172.148 Å
Unit-cell length c length_c	79.424 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2171
R_work r_work	0.2163
R_free r_free	0.2559
