5l6j

Uba1 in complex with Ub-MLN7243 covalent adduct

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-activating enzyme E1 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-40S ribosomal protein S31 × 1 （P05759） SULFATE ION × 2 CHLORIDE ION × 2 GLYCEROL × 7 ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-40S ribosomal protein S31 × 1 （P05759） SULFATE ION × 1 CHLORIDE ION × 2 GLYCEROL × 9 ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1024； UniProt 1–1024 Author chain C； PDBConstruct 1–1024； UniProt 1–1024

Ubiquitin-40S ribosomal protein S31

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P05759

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） SULFATE ION × 2 CHLORIDE ION × 2 GLYCEROL × 7 ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） SULFATE ION × 1 CHLORIDE ION × 2 GLYCEROL × 9 ;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RS27A_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76 Author chain D； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5l6j
Deposition date deposition_date	2016-05-30
Structure title title	Uba1 in complex with Ub-MLN7243 covalent adduct
Keywords keywords	E1 enzyme, ubiquitin activation, Uba1 inhibitor, adenosyl sulfamate, ligase; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5l6j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5l6j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

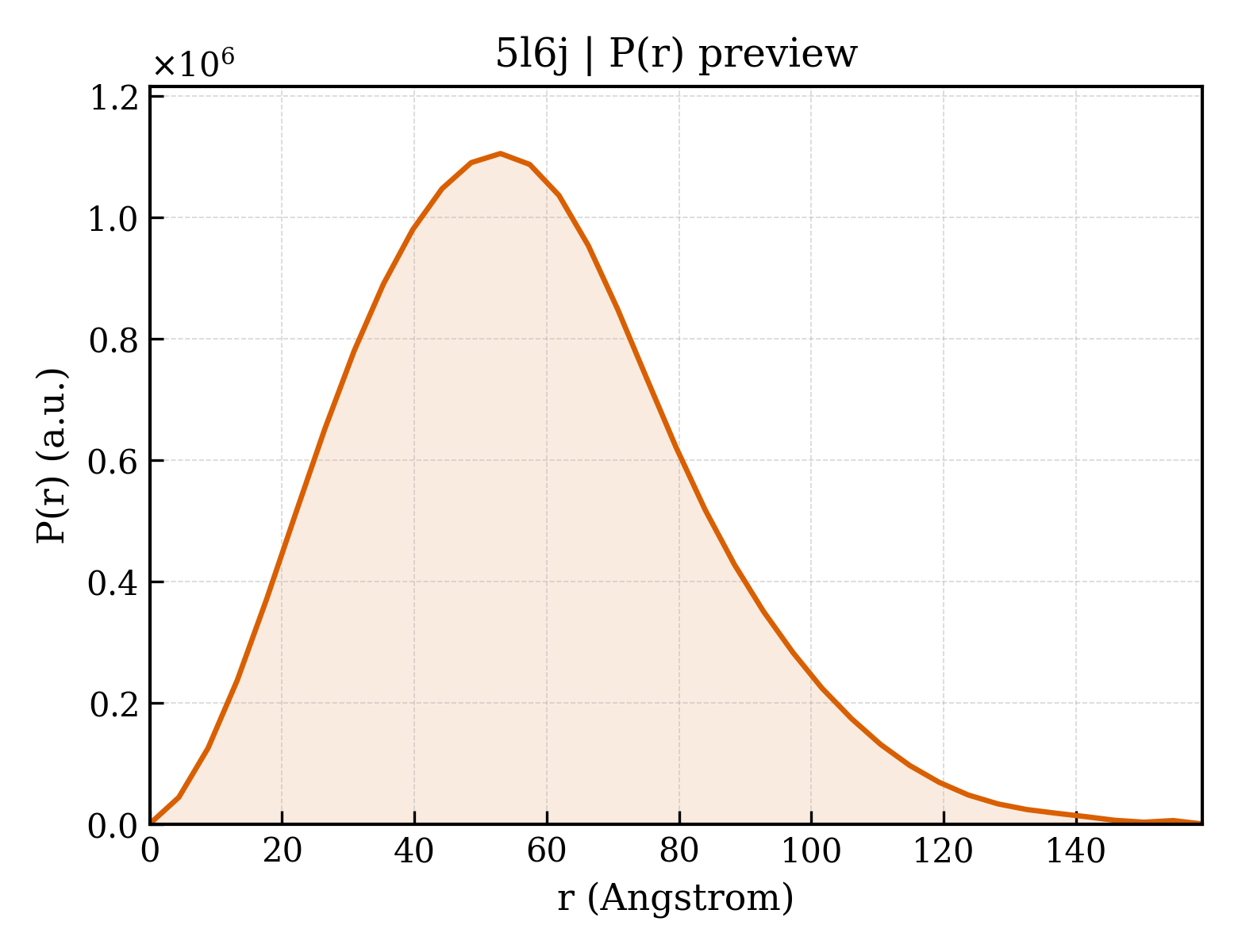

5l6j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.81 Å
Rg (electron density)	33.02 Å
Total Rg	33.55 Å
Atom count	8633
Residues	1082
Excluded volume	153890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5l6j__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5l6j__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-activating enzyme E1 1
Molecular weight formula_weight	114393.8 kDa
EC 编号 ec_number	6.2.1.45
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17935

MSSNNSGLSAAGEIDESLYSRQLYVLGKEAMLKMQTSNVLILGLKGLGVEIAKNVVLAGVKSMTVFDPEPVQLADLSTQFFLTEKDIGQKRGDVTRAKLAELNAYVPVNVLDSLDDVTQLSQFQVVVATDTVSLEDKVKINEFCHSSGIRFISSETRGLFGNTFVDLGDEFTVLDPTGEEPRTGMVSDIEPDGTVTMLDDNRHGLEDGNFVRFSEVEGLDKLNDGTLFKVEVLGPFAFRIGSVKEYGEYKKGGIFTEVKVPRKISFKSLKQQLSNPEFVFSDFAKFDRAAQLHLGFQALHQFAVRHNGELPRTMNDEDANELIKLVTDLSVQQPEVLGEGVDVNEDLIKELSYQARGDIPGVVAFFGGLVAQEVLKACSGKFTPLKQFMYFDSLESLPDPKNFPRNEKTTQPVNSRYDNQIAVFGLDFQKKIANSKVFLVGSGAIGCEMLKNWALLGLGSGSDGYIVVTDNDSIEKSNLNRQFLFRPKDVGKNKSEVAAEAVCAMNPDLKGKINAKIDKVGPETEEIFNDSFWESLDFVTNALDNVDARTYVDRRCVFYRKPLLESGTLGTKGNTQVIIPRLTESYSSSRDPPEKSIPLCTLRSFPNKIDHTIAWAKSLFQGYFTDSAENVNMYLTQPNFVEQTLKQSGDVKGVLESISDSLSSKPHNFEDCIKWARLEFEKKFNHDIKQLLFNFPKDAKTSNGEPFWSGAKRAPTPLEFDIYNNDHFHFVVAGASLRAYNYGIKSDDSNSKPNVDEYKSVIDHMIIPEFTPNANLKIQVNDDDPDPNANAANGSDEIDQLVSSLPDPSTLAGFKLEPVDFEKDDDTNHHIEFITACSNCRAQNYFIETADRQKTKFIAGRIIPAIATTTSLVTGLVNLELYKLIDNKTDIEQYKNGFVNLALPFFGFSEPIASPKGEYNNKKYDKIWDRFDIKGDIKLSDLIEHFEKDEGLEITMLSYGVSLLYASFFPPKKLKERLNLPITQLVKLVTKKDIPAHVSTMILEICADDKEGEDVEVPFITIHL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin-40S ribosomal protein S31
Molecular weight formula_weight	8568.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVESSDTIDNVKSKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 6 Entity 6 non-polymer

Description description	;[(1~{R},2~{R},3~{S},4~{R})-2,3-bis(oxidanyl)-4-[[2-[3-(trifluoromethylsulfanyl)phenyl]pyrazolo[1,5-a]pyrimidin-7-yl]amino]cyclopentyl]methyl sulfamate ;
Molecular weight formula_weight	519.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	664

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5l6jb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d5l6jd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (12 domains)

Domain ID domain_id	5l6jA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	80 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 1

Domain ID domain_id	5l6jA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	12550 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 2

Domain ID domain_id	5l6jA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	5l6jA04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	5l6jA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2660 — Ubiquitin-activating enzyme E1, SCCH domain

Domain ID domain_id	5l6jA06
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

Domain ID domain_id	5l6jC01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	80 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 1

Domain ID domain_id	5l6jC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	12550 — Ubiquitin-activating enzyme E1, inactive adenylation domain, subdomain 2

Domain ID domain_id	5l6jC03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	5l6jC04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	5l6jC05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	2660 — Ubiquitin-activating enzyme E1, SCCH domain

Domain ID domain_id	5l6jC06
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

▶

Unit-cell length a length_a	72.476 Å
Unit-cell length b length_b	193.920 Å
Unit-cell length c length_c	230.219 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.680 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1737
R_work r_work	0.1712
R_free r_free	0.2240
