SAXSdb — 6zqh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-activating enzyme E1 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-40S ribosomal protein S31 × 1 （P05759） BETA-MERCAPTOETHANOL × 2 GLYCEROL × 3 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-40S ribosomal protein S31 × 1 （P05759） BETA-MERCAPTOETHANOL × 2 GLYCEROL × 1 TETRAETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1024； UniProt 1–1024 Author chain C； PDBConstruct 1–1024； UniProt 1–1024

Ubiquitin-40S ribosomal protein S31

Saccharomyces cerevisiae

UniProt P05759

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） BETA-MERCAPTOETHANOL × 2 GLYCEROL × 3 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin-activating enzyme E1 1 × 1 （P22515） BETA-MERCAPTOETHANOL × 2 GLYCEROL × 1 TETRAETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RS27A_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76 Author chain D； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6zqh
Deposition date deposition_date	2020-07-09
Structure title title	Yeast Uba1 in complex with ubiquitin
Keywords keywords	Ubiquitin, E1, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6zqh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6zqh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

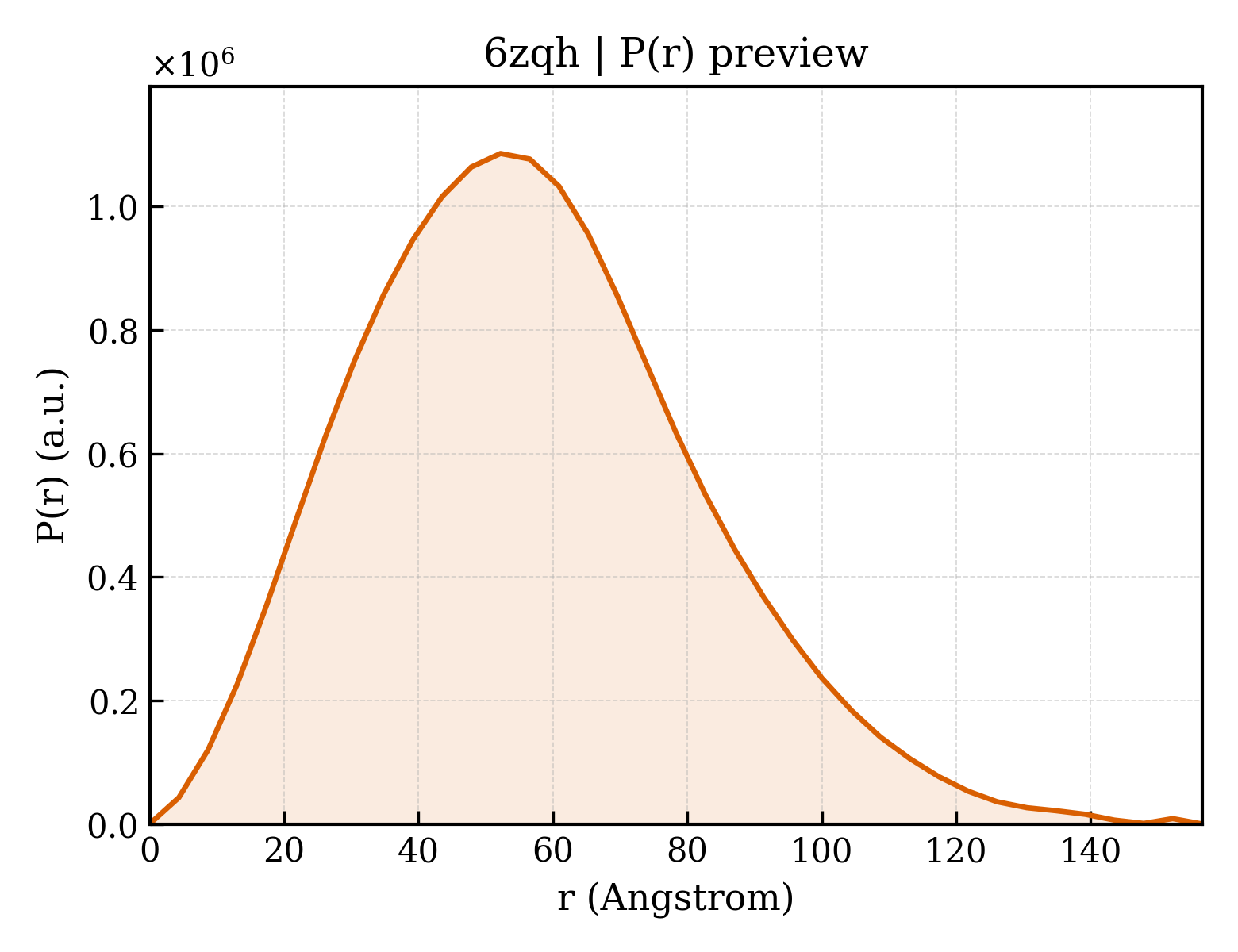

6zqh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.67 Å
Rg (electron density)	32.80 Å
Total Rg	33.38 Å
Atom count	17065
Residues	1081
Excluded volume	152780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6zqh__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6zqh__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-activating enzyme E1 1
Molecular weight formula_weight	114393.8 kDa
EC 编号 ec_number	6.2.1.45
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	36105

MSSNNSGLSAAGEIDESLYSRQLYVLGKEAMLKMQTSNVLILGLKGLGVEIAKNVVLAGVKSMTVFDPEPVQLADLSTQFFLTEKDIGQKRGDVTRAKLAELNAYVPVNVLDSLDDVTQLSQFQVVVATDTVSLEDKVKINEFCHSSGIRFISSETRGLFGNTFVDLGDEFTVLDPTGEEPRTGMVSDIEPDGTVTMLDDNRHGLEDGNFVRFSEVEGLDKLNDGTLFKVEVLGPFAFRIGSVKEYGEYKKGGIFTEVKVPRKISFKSLKQQLSNPEFVFSDFAKFDRAAQLHLGFQALHQFAVRHNGELPRTMNDEDANELIKLVTDLSVQQPEVLGEGVDVNEDLIKELSYQARGDIPGVVAFFGGLVAQEVLKACSGKFTPLKQFMYFDSLESLPDPKNFPRNEKTTQPVNSRYDNQIAVFGLDFQKKIANSKVFLVGSGAIGCEMLKNWALLGLGSGSDGYIVVTDNDSIEKSNLNRQFLFRPKDVGKNKSEVAAEAVCAMNPDLKGKINAKIDKVGPETEEIFNDSFWESLDFVTNALDNVDARTYVDRRCVFYRKPLLESGTLGTKGNTQVIIPRLTESYSSSRDPPEKSIPLCTLRSFPNKIDHTIAWAKSLFQGYFTDSAENVNMYLTQPNFVEQTLKQSGDVKGVLESISDSLSSKPHNFEDCIKWARLEFEKKFNHDIKQLLFNFPKDAKTSNGEPFWSGAKRAPTPLEFDIYNNDHFHFVVAGASLRAYNYGIKSDDSNSKPNVDEYKSVIDHMIIPEFTPNANLKIQVNDDDPDPNANAANGSDEIDQLVSSLPDPSTLAGFKLEPVDFEKDDDTNHHIEFITACSNCRAQNYFIETADRQKTKFIAGRIIPAIATTTSLVTGLVNLELYKLIDNKTDIEQYKNGFVNLALPFFGFSEPIASPKGEYNNKKYDKIWDRFDIKGDIKLSDLIEHFEKDEGLEITMLSYGVSLLYASFFPPKKLKERLNLPITQLVKLVTKKDIPAHVSTMILEICADDKEGEDVEVPFITIHL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin-40S ribosomal protein S31
Molecular weight formula_weight	8568.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVESSDTIDNVKSKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	BETA-MERCAPTOETHANOL
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1536

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6zqhb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d6zqhd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (6 domains)

Domain ID domain_id	6zqhA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	6zqhA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

Domain ID domain_id	6zqhB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	6zqhC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	180 — Ubiquitin-activating enzyme E1, FCCH domain

Domain ID domain_id	6zqhC02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	290 — Structural Genomics Hypothetical 15.5 Kd Protein In mrcA-pckA Intergenic Region; Chain A
Homologous superfamily homologous superfamily	60 — Ubiquitin-activating enzyme E1, UFD domain

Domain ID domain_id	6zqhD01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	76.868 Å
Unit-cell length b length_b	173.172 Å
Unit-cell length c length_c	214.805 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.032 Å
Low-resolution limit resolution_low	46.158 Å
R factor r_factor	0.1959
R_work r_work	0.1951
R_free r_free	0.2269
